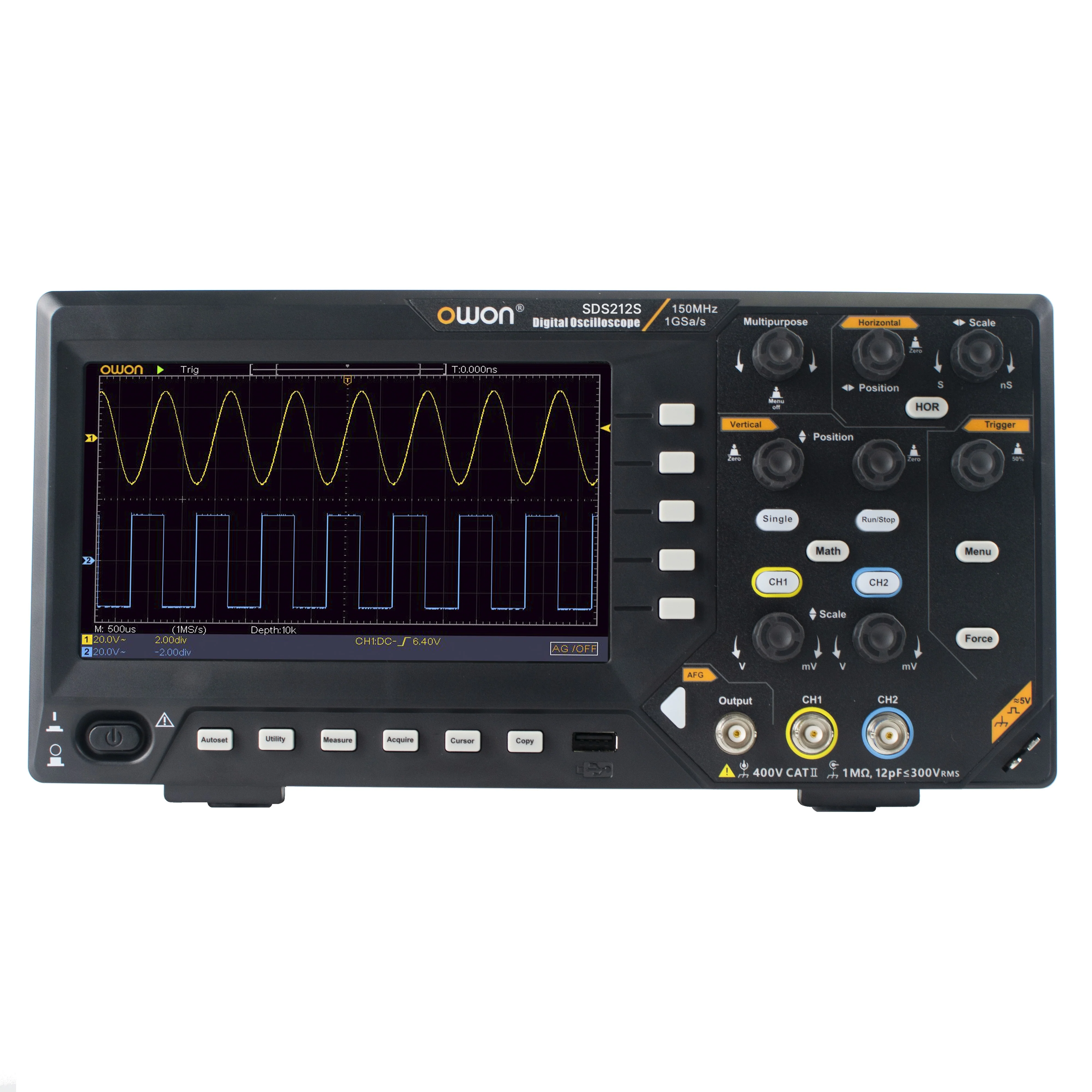

OWON SDS212S 120MHz Digital Oscilloscope 2 Channel With Function Generator

The OWON SDS212S is a versatile digital oscilloscope with a built-in function generator. Designed for both professional and educational use, this device offers a wide range of features to meet various testing and measurement needs. With a bandwidth of 120 MHz and dual-channel input, it ensures accurate signal capturing and analysis

Technical Specifications:

Bandwidth: 120 MHz
Channels: 2
Sample Rate: Up to 1 GS/s (Giga Samples per second)
Record Length: Up to 40 Mpts (Million Points) per channel
Display: 8-inch TFT-LCD, 800x600 resolution
Function Generator: Built-in with various waveform outputs (sine, square, triangle, etc.)
Trigger Modes: Edge, Pulse, Video, Slope, Alternate
Connectivity: USB Host, USB Device, LAN, and HDMI
Data Storage: Supports saving data to USB drives
Power Supply: AC 100-240V, 50/60Hz

Features:

High Bandwidth and Sampling Rate: Captures high-frequency signals with precision.
Dual-Channel Input: Enables simultaneous analysis of two signals.
Large Record Length: Provides detailed waveform capture for extended durations.
Built-in Function Generator: Combines oscilloscope and function generator in one device.
User-Friendly Interface: Features a clear, intuitive 8-inch TFT-LCD display.
Comprehensive Connectivity: Offers USB, LAN, and HDMI for easy data transfer and remote operation.
Compact and Portable: Lightweight design for convenient fieldwork.
Wide Range of Trigger Modes: Ensures accurate capture of specific signal events.
Cost-Effective: Reduces equipment costs by integrating two devices.
Educational Utility: Ideal for teaching and learning electronics concepts.

Applications:

Education: Ideal for teaching basic and advanced electronics concepts.
Research and Development: Useful for developing and testing new electronic devices and systems.
Manufacturing and Quality Control: Helps in the inspection and maintenance of electronic components and circuits.
Field Service: Compact and portable, suitable for on-site diagnostics and repairs.
Hobbyists and Makers: Provides high-quality measurements for DIY projects and experiments.

Package Includes:

OWON SDS212S Digital Oscilloscope
Probes : High-quality probes for accurate signal measurement.
Power Adapter: AC power supply for the oscilloscope.
USB Cable: For data transfer and connectivity.
User Manual: Detailed guide for setup and operation.
Software CD/Download Link: For advanced data analysis and remote control.
