EGS002 EG8010+IR2113 SPWM Sine Wave Display

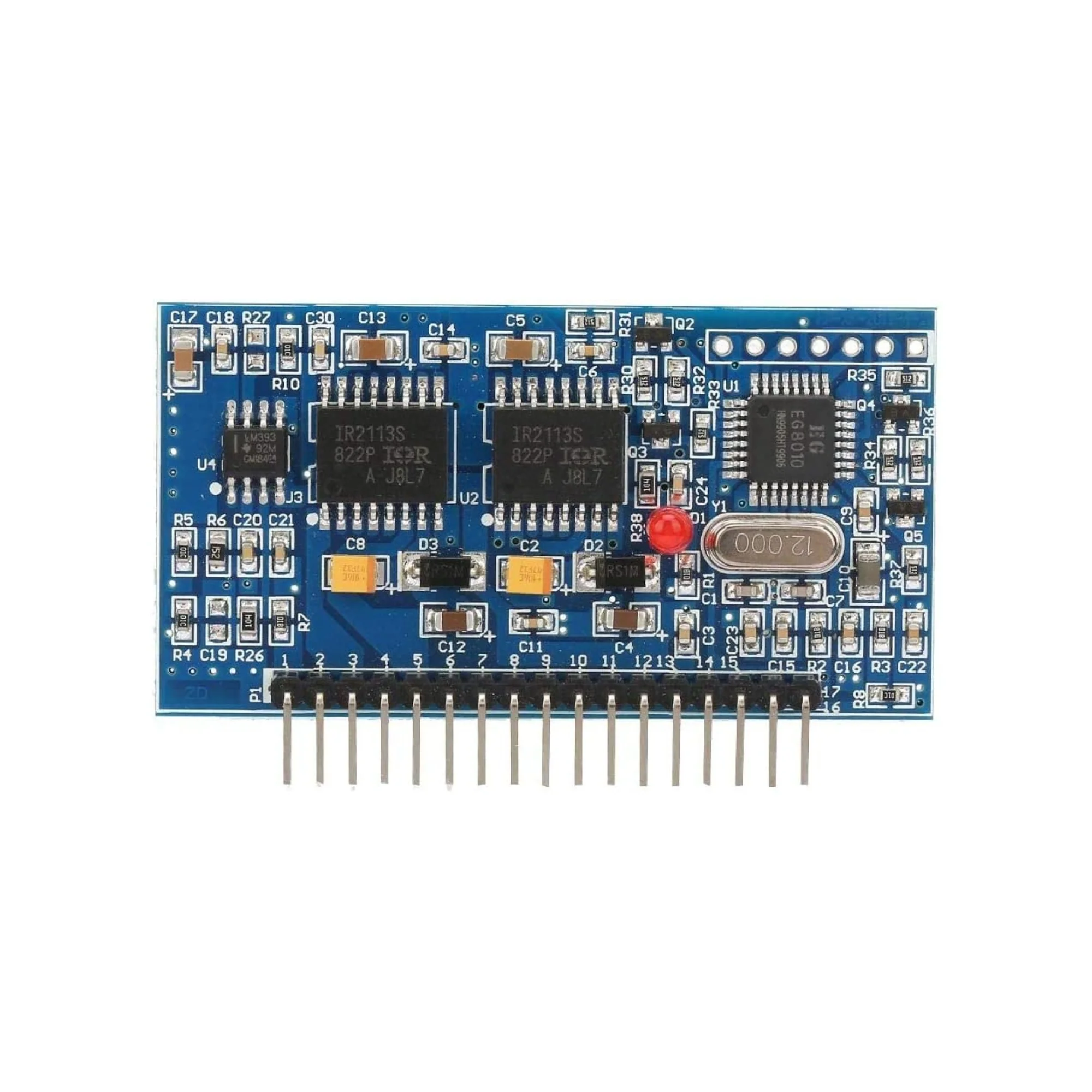

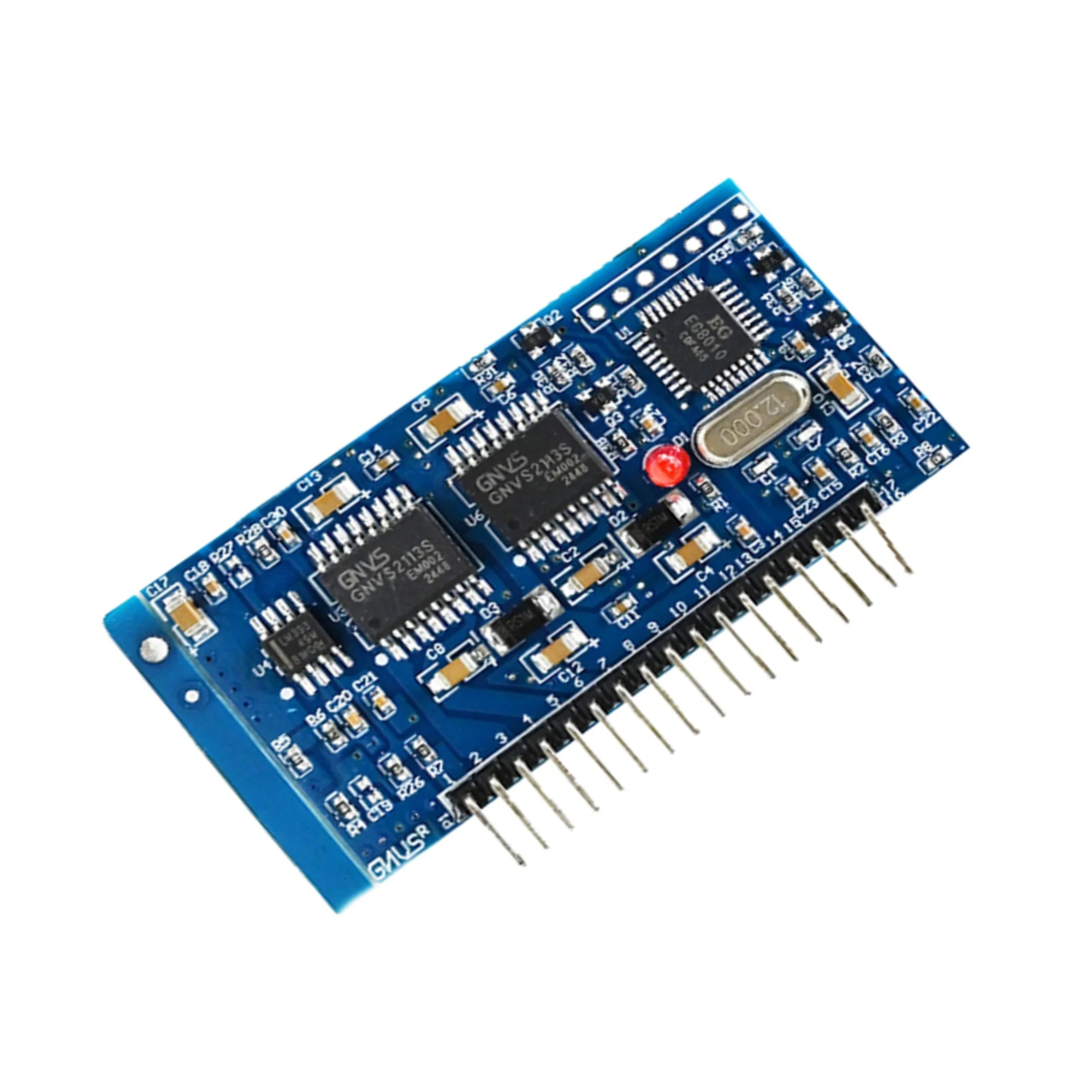

The EGS002 module is a dedicated SPWM (Sinusoidal Pulse Width Modulation) control board designed for pure sine wave inverter applications. It integrates the EG8010 digital sine wave controller with dual IR2113 high/low-side gate driver ICs to generate stable, high-quality sine wave outputs. This module is commonly used in DC to AC inverter systems, providing precise control, protection features, and reliable performance.

Technical Specifications:

Controller IC: EG8010 digital SPWM controller
Gate driver ICs: 2 × IR2113 high/low-side drivers
Output waveform: Pure sine wave (SPWM)
Supported inverter types: Single-phase full-bridge or half-bridge
Oscillator frequency: 12 MHz crystal
Output frequency: 50 Hz / 60 Hz selectable
Dead time control: Adjustable via onboard settings
Protection functions: Over-voltage, under-voltage, over-current, over-temperature
Supply voltage: Typically 12V DC
Interface: Pin headers for control signals and feedback

Features:

High-precision SPWM pure sine wave generation
Integrated gate drivers for direct MOSFET or IGBT control
Supports 50 Hz and 60 Hz output frequency selection
Built-in multiple protection mechanisms for safe operation
Stable and low-distortion output suitable for sensitive loads
Compact and ready-to-use inverter control solution

Applications:

Pure sine wave DC–AC inverters
Solar power inverter systems
UPS and backup power supplies
Home and industrial inverter designs
DIY and commercial power electronics projects

Waveform Generator Module

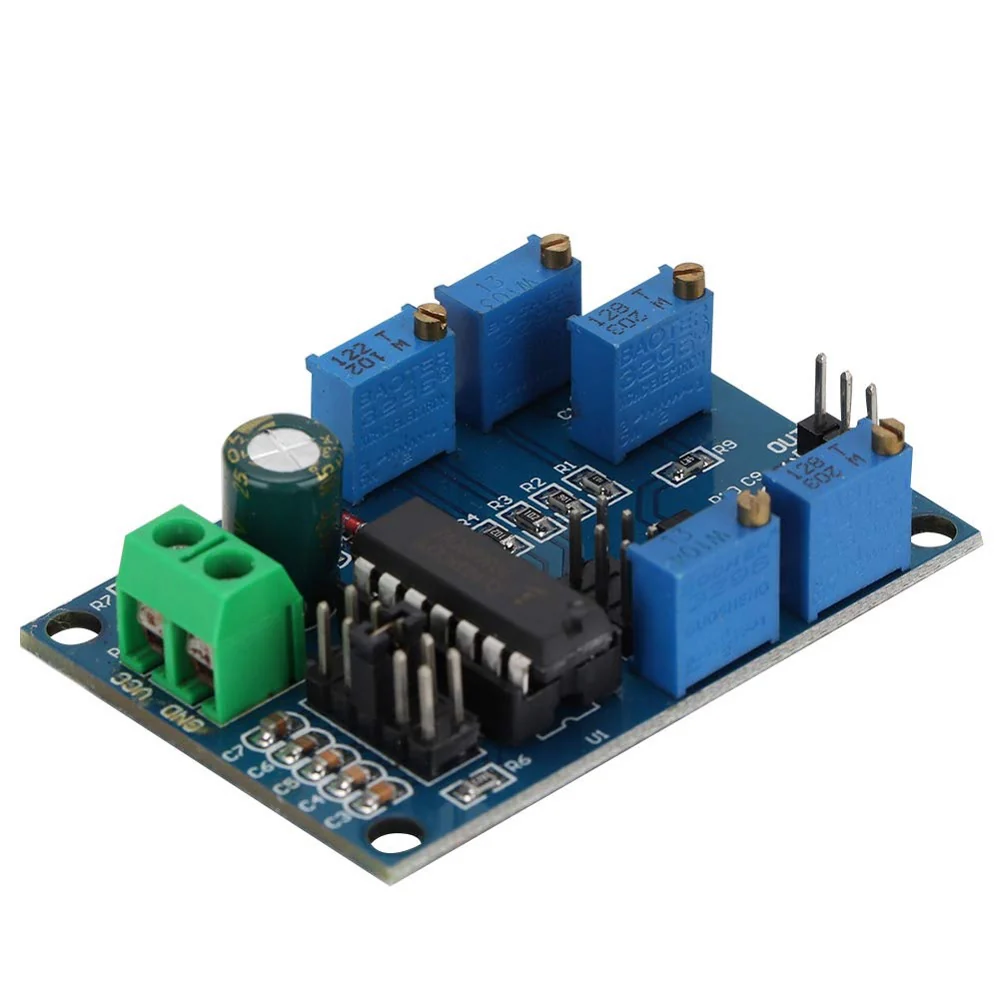

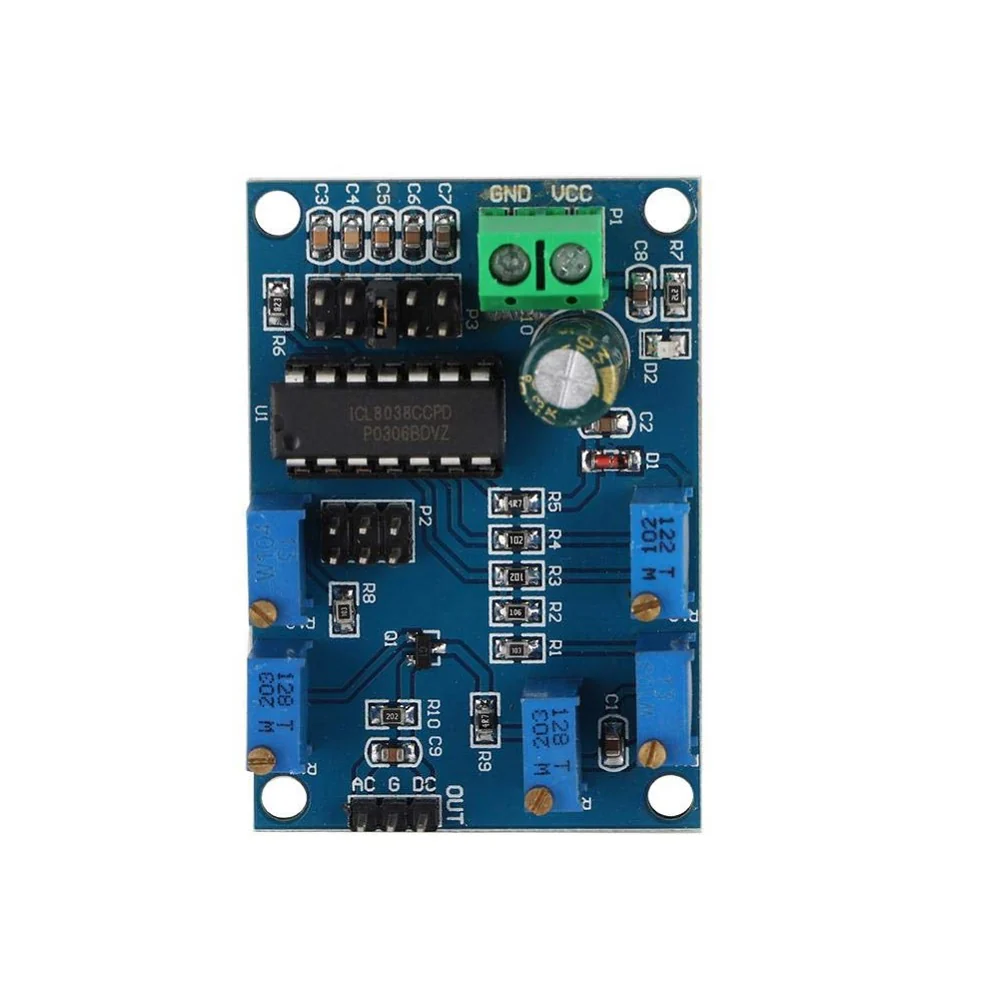

ICL8038 12V to 15V, Signal Generator, Medium/Low Signal, Frequency 10Hz-450KHz, Triangular/Rectangular/Sine Wave Generator Module

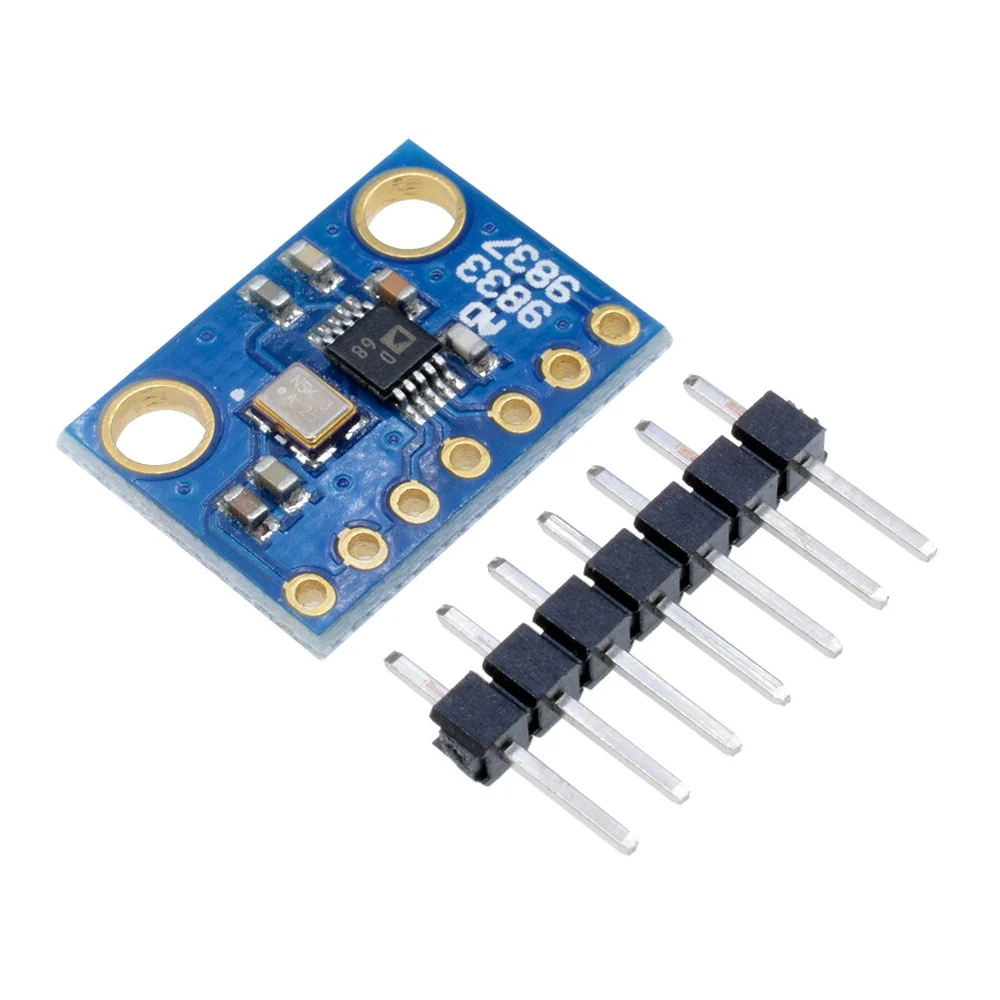

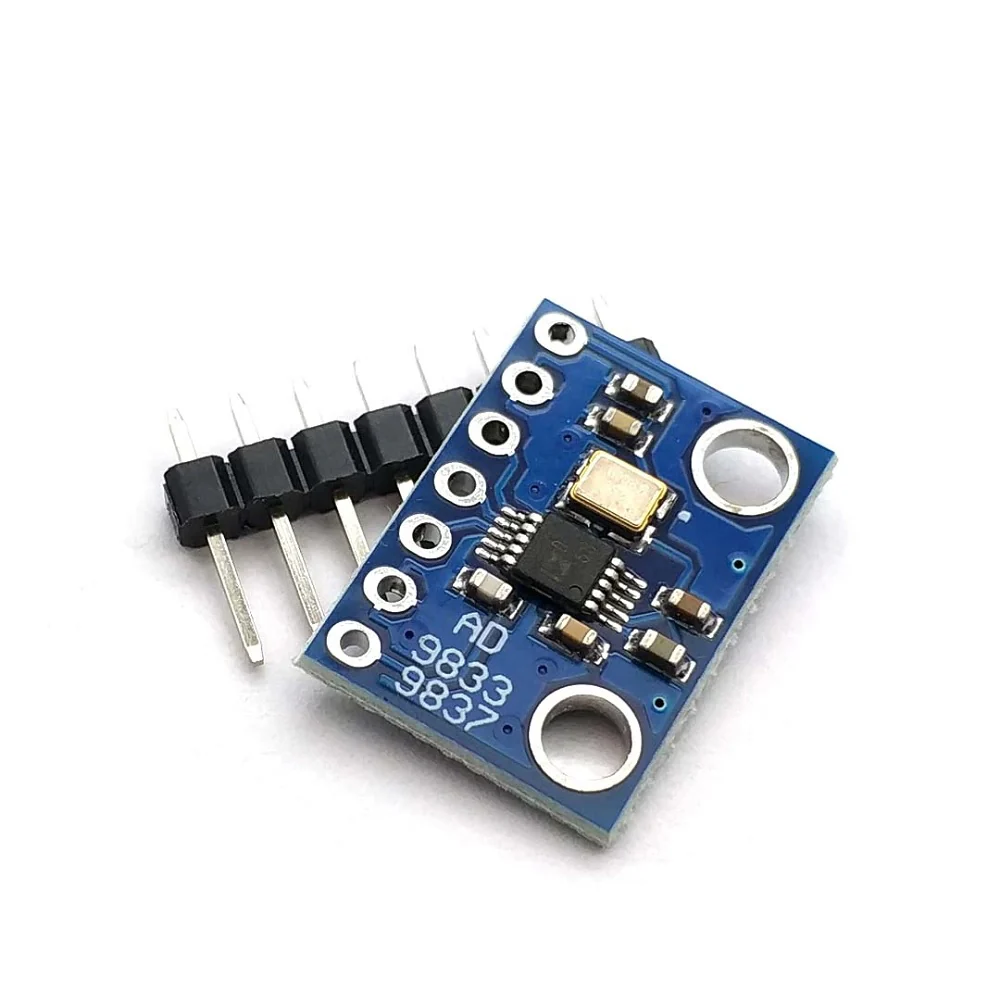

GY-9833 AD9833 Programmable Sine Square Wave DDS Signal Generator
