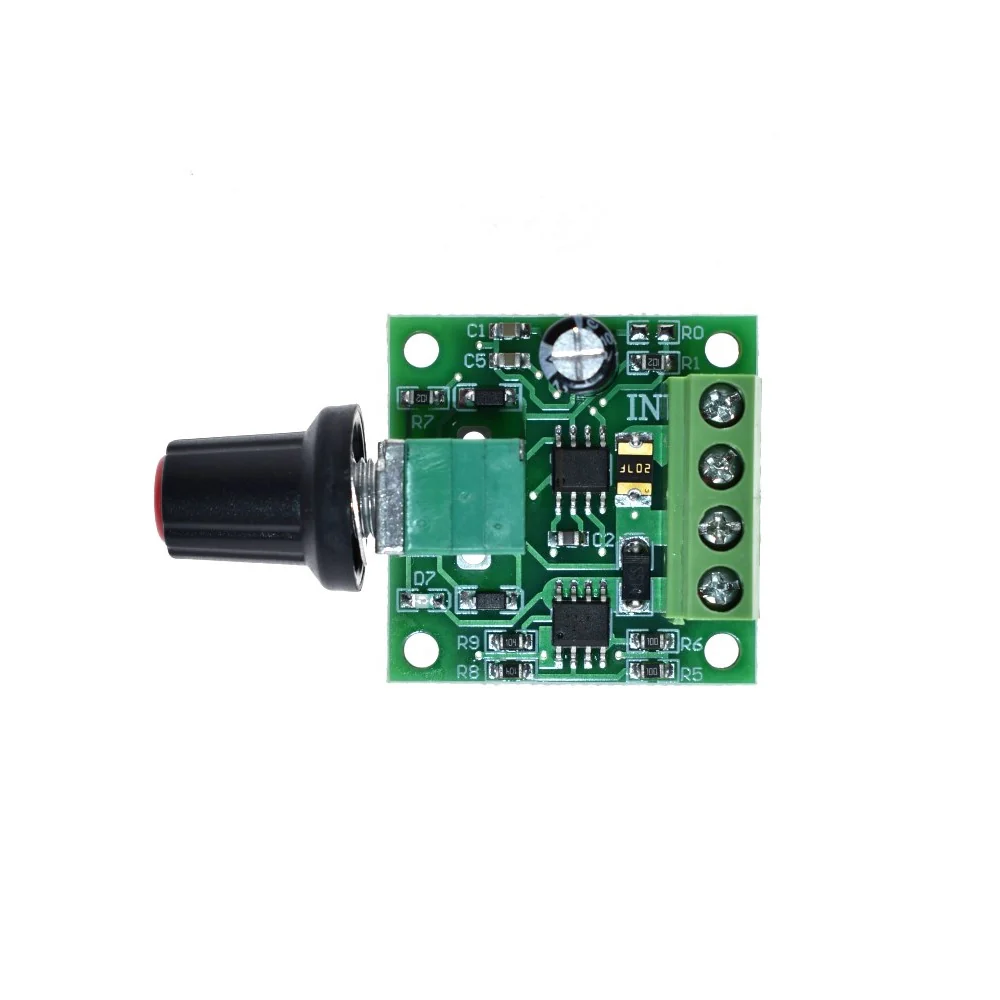

This High Power DC Motor Speed Controller lets you control the speed of a DC motor using a Pulse Width-Modulated (PWM) DC voltage.

Technical Specification:

• Input Voltage Range: 1.8V- 15V DC
• The maximum output power: 30W
• Output current: 2A(Max)
• Output current: 2A(Max)
• Duty Cycle adjustable: 5%-100%
• Diameter of PCB holes: 3mm
• Pitch of screw terminal block: 5.08mm
• Size:32mm*50mm*15mm (L*W*H)

Features:

• With resettable fuse
• Equipped with LED indicator
• Potentiometer with switch function for PWM adjustment

 Applications:

• For Speed Control Of all Types of DC Brush Motors
• For Controlling Automotive Cooling Fan Speed, Auto Fan Speed, Windshield Wipers, Auto Air Conditioning.
