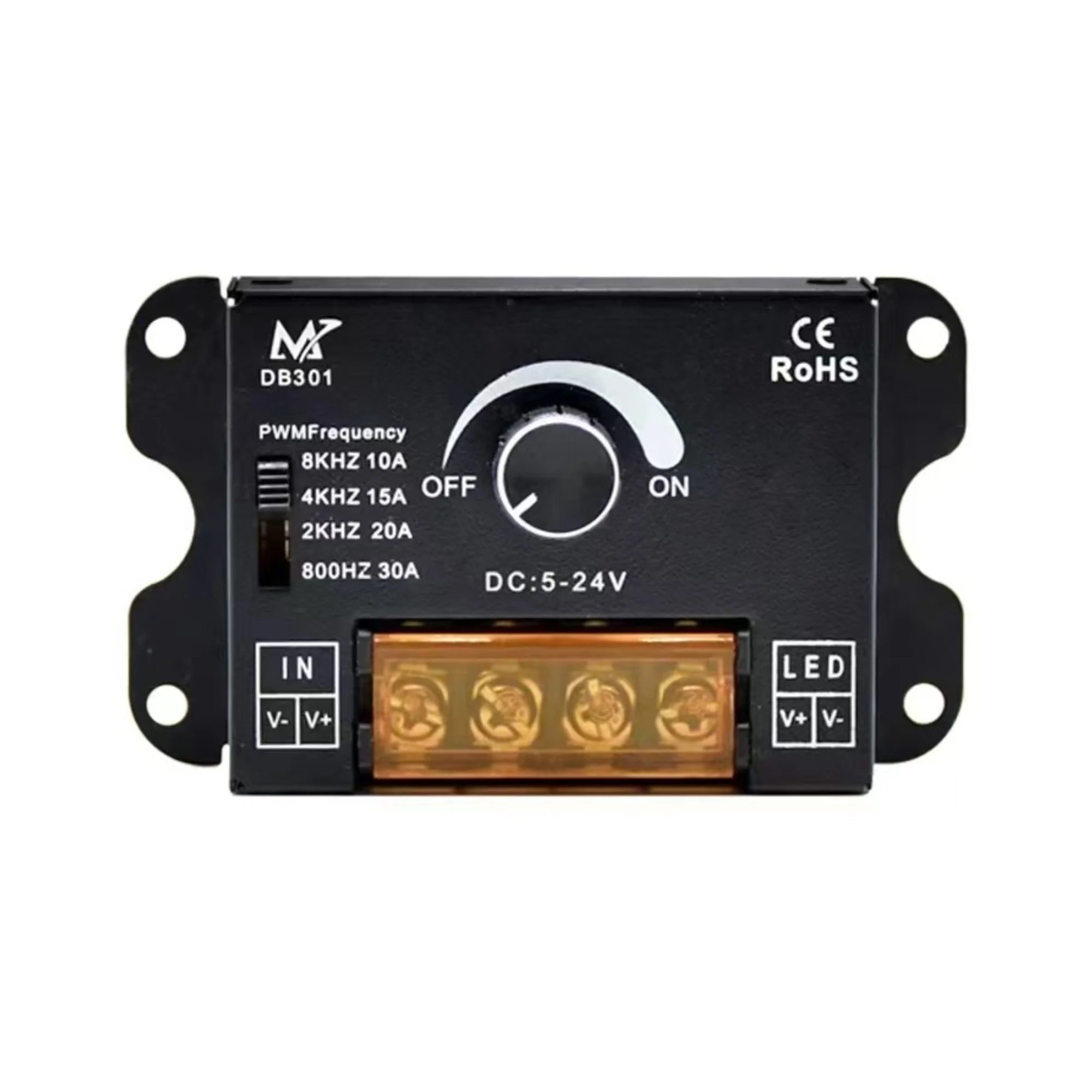

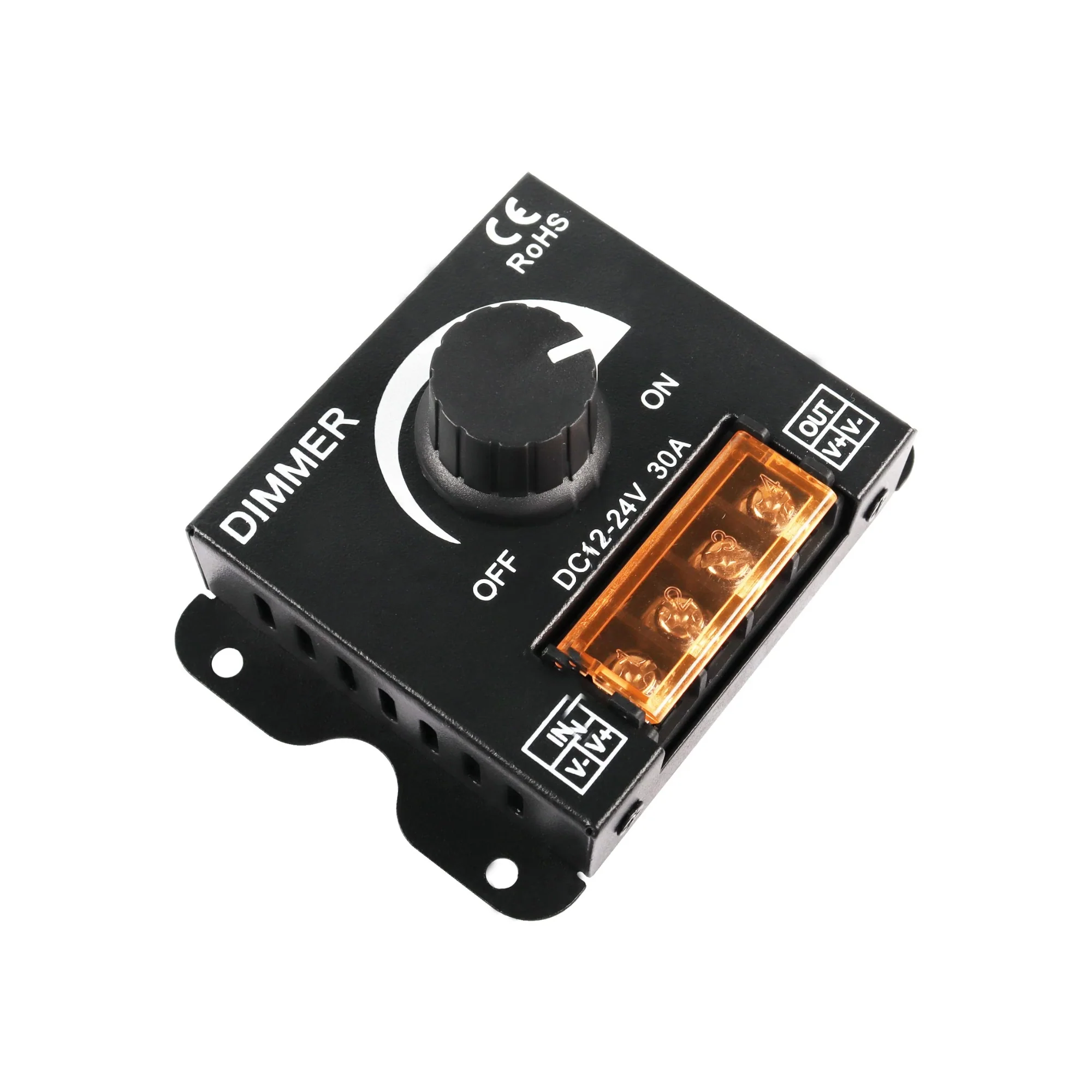

DC 12V-24V 30AMP LED Light Dimmer Switch Module

This high-power DC PWM dimmer module is designed to control the brightness of LED lights or the speed of DC loads smoothly and efficiently. It features a rotary control knob, sturdy metal enclosure, and screw terminals for secure connections, making it suitable for both DIY and industrial applications.

Technical Specifications:

• Input Voltage: DC 12–24V

• Maximum Current: 30A

• Control Method: PWM (Pulse Width Modulation)

• PWM Frequency: 800Hz / 2kHz / 4kHz / 8kHz (model dependent)

• Maximum Power: Up to 720W (at 24V)

• Control Type: Rotary knob with ON/OFF function

• Terminal Type: Screw terminals (V+, V−)

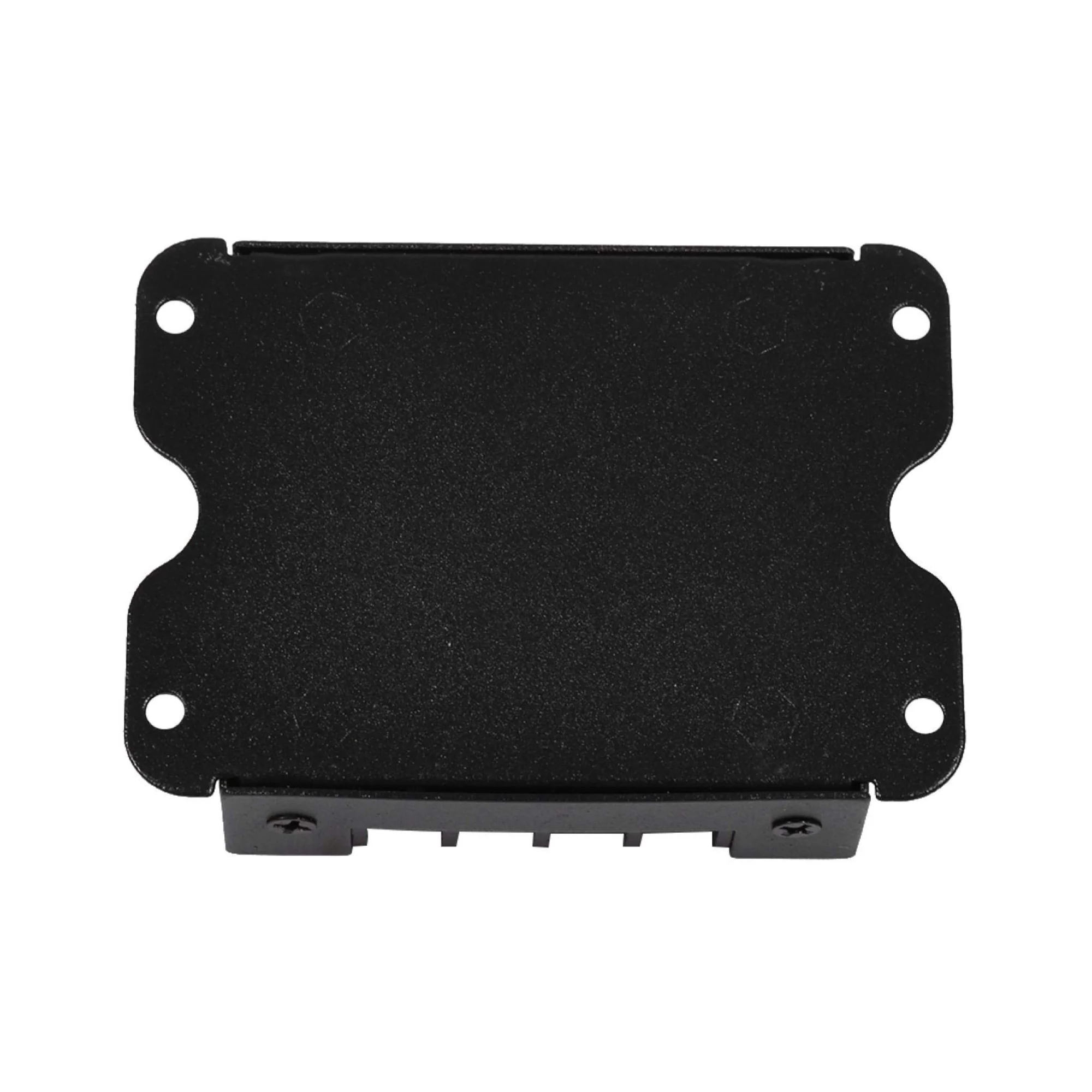

• Enclosure: Metal body with mounting holes


Features:

• Smooth and flicker-free dimming

• Supports high current up to 30A

• Wide operating voltage range

• Durable metal casing for better heat dissipation

• Easy to install and operate

• Adjustable PWM frequency for different loads

Applications:

• LED strip and panel brightness control

• DC motor speed control

• Automotive lighting systems

• DIY electronics projects

• Industrial DC load control
