15CM PCB Ruler For Electronic Engineers Measuring Tool PCB Reference Ruler Chip IC SMD Diode Transistor Package Electronic
15CM PCB Ruler For Electronic Engineers Measuring Tool PCB Reference Ruler Chip IC SMD Diode Transistor Package Electronic

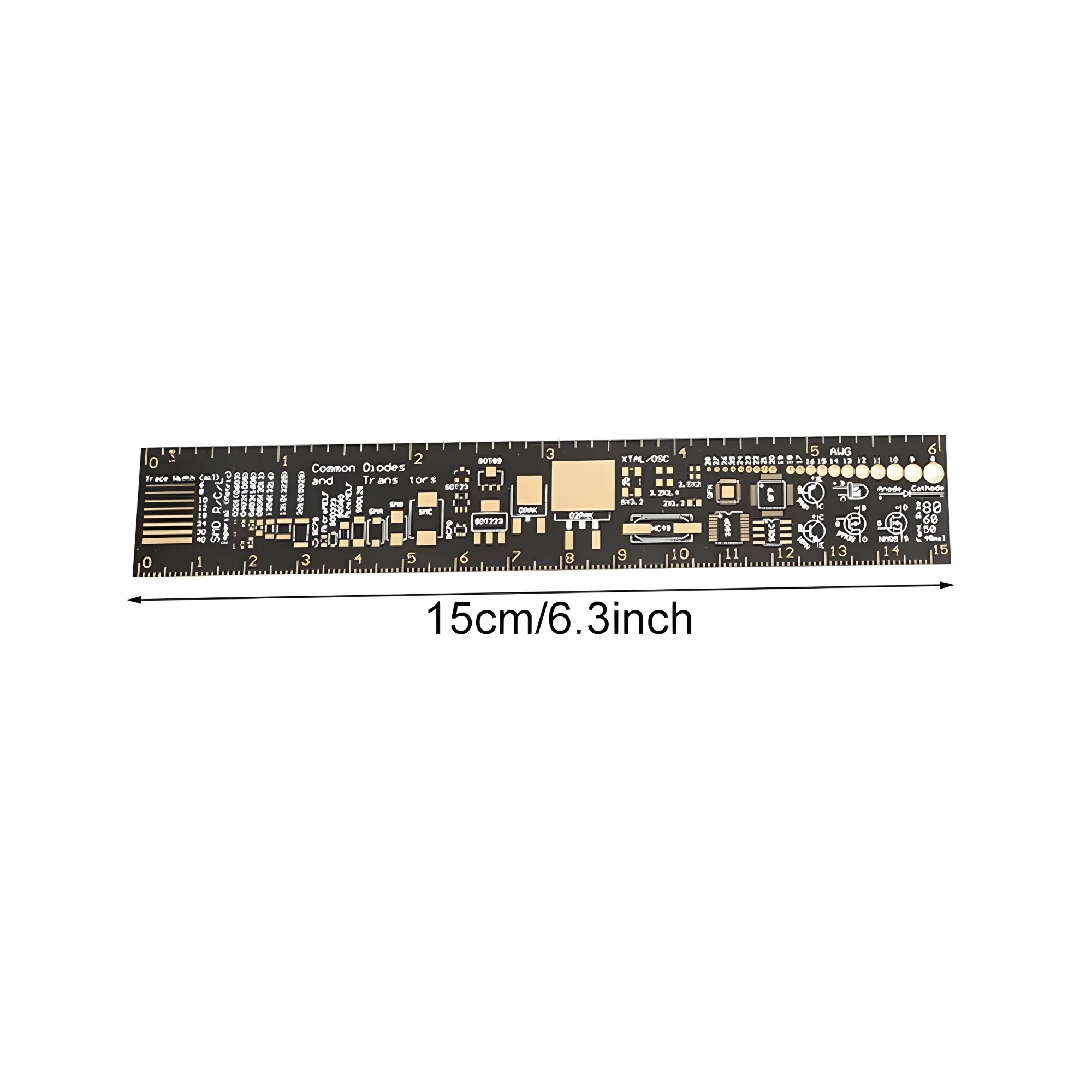

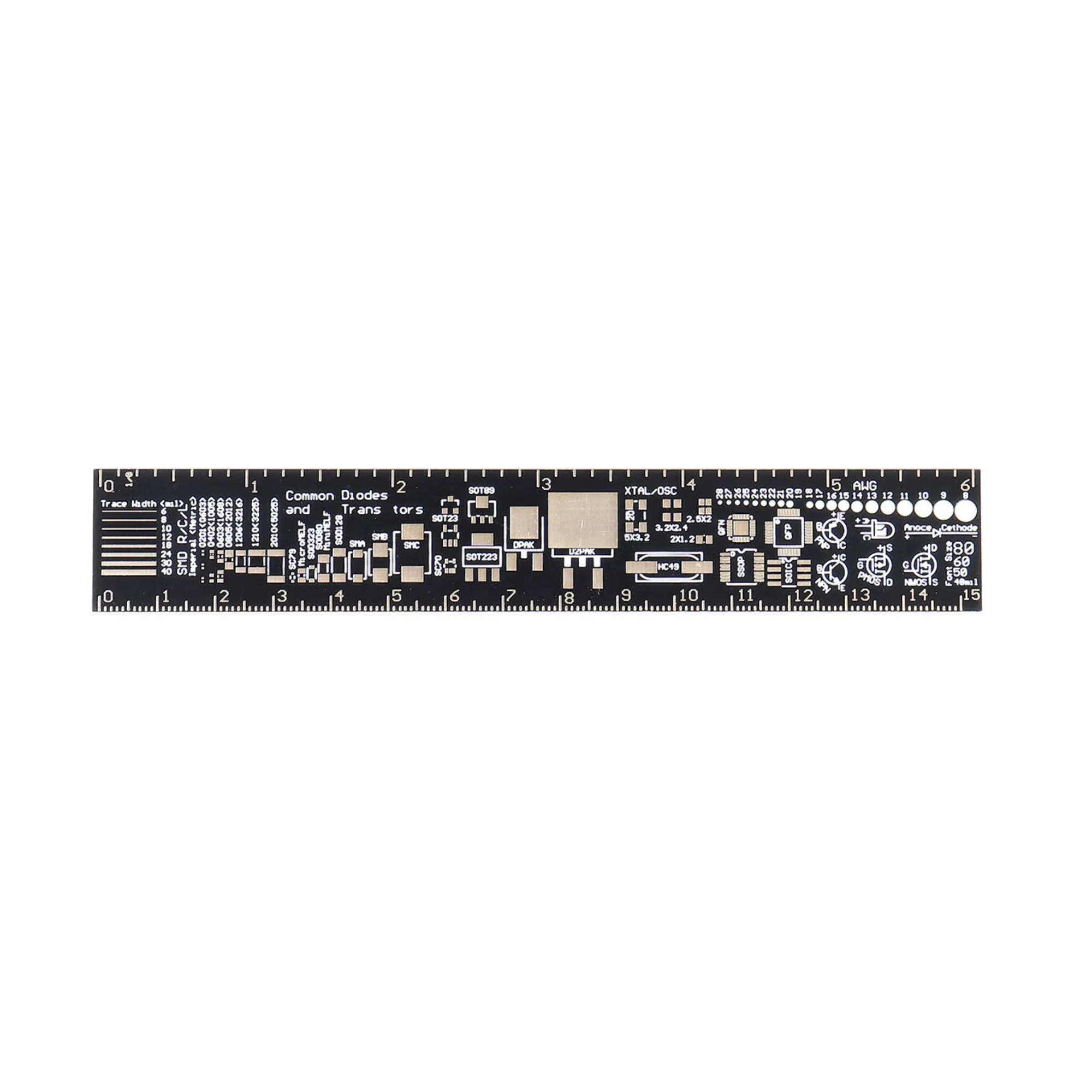

The 15CM PCB SMD Reference Ruler is a precision measuring and component reference tool designed for electronic engineers and PCB designers. Manufactured from durable FR-4 PCB material, it combines a 150 mm metric ruler with detailed surface-mount package outlines, including QFP, QFN, BGA, and SOP footprints. This compact tool allows quick size comparison, pitch verification, and layout referencing during PCB design and prototyping.
Technical Specifications:
- Length: 150 mm (15 cm)
- Material: FR-4 fiberglass PCB
- Thickness: Approx. 1.6 mm
- Measurement units: Millimeters (mm)
- Surface finish: Gold/white silkscreen on black PCB

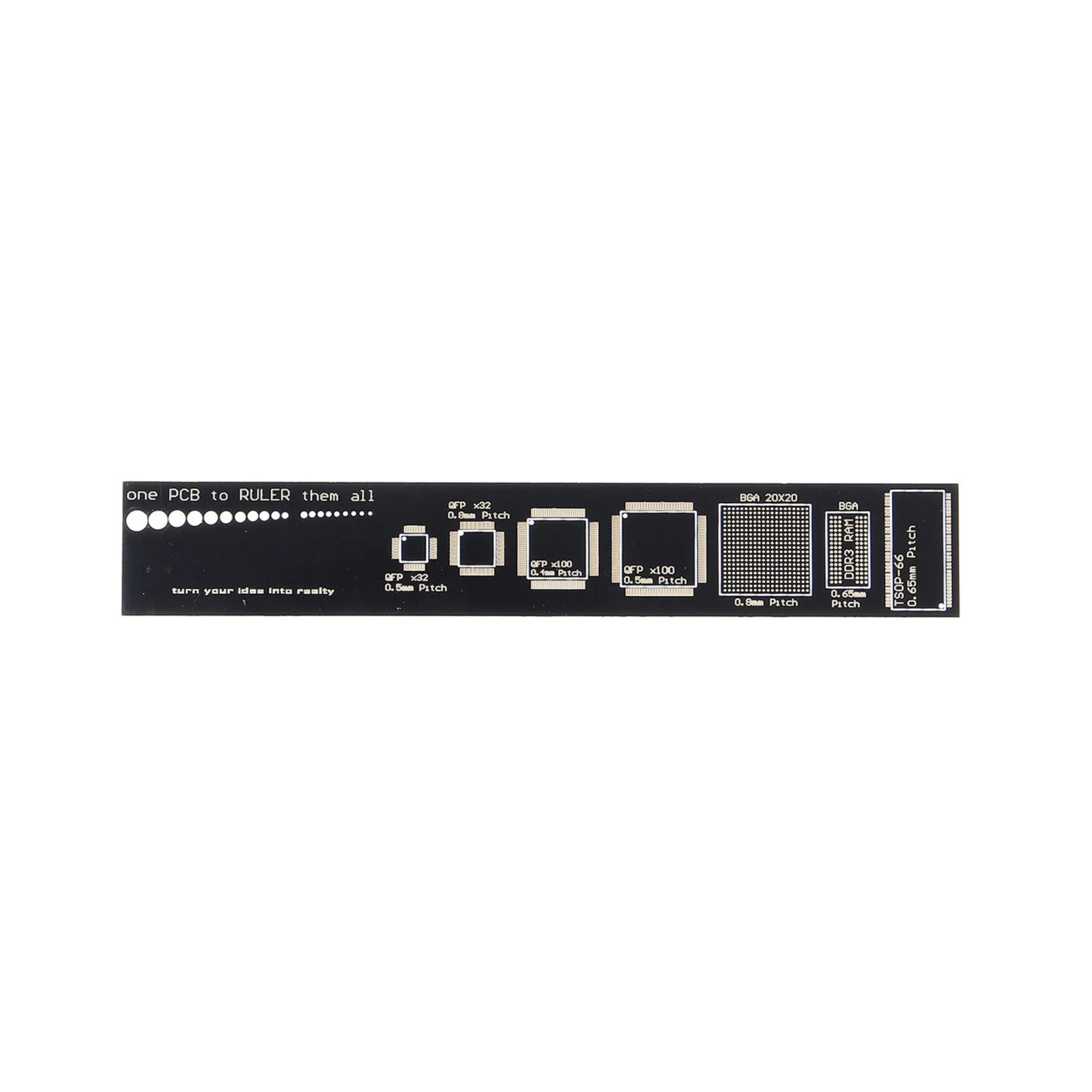

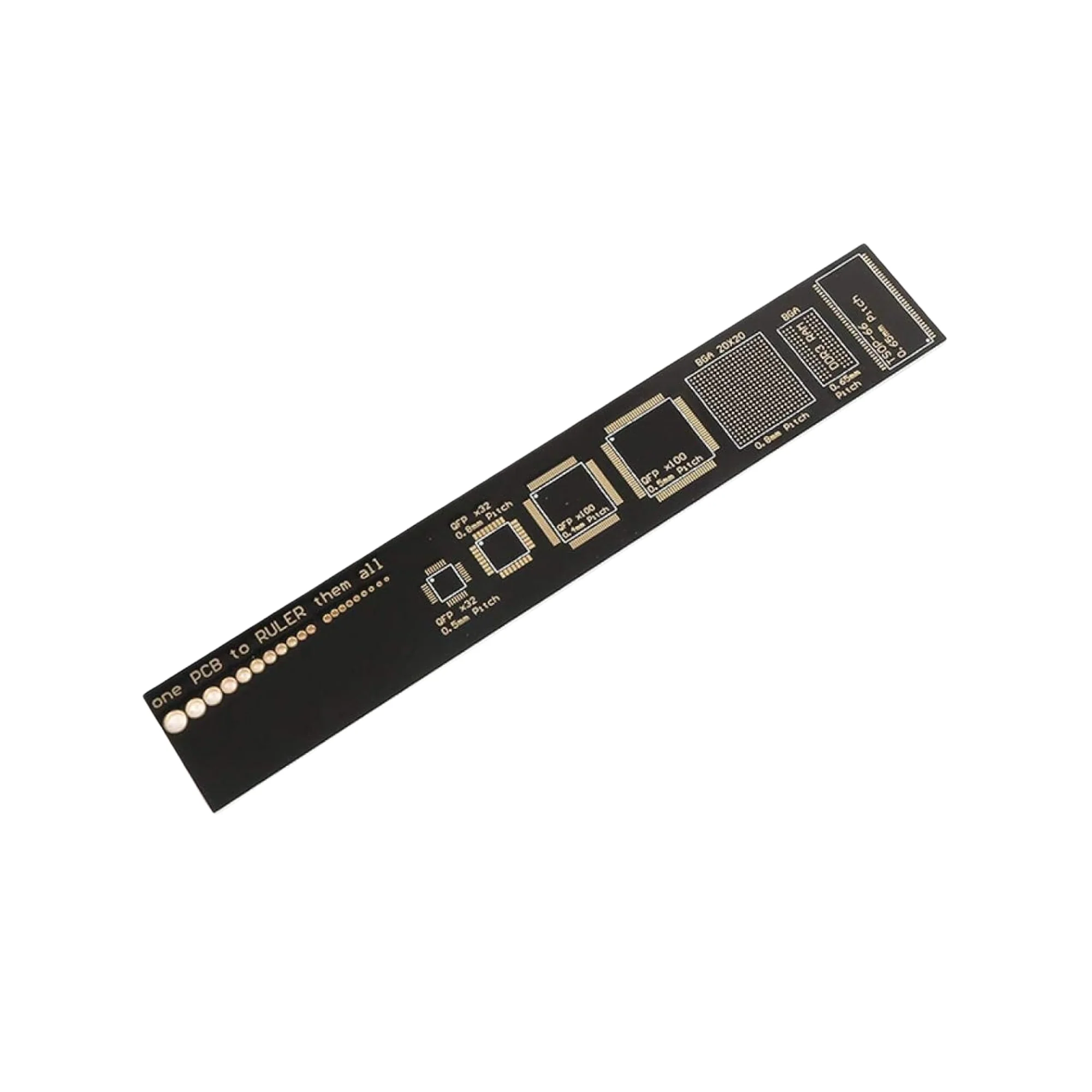

- Reference types: QFP, QFN, BGA, SOP, TSOP packages
- Pin pitch references: Multiple common pitch sizes (e.g., 0.5 mm, 0.65 mm, 0.8 mm)
- PCB hole reference: Multiple drill size samples
Features:
- 15 cm precision metric scale
- Integrated SMD package footprint references
- Common QFP, QFN, BGA, and SOP outline guides
- Pin pitch comparison markings
- Component size verification tool
- Durable PCB construction
- Slim and lightweight design
- Ideal for bench-top quick reference
Applications:
- PCB layout and footprint verification
- SMD component identification
- Electronics prototyping
- Hardware design validation
- Engineering laboratories
- Educational and training environments
