16 x WS2812 Round RGB LED Module
16 x WS2812 Round RGB LED Module

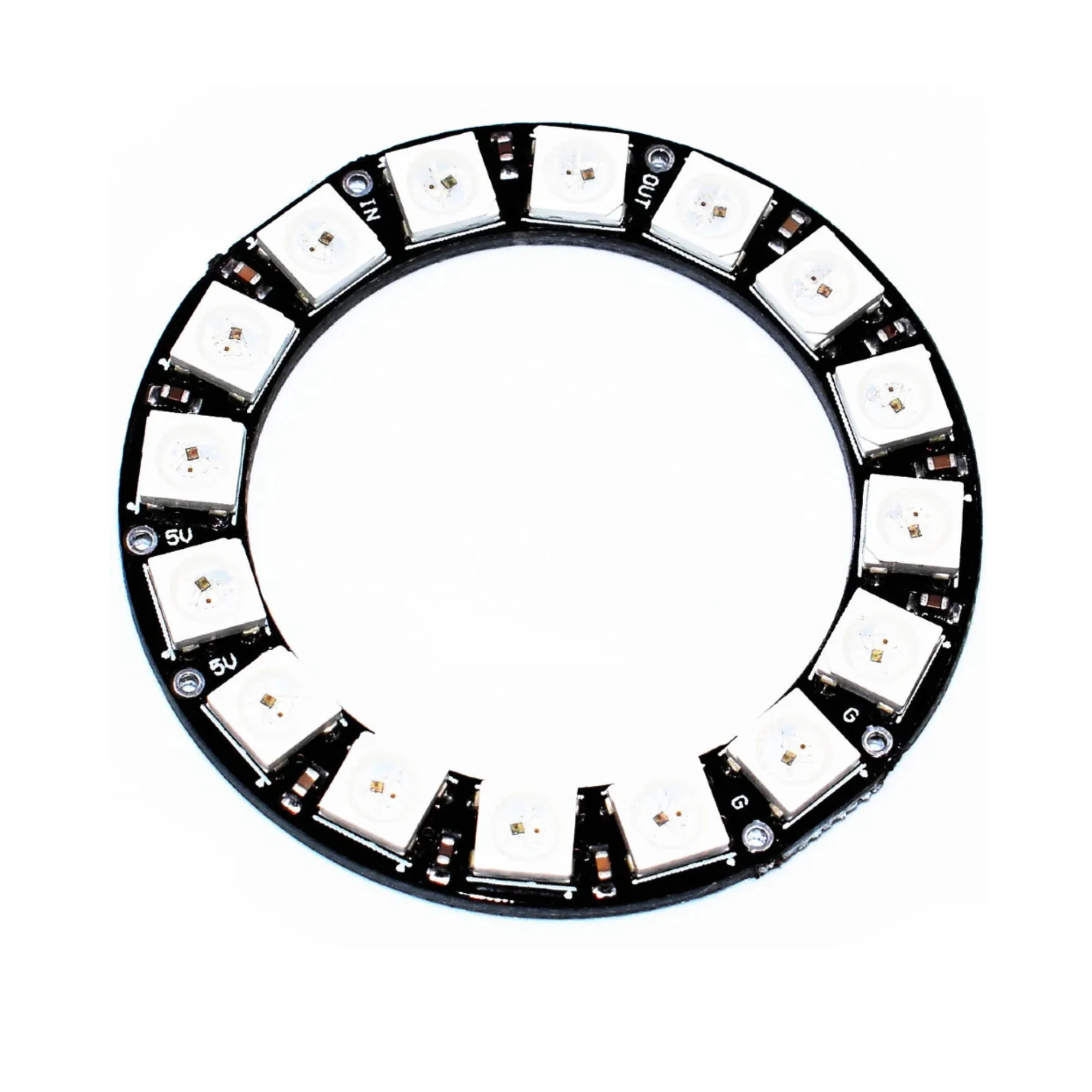

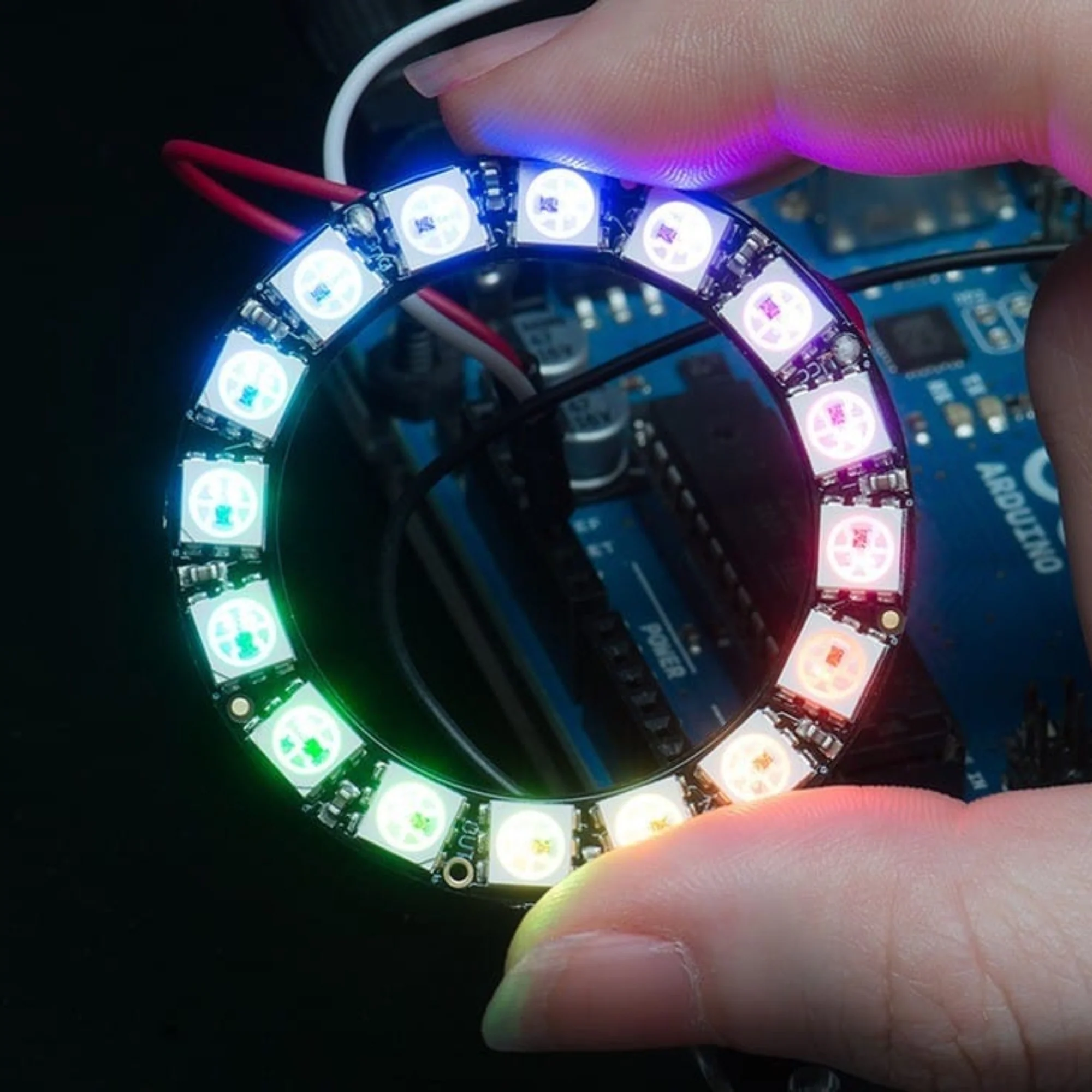

The 16× WS2812 Round RGB LED Module is a circular addressable LED ring made using WS2812 (WS2812B) smart RGB LEDs. Each LED has a built-in driver IC, enabling individual control of color and brightness through a single data line. Its round shape is ideal for radial lighting effects, visual indicators, and decorative illumination in electronics and DIY projects.
Technical Specifications:
- LED Type: WS2812 / WS2812B
- Number of LEDs: 16
- Operating Voltage: 5 V DC
- Control Interface: Single-wire serial data (DIN / DOUT)
- Color Depth: 24-bit (8-bit Red, Green, Blue per LED)
- PWM Resolution: 256 levels per color
- Maximum Current: ~60 mA per LED at full white (≈960 mA total)

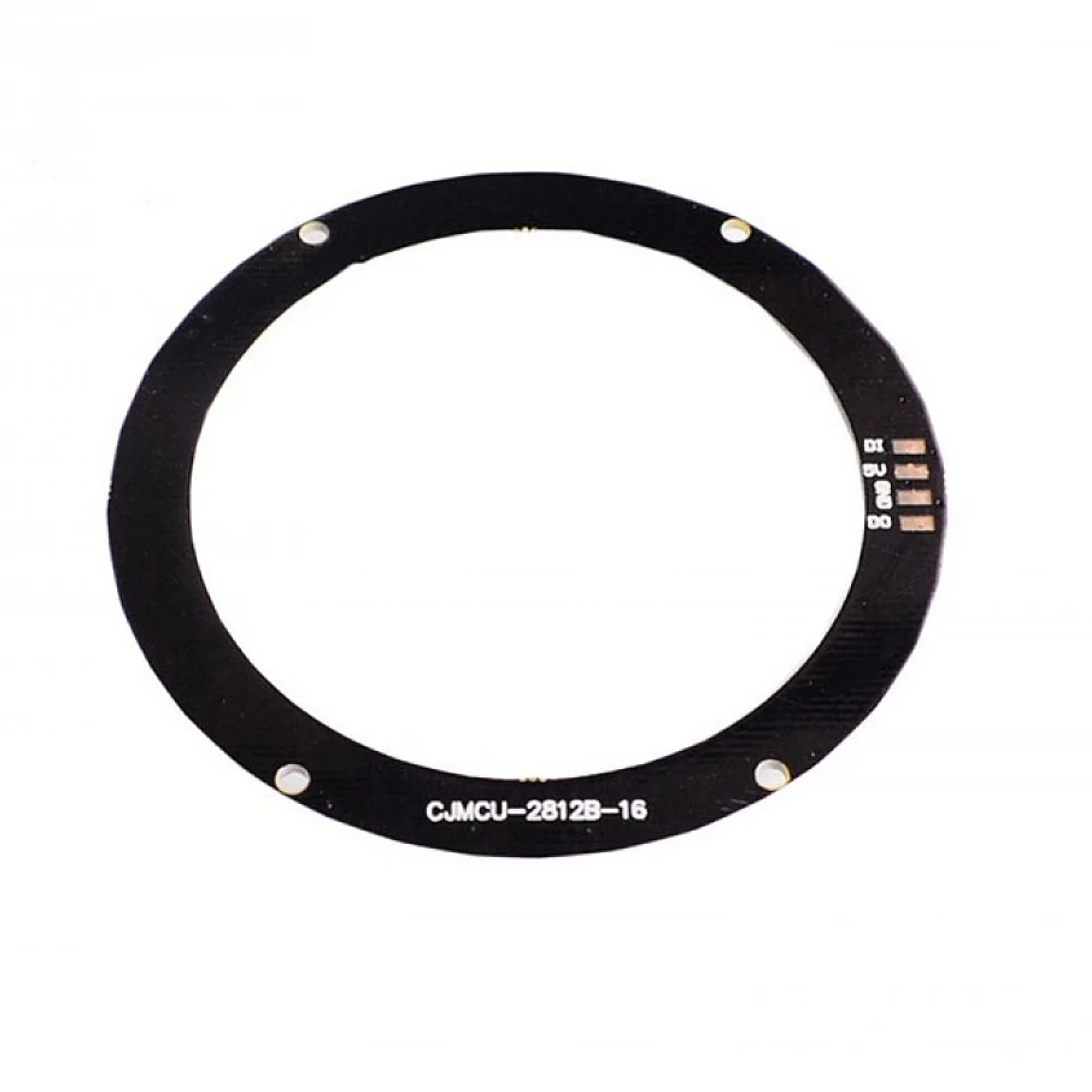

- PCB Shape: Circular ring
- Mounting: Multiple mounting holes
- Signal Direction: Marked DIN → DOUT
- Controller Compatibility: Arduino, ESP32, ESP8266, Raspberry Pi (logic-level shifting may be required)
Features:
- Individually addressable RGB LEDs
- Single data line control simplifies wiring
- Smooth color mixing and animation effects
- Compact circular design for uniform lighting
- Daisy-chain support with other WS2812 modules
- Extensive library support (NeoPixel, FastLED)
- Minimal external components required
Applications:
- Decorative and ambient lighting
- LED clocks and circular displays
- Robotics status and feedback indicator
- Wearable electronics
- IoT and smart home projects
- Gaming and PC mod lighting
- Educational, training, and prototyping projects
