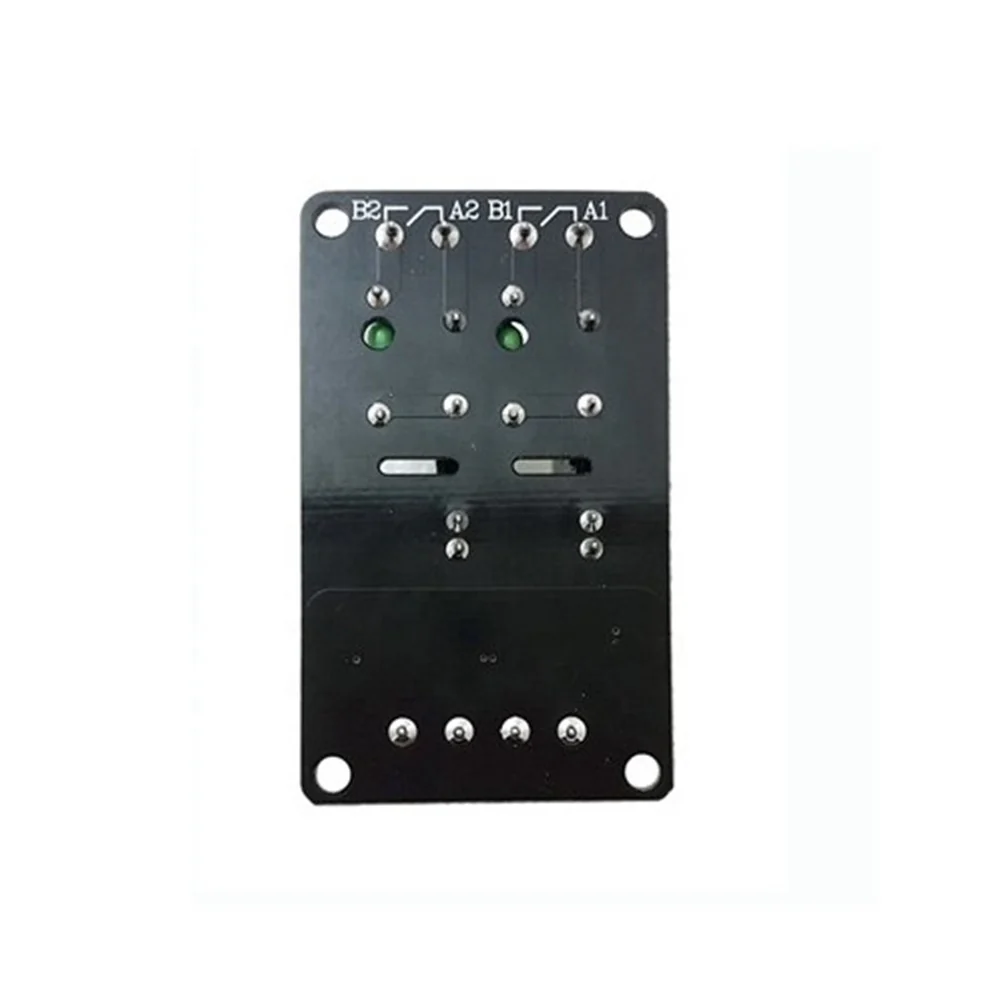

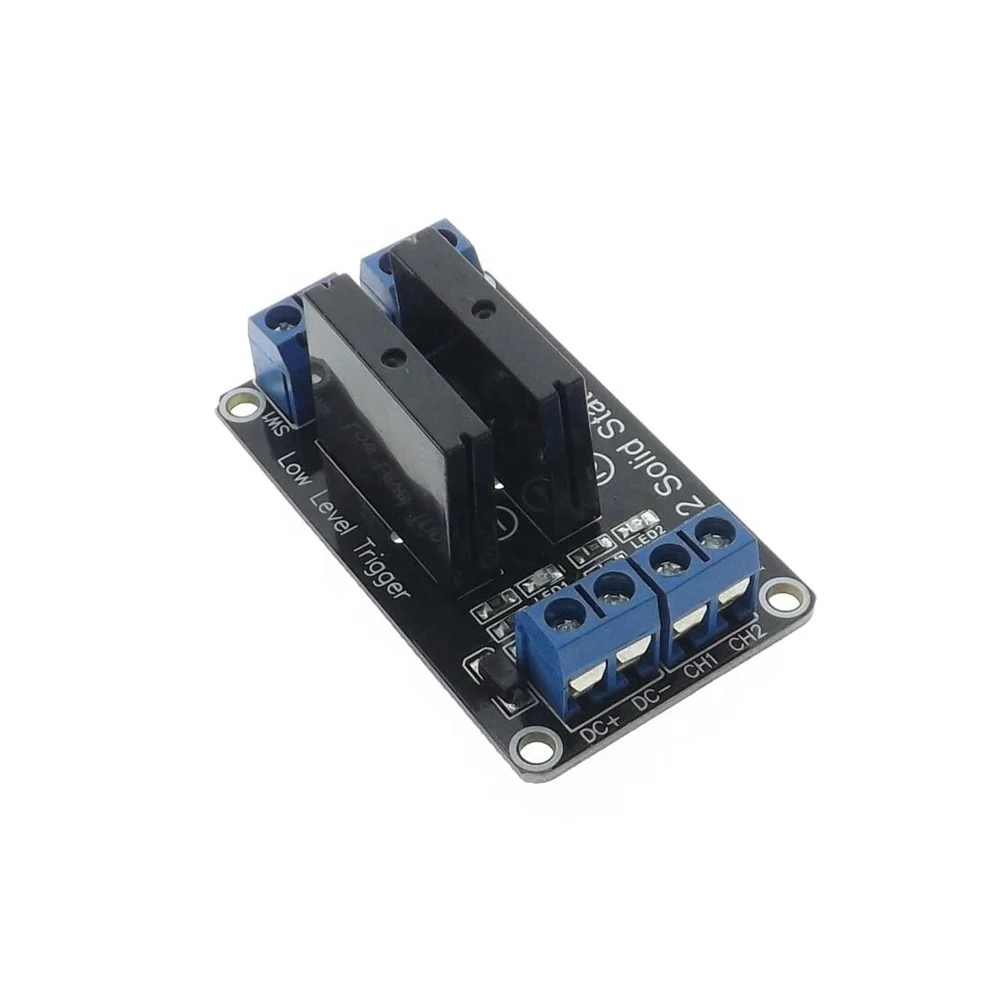

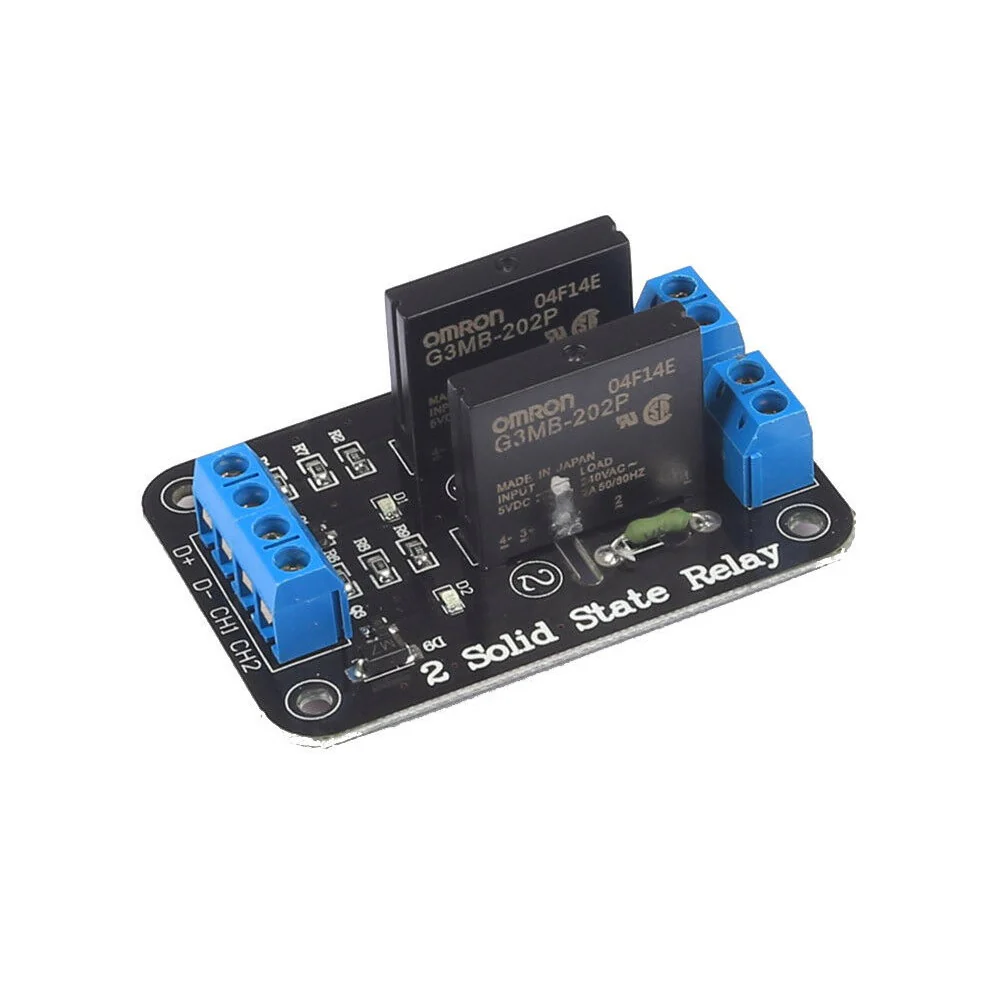

2 Channel 5V SSR G3MB-202P 2A Solid State Relay Module
A Solid State Relay (SSR) is a relay that does not have a moving contact. In terms of operation, SSRs are not very different from mechanical relays that have moving contacts. SSRs, however, employ semiconductor switching elements, such as thyristors, triacs, diodes, and transistors. This SSR module control 2 load of up to 2 amps at 120~240VAC per channel.
Technical Specification:
- Voltage: 5V
- Working Current: 16mA
- Isolation: Phototriac
- Load: 2A @240V AC
- Size: 55mm*33mm*25mm (L*W*H)
- Load type: General purpose
Features:
- Led indicator for each relay
- It can be controlled directly by Microcontroller
Applications:
- Can be used to turn things on and off
- Can be used to control various appliances and other equipment with a large current
