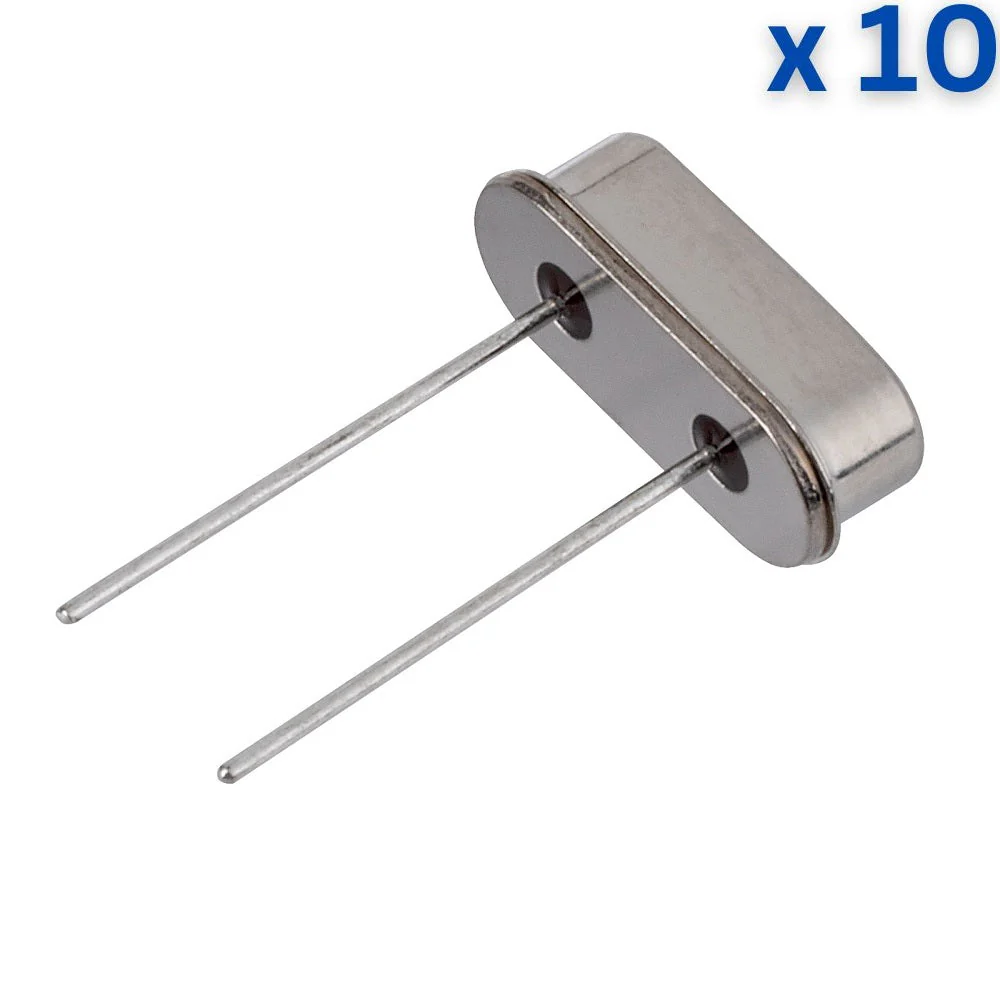

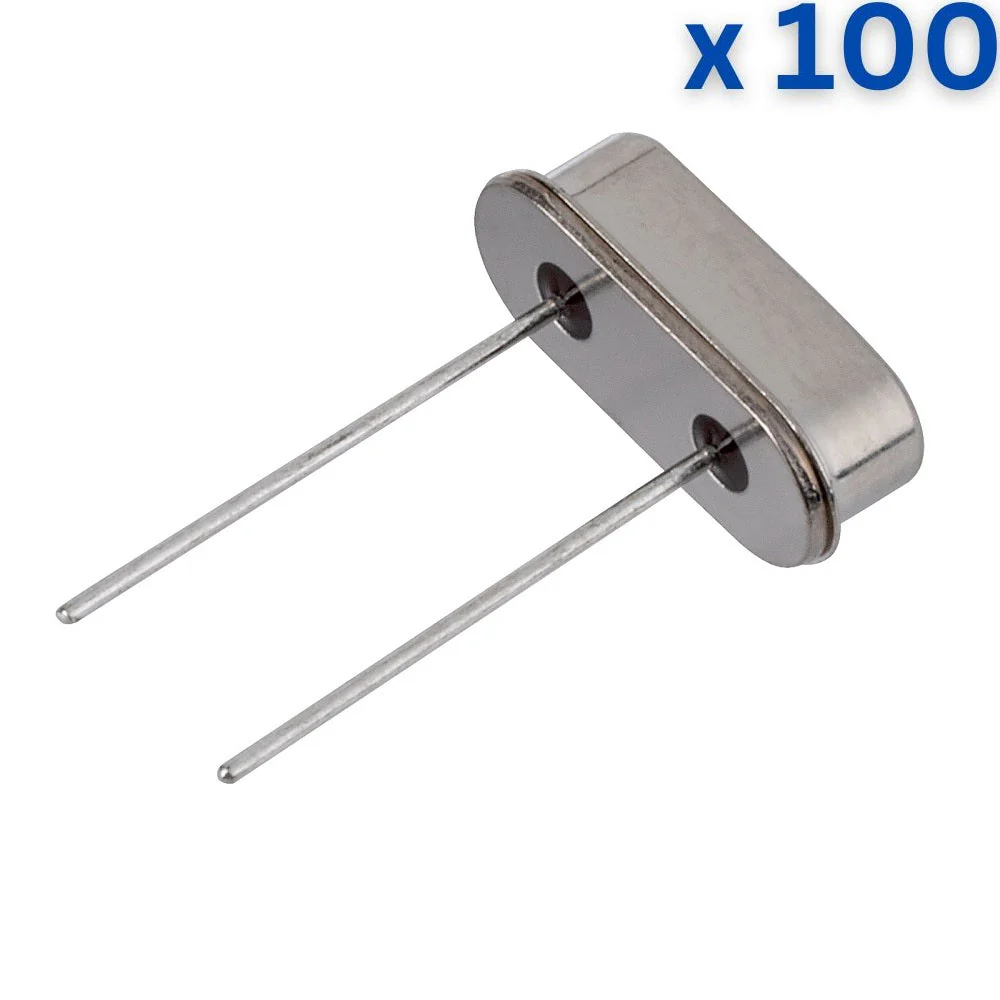

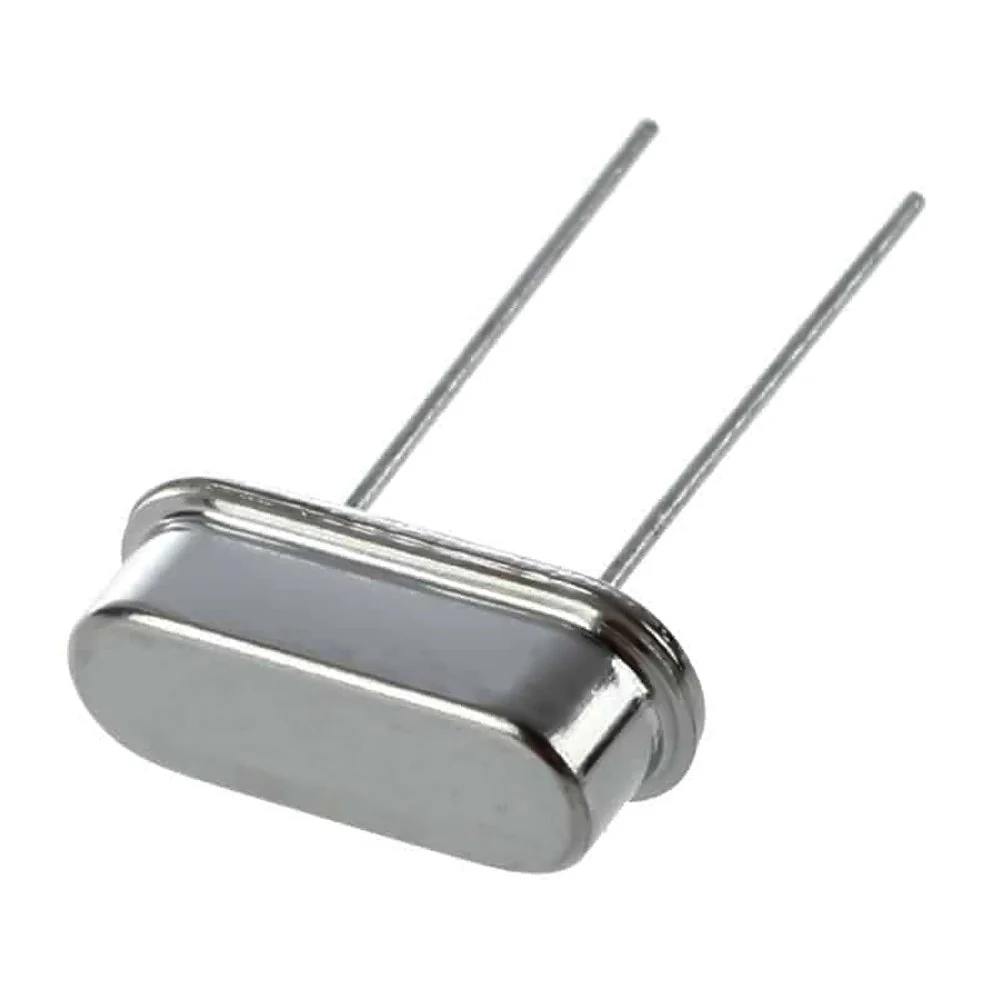

3.57MHz Crystal Oscillators HC49/US Package
This is an electronic oscillator circuit. It uses the mechanical resonance of a vibrating crystal of piezoelectric material. And then create an electrical signal with a precise frequency. This frequency is often used to keep track of time to provide a stable clock signal.
Technical Specification:
- Frequency Range: 3.57MHz
- Load Capacitance: 18pF
- Frequency Tolerance: ± 30ppm
- Frequency Temperature Stability: ±50ppm
- Resonance Resistance: 40ohms (max)
- Shunt Capacitance: <7pF
- Drive Level: <100µW
- Operating Temperature Range: -20 to + 70°C
- Operable Temperature Range: -25 to + 85°C
- Storage Temperature Range: -55 to + 125°C
- Insulation Resistance: 500M?
Features:
- Accuracy, compactness
- Low cost, low power consumption
- High-frequency generation
- Low phase noise
- High Q factor
- Automatic amplitude control and frequency drift
Pin Description:
Applications:
- Monochrome TV transmitters
- Digital integrated circuits
- Smart wearables, cellphones, video games, etc
- Military and Aerospace
- Research and Measurement
- Industrial Applications
- Automotive
