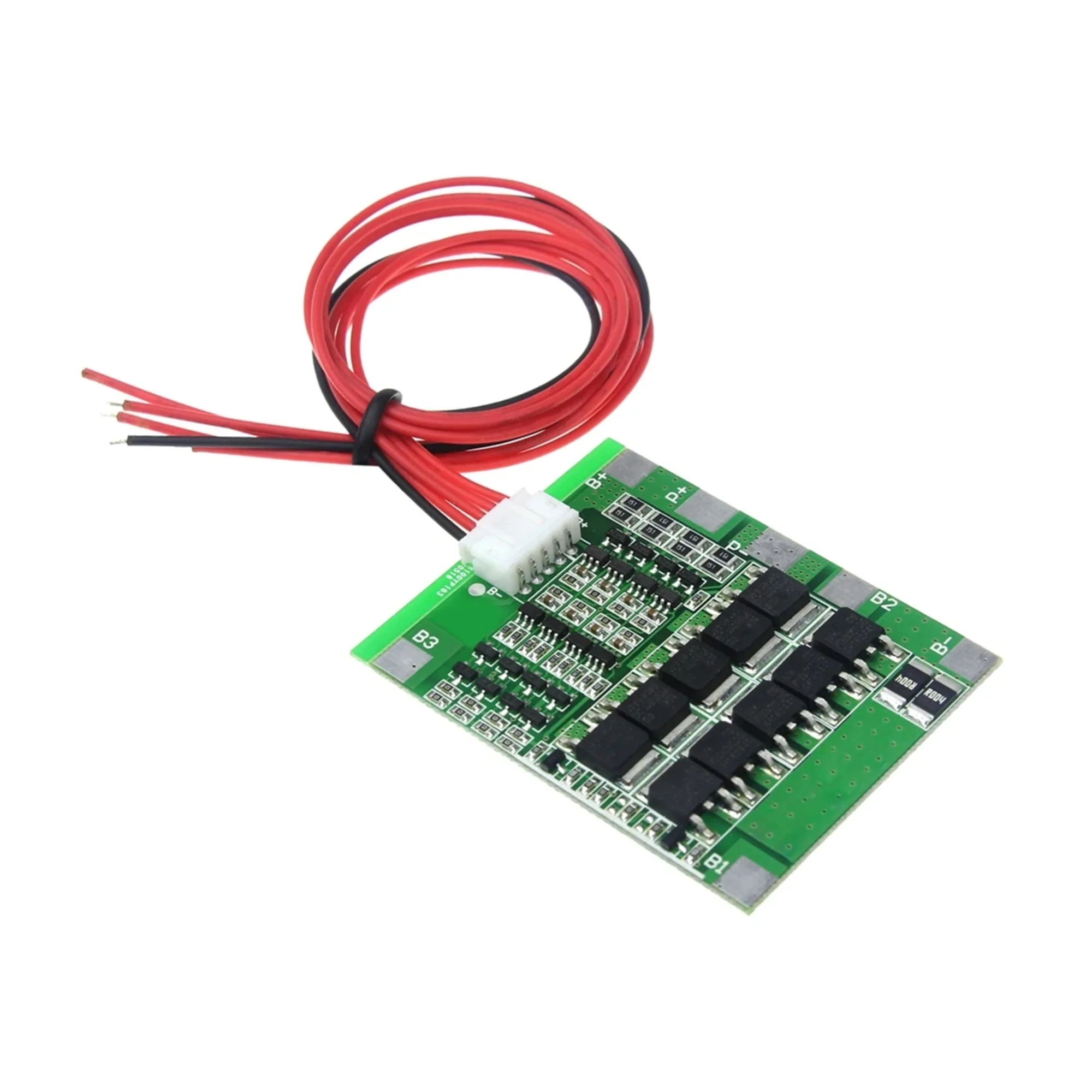

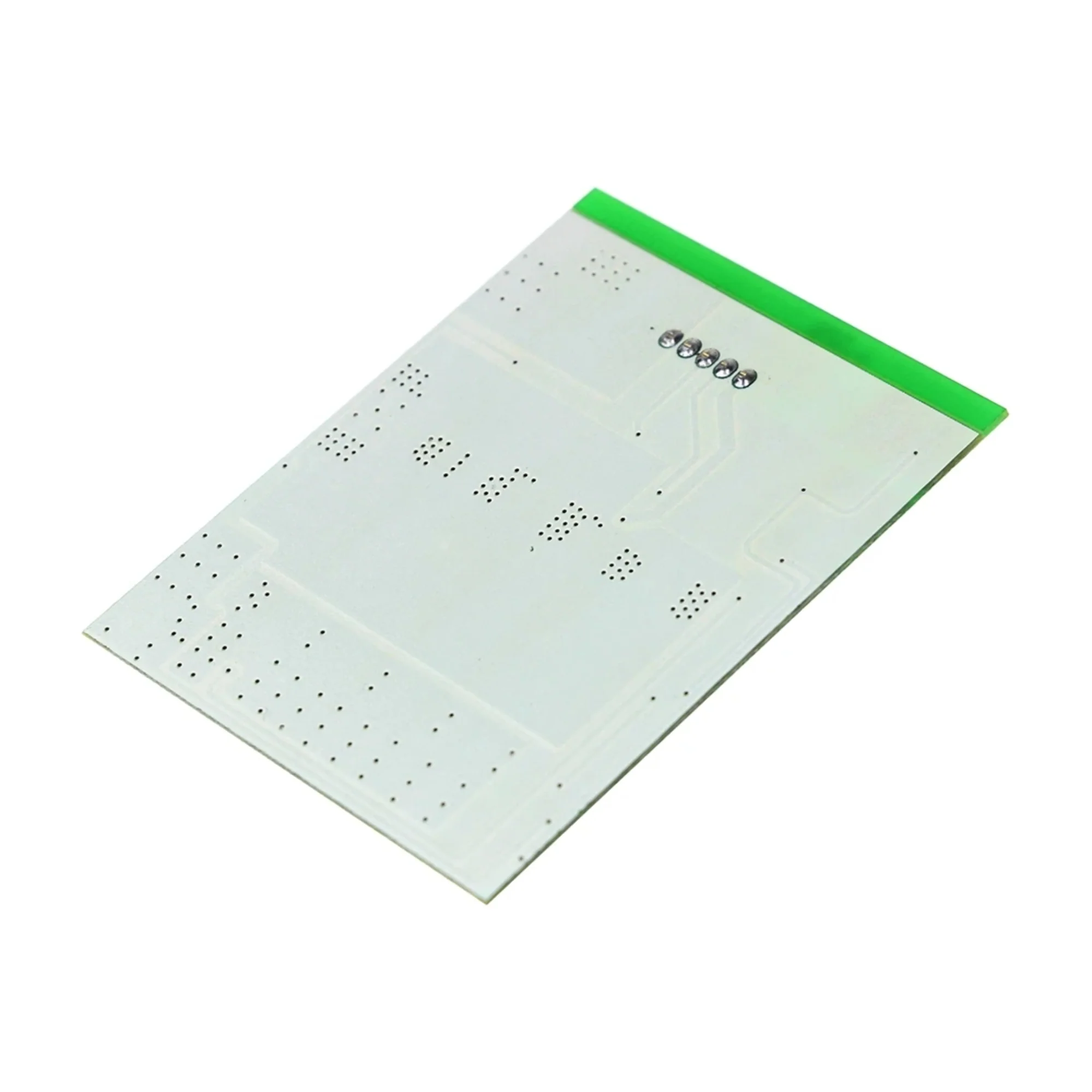

4S/30A BMS Module
4S/30A BMS Module
The 4S/30A BMS Module is a high-current battery management system designed for 4-series lithium-ion or lithium-polymer battery packs. It provides comprehensive protection and cell balancing to ensure safe operation under higher load conditions. With a higher discharge capability than standard BMS boards, this module is suitable for power-hungry applications requiring stable and reliable battery performance.
Technical Specifications:
- Battery Configuration: 4S (4 cells in series)
- Rated Discharge Current: 30 A
- Battery Type: Lithium-ion / Lithium-polymer
- Overcharge Protection Voltage: ~4.25 V per cell
- Over-discharge Protection Voltage: ~2.5 V per cell
- Overcurrent Protection: Supported
- Short-circuit Protection: Supported
- Balancing Function: Passive cell balancing

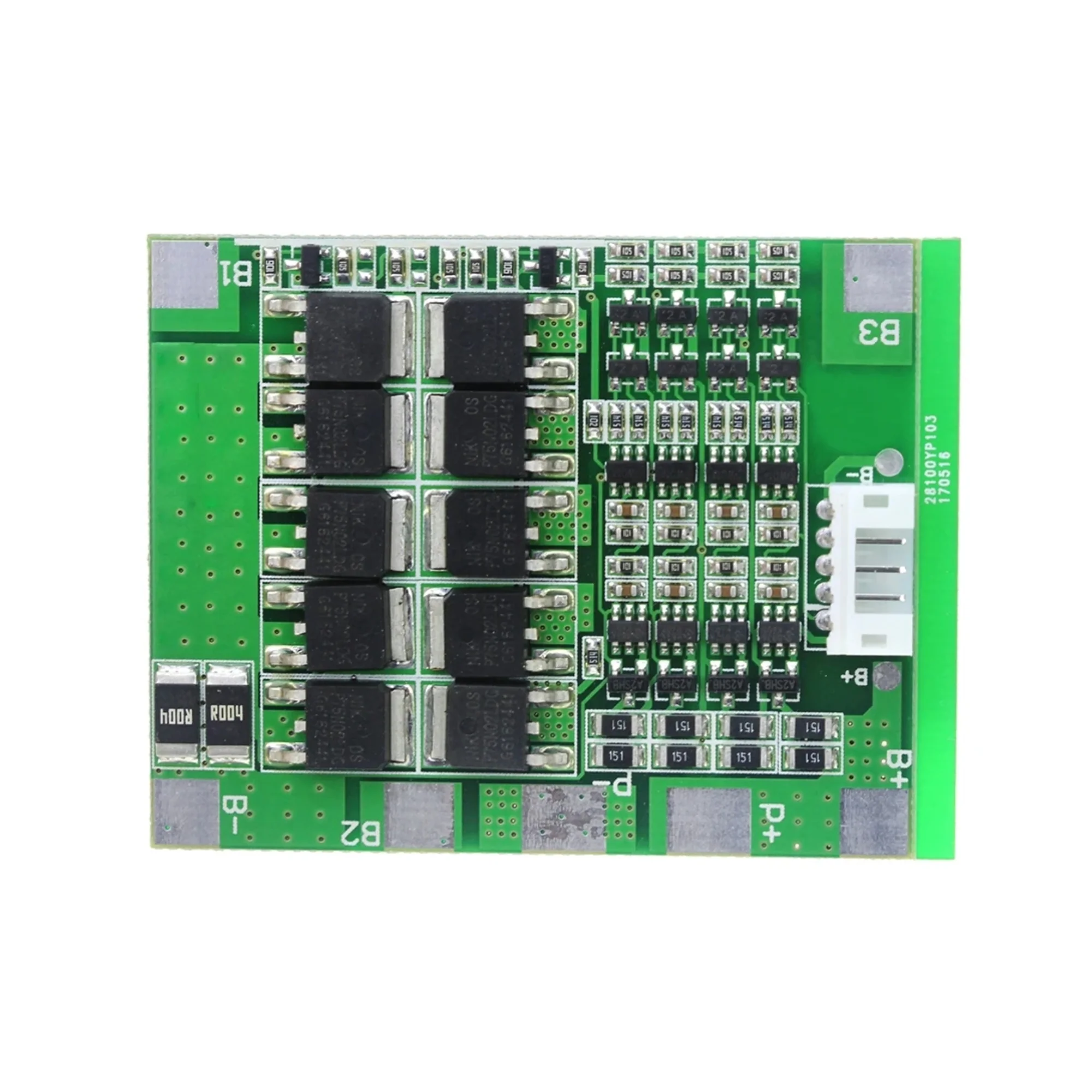

- Connection Terminals: B+, B−, B1, B2, B3, P+, P−
- Balance Connector: JST-type multi-pin connector
Features:
- High current handling up to 30 A for demanding loads
- Protects against overcharge, over-discharge, overcurrent, and short circuit
- Integrated balancing improves cell consistency and battery lifespan
- Pre-wired balance connector for easy installation
- Compact and efficient PCB layout for battery pack integration
Applications:
- Electric bikes and scooters
- Power tools and robotics
- High-power portable energy storage systems
- DIY lithium battery packs
- Backup power and inverter systems
