5V Booster and Charging Module Type C
5V Booster and Charging Module Type C

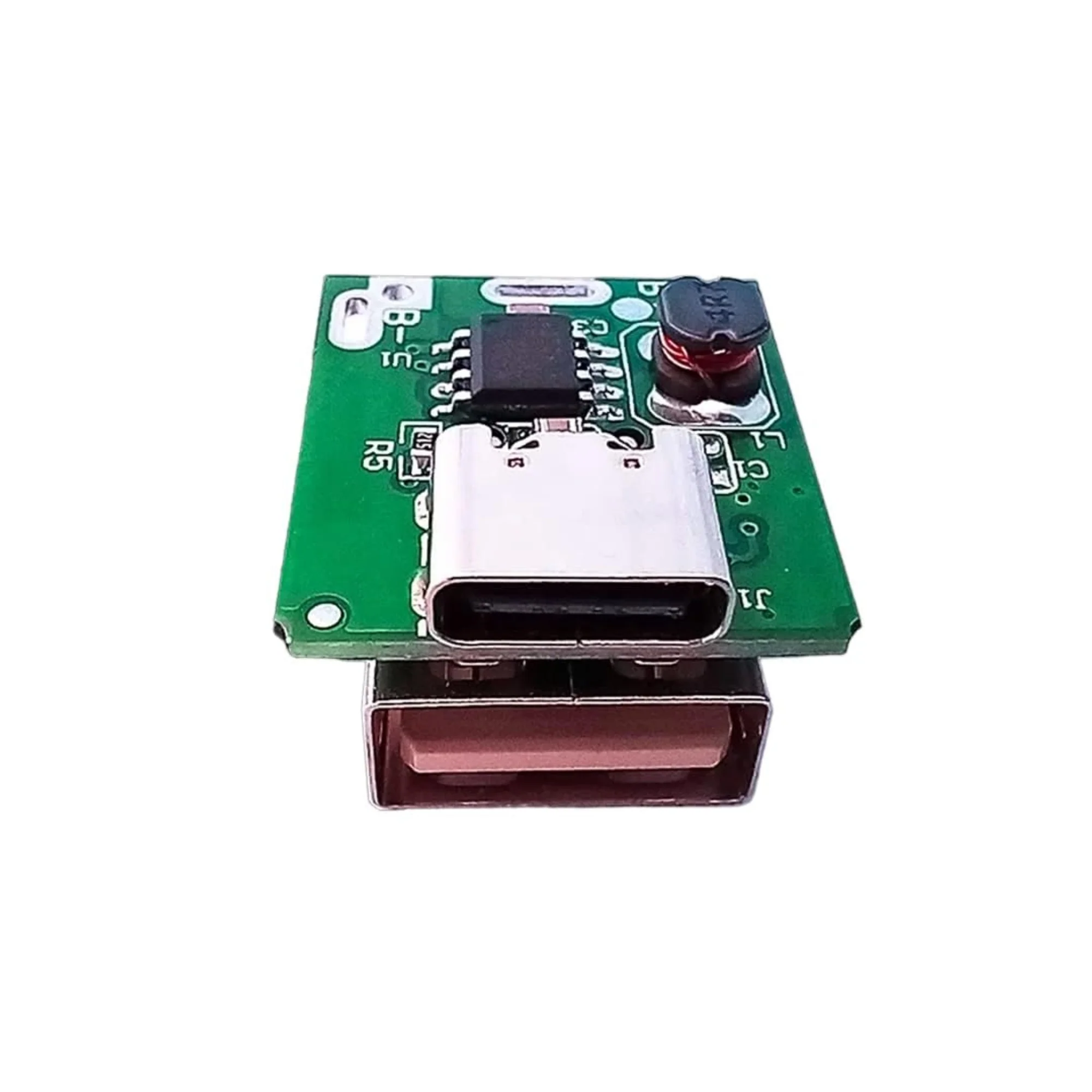

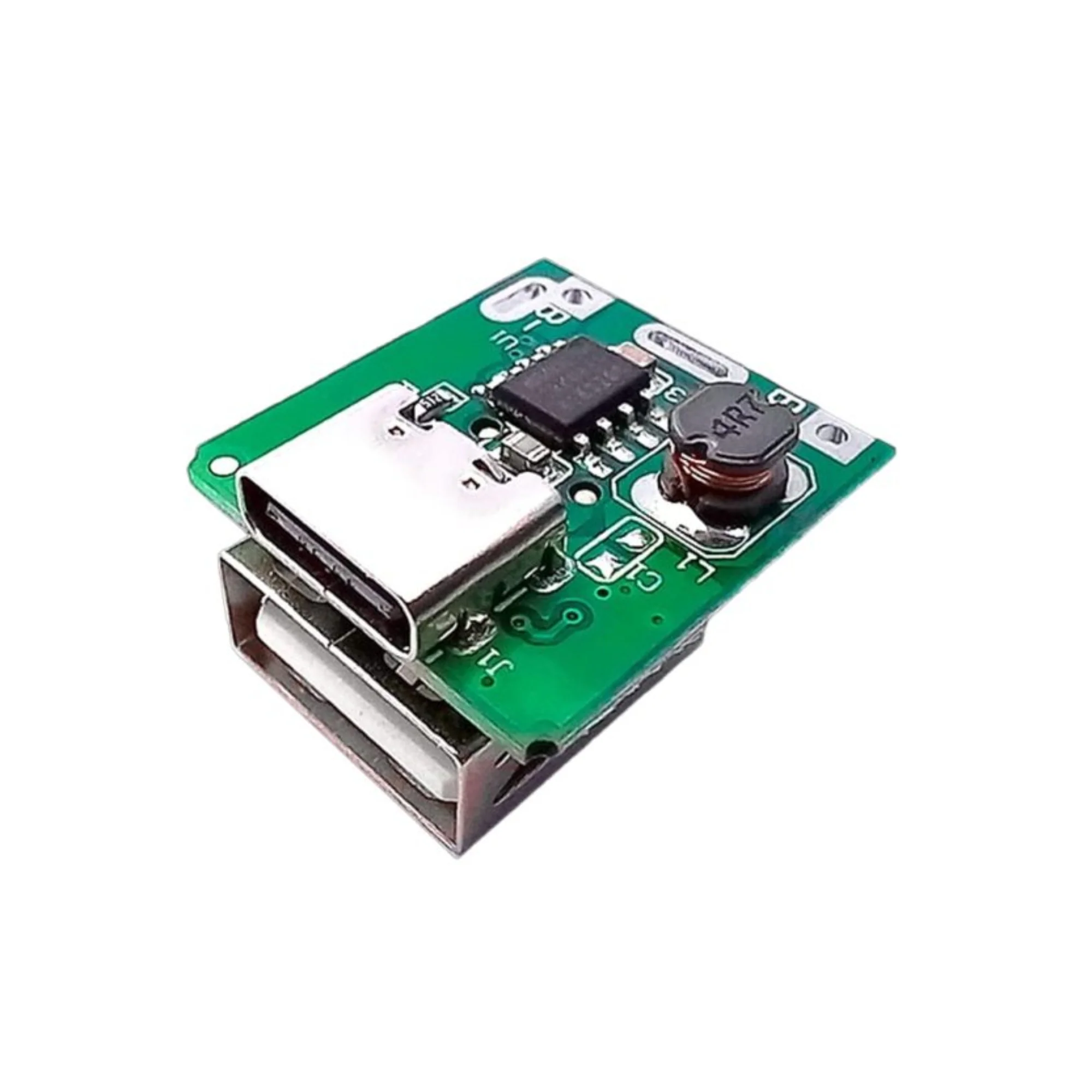

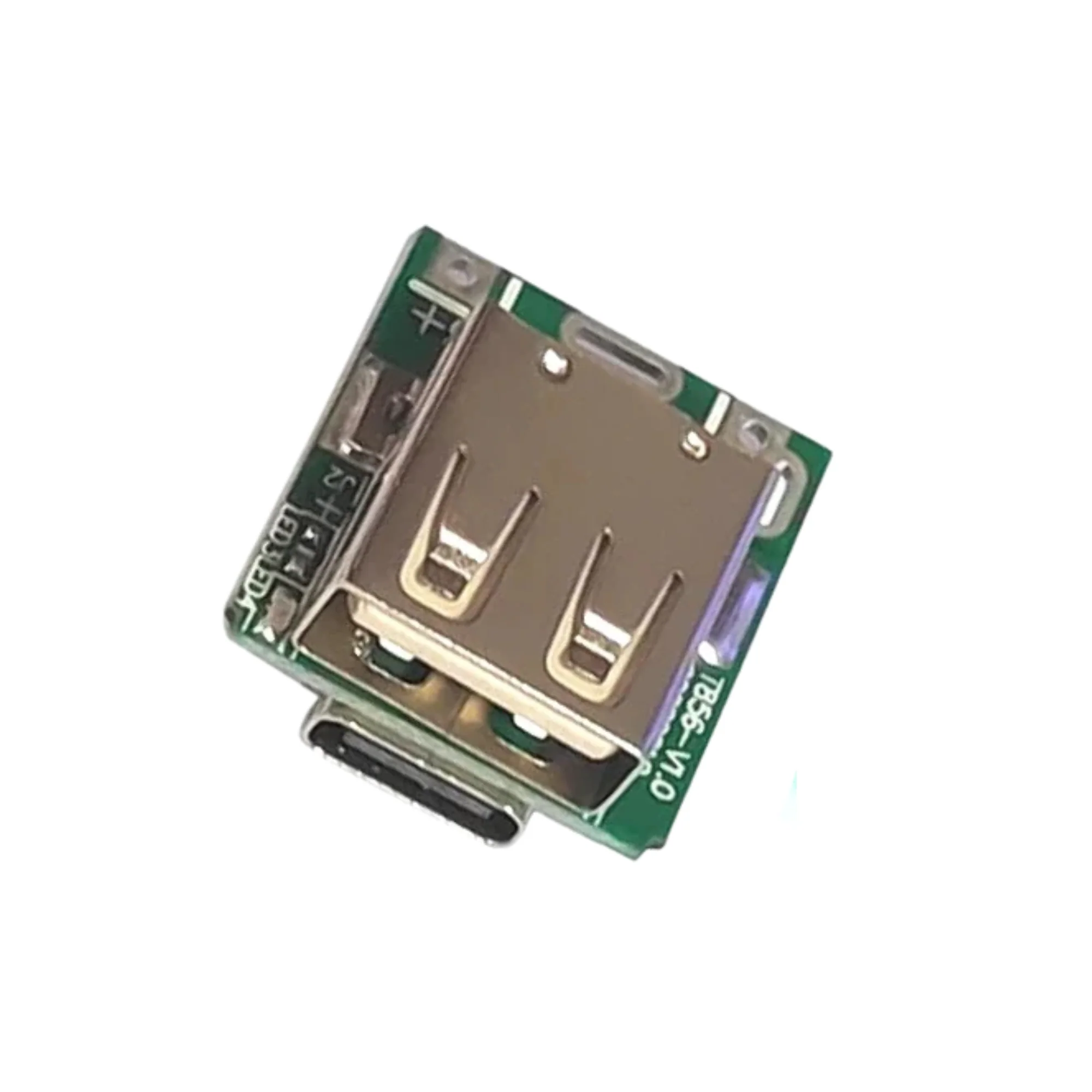

The 5V Booster & Charging Module (Type-C) is a compact power management board designed for single-cell lithium battery applications. It integrates a Type-C input for charging and a DC-DC boost converter to step up the battery voltage to a stable 5V output. This module is commonly used in DIY power banks, portable electronics, and embedded projects where reliable 5V power is required from a Li-ion or Li-poly battery.
Technical Specification:
- Input power: 3.0–4.2V (single-cell Li-ion/Li-poly battery)
- Charging interface: USB Type-C
- Charging voltage: 5V
- Charging current: typically up to 1A (varies by design and thermal conditions)
- Output voltage: 5V regulated
- Output current: up to ~1A (depending on input voltage and efficiency)
- Conversion type: Boost (step-up) DC-DC
- Efficiency: up to ~85–90% (load dependent)
- Protection: over-charge, over-discharge, short-circuit (module dependent)
- Form factor: small PCB, lightweight, surface-mount components
Features:
- Integrated Type-C charging port
- Boosts single-cell battery voltage to stable 5V
- Compact and lightweight design
- High conversion efficiency
- Built-in battery protection support
- Easy integration into portable projects
- Suitable for power bank and USB power applications
Applications:
- DIY power banks
- Portable electronic devices
- Arduino, ESP32, and IoT projects
- Battery-powered embedded systems
- USB-powered gadgets and accessories
- Wearable and handheld electronics
