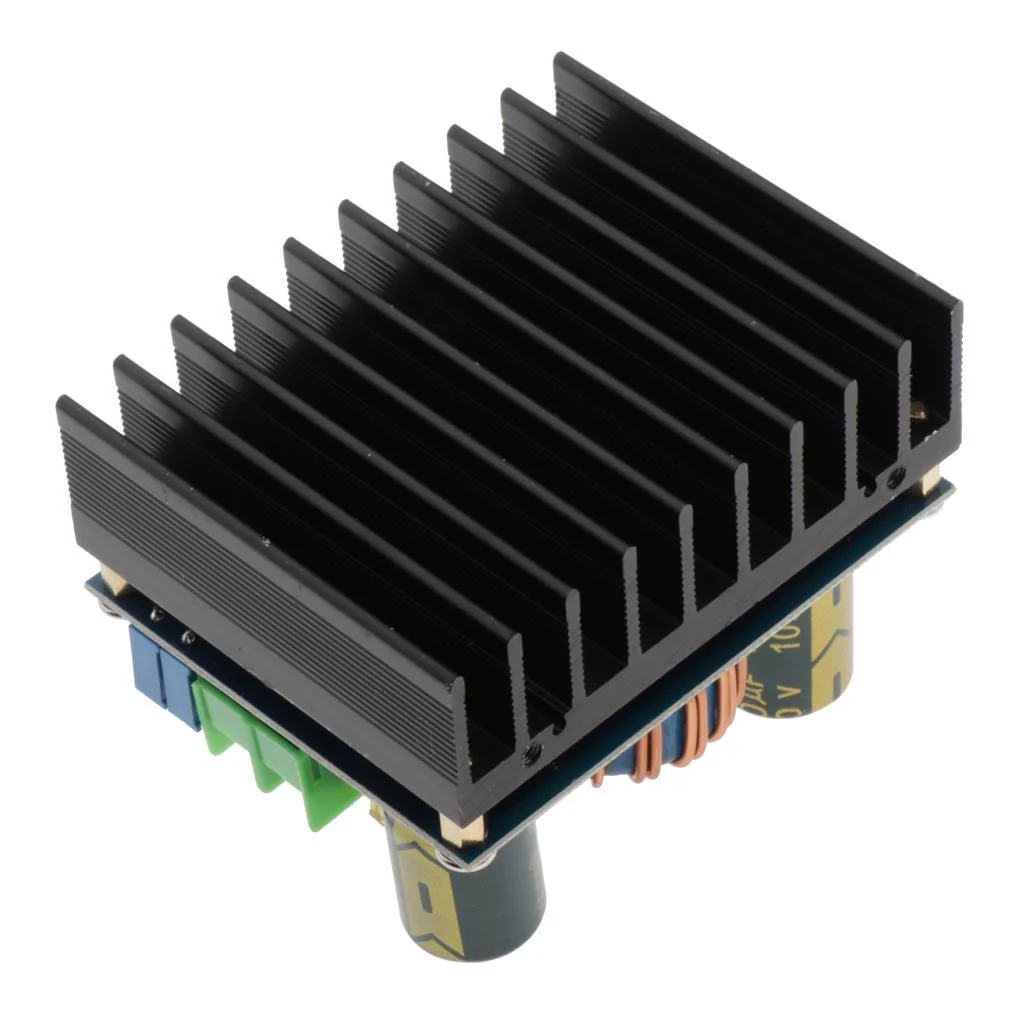

DC-DC 600W 10-60V to 12-80V  Step-up Boost Converter Module is a robust, DC to DC, Step-up Boost Converter which includes a large heatsink on the bottom and use a a boost converter for large DC Voltage.

Technical Specification:

• Input voltage: 12V-60V
• Input Current: Maximum input current 15A
• Output voltage: 12V-80V continuously adjustable
• Output Current: Maximum output current 10A
• Installation: two 3mm screws
• Connection: terminals, solderless
• Size: 76mm*60mm*56mm (L*W*H)

Features:

• 12V to 80V adjustable the width voltage output;
• Output current can be adjusted
• Ultra-low dropout voltage
• Adopt highly customized radiator, rational design
• Integrated design of radiator and step-up panel, easy to use and install

Applications:

• DIY a regulated power supply. As a vehicle power supply, for your laptop, PDA or all kinds of digital products powered
• Solar panels stabilize voltage to charge batteries or electric vehicles
• Use low voltage batteries to charge high voltage batteries or lithium batteries
• Drive high power LED lamp
