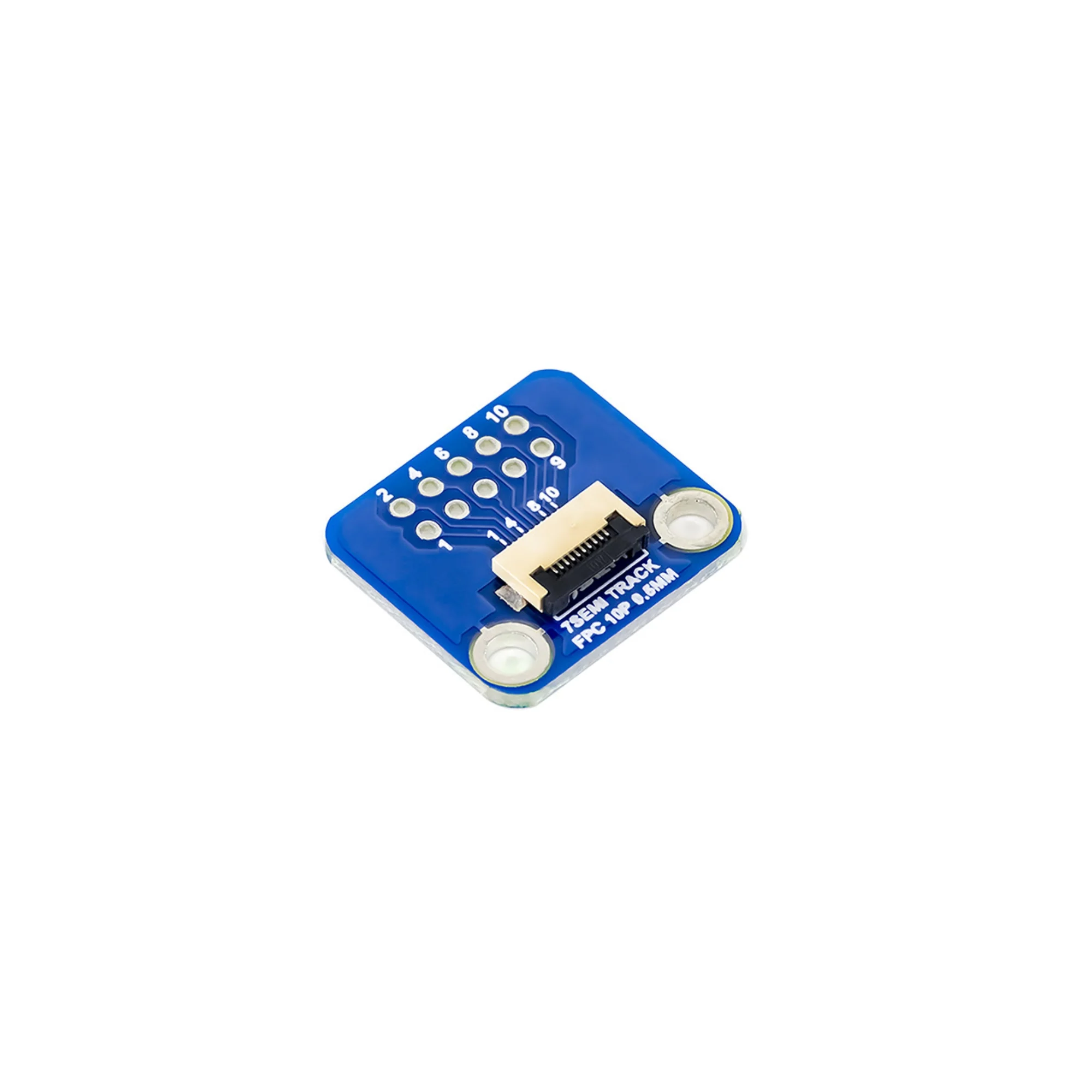

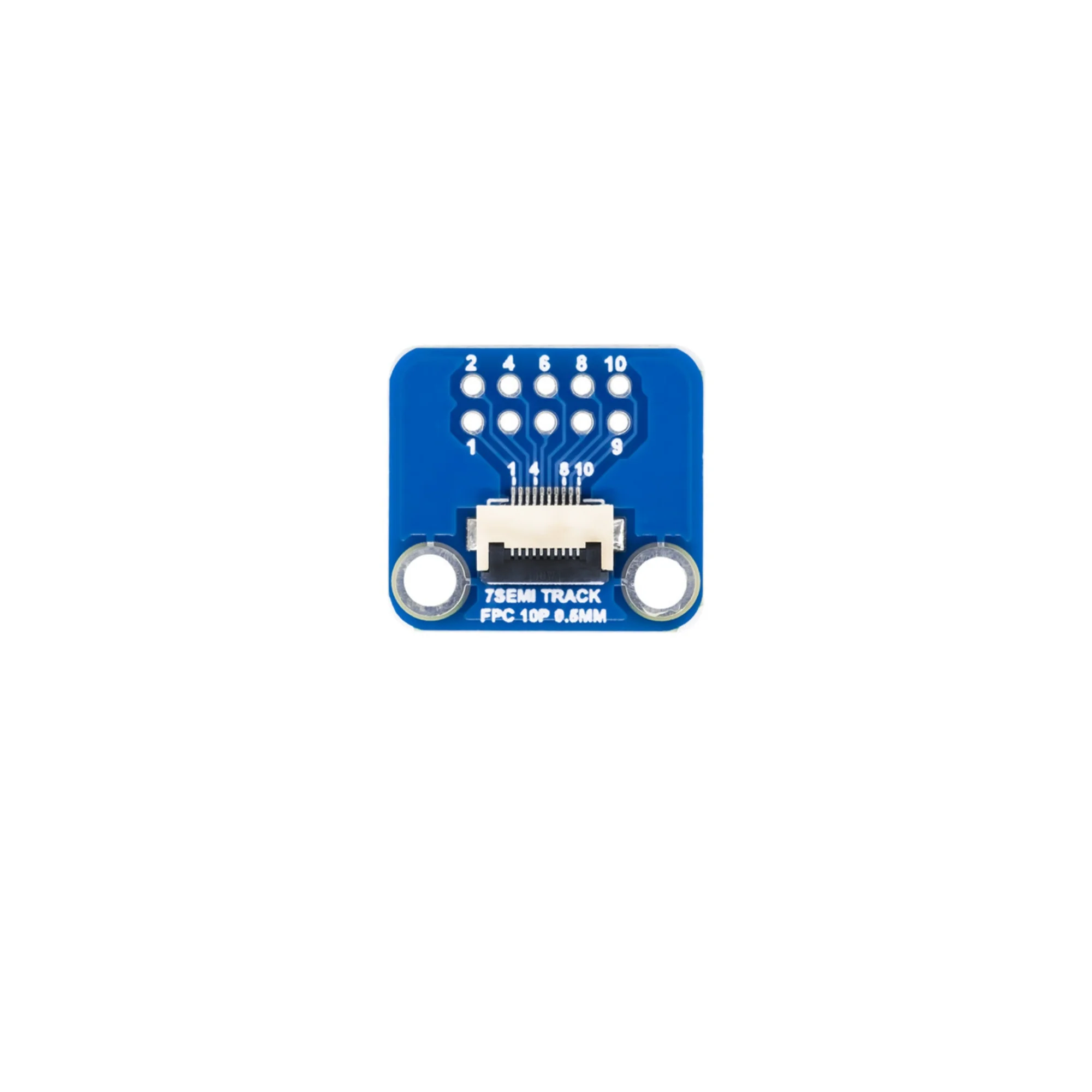

The 7Semi 10-Pin 0.5 mm FFC/FPC Connector Breakout Board is a compact adapter designed to convert fine-pitch 0.5 mm FFC/FPC cable connections into a standard 2.54 mm (0.1″) header format. It uses a low-profile 10-pin FFC/FPC connector and breaks out each pin to dual rows of through-hole pads compatible with breadboards and standard pin headers. This simplifies prototyping, testing, and interfacing flexible flat cables with microcontrollers, development boards, and custom PCBs.
Technical Specifications:
- Connector Type: 10-pin FFC/FPC socket
- Pitch: 0.5 mm
- Connector Height: Approximately 2 mm (low-profile)
- Output Pin Spacing: 2.54 mm (0.1″) dual-row pads
- Board Size: Approximately 22 mm × 20 mm
- Mounting Style: SMT connector pre-soldered
- Compatibility: 0.5 mm pitch flat cables (FFC/FPC)

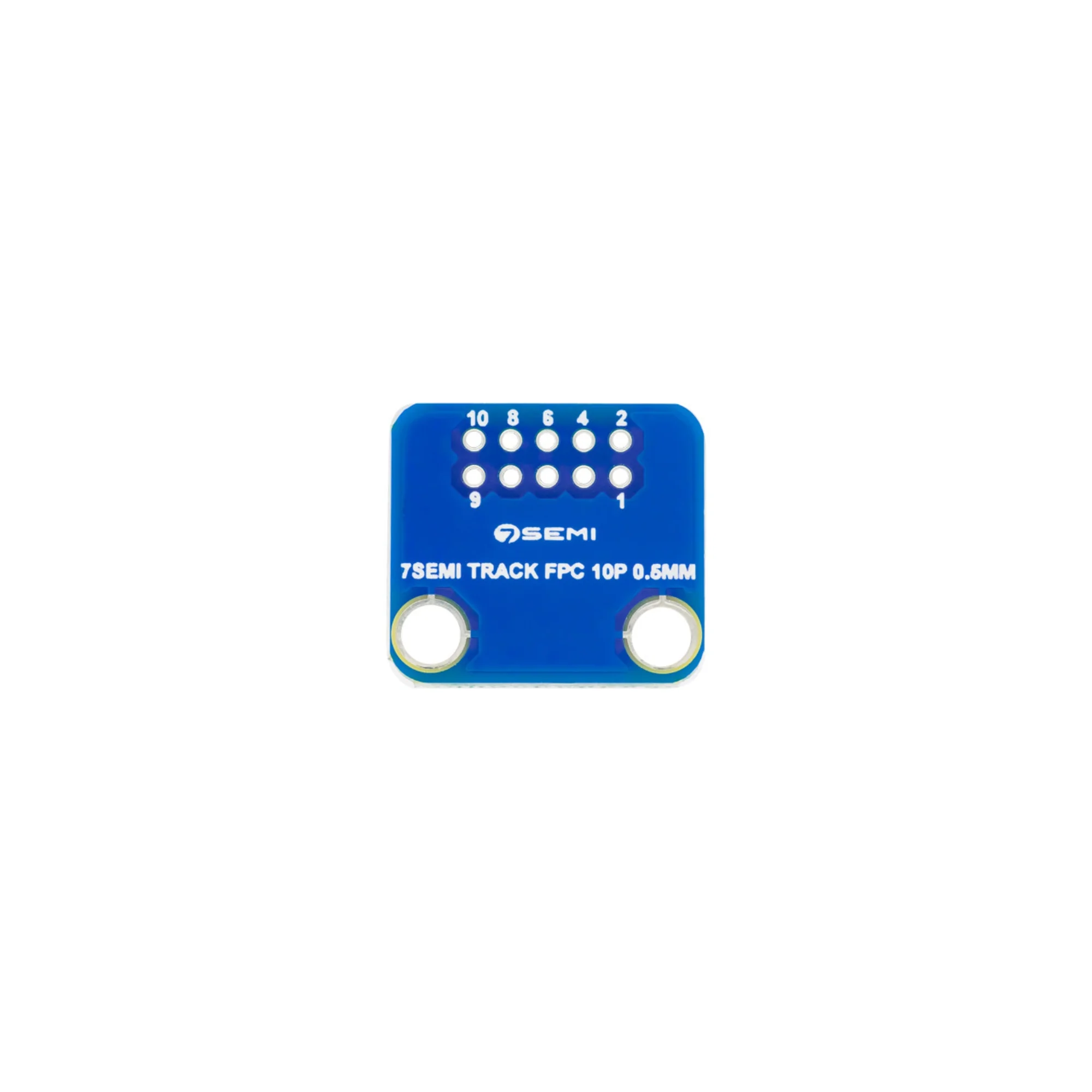

- Pin Labels: Clearly printed on PCB for easy identification
Features:
- Converts fine-pitch 0.5 mm FFC/FPC cables to standard 2.54 mm pin headers
- Low-profile connector for compact designs
- Breadboard-friendly dual-row breakout layout
- Easy integration into prototyping and development setups
- Clear pin numbering to avoid wiring errors
- Ideal for working with displays, cameras, sensors, or modules using FFC/FPC connectors
- Saves time by eliminating the need for custom PCBs for fine-pitch connectors
Applications:
- Prototyping connections between flat cables and development boards
- Interfacing FFC/FPC-based displays, cameras, or sensors
- Robotics and embedded electronics using flexible cable assemblies
- Converting ultra-fine pitch connector interfaces to accessible test points
- Educational labs and DIY electronics involving flat-cable devices
- Debugging, measurement, and testing setups requiring FFC/FPC accessibility
