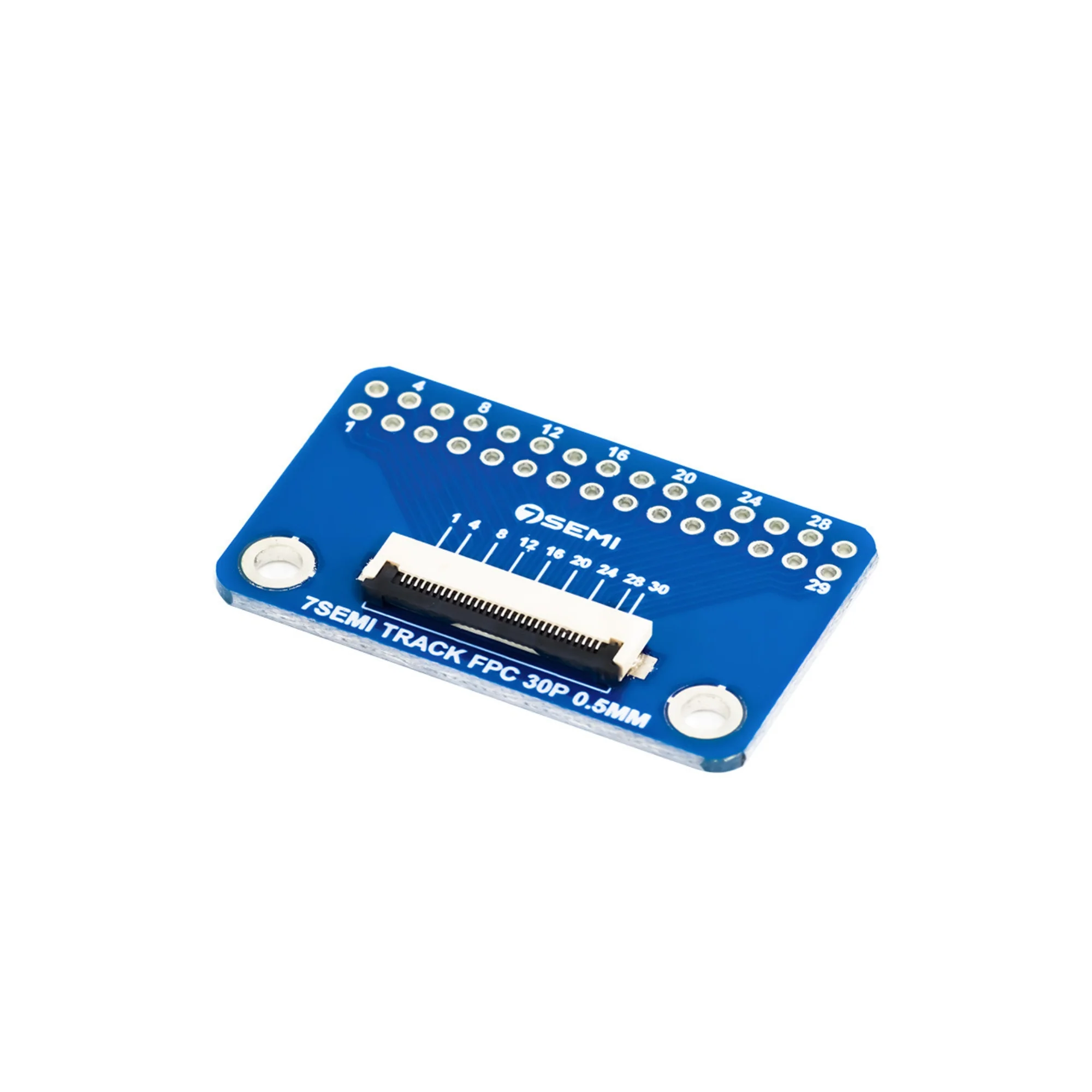

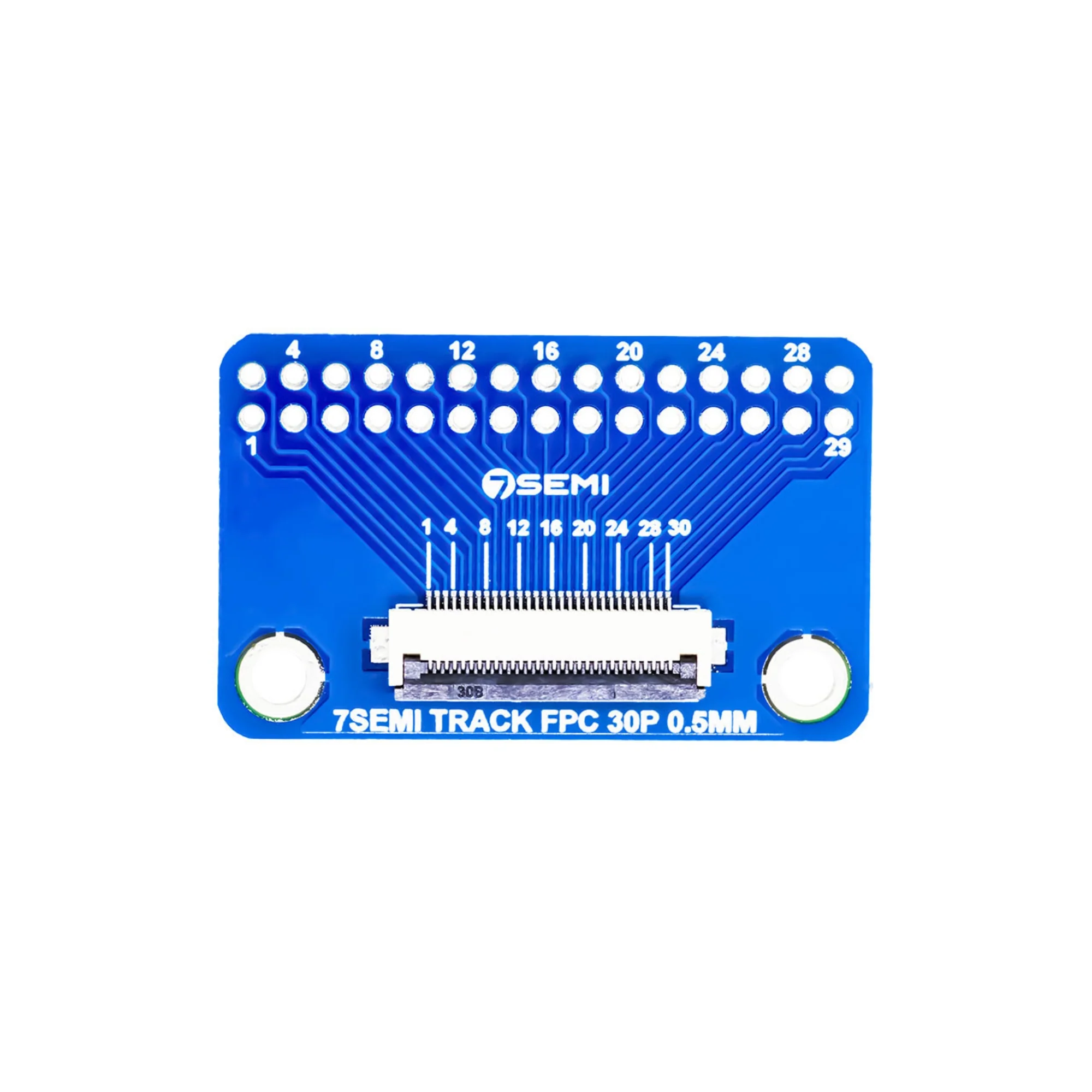

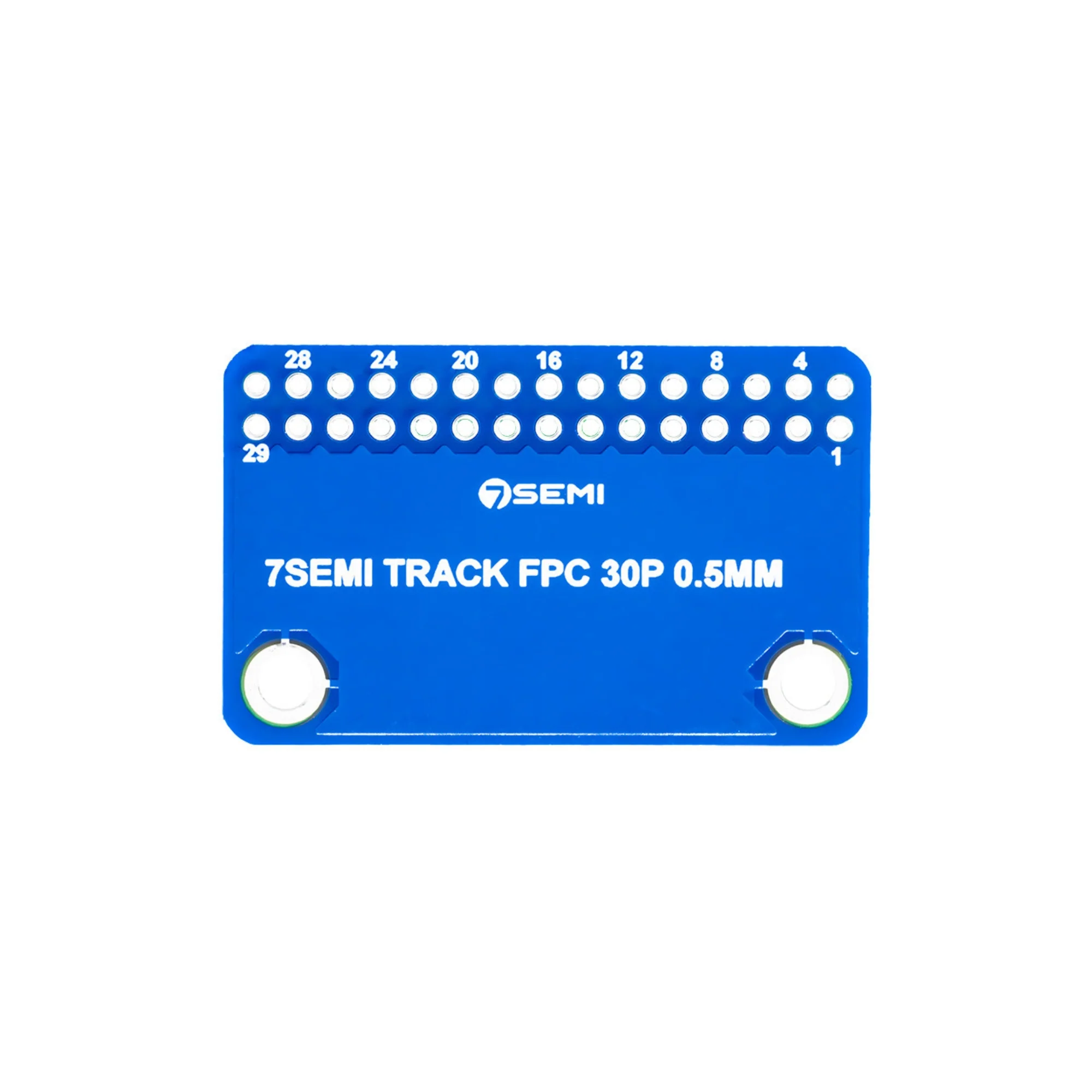

7Semi 30 Pin 0.5mm FFC FPC Connector Breakout Board

The 7Semi 30 Pin 0.5mm FFC FPC Connector Breakout Board is a compact adapter module designed to easily interface 0.5mm pitch flat flexible cables (FFC) or flat printed cables (FPC) with standard 2.54mm pitch pin headers. It simplifies the process of connecting fine-pitch ribbon cables to breadboards, microcontrollers, or custom PCBs. This breakout board is ideal for prototyping, testing, and integrating display modules, camera interfaces, or other components that use FFC/FPC connectors.

Technical Specifications:

• Connector Type: 30-pin FFC/FPC female connector

• Connector Pitch: 0.5mm

• Breakout Pitch: 2.54mm standard header spacing

• Supported Cable Type: Flat Flexible Cable (FFC) / Flat Printed Cable (FPC)

• Contact Type: ZIF (Zero Insertion Force) flip-lock connector

• Operating Voltage: Up to 50V (typical signal level)

• Current Rating: 0.5A per contact (typical)

• Operating Temperature: -40°C to +85°C

• PCB Material: High-quality FR-4 with gold-plated contacts

• Orientation: Horizontal or top-contact connector type

• Mounting Type: Through-hole for stable header connection

Features:

• Converts 0.5mm pitch FFC/FPC connections to 2.54mm pin headers

• Ideal for easy connection between ribbon cables and PCBs

• ZIF flip-lock connector ensures secure and reliable cable contact

• Compact design for integration into breadboards or prototypes

• Compatible with various 30-pin display, touch, or sensor modules

• Durable construction with high-quality PCB and gold-plated pins

• Simplifies debugging and signal breakout for fine-pitch connectors

• Suitable for both 3.3V and 5V signal applications

• Clearly labeled pin numbering for easy identification

• Lightweight and easy to mount in embedded designs

Applications:

• Interfacing FFC/FPC cables with development boards or microcontrollers

• Connection of TFT, LCD, or OLED display modules

• Camera module and sensor integration in embedded systems

• IoT devices requiring flexible flat cable connections

• Prototyping and testing FPC-based circuits

• Industrial control and automation interface boards

• Educational and DIY electronics projects

• Debugging and repair of devices with flat ribbon connectors

• Robotics and mechatronic applications

• Flexible PCB or ribbon cable adapters in compact designs
