7Semi ADS1262 32bit ADC with PGA Breakout

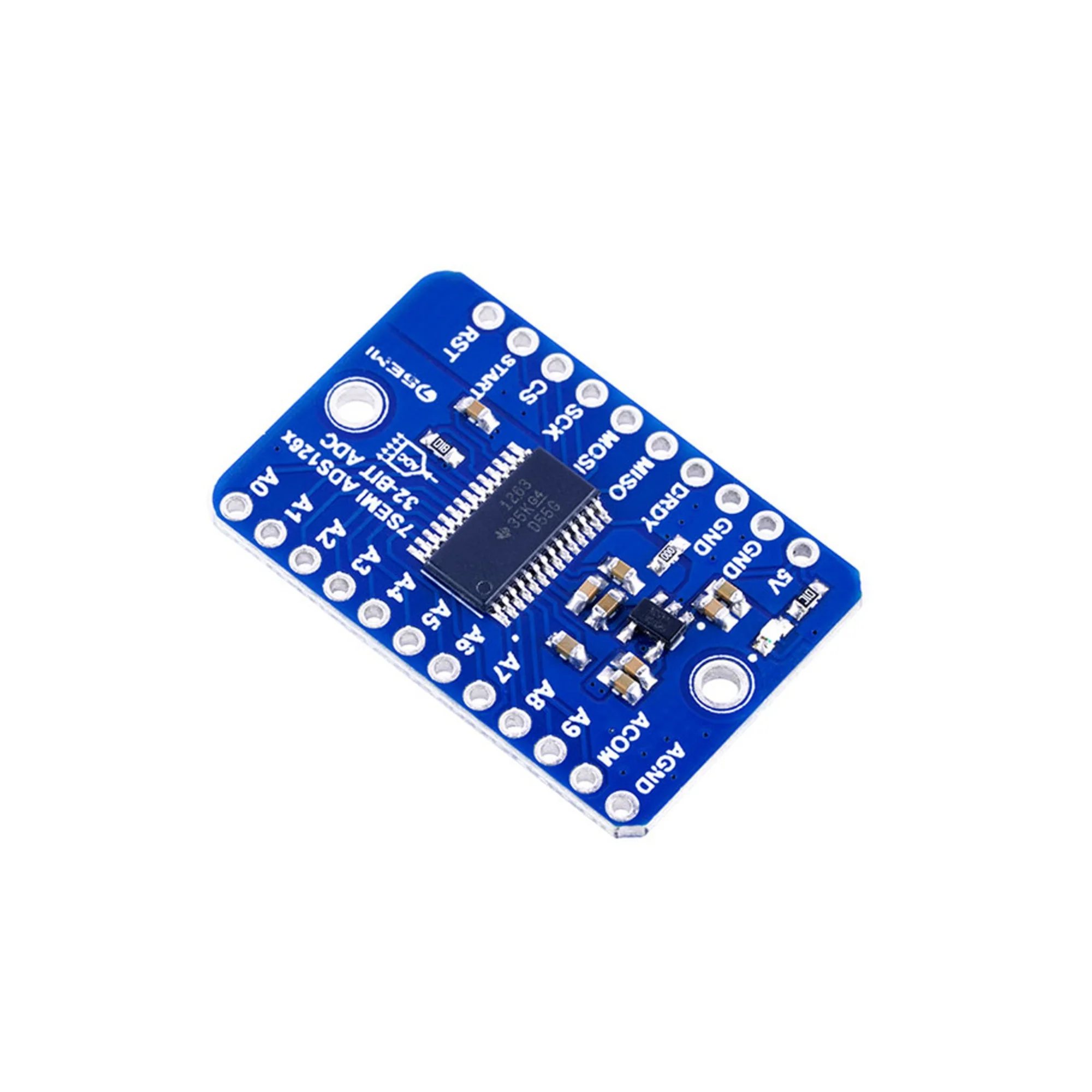

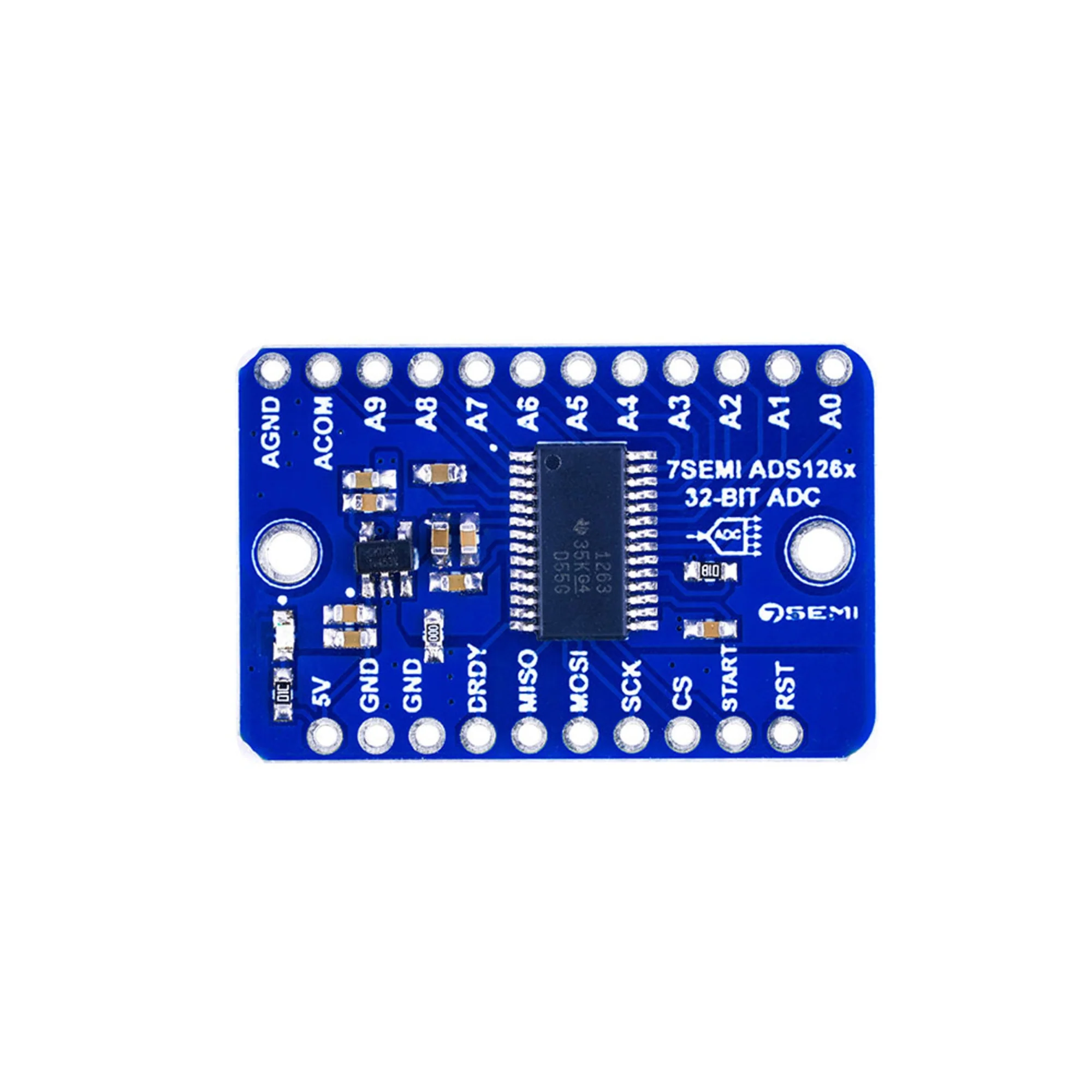

The 7Semi ADS1262 32-bit ADC with PGA Breakout is a high-resolution analog-to-digital converter module designed for precision measurement applications. Based on the Texas Instruments ADS1262, this breakout features a 32-bit delta-sigma ADC with an integrated programmable gain amplifier (PGA), making it ideal for ultra-low noise and high-accuracy sensor signal acquisition. It supports multiple differential and single-ended input channels, low noise performance, and a wide input voltage range. With its SPI interface and configurable sampling rates, it’s perfect for applications in instrumentation, data logging, and scientific research.

Technical Specifications:

• ADC IC: Texas Instruments ADS1262

• Resolution: 32-bit delta-sigma ADC

• Input Channels: 10 differential or 20 single-ended channels (multiplexed)

• Programmable Gain Amplifier (PGA): Gain settings from 1 to 32

• Input Voltage Range: ±2.5 V (depending on reference and gain setting)

• Data Rate: 2.5 SPS to 38.4 kSPS (selectable)

• Input Type: Differential or single-ended

• Interface: SPI (Serial Peripheral Interface)

• Reference Voltage: Internal 2.5 V reference or external input supported

• Noise Performance: 7 nV/√Hz input-referred noise (typical)

• Power Supply Voltage: 2.7 V to 5.25 V

• Logic Voltage Compatibility: 1.8 V to 5.0 V

• Operating Temperature: -40°C to +125°C

• Current Consumption: Low-power operation (typ. 2 mA)

• Clock: Internal oscillator (7.68 MHz) or external clock input

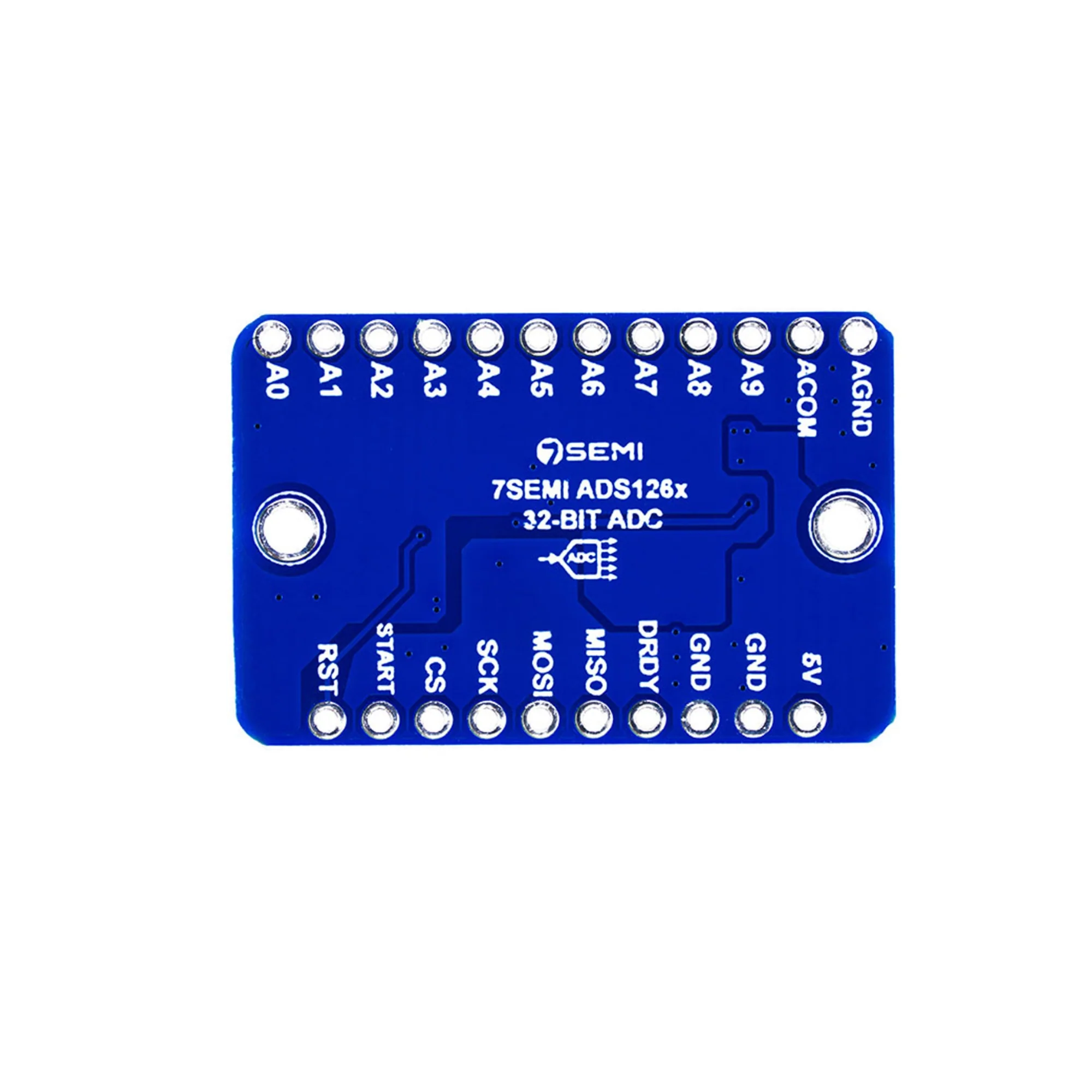

• PCB: High-quality FR-4 breakout with clearly labeled pin headers


Features:

• 32-bit high-resolution ADC for ultra-precise measurements

• Integrated PGA for direct low-level signal amplification

• Multiple input channels for flexible sensor interfacing

• Internal low-drift voltage reference for stable performance

• Wide input voltage and sampling rate configuration range

• SPI interface for easy integration with microcontrollers

• Low noise and low power consumption design

• Internal diagnostics and offset calibration support

• Compact and robust PCB suitable for development and testing

• Compatible with Arduino, STM32, ESP32, and Raspberry Pi platforms

Applications:

• Precision sensor data acquisition and instrumentation

• Industrial automation and process control systems

• Scientific and laboratory measurement equipment

• Load cell, thermocouple, and strain gauge interfaces

• High-resolution voltage and current measurement

• IoT-based data acquisition and monitoring devices

• Environmental and biomedical signal processing

• Research and educational applications requiring high-accuracy analog measurement
