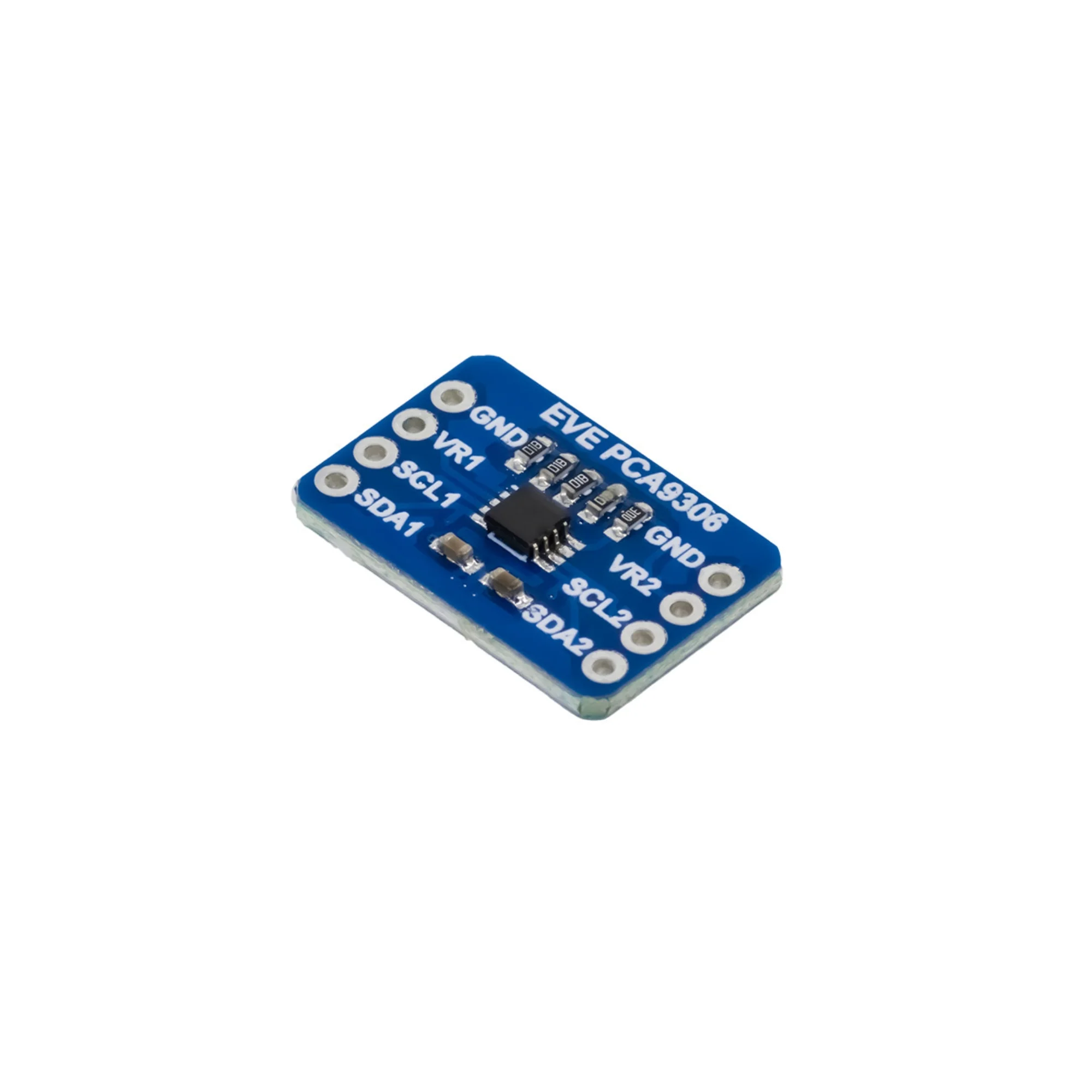

7Semi Bidirectional Voltage Level Translator Breakout PCA9306 I2C

The 7Semi Bidirectional Voltage Level Translator Breakout PCA9306 I2C is a compact and efficient module designed to safely interface devices operating at different logic levels. Based on the PCA9306 dual bidirectional voltage-level translator IC, it allows I²C and other open-drain signal lines to communicate between two voltage domains. The module supports automatic bidirectional translation without requiring a direction control pin, making it ideal for connecting 1.2V, 1.8V, 2.5V, 3.3V, and 5V devices in mixed-voltage systems.

Technical Specifications:

• IC: PCA9306 Dual Bidirectional Voltage-Level Translator

• Interface Type: I²C and SMBus compatible

• Channels: 2 (SDA and SCL)

• Logic Compatibility: Supports 1.2V to 5V on both sides

• Supply Voltage (VREF1): 1.0V to 3.6V (lower voltage side)

• Supply Voltage (VREF2): 1.8V to 5.5V (higher voltage side)

• Communication Speed: Up to 400kHz (Standard/Fast I²C mode)

• Direction Control: Automatic (bidirectional, no control pin needed)

• Pull-up Resistors: Onboard pull-ups for stable operation

• Current Drive Capability: Up to 20mA per channel

• Operating Temperature: -40°C to +85°C

• Board Type: Compact breakout with 2.54mm pitch header pins

• Power Indicator: Onboard LED for power status


Features:

• Enables safe bidirectional communication between devices with different voltage levels

• Fully compatible with I²C and SMBus protocols

• Supports wide voltage translation range from 1.2V to 5V

• Automatic direction sensing—no control pin required

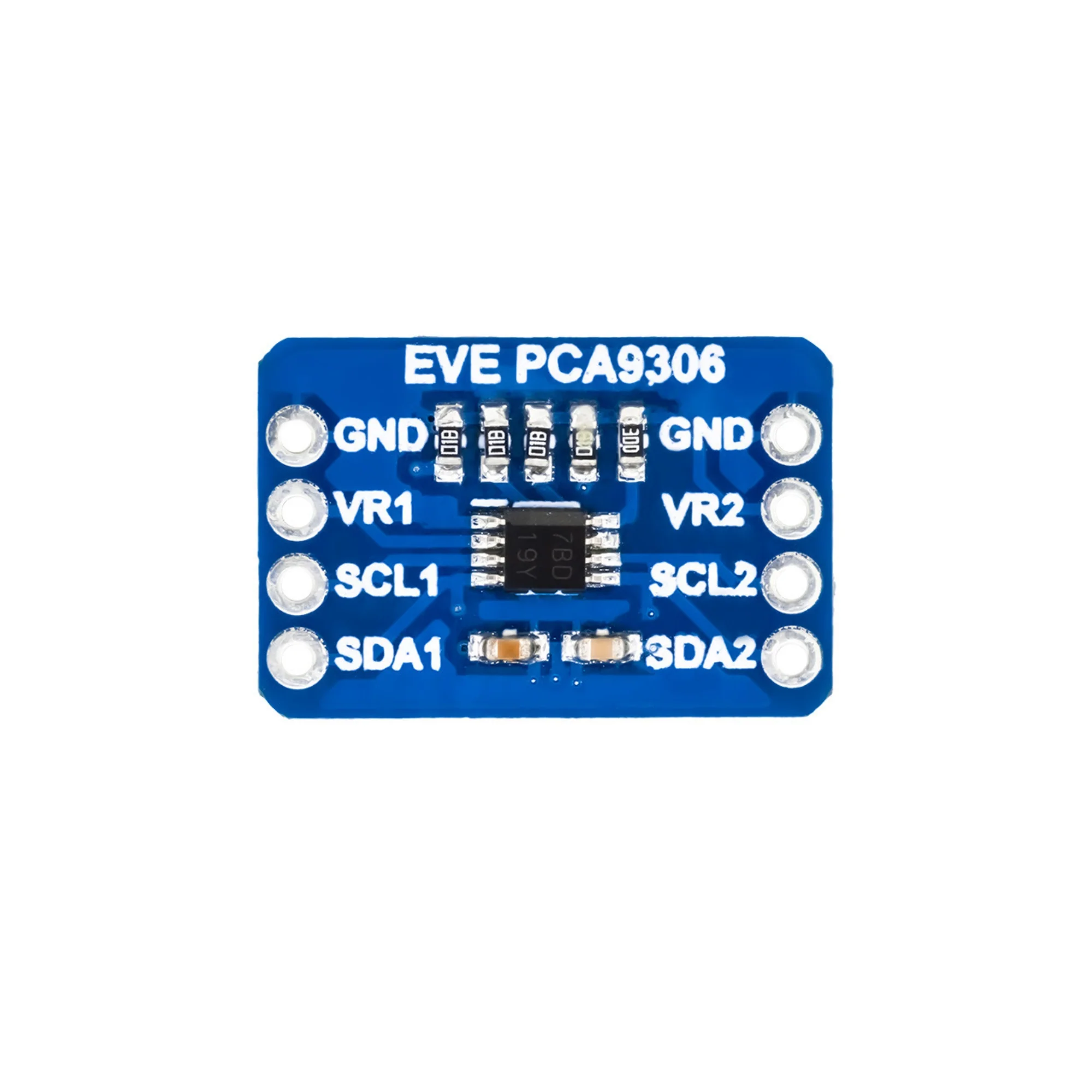

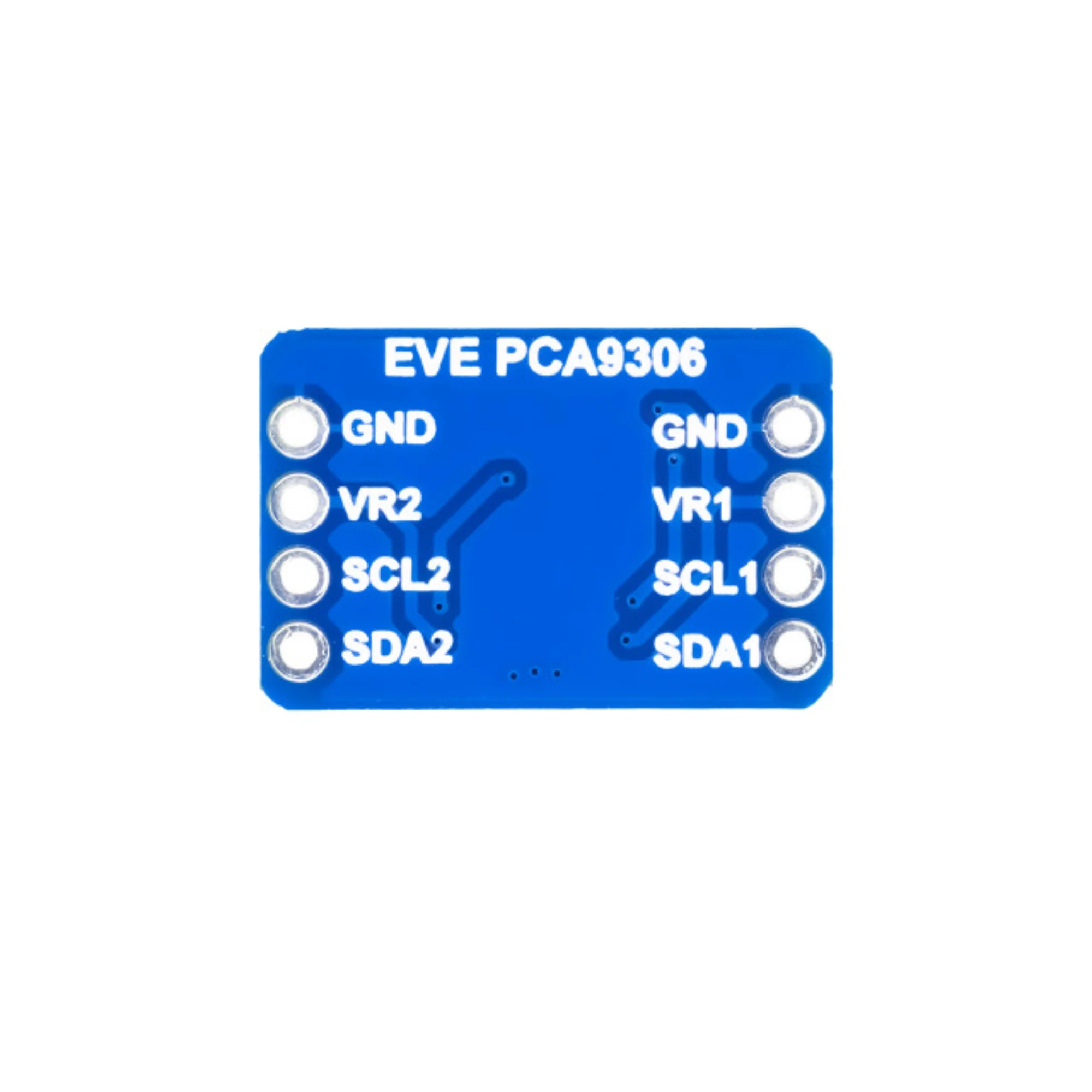

• Compact breakout board with clearly labeled pins

• Ideal for interfacing 3.3V microcontrollers with 5V peripherals

• Integrated pull-up resistors for reliable signal integrity

• Low power consumption and high signal integrity

• Compatible with Arduino, ESP32, STM32, and Raspberry Pi

• Plug-and-play design simplifies mixed-voltage system development

Applications:

• I²C bus voltage level shifting between 3.3V and 5V systems

• Communication between modern low-voltage sensors and older 5V controllers

• Embedded system and IoT hardware interfacing

• Microcontroller and peripheral device integration

• Robotics and automation systems requiring mixed-voltage logic

• Prototyping and development boards

• Consumer and industrial electronic devices

• Safe signal translation in data communication lines

• Mixed-voltage testing and debugging setups

• Educational and research electronics projects
