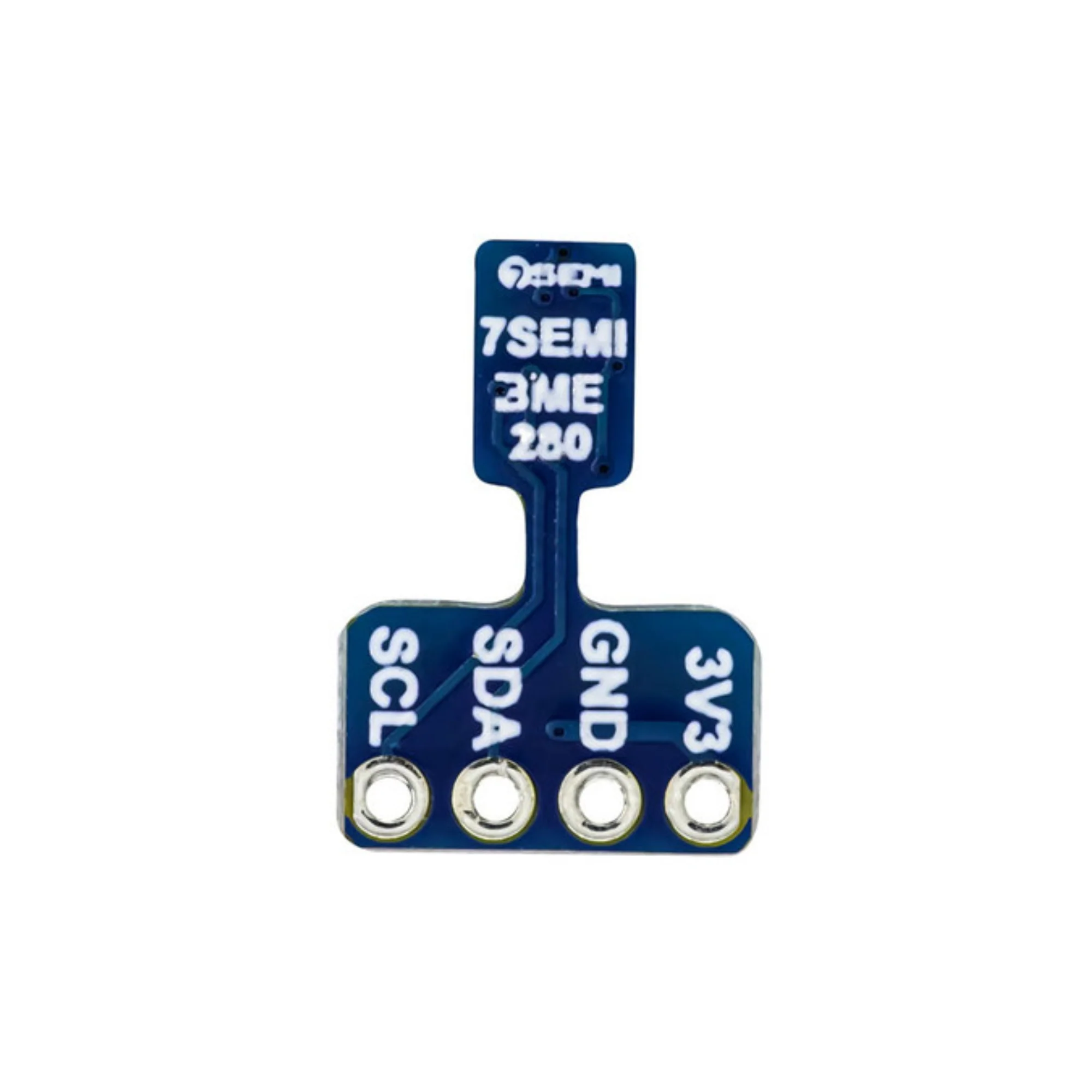

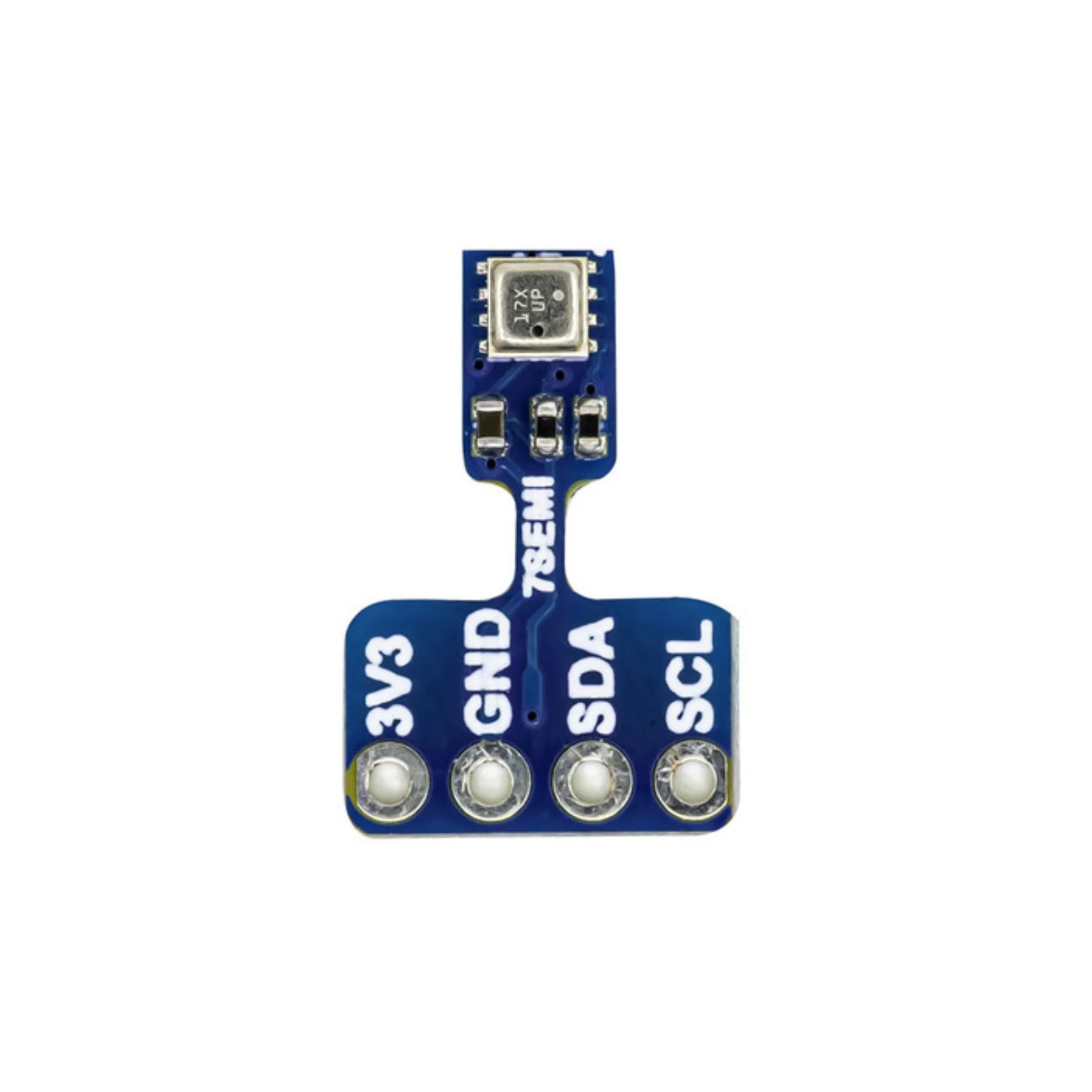

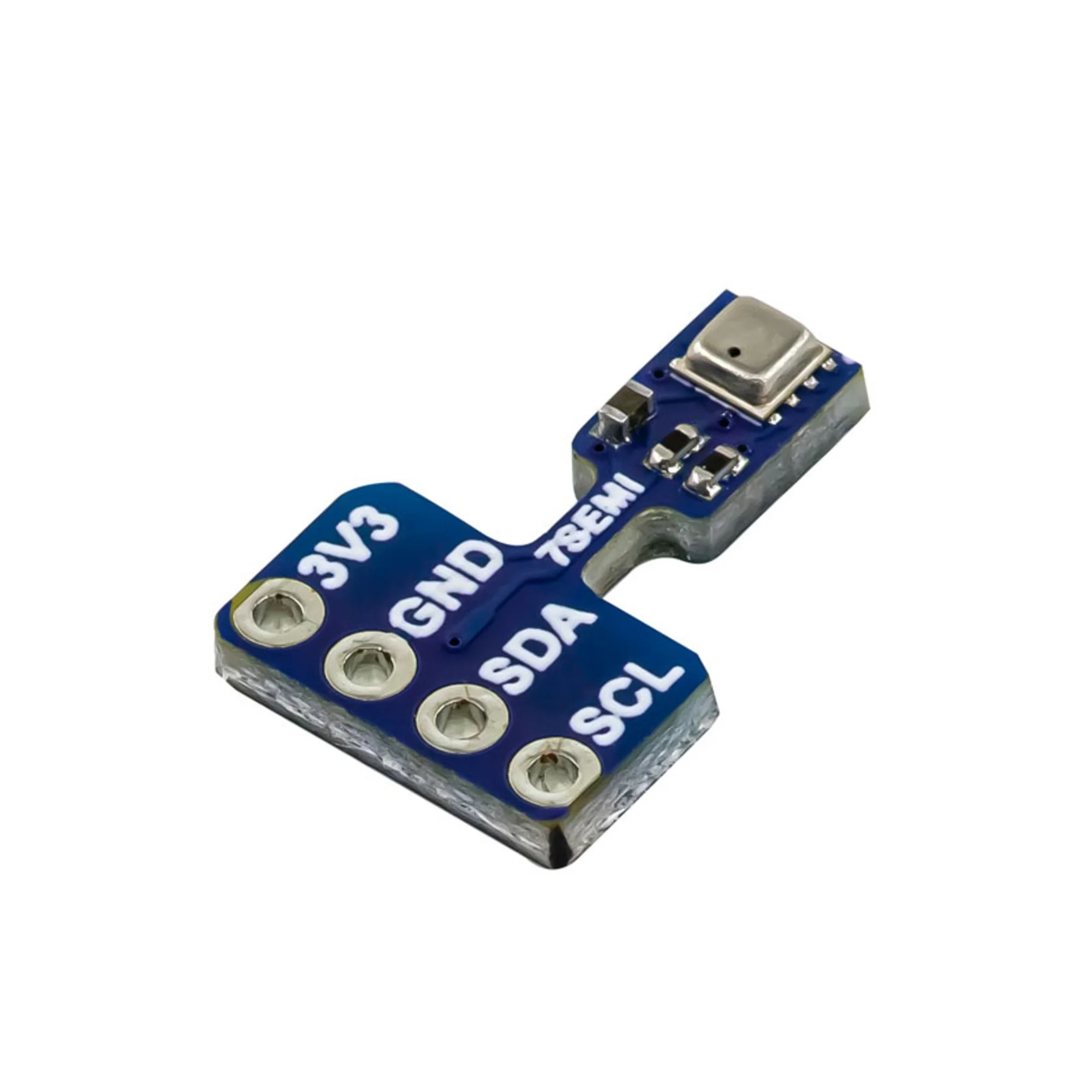

7Semi BME280 Temperature Humidity Pressure Sensor Nano Breakout 2.54mm Pitch Header
7Semi BME280 Temperature Humidity Pressure Sensor Nano Breakout 2.54mm Pitch Header
The 7Semi BME280 Temperature, Humidity, and Pressure Sensor Nano Breakout is a compact environmental sensing module based on the Bosch BME280 sensor. It provides accurate and reliable measurements of temperature, humidity, and barometric pressure with digital output via I²C or SPI interface. The breakout board features a 2.54mm pitch header, making it breadboard-friendly and easy to integrate into embedded systems, IoT devices, and weather monitoring projects. Its small size and low power consumption make it ideal for portable and long-term environmental sensing applications.
Technical Specifications:
- Sensor IC: Bosch BME280
- Measurement Parameters: Temperature, Humidity, Barometric Pressure
- Interface: I²C and SPI (selectable)
- Supply Voltage: 1.7V to 3.6V (typical 3.3V)
- Logic Level Compatibility: 3.3V and 5V
- Temperature Range: -40°C to +85°C
- Temperature Accuracy: ±0.5°C typical
- Humidity Range: 0% to 100% RH (non-condensing)
- Humidity Accuracy: ±3% RH typical
- Pressure Range: 300 hPa to 1100 hPa
- Pressure Accuracy: ±1 hPa typical
- Output Resolution: 16-bit for each parameter
- I²C Address: 0x76 or 0x77 (selectable)
- Response Time: <1 second for humidity
- Operating Current: 3.6µA (typical active mode)
- Board Type: Nano breakout with 2.54mm pitch header
- Operating Temperature: -40°C to +85°C
- PCB Dimensions: Compact and breadboard-compatible design
Features:
- All-in-one sensor for temperature, humidity, and pressure measurement
- Dual communication support (I²C and SPI) for flexible interfacing
- High accuracy and fast response time
- Fully calibrated digital output ready for immediate use
- Ultra-low power consumption ideal for IoT and portable applications
- Compact nano-sized PCB with standard 2.54mm header pins
- Compatible with Arduino, ESP32, STM32, and Raspberry Pi
- Factory-calibrated sensor ensures reliable and repeatable readings
- Wide temperature and humidity operating range
- Easy integration into breadboards and prototype circuits
Applications:
- Environmental monitoring and weather stations
- Smart home and HVAC automation systems
- Altitude and pressure-based navigation applications
- IoT-based data logging and sensor networks
- Greenhouse and agricultural climate control
- Portable devices and wearable environmental trackers
- Air quality monitoring and indoor comfort measurement
- Robotics and drone altitude measurement systems
- Educational and research-based sensor projects
- Industrial process and environmental control systems
