7Semi BME680 Temperature Pressure Humidity and Air Quality Sensor I2C Breakout STEMMA QT / Qwiic
7Semi BME680 Temperature Pressure Humidity and Air Quality Sensor I2C Breakout STEMMA QT / Qwiic

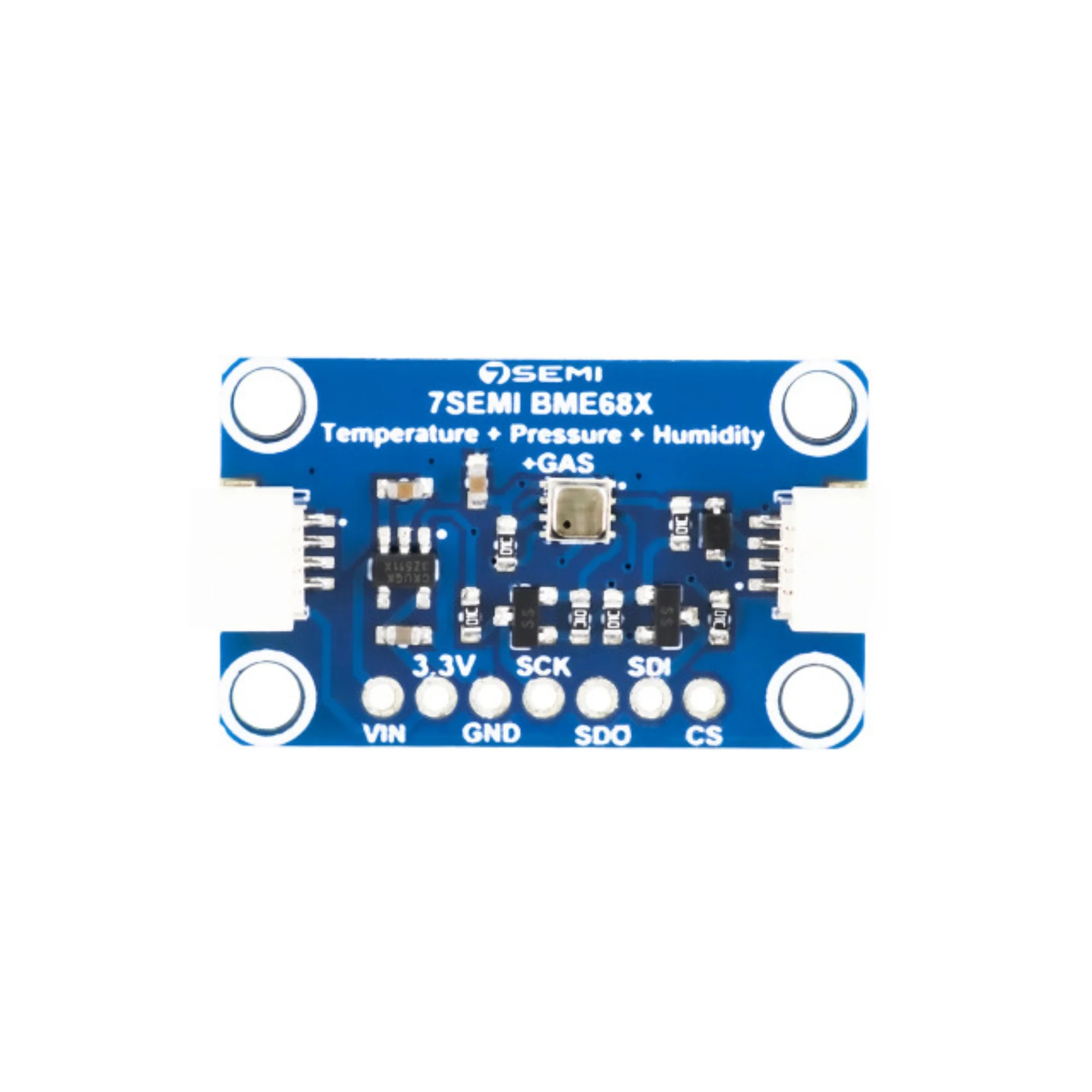

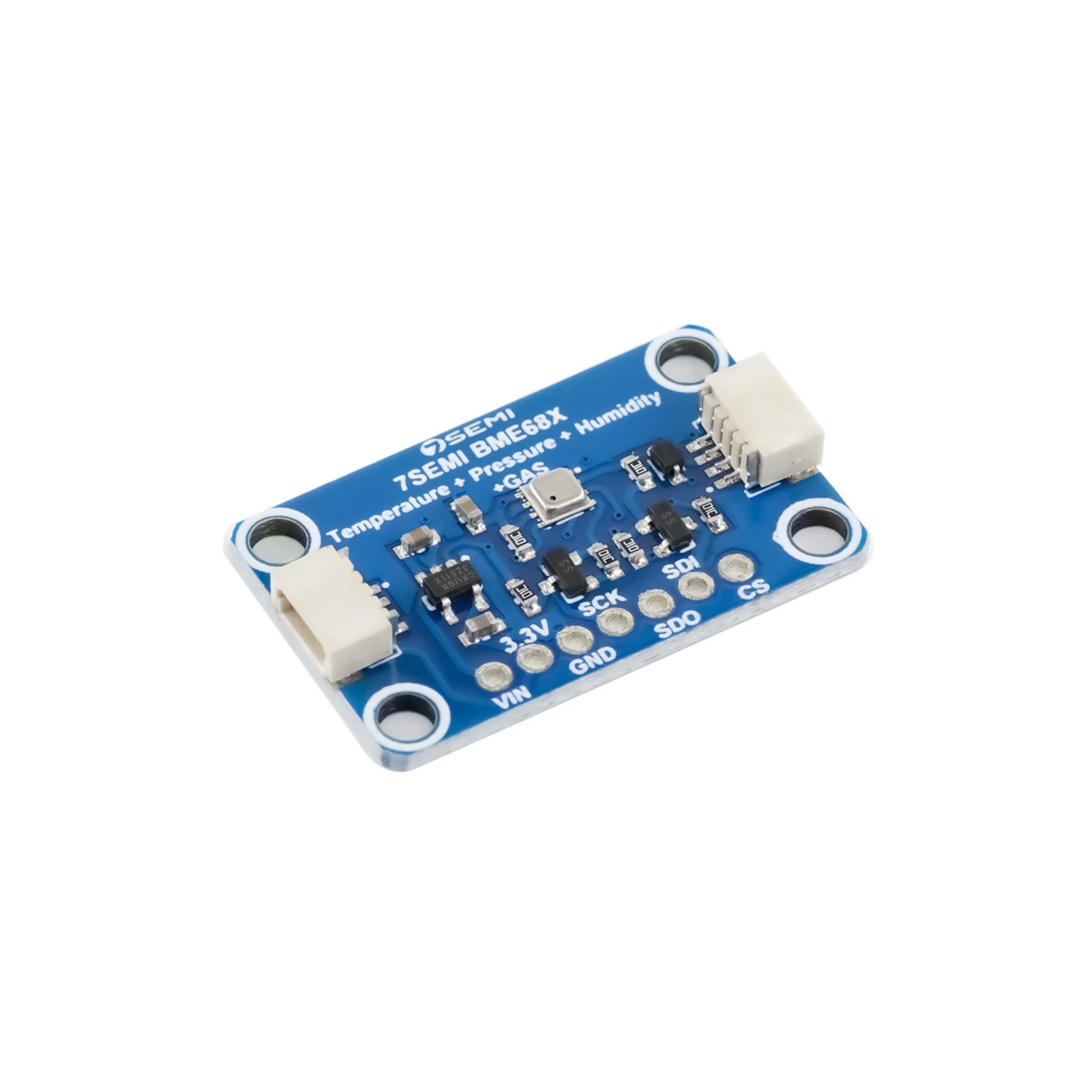

The 7Semi BME680 Temperature, Pressure, Humidity, and Air Quality Sensor I²C Breakout is a compact 4-in-1 environmental sensing module using the Bosch BME680 sensor. It integrates temperature, relative humidity, barometric pressure, and VOC gas sensing for IAQ (Indoor Air Quality) monitoring. The board supports I²C communication and includes a STEMMA QT / Qwiic connector for easy plug-and-play interfacing with development boards and microcontroller platforms. It is ideal for IoT, smart home systems, weather monitoring, and portable environmental sensing applications.
Technical Specifications:
- Sensor Type: Temperature, Humidity, Pressure, VOC Gas
- Operating Temperature: –40 °C to +85 °C
- Humidity Range: 0–100% RH
- Pressure Range: 300–1100 hPa
- Temperature Accuracy: ±1.0 °C typical
- Humidity Accuracy: ±3% RH typical
- Pressure Accuracy: ±1 hPa typical
- Gas Sensor: VOC resistance-based air quality measurement
- Interface: I²C (up to 3.4 MHz) and optional SPI
- Supply Voltage: 1.71 V – 3.6 V
- Typical Current Consumption: 2–3 µA in standard measurement; up to ~12 mA with gas sensor heater
- I/O Level: 3.3 V compatible
- Breakout Integration: STEMMA QT / Qwiic connector and standard pin header pads
- Sensor Package: 3 × 3 × 0.93 mm LGA package
Features:
- Four environmental measurements in one compact module
- Onboard VOC air-quality sensing capability
- STEMMA QT / Qwiic connector for tool-less wiring
- Easy integration using I²C interface
- Low-power design suitable for battery-powered devices
- High measurement accuracy and stability
- Breadboard-friendly breakout format
- Ideal for indoor comfort monitoring and environmental control
Applications:
- Smart home automation and air-quality monitoring
- IoT and wireless sensor networks
- Weather stations and barometric altitude tracking
- HVAC, ventilation and purifier systems
- Indoor environmental health and comfort measurement
- Wearable and portable sensing devices
- Industrial and agricultural monitoring
- Education, prototyping and maker projects
