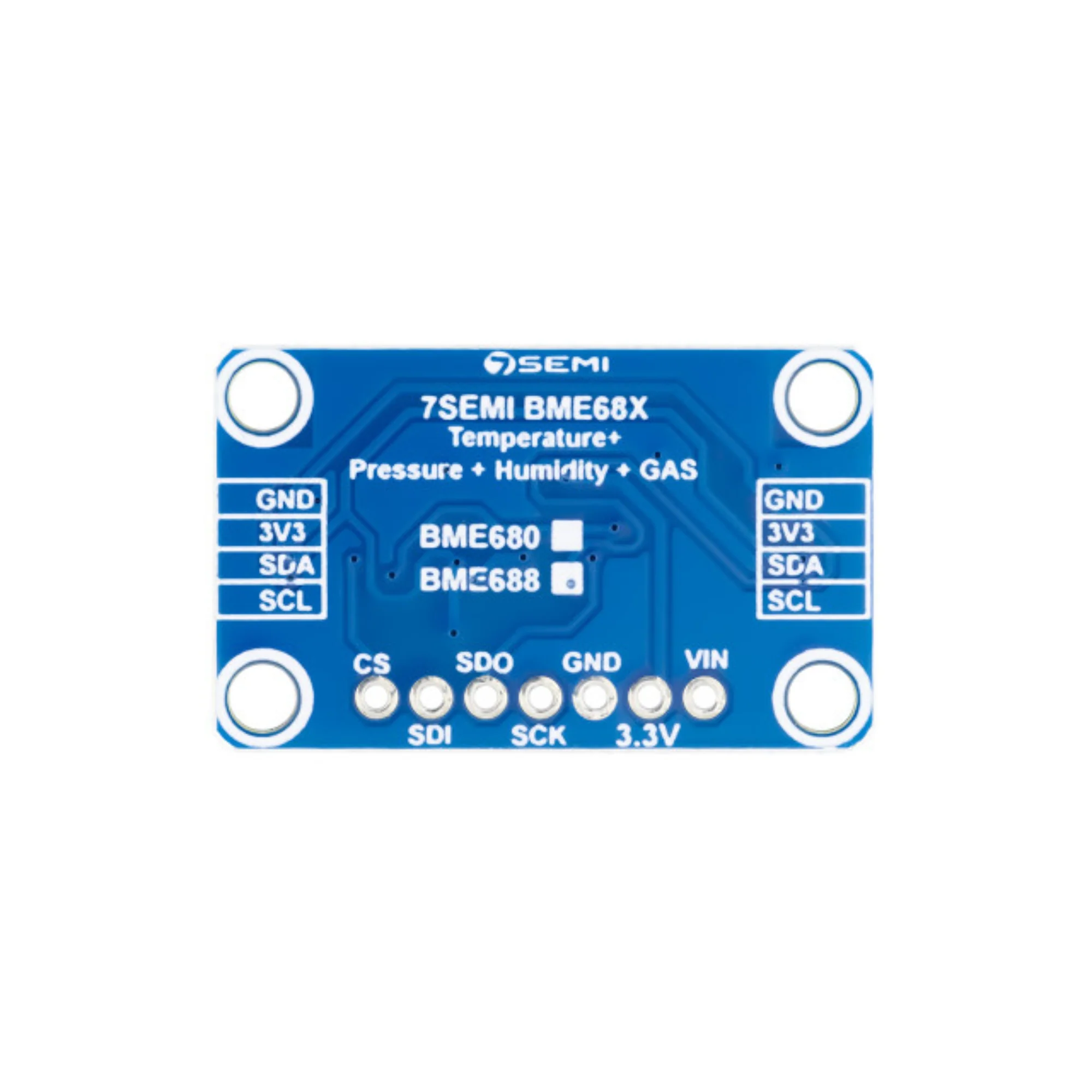

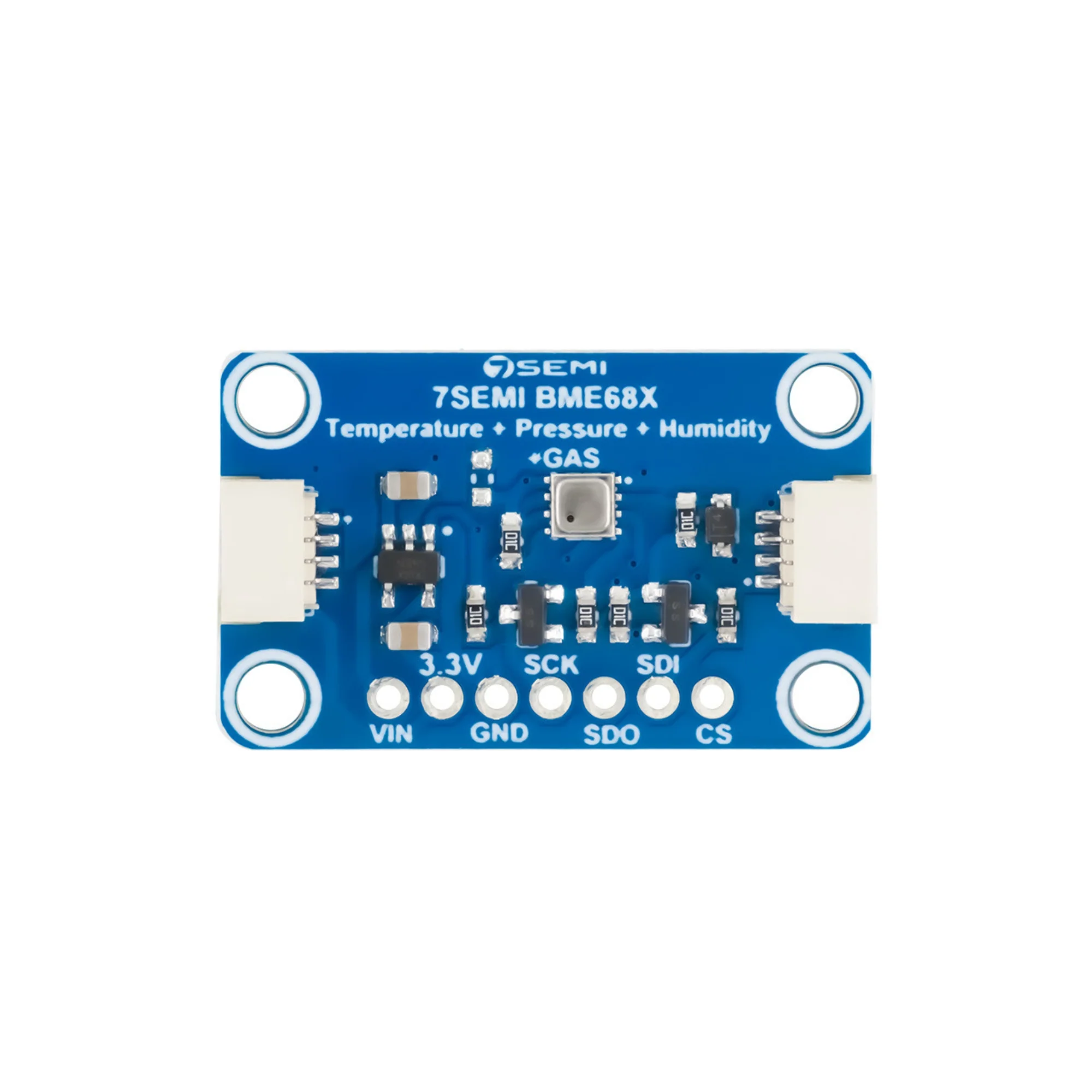

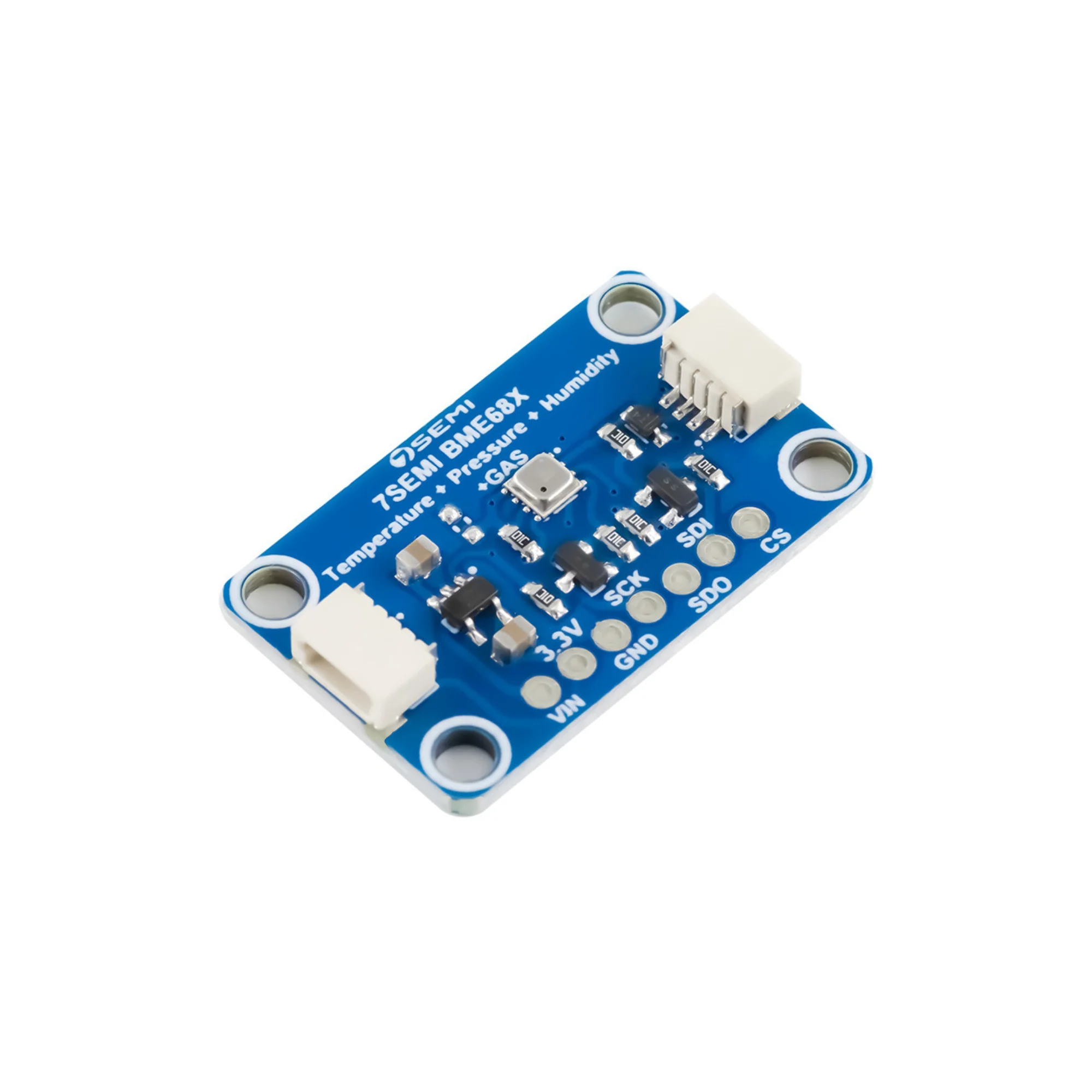

7Semi BME688 Environmental Sensor Breakout
7Semi BME688 Environmental Sensor Breakout
The 7Semi BME688 Environmental Sensor Breakout is a compact 4-in-1 sensing module built around the Bosch BME688 sensor. It combines temperature, humidity, barometric pressure, and gas sensing for indoor air-quality monitoring. The BME688 expands on the capabilities of the BME680 by adding advanced gas-scanner functionality and AI-based gas classification support. This breakout board is ideal for IoT, smart home, industrial monitoring, and portable applications requiring high-accuracy multi-parameter environmental data.
Technical Specifications:
- Sensor Type: Temperature, Humidity, Pressure, VOC Gas detection
- Operating Temperature: –40 °C to +85 °C
- Humidity Range: 0–100% RH
- Pressure Range: 300–1100 hPa
- Temperature Accuracy: ±0.5 °C typical
- Humidity Accuracy: ±3% RH typical
- Pressure Noise: ~0.12 Pa RMS (approx.)
- Gas Sensor: VOC and VSC sensing, AI-based gas classification capability
- IAQ and CO₂-equivalent output support
- Interface: I²C and SPI
- Current Consumption:
- Sleep ~0.15 µA
- Ultra-low-power mode ~90 µA
- Standard gas-scan mode ~9-12 mA
- Supply Voltage: 1.71 V – 3.6 V
- Logic Level: 3.3 V
- Sensor Package: 3 × 3 × 0.93 mm LGA
- Breakout Features: I²C compatible connector and header pins (varies by board variant)
Features:
- 4-in-1 environmental sensor measuring temperature, humidity, pressure, and indoor air quality
- Integrated gas sensor for VOC and VSC detection
- AI-enabled gas classification for custom trained sensing profiles
- Very low-power modes suited for battery-driven systems
- Compact breakout format ideal for embedded and portable devices
- Supports I²C and SPI communication for easy microcontroller integration
- High-precision sensing enabling advanced environmental monitoring
- Plug-and-play integration with popular IoT platforms
Applications:
- Smart home and indoor air-quality monitoring
- IoT environmental monitoring nodes
- Portable and wearable health sensing devices
- HVAC and air filtration control systems
- • Weather and atmospheric research instrumentation
- • Robotics and autonomous indoor systems
- • Industrial and agricultural environmental monitoring
- • Intelligent ventilation and safety systems
