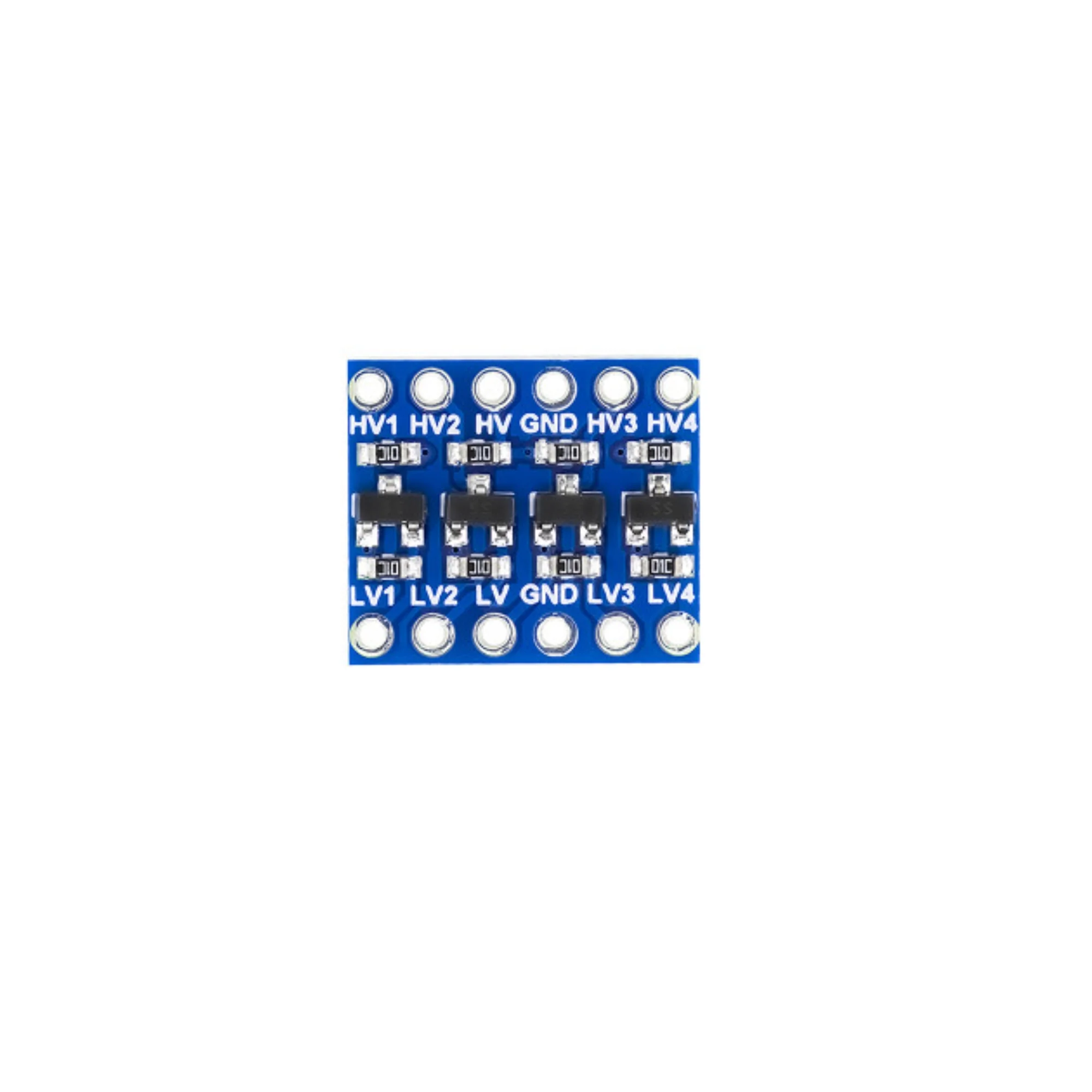

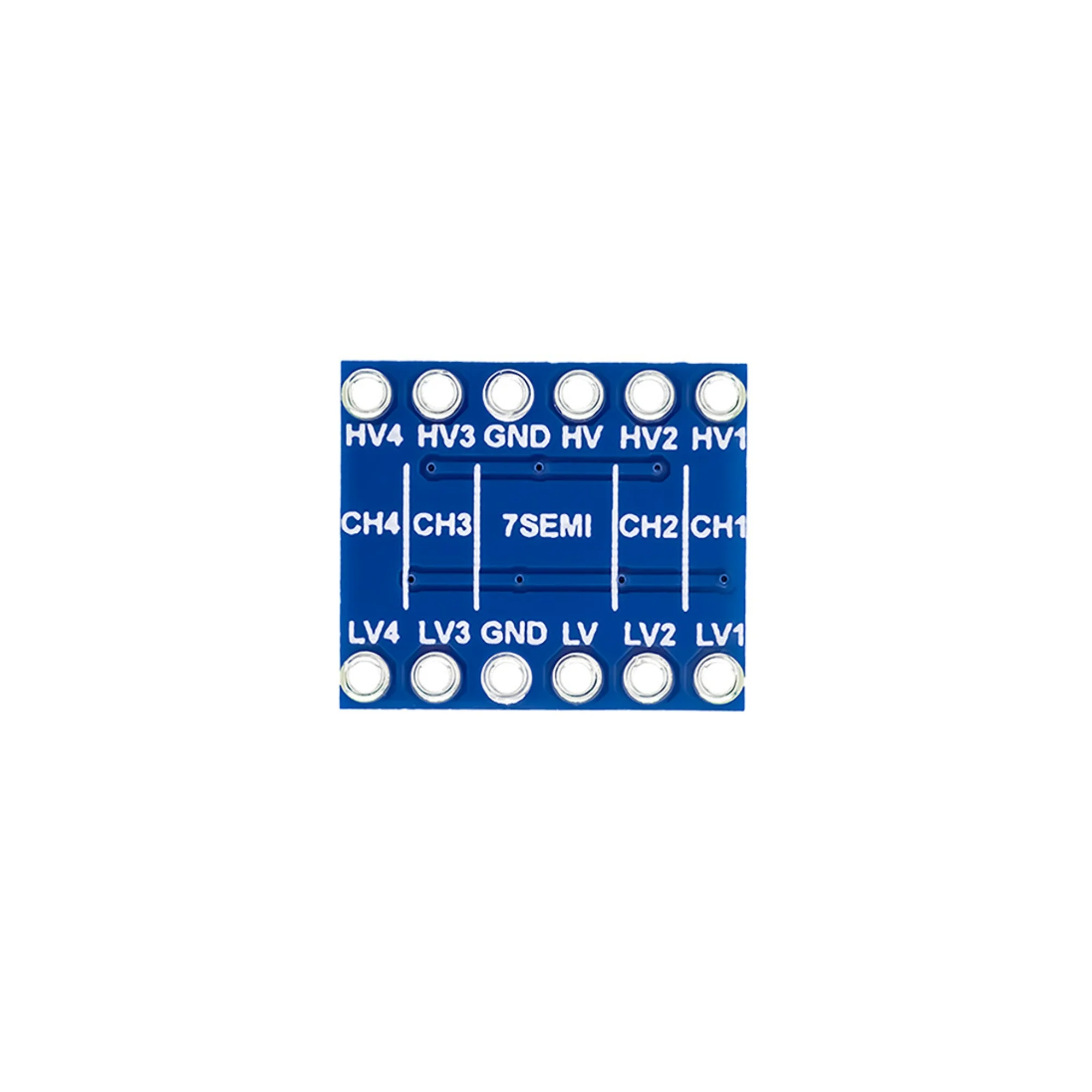

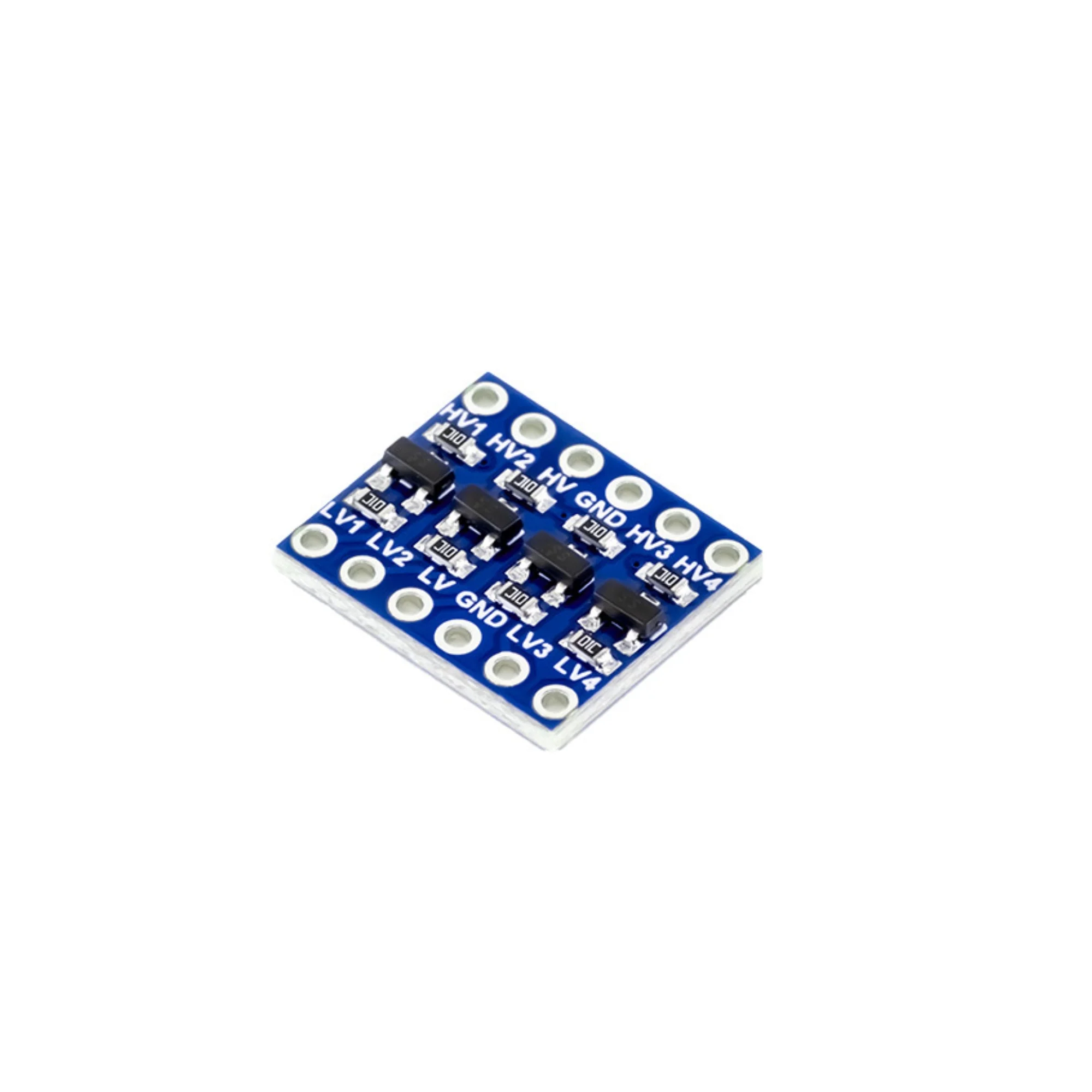

The 7Semi BSS138 4-channel logic level converter is a compact breakout board that enables safe and reliable bi-directional voltage level shifting between devices operating at different logic levels. Designed primarily for I2C communication, it uses BSS138 N-channel MOSFETs with pull-up resistors, allowing for smooth signal translation between low- and high-voltage domains.

Technical Specification:

• Channels: 4 bidirectional channels
• Voltage Range (Low Side): ~1.8 V and above

• Voltage Range (High Side): Up to ~10 V

• MOSFET Type: BSS138 N-channel

• Pull-up Resistors: 10 kΩ on each line

• Interface Compatibility: I2C, UART/TTL, slow SPI (<2 MHz)

• Board Type: Assembled breakout module with 6-pin headers

• Dimensions: Compact size suitable for breadboard/prototyping

Features:

• Bidirectional level shifting using MOSFETs

• Supports a wide voltage range (1.8 V to 10 V)

• Works seamlessly with I2C, UART, and other digital signals

• Pre-soldered headers for easy integration into breadboards

• No need for manual direction control

• Plug-and-play functionality for mixed-voltage setups

• Low cost and ideal for DIY and embedded applications

Applications:

• Interfacing 3.3 V and 5 V devices (e.g., Arduino, Raspberry Pi, ESP8266)
• Level shifting between low-voltage MCUs and high-voltage peripherals

• I2C bus extension between devices with different voltage requirements

• TTL logic communication bridging

• Prototyping, testing, and educational electronics projects

• Sensor and module interfacing across voltage domains
