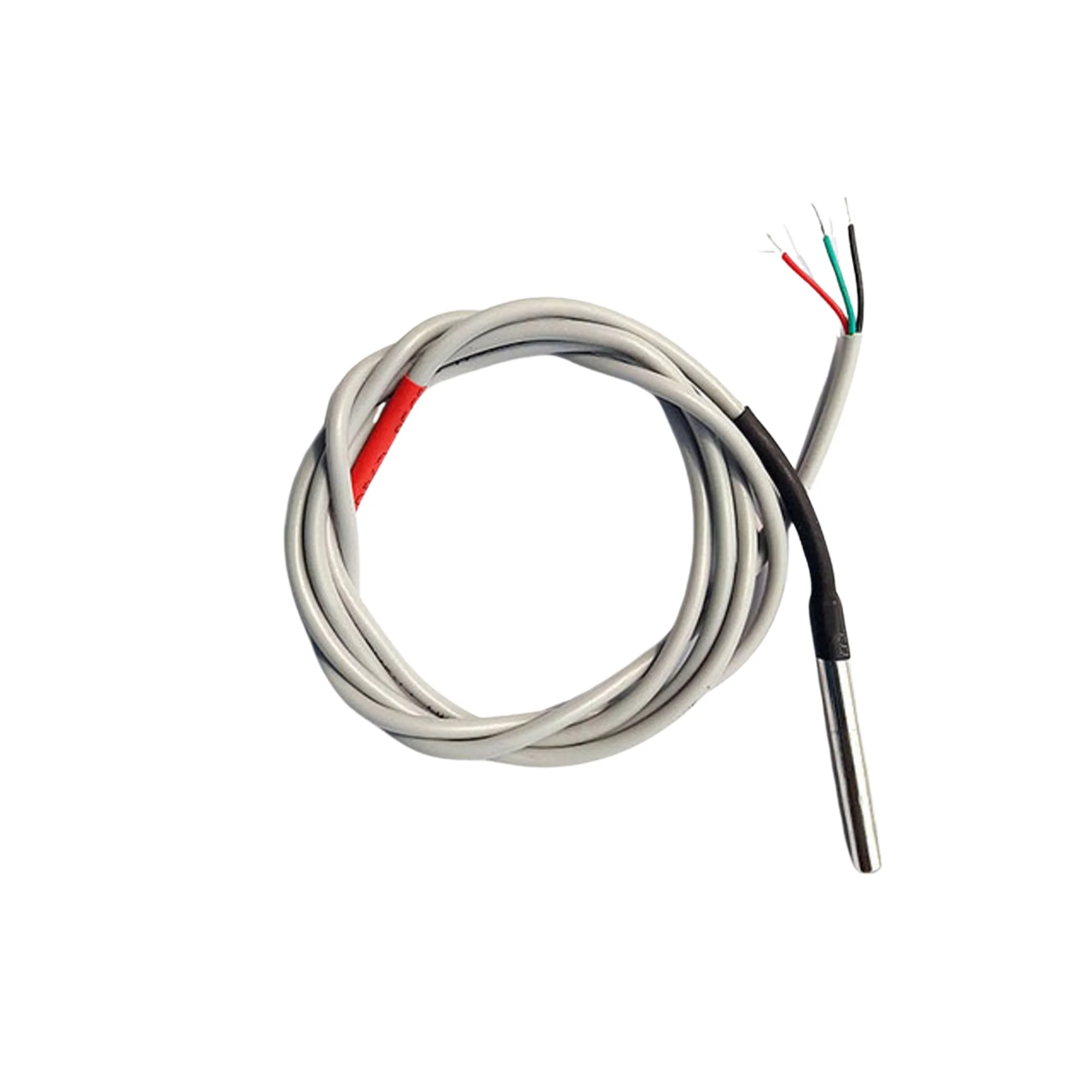

7Semi DS18B20 Digital Waterproof Temperature Sensor Probe 2M Cable

The 7Semi DS18B20 Digital Waterproof Temperature Sensor Probe 2M Cable is a durable, high-accuracy temperature sensor designed for precise digital temperature measurements in wet or outdoor environments. It is based on the DS18B20 sensor, which communicates using the 1-Wire protocol, allowing multiple sensors to be connected to a single data line. The sensor is encapsulated in a stainless steel tube for waterproof protection and includes a 2-meter cable for flexible placement. It is ideal for applications such as weather stations, industrial temperature monitoring, and environmental data logging.

Technical Specifications:

• Sensor IC: DS18B20 Digital Temperature Sensor

• Measurement Range: -55°C to +125°C

• Accuracy: ±0.5°C (in range -10°C to +85°C)

• Resolution: Programmable from 9-bit to 12-bit (0.0625°C precision)

• Interface: 1-Wire digital communication

• Operating Voltage: 3.0V to 5.5V

• Cable Length: 2 meters
• Cable Type: PVC-insulated, three-core cable (Red: VCC, Black: GND, Yellow: Data)

• Probe Material: Stainless steel housing (waterproof and rust-resistant)

• Probe Dimensions: Diameter 6mm, Length 50mm (approx.)

• Response Time: Less than 1 second (in still liquid)

• Output Type: Digital temperature data via 1-Wire protocol

• Operating Temperature: -55°C to +125°C

• Storage Temperature: -55°C to +125°C

• Compatibility: Works with 3.3V and 5V logic systems

Features:

• Fully waterproof stainless steel probe for liquid and outdoor use

• High accuracy digital output using 1-Wire interface

• Long 2-meter cable for flexible placement and installation

• Supports multiple sensors on a single data bus

• No external components required when using parasite power mode

• Fast response and stable readings in real environments

• Low power consumption suitable for battery-based systems

• Robust and corrosion-resistant design for long-term use

• Compatible with Arduino, ESP32, STM32, and Raspberry Pi platforms

• Ideal for monitoring in wet, humid, or submerged conditions

Applications:

• Industrial and environmental temperature monitoring

• Water temperature measurement in tanks or aquariums

• Weather stations and outdoor temperature sensing

• Agricultural and greenhouse climate control

• Food and beverage processing equipment monitoring

• Smart home and IoT temperature monitoring systems

• HVAC and refrigeration control systems

• Scientific experiments and educational projects

• Data logging and laboratory applications

• Embedded systems requiring waterproof temperature sensing
