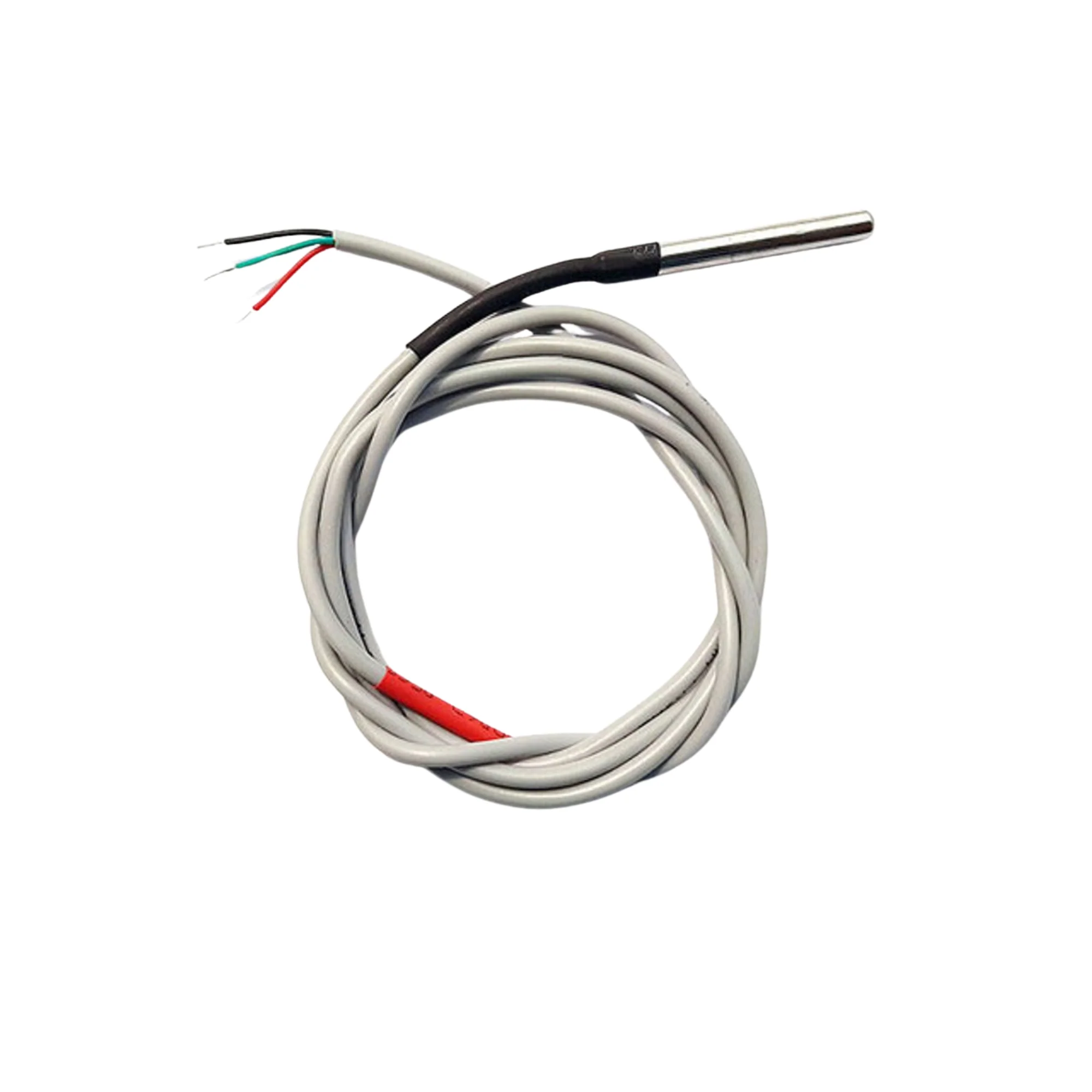

7Semi DS18B20 Digital Waterproof Temperature Sensor Probe 3M Cable

The 7Semi DS18B20 Digital Waterproof Temperature Sensor Probe (3M Cable) is a high-precision digital temperature sensor encased in a rugged, stainless-steel waterproof housing, ideal for accurate temperature measurement in wet, outdoor, and industrial environments. It uses the Dallas/Maxim DS18B20 sensor, which communicates via the One-Wire digital interface, allowing multiple sensors to be connected to a single data line. With its pre-wired 3-meter cable and durable design, this sensor is perfectly suited for liquid temperature monitoring, environmental sensing, and IoT-based smart systems.

Technical Specifications:

• Sensor Model: DS18B20 (Digital Thermometer)

• Measurement Range: -55°C to +125°C

• Accuracy: ±0.5°C (typical over -10°C to +85°C range)

• Resolution: Programmable from 9-bit to 12-bit (default 12-bit)

• Communication Interface: One-Wire digital protocol

• Operating Voltage: 3.0 V to 5.5 V

• Output Type: Digital (open-drain)

• Cable Length: 3 meters

• Cable Type: 3-wire, PVC-insulated (Red: VCC, Black: GND, Yellow: DATA)

• Probe Material: Stainless steel, waterproof and corrosion-resistant

• Probe Dimensions: Approx. 6 mm diameter, 50 mm length

• Power Consumption: <1 mA (active), <1 µA (standby)

• Response Time: Fast thermal response in liquid or air

• Operating Temperature: -55°C to +125°C

• Storage Temperature: -55°C to +125°C

• Compatibility: Works with Arduino, Raspberry Pi, ESP32, STM32, and other microcontrollers

Features:

• Fully waterproof stainless-steel probe for use in harsh environments

• High-accuracy digital temperature measurement with no calibration needed

• One-Wire interface allows multiple sensors on a single data line

• Long 3-meter cable provides flexibility for remote sensing installations

• Operates with 3.3 V or 5 V logic systems

• Calibrated digital output — no need for analog signal conversion

• Compact and durable design ideal for long-term outdoor and industrial use

• Fast response time and stable performance over a wide temperature range

• Simple integration with popular microcontrollers and IoT platforms

Applications:

• Liquid temperature measurement (water, oil, and chemical solutions)

• Industrial and HVAC temperature monitoring

• IoT and smart agriculture temperature sensing

• Weather stations and environmental monitoring systems

• Food storage, refrigeration, and cold chain management

• Scientific and laboratory temperature measurement setups

• Soil and greenhouse temperature tracking

• Embedded and educational electronics projects requiring digital temperature sensing
