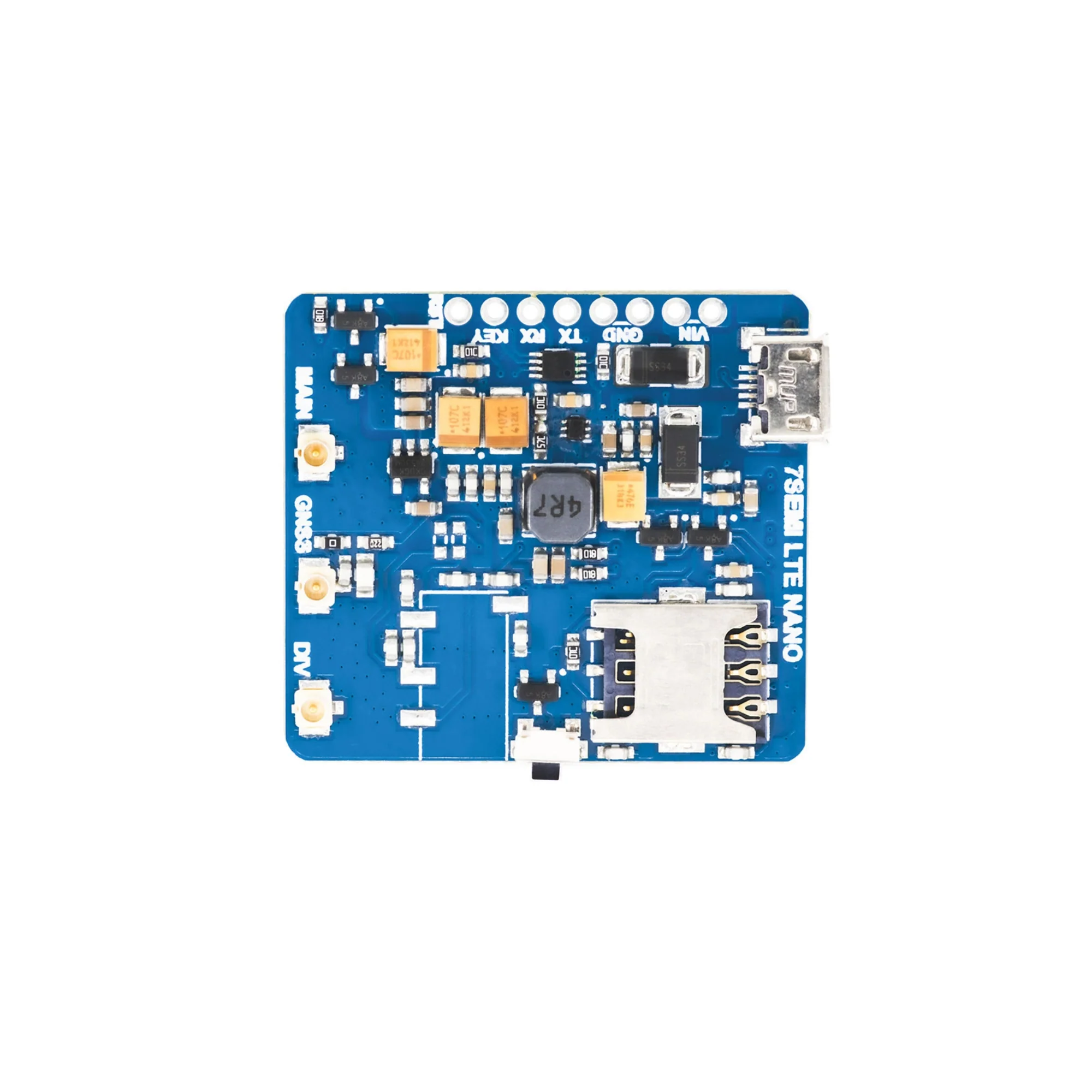

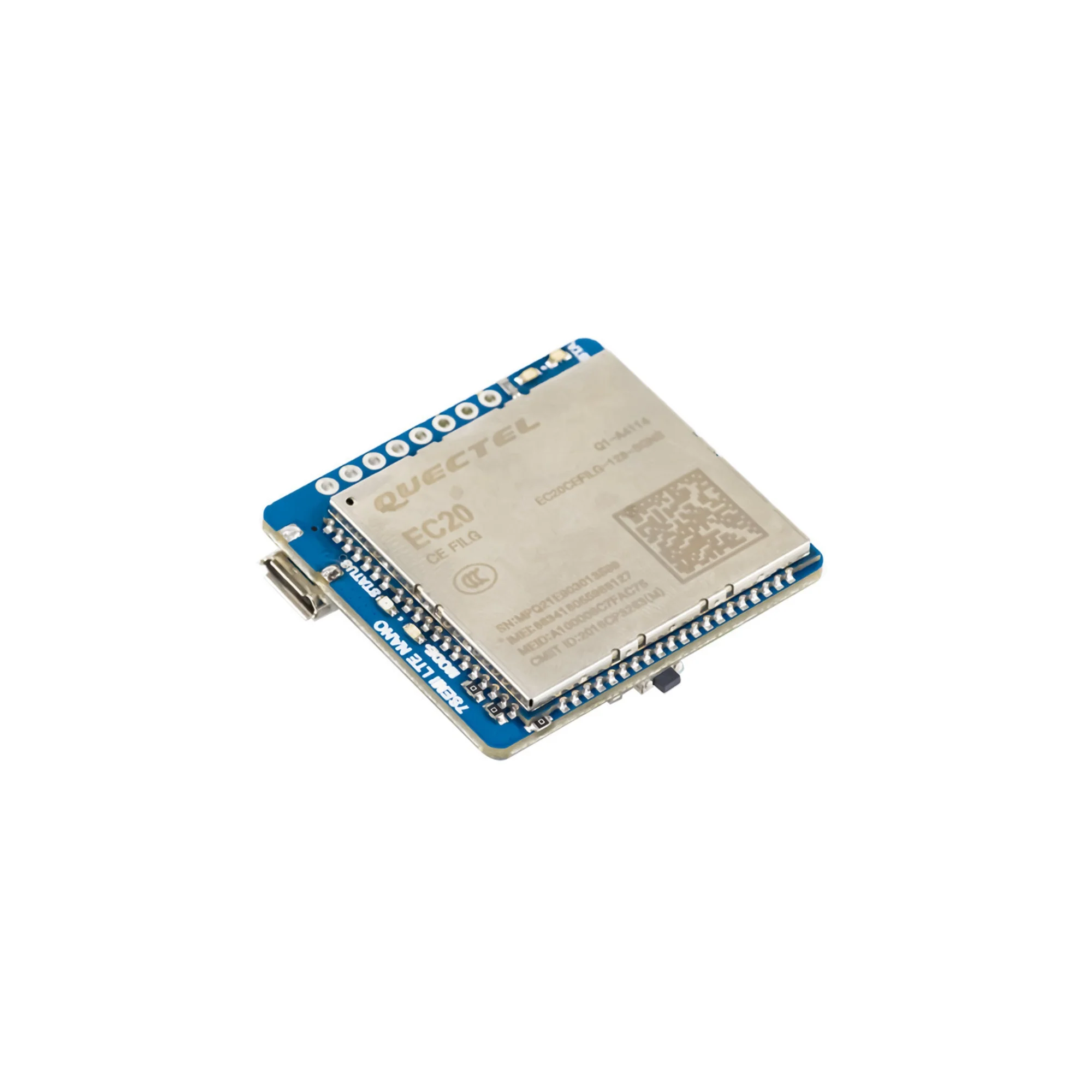

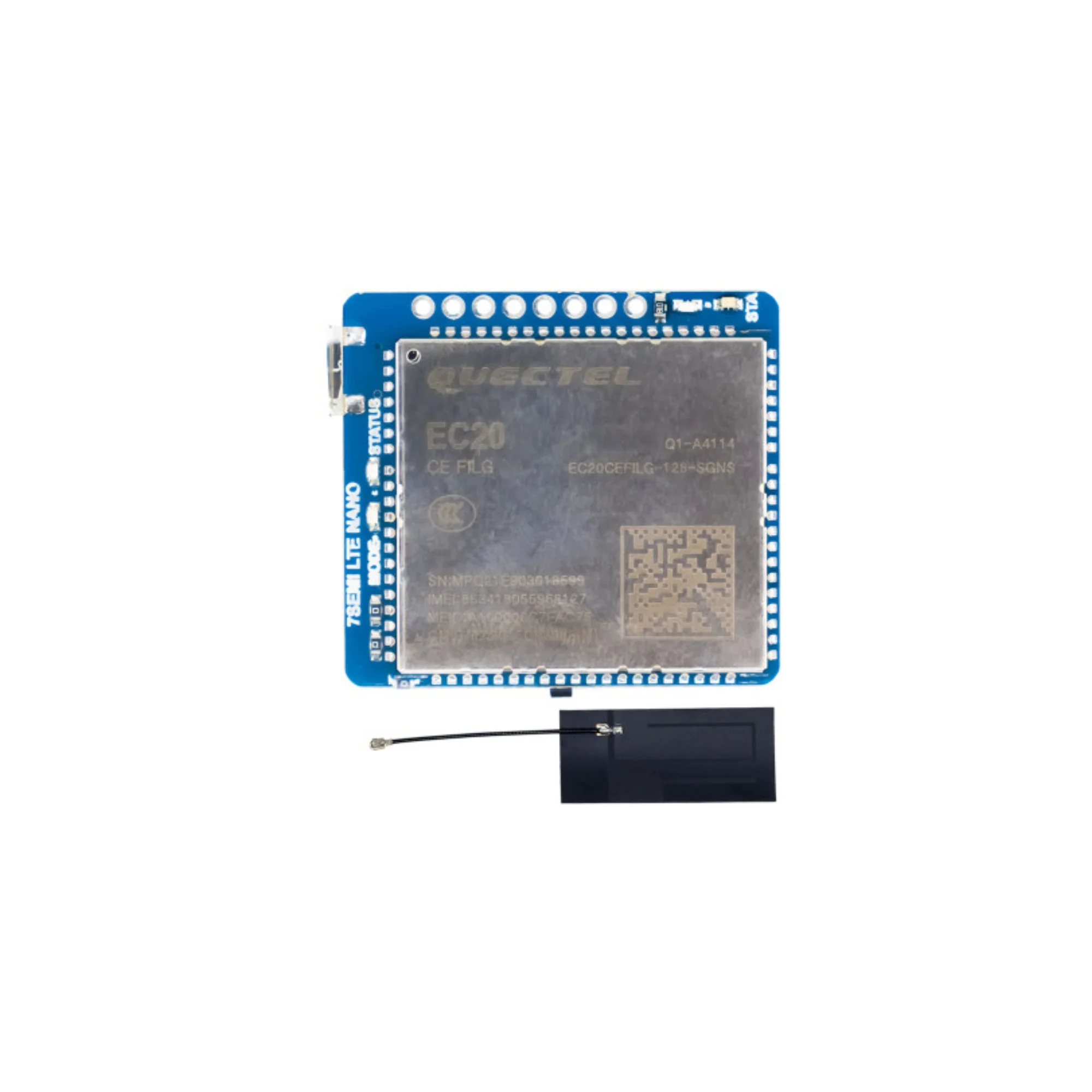

7Semi EC20 CAT-4 LTE 4G GNSS Ultra-compact Nano Modem
7Semi EC20 CAT-4 LTE 4G GNSS Ultra-compact Nano Modem
The 7Semi EC20 CAT-4 LTE 4G GNSS Ultra-compact Nano Modem is a powerful cellular and positioning communication module designed for IoT, M2M, telematics, and embedded systems. It integrates a high-speed LTE Category 4 modem along with multi-constellation GNSS for accurate location tracking. With support for 4G, 3G, and 2G fallback, it ensures wide network compatibility and reliable connectivity. Its ultra-compact form factor makes it suitable for space-constrained applications requiring high-speed data and GNSS positioning.
Technical Specifications:
- Cellular Standard: LTE Cat-4
- Download Speed: Up to ~150 Mbps
- Upload Speed: Up to ~50 Mbps
- Supported Networks: LTE / UMTS / GSM with automatic fallback
- GNSS Support: GPS, GLONASS, BeiDou, Galileo, QZSS
- Supply Voltage: Approx. 3.3 V to 4.3 V (module core)
- Interfaces: USB 2.0 high-speed, UART, multiple control I/O
- Antenna Support: LTE primary, LTE diversity, GNSS antenna ports
- Operating Temperature: –40 °C to +85 °C
- Module Dimensions: Approximately 29 mm × 32 mm × 2.4 mm (core module)
- Compliance: 3GPP Release 11 and standard AT command support
Features:
- High-speed LTE Category 4 connectivity
- Multi-GNSS engine for accurate positioning and navigation
- 4G / 3G / 2G fallback ensures maximum coverage reliability
- Ultra-compact nano modem for embedded integration
- Industrial-grade construction with wide temperature tolerance
- Supports TCP, UDP, PPP, FTP, HTTP, and other internet protocols
- USB and UART interfaces for flexible integration with processors
- Ideal for real-time communication and location-based applications
Applications:
- IoT gateways, telemetry devices, smart-city systems
- Vehicle tracking, fleet management, asset tracking
- Industrial monitoring, remote data logging, and automation
- Digital signage, kiosks, vending and payment systems
- Security systems, surveillance, and wireless video backhaul
- Navigation-enabled embedded devices and mobile hardware
- Smart agriculture, energy metering and infrastructure monitoring
