7Semi EC200U LTE 4G GNSS IoT Smart Modem Onboard STM32 MCU
7Semi EC200U LTE 4G GNSS IoT Smart Modem Onboard STM32 MCU

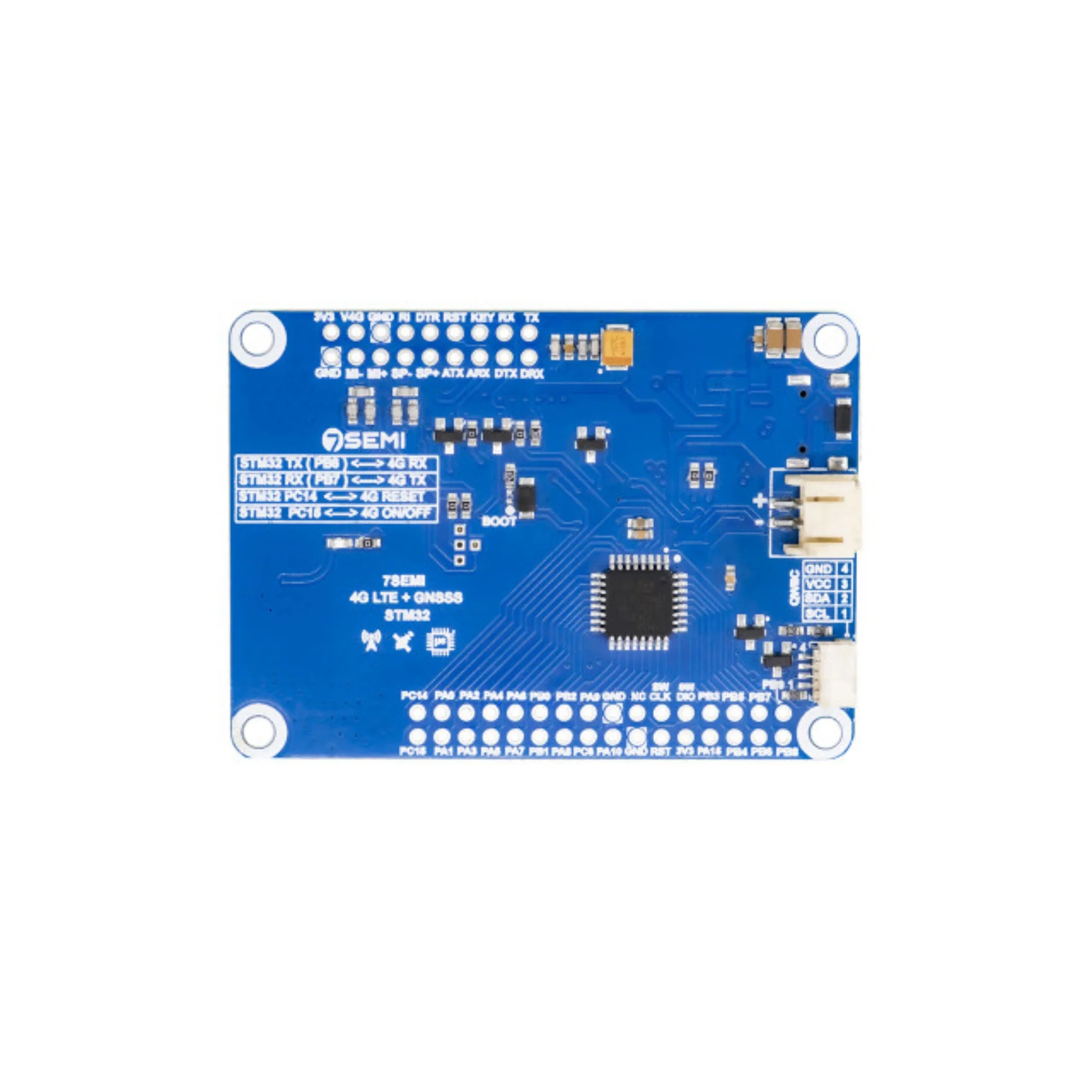

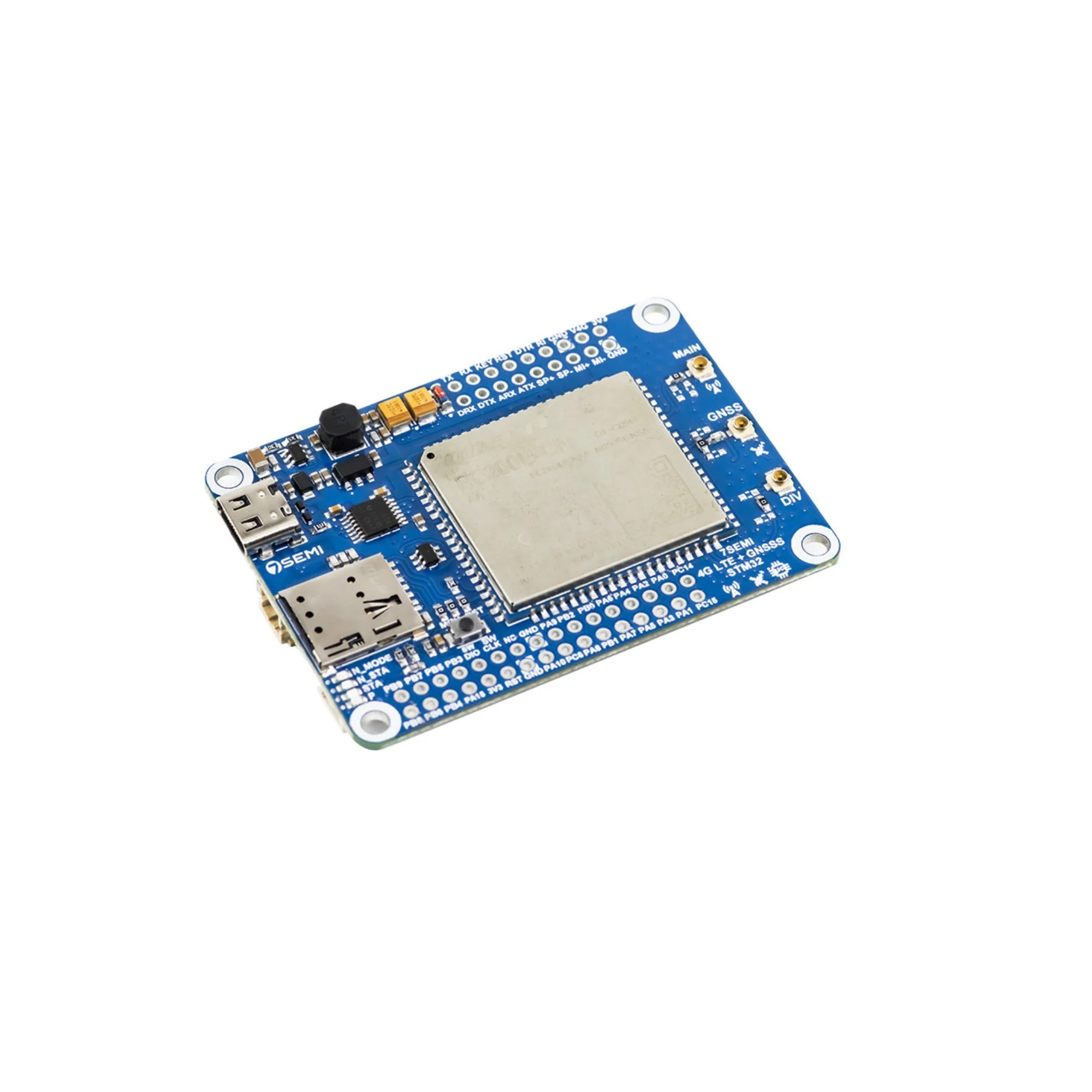

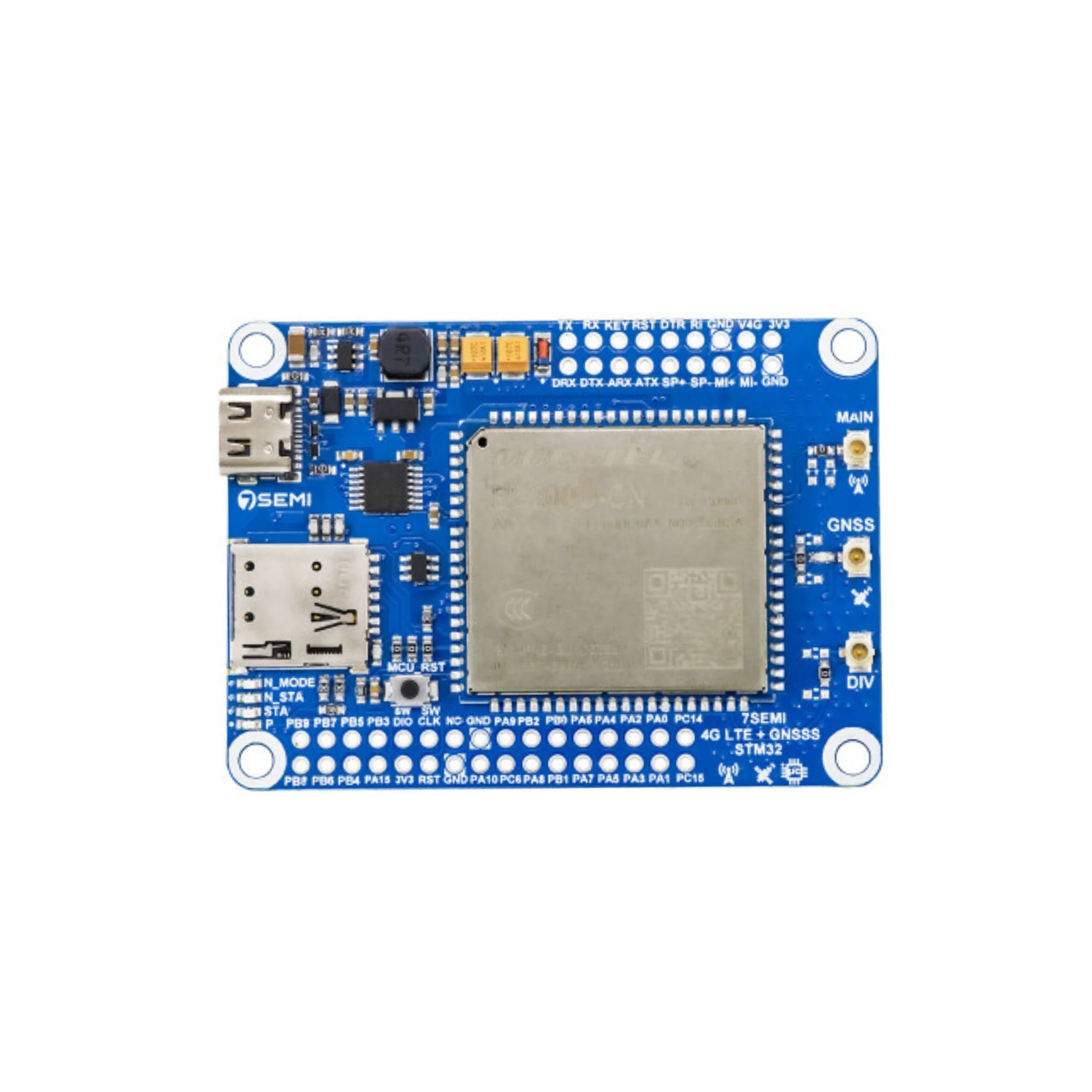

The 7Semi EC200U LTE 4G GNSS IoT Smart Modem with onboard STM32 MCU is an all-in-one cellular and positioning solution designed for IoT and embedded applications. It integrates an LTE Cat-1 modem, multi-constellation GNSS receiver, and an STM32G070KBT6 microcontroller on a single compact module. This eliminates the need for an external MCU, enabling standalone programmable IoT systems with mobile connectivity and real-time positioning. It offers USB and UART communication options, a nano-SIM slot, and industrial temperature support suitable for field deployments.
Technical Specifications:
- Microcontroller: STM32G070KBT6 with 128 KB Flash
- Cellular Connectivity: LTE Cat-1 (with fallback support to 3G/2G depending on region)
- GNSS Support: GPS, GLONASS, BeiDou
- Interfaces: USB and UART
- SIM Slot: Nano-SIM (1.8 V / 3 V)
- Operating Temperature: –40 °C to +85 °C
- Form Factor: Compact modem board (core module approx. 28 mm × 31 mm × 2.4 mm)
- Power Architecture: Low-power optimized for IoT and remote deployments
- Typical Data Reference: Up to ~10 Mbps down / 5 Mbps up depending on LTE Cat-1 variant (approximate)
Features:
- Integrated STM32 MCU, LTE modem, and GNSS engine in a single module
- Multi-constellation GNSS for accurate location tracking
- Supports USB and UART for flexible interfacing
- Eliminates need for additional external controlling microcontroller
- Industrial-grade temperature support for harsh environments
- Nano-SIM support for easy mobile network activation
- Ideal for portable and low-power IoT systems
- Compact and integrated form factor for product development and deployment
Applications:
- IoT telemetry and remote monitoring systems
- Vehicle and fleet tracking, logistics, and asset tracking
- Industrial automation and smart infrastructure deployments
- Wireless data logging and mobile control units
- Compact embedded devices needing onboard processing + connectivity
- Battery-powered field devices and outdoor systems
- Rapid development for M2M communication hardware
