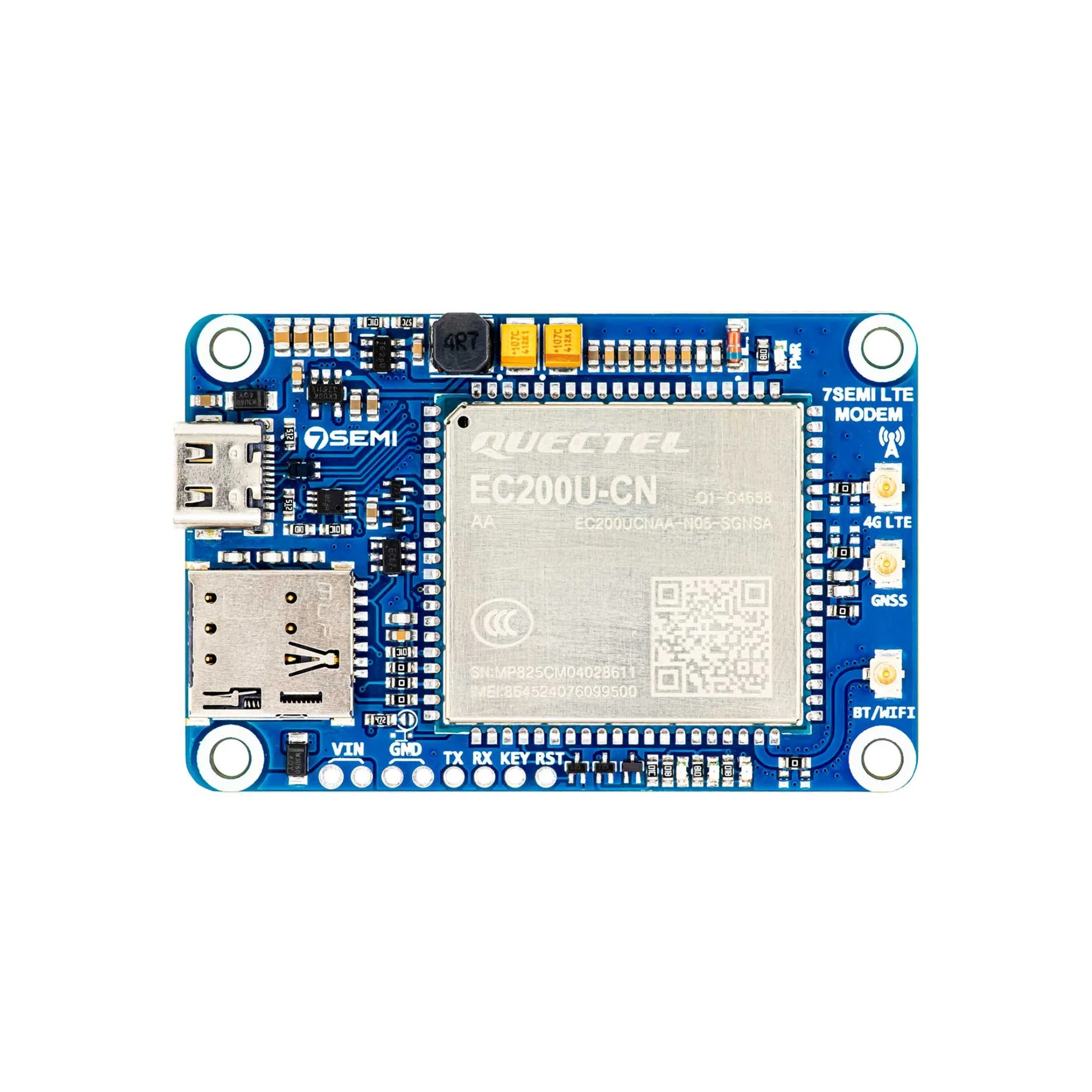

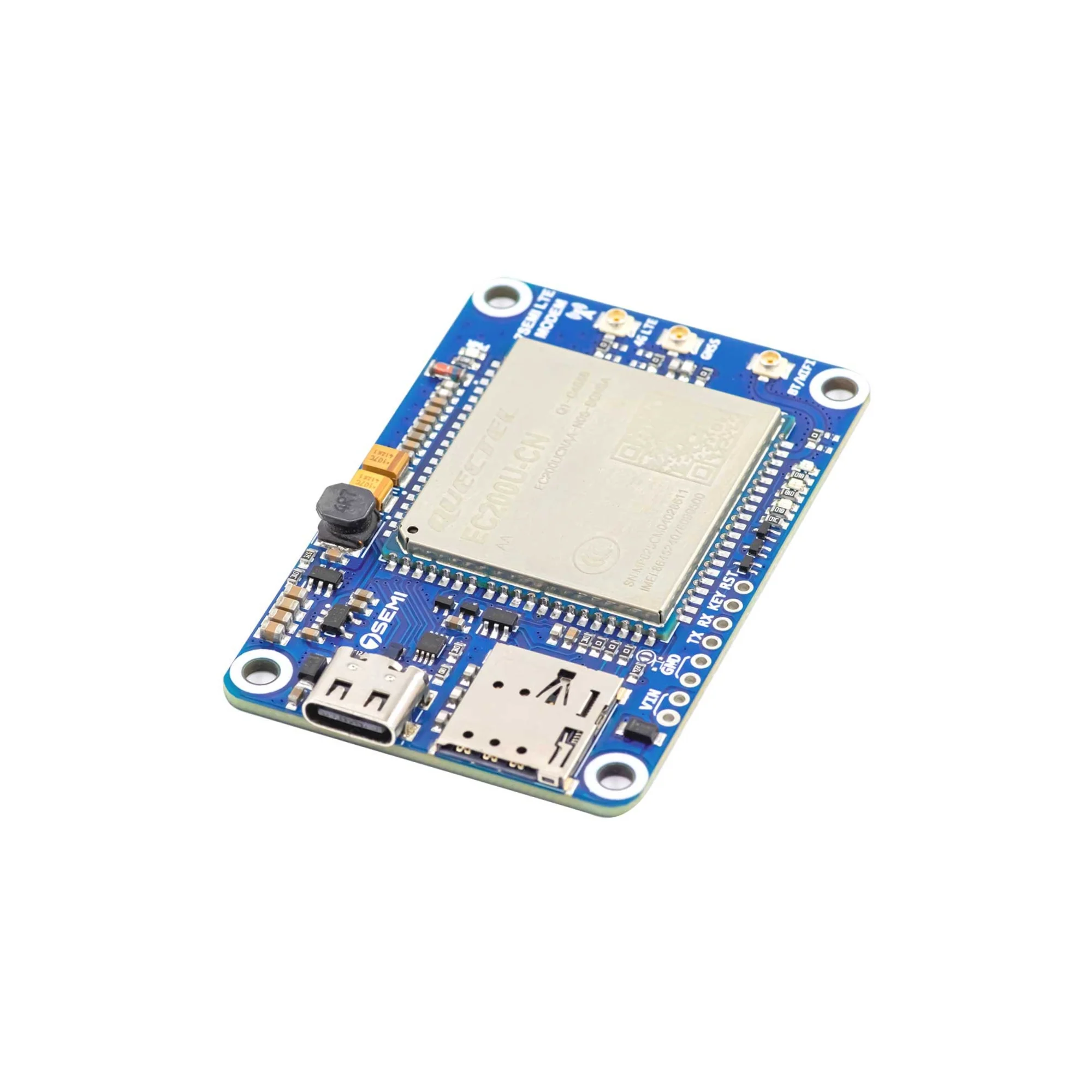

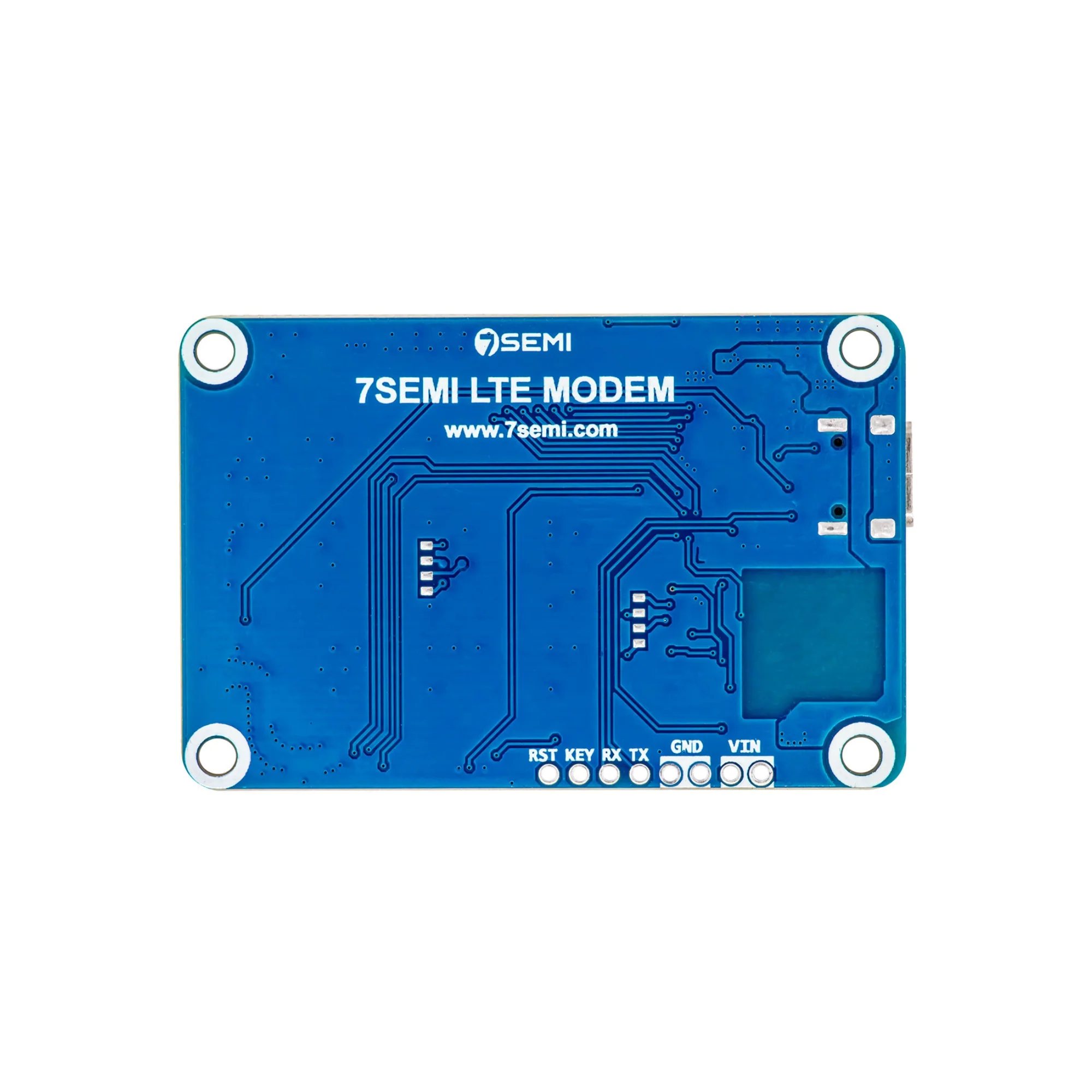

7Semi EC200U LTE 4G GNSS Mini Industrial Modem USB-C

The 7Semi EC200U LTE 4G GNSS Mini Industrial Modem (USB-C) is a compact and high-performance communication module designed for reliable wireless connectivity in industrial and IoT applications. Based on the Quectel EC200U series, it supports 4G LTE Cat 1 communication along with integrated GNSS (GPS, GLONASS, BeiDou, and Galileo) for accurate positioning. The modem connects via USB-C and provides robust network coverage, low power consumption, and wide compatibility, making it ideal for data communication, tracking, and remote monitoring systems.

Technical Specifications:

• Chipset: Quectel EC200U Series LTE Module

• Network Type: 4G LTE Cat 1 (with 2G fallback, depending on region)

• Supported Bands: LTE-FDD and LTE-TDD (region-specific)

• GNSS Support: GPS, GLONASS, BeiDou, and Galileo

• Interface: USB-C (for data and power)

• Power Supply: 5 V via USB-C

• Antenna Interface: External SMA connectors for LTE and GNSS antennas

• SIM Card Slot: Standard nano-SIM

• Data Rate: LTE Cat 1 up to 10 Mbps (DL) / 5 Mbps (UL)

• Communication Protocols: TCP/IP, PPP, HTTP, FTP, MQTT, SSL, etc.

• Operating Voltage: 3.3 V to 5.0 V (internally regulated from USB)

• Operating Temperature: -40°C to +85°C

• Indicators: Power and network status LEDs

• Form Factor: Miniature industrial-grade metal enclosure

• Mounting: Panel or enclosure compatible design

• Compatibility: Windows, Linux, Android, and major embedded systems

Features:

• Supports 4G LTE Cat 1 connectivity with global band compatibility

• Built-in GNSS receiver for real-time tracking and positioning

• USB-C interface for power and high-speed data transfer

• Compact and rugged design for industrial use

• Wide temperature range for harsh environments

• Plug-and-play operation with standard AT command set

• Support for multiple internet protocols and secure communication

• External antenna connectors for enhanced signal reception

• Low power consumption and stable performance

Applications:

• Industrial and IoT communication systems

• Vehicle tracking and fleet management

• Remote data acquisition and telemetry

• Smart agriculture and environmental monitoring

• Smart energy meters and automation systems

• Point-of-sale (POS) and digital signage connectivity

• Backup communication for critical network systems

• GNSS-based asset tracking and logistics solutions
