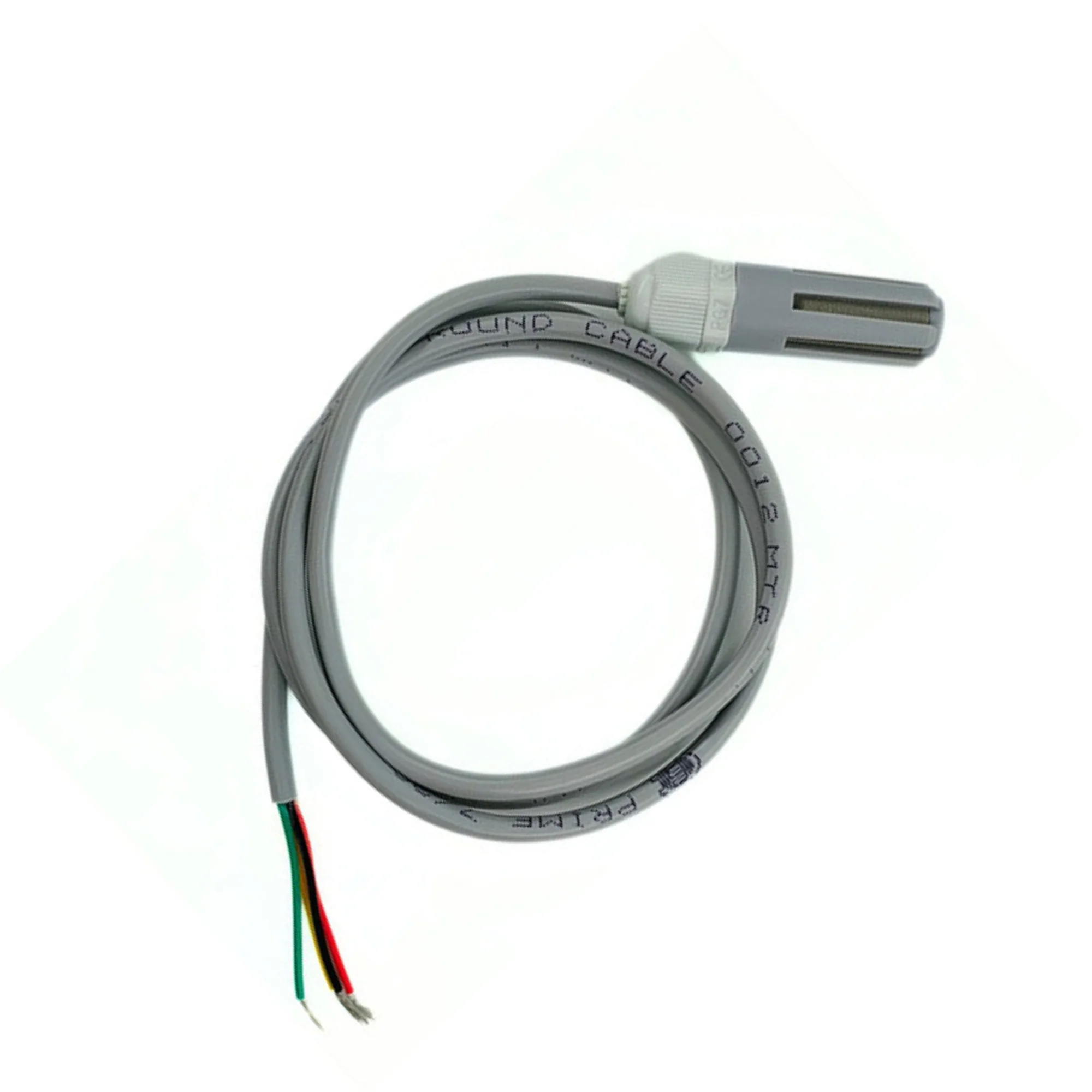

7Semi ENS160 Air Quality Sensor I2C Probe

The 7Semi ENS160 Air Quality Sensor I2C Probe is a compact, ready-to-use air-quality sensing module based on the ENS160 metal-oxide (MOX) multi-gas sensor. It measures volatile organic compounds (VOCs), oxidizing gases, and other indoor pollutants, and provides processed digital outputs including equivalent CO₂ (eCO₂), total VOCs (TVOC), and Air Quality Index (AQI). With its I²C interface and stable performance across wide environmental conditions, this probe is ideal for smart-home devices, HVAC systems, air purifiers, and IoT-based indoor air-quality monitoring applications.

Technical Specifications:

• Sensor IC: ScioSense ENS160

• Measurement Outputs: eCO₂, TVOC, AQI

• Gas Type: MOX multi-gas sensor (detects VOCs, VSCs, oxidizing gases)

• Interface: I²C digital communication

• Operating Voltage: 3.3V

• eCO₂ Range: 400 ppm to 65,000 ppm

• TVOC Range: 0 ppb to 65,000 ppb

• Operating Temperature: –40°C to +85°C

• Operating Humidity: 5% RH to 95% RH (non-condensing)

• Sensor Type: Metal-Oxide gas sensor with internal heater elements

• Data Processing: On-chip algorithms for temperature/humidity compensation and IAQ calculations

• Output Type: Fully processed digital output

• Compatibility: Arduino, ESP32, STM32, Raspberry Pi, and other microcontrollers

• Module Type: Probe-style enclosure for easy installation

Features:

• Multi-parameter indoor air-quality sensing: eCO₂, TVOC, AQI

• TrueVOC MOX technology for wide-range VOC detection

• Digital I²C communication for easy MCU integration

• Built-in compensation for humidity, temperature, and baseline drift

• Wide operating temperature and humidity range

• Compact probe design ideal for embedded applications

• Minimal MCU load due to on-chip processing

• Fast response and stable long-term output

• Suitable for real-time indoor pollutant monitoring

• Ideal for consumer, industrial, and smart-building environments

Applications:

• Indoor air-quality monitoring systems

• Air purifiers and ventilation/filtration devices

• Smart home and IoT environmental monitors

• HVAC automation and demand-controlled ventilation

• Building automation and workplace air monitoring

• Portable or wearable air-quality meters

• Environmental data-logging and research applications

• Industrial and commercial indoor safety monitoring
