7Semi ENS210 Humidity and Temperature Sensor Breakout
7Semi ENS210 Humidity and Temperature Sensor Breakout

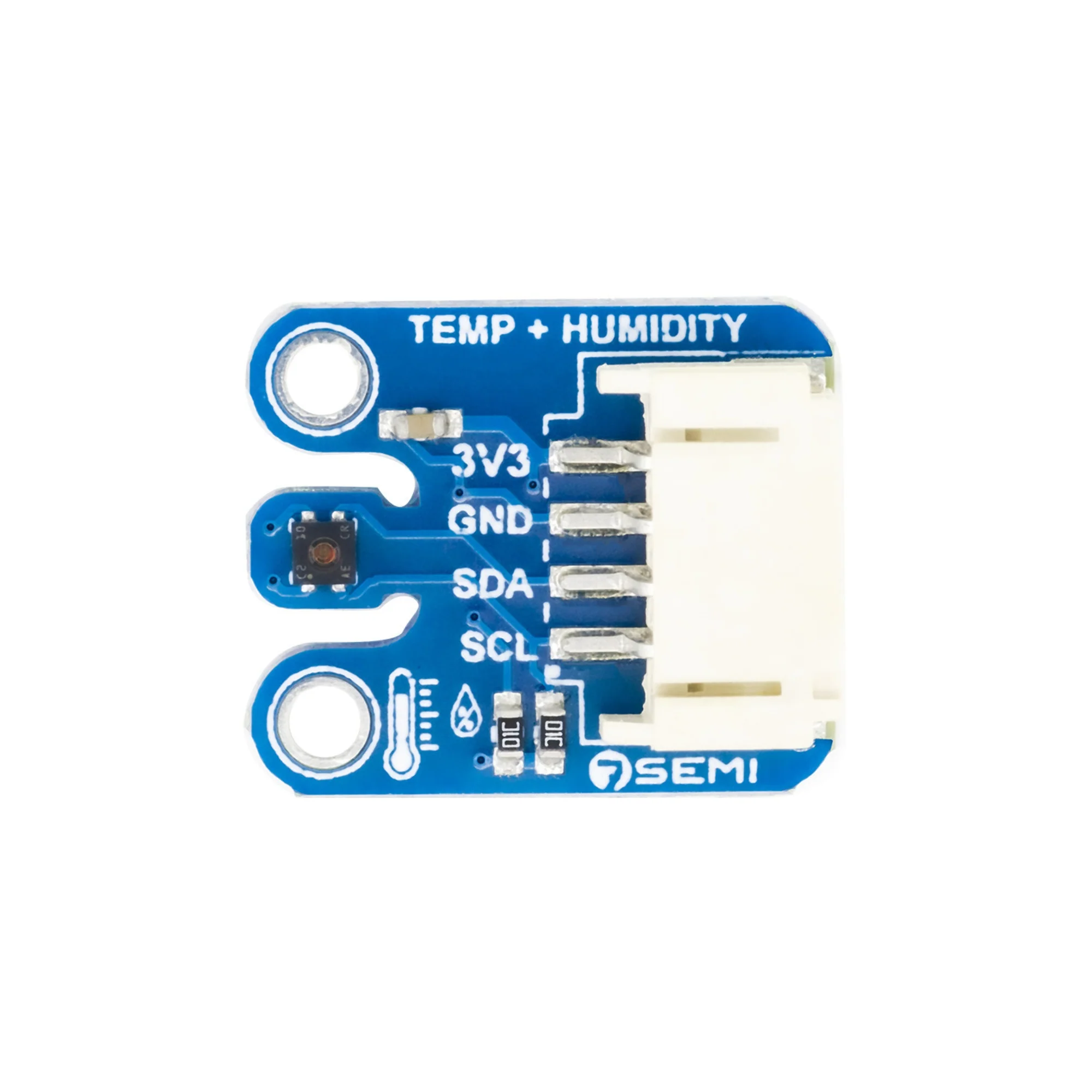

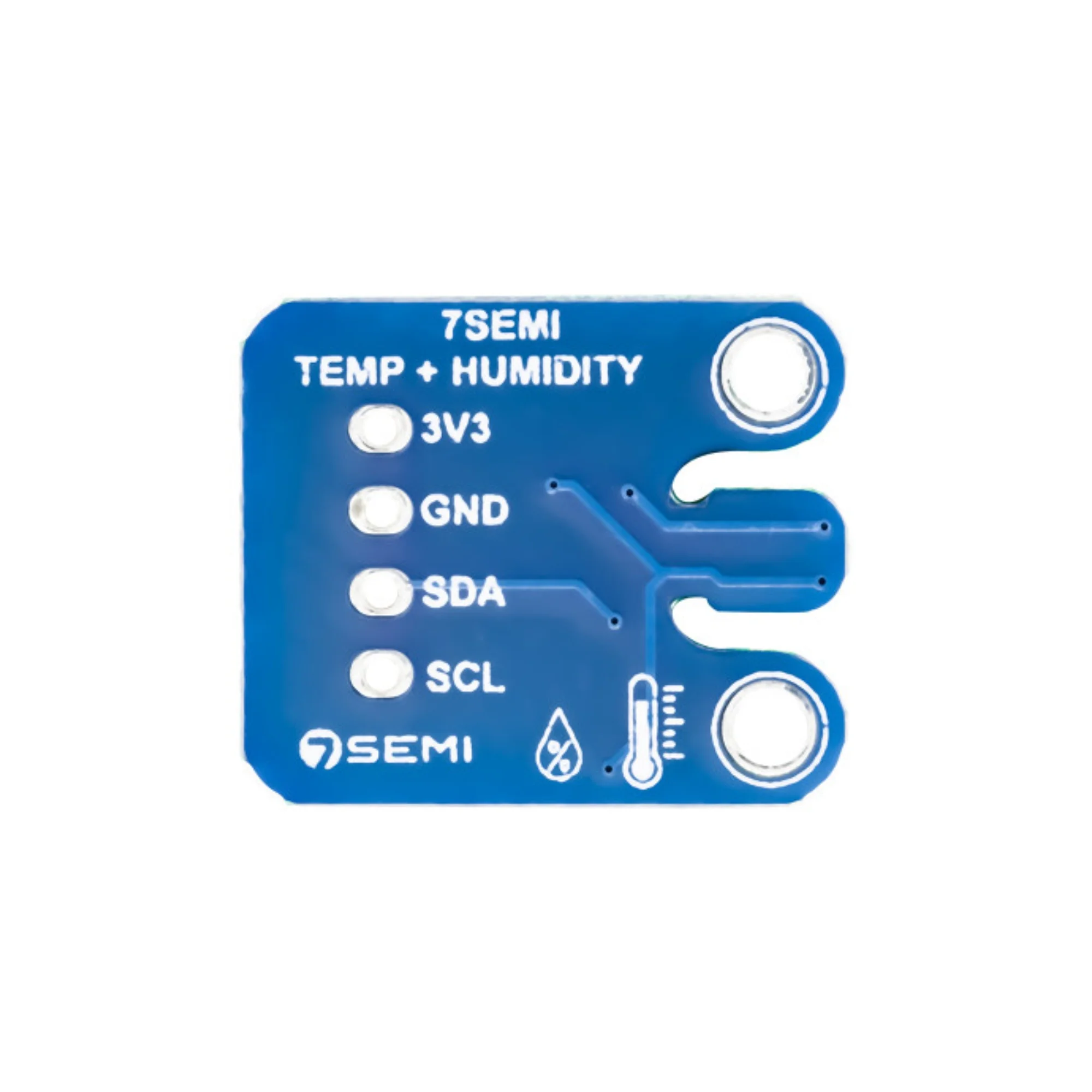

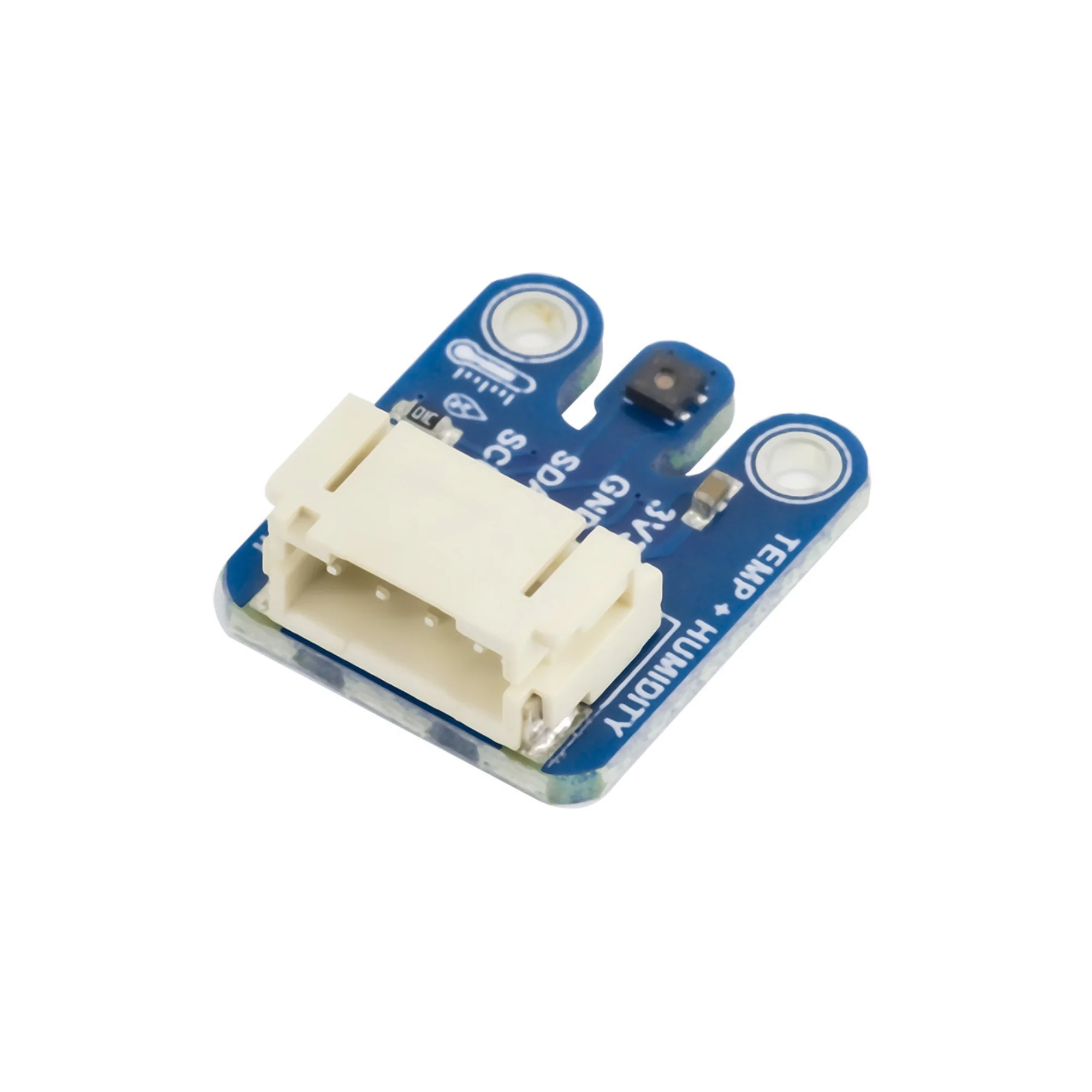

The 7Semi ENS210 Humidity and Temperature Sensor Breakout is a compact digital environmental sensor module based on the ENS210. It provides accurate, factory-calibrated temperature and humidity readings through an I²C interface. With low power consumption, a wide operating range, and stable long-term performance, it is ideal for IoT devices, HVAC systems, indoor climate control, weather monitoring, and embedded applications requiring precise ambient condition measurement.
Technical Specifications:
- Sensor IC: ENS210
- Measurement Parameters: Temperature and Relative Humidity
- Temperature Range: –40°C to +100°C
- Temperature Accuracy: ±0.15°C typical
- Humidity Range: 0% to 100% RH
- Humidity Accuracy: ±2.0% RH typical
- Interface: I²C (100 kHz and 400 kHz supported)
- Supply Voltage: 1.71V to 3.60V (typical 3.3V)
- Power Consumption:
Active Mode: ~6.6 µA (low sampling rate)
Standby: ~40 nA
- Output Type: Fully calibrated digital output
- No external calibration required
- Compact digital sensor module
Features:
- Combined humidity and temperature sensing in a single module
- High accuracy and stable long-term performance
- Fully digital I²C interface for easy integration
- Ultra-low power consumption suitable for battery-powered systems
- Fast response time and reliable readings
- Factory-trimmed and calibrated sensor
- Wide operating temperature and humidity range
- Compact breakout ideal for IoT and embedded applications
- Works with microcontrollers such as Arduino, ESP32, STM32, Raspberry Pi
- Suitable for continuous environmental monitoring
Applications:
- HVAC and indoor climate control
- Smart home and IoT environmental sensors
- Weather stations and ambient monitoring
- Data logging systems
- Greenhouse and agricultural automation
- Storage and cold-chain monitoring
- Portable and wearable environment monitors
- Industrial and commercial environmental sensing
- Server rooms and warehouse climate control
- Research and laboratory instrumentation
