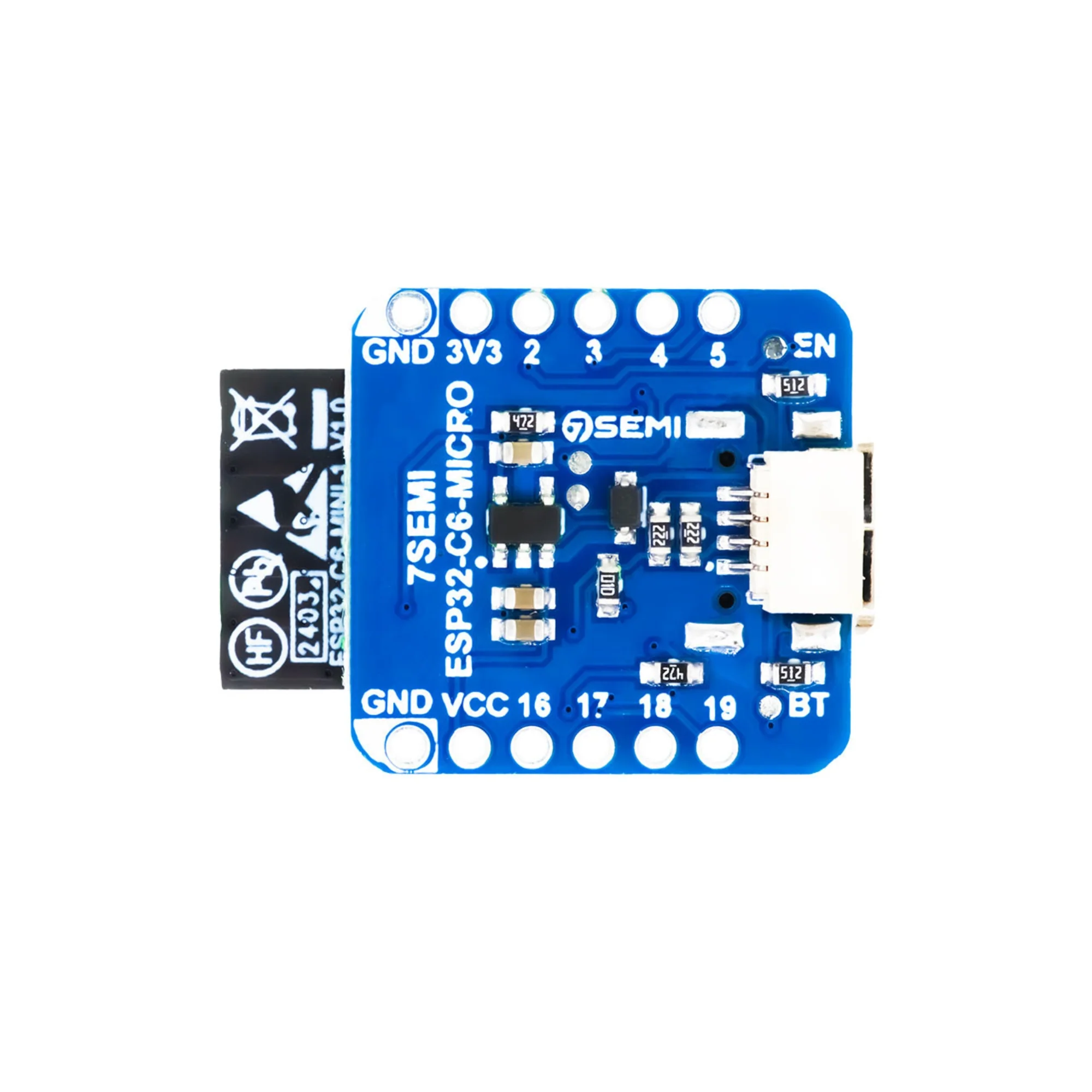

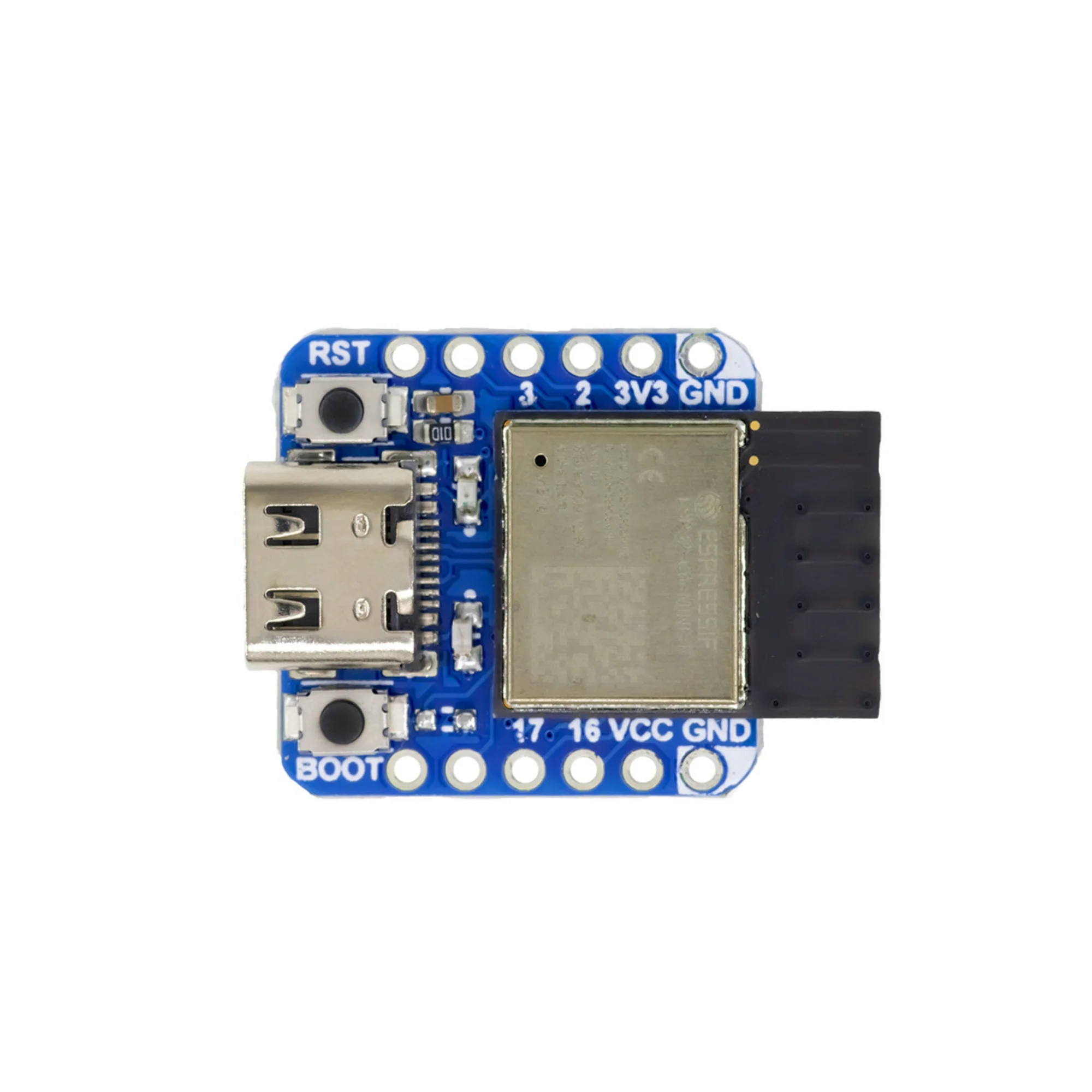

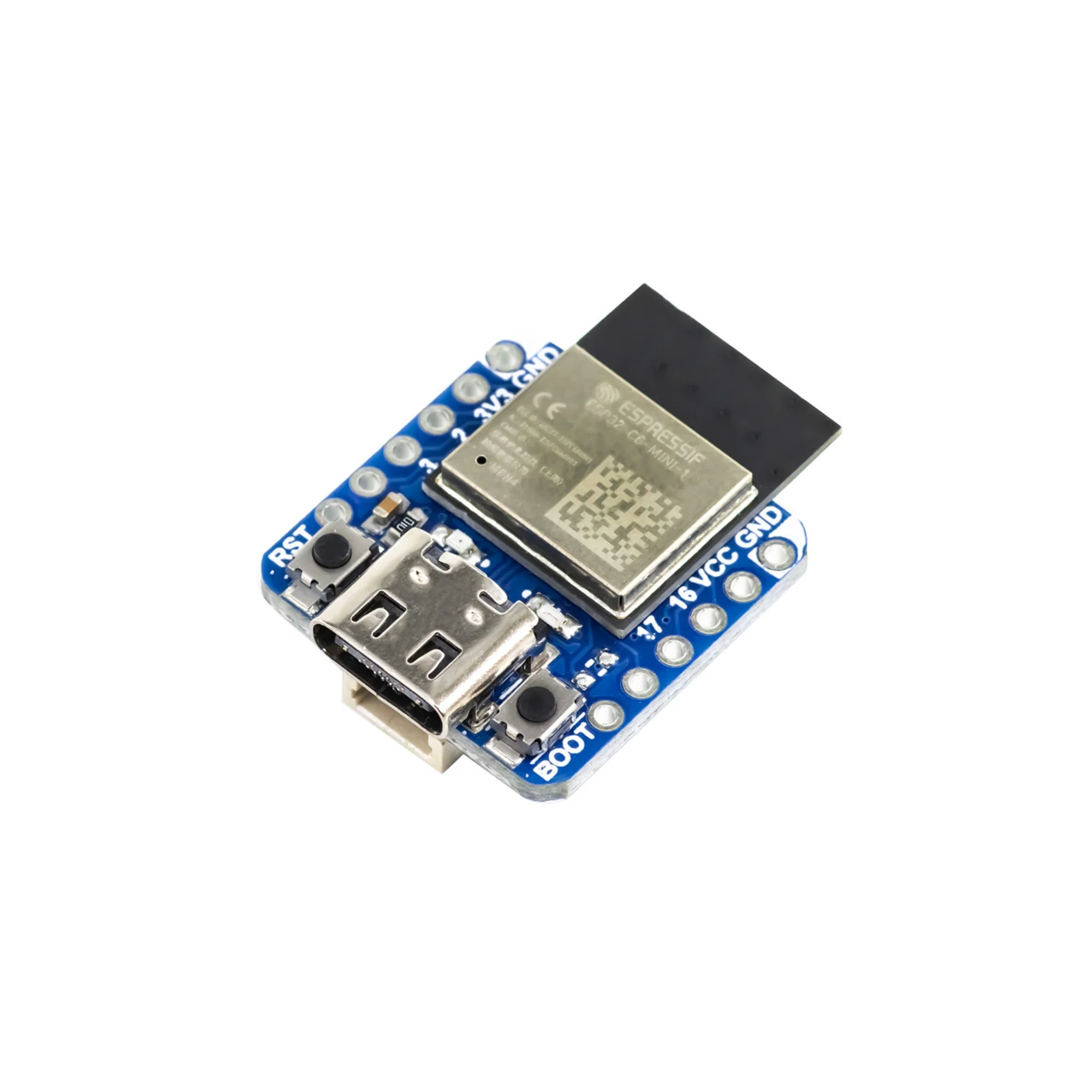

The 7Semi ESP32-C6 Mini WiFi Development Board Qwiic is a compact wireless development board based on the ESP32-C6-MINI-1 module. It features a RISC-V single-core processor with integrated WiFi 6, Bluetooth BLE/5.x, and Thread/Zigbee connectivity. Equipped with a USB-C port for programming and power, and a Qwiic connector for easy sensor expansion, this board is ideal for modern IoT, automation, and low-power embedded applications.

Technical Specifications:

• Processor: ESP32-C6-MINI-1 (32-bit RISC-V single-core)
• Memory: 4 MB Flash
• Wireless Connectivity: WiFi 6 (2.4 GHz), Bluetooth BLE/5.x, Thread/Zigbee (802.15.4)
• GPIO Pins: Up to 23 multifunction GPIOs
• ADC: Up to 7 channels (12-bit resolution)
• UART: Up to 2 UARTs with flow control
• Additional Interfaces: I²C, SPI, PWM, I²S
• USB Connector: USB Type-C for power and programming
• Expansion: Qwiic connector for plug-and-play I²C modules
• Logic Level: 3.3 V
• Supply Voltage: 5 V via USB
• Power Efficiency: Supports deep-sleep low-power modes
• Board Type: Compact mini development board

Features:

• Integrated WiFi 6, BLE, and Thread/Zigbee support
• Compact size suitable for space-constrained projects
• USB-C interface for easy development and debugging
• Qwiic connector for quick sensor and module integration
• Rich peripheral access with flexible pin mapping
• Breadboard-friendly layout
• Low-power design ideal for battery-powered devices
• Ideal for rapid prototyping and production design

Applications:

• IoT automation and smart home devices
• Wireless sensor networks
• Wearable and portable electronics
• Thread/Zigbee mesh network nodes
• BLE-based edge controllers
• Robotics and automation
• Educational and development prototyping
• Qwiic sensor hub applications
