7Semi HDMI/DVI Breakout with 24LC02B EEPROM For HDMI Devices
7Semi HDMI/DVI Breakout with 24LC02B EEPROM For HDMI Devices

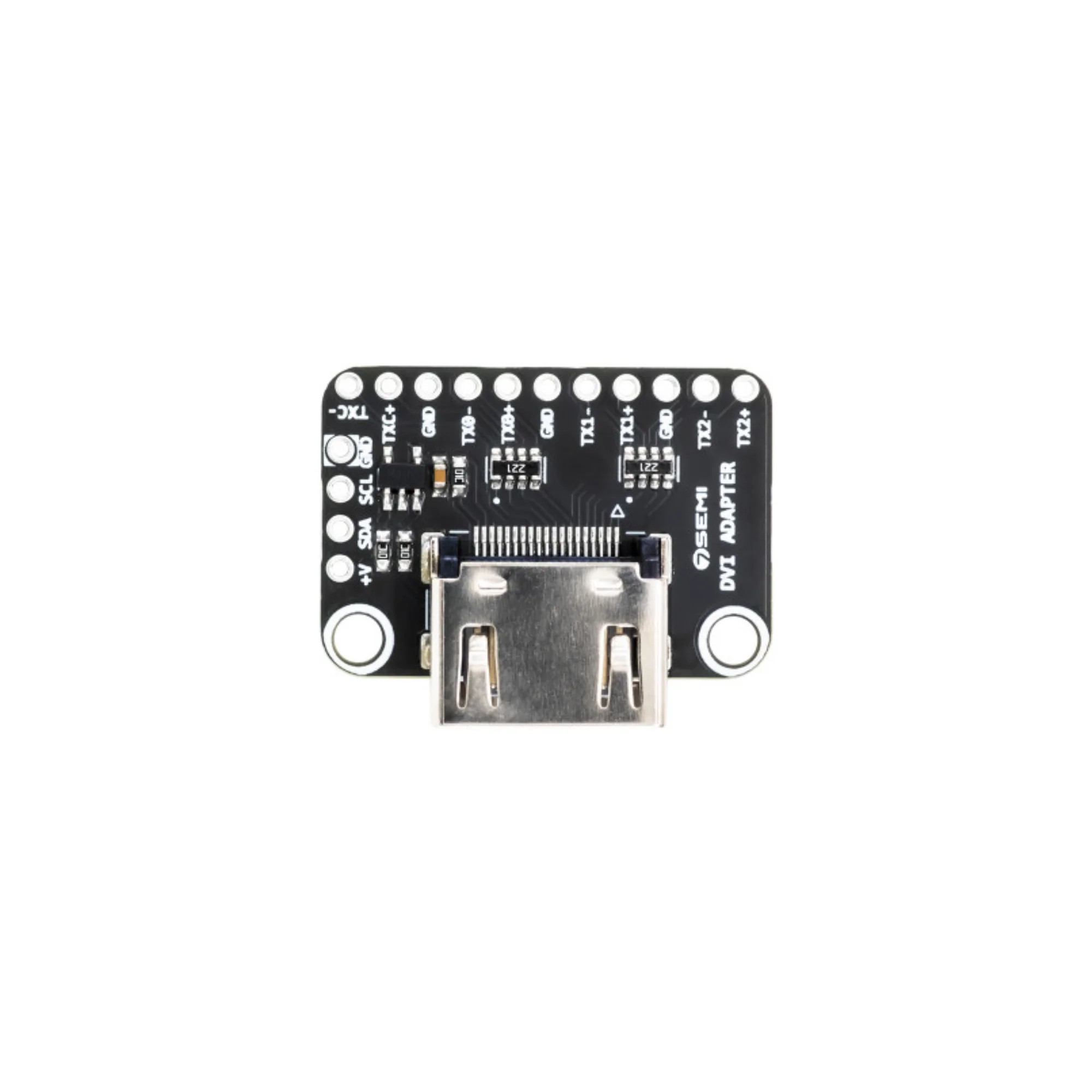

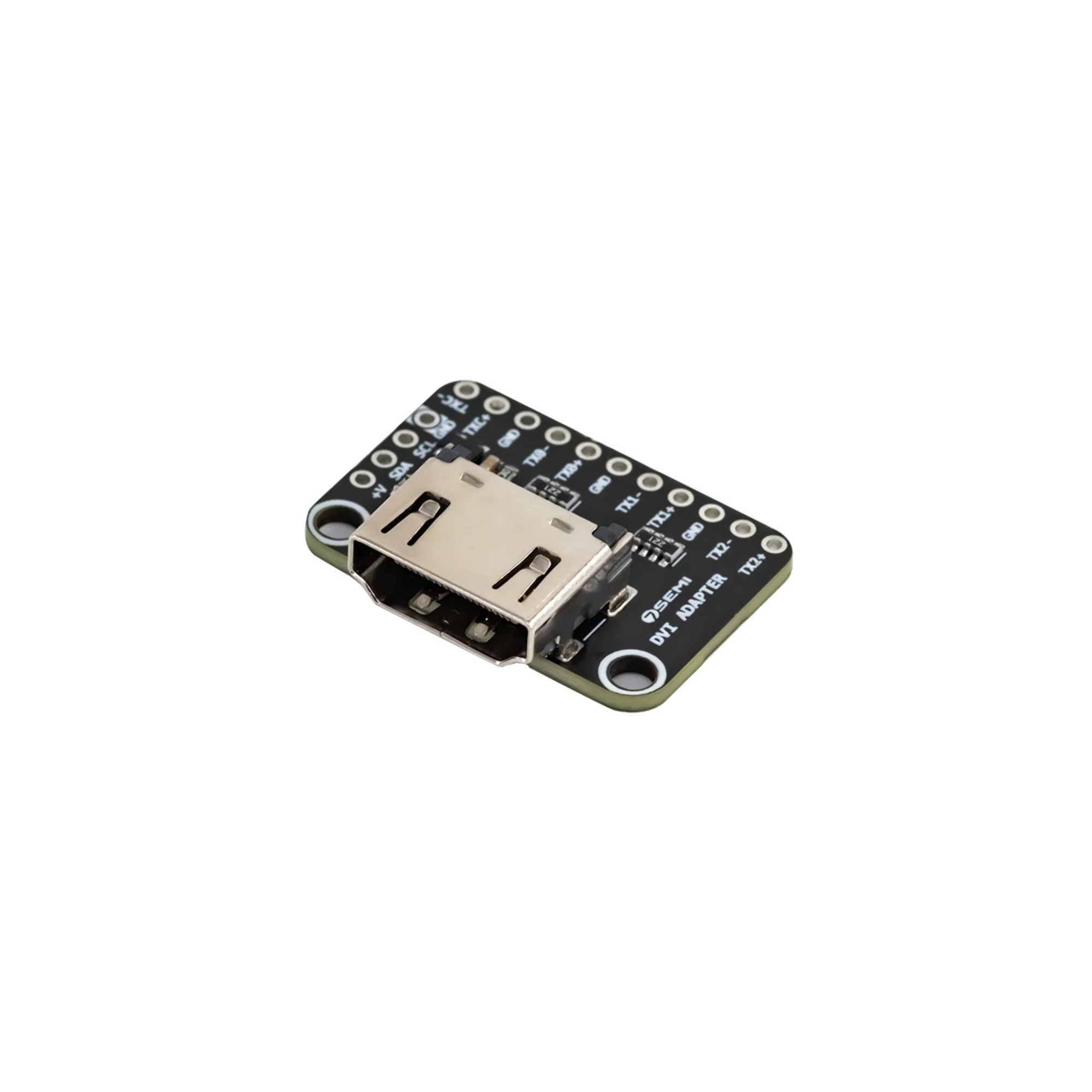

The 7Semi HDMI/DVI Breakout with 24LC02B EEPROM is a compact adaptor board designed for HDMI/DVI plug-in systems and prototyping. It features a standard DVI-D (or HDMI-compatible) connector, accessible high-speed differential signal pairs and an onboard 2-Kbit I²C EEPROM (24LC02B) for EDID/DDC data management. The board is designed to simplify display-interface prototyping by exposing HDMI/DVI differential pairs and allowing custom EDID/monitor-handshake programming on the EEPROM.
Technical Specifications:
- Supply Voltage: ~1.7 V to ~5.5 V
- Connector Type: HDMI/DVI-D female (digital video output)
- EEPROM: Microchip 24LC02B, 2-Kbit I²C serial EEPROM

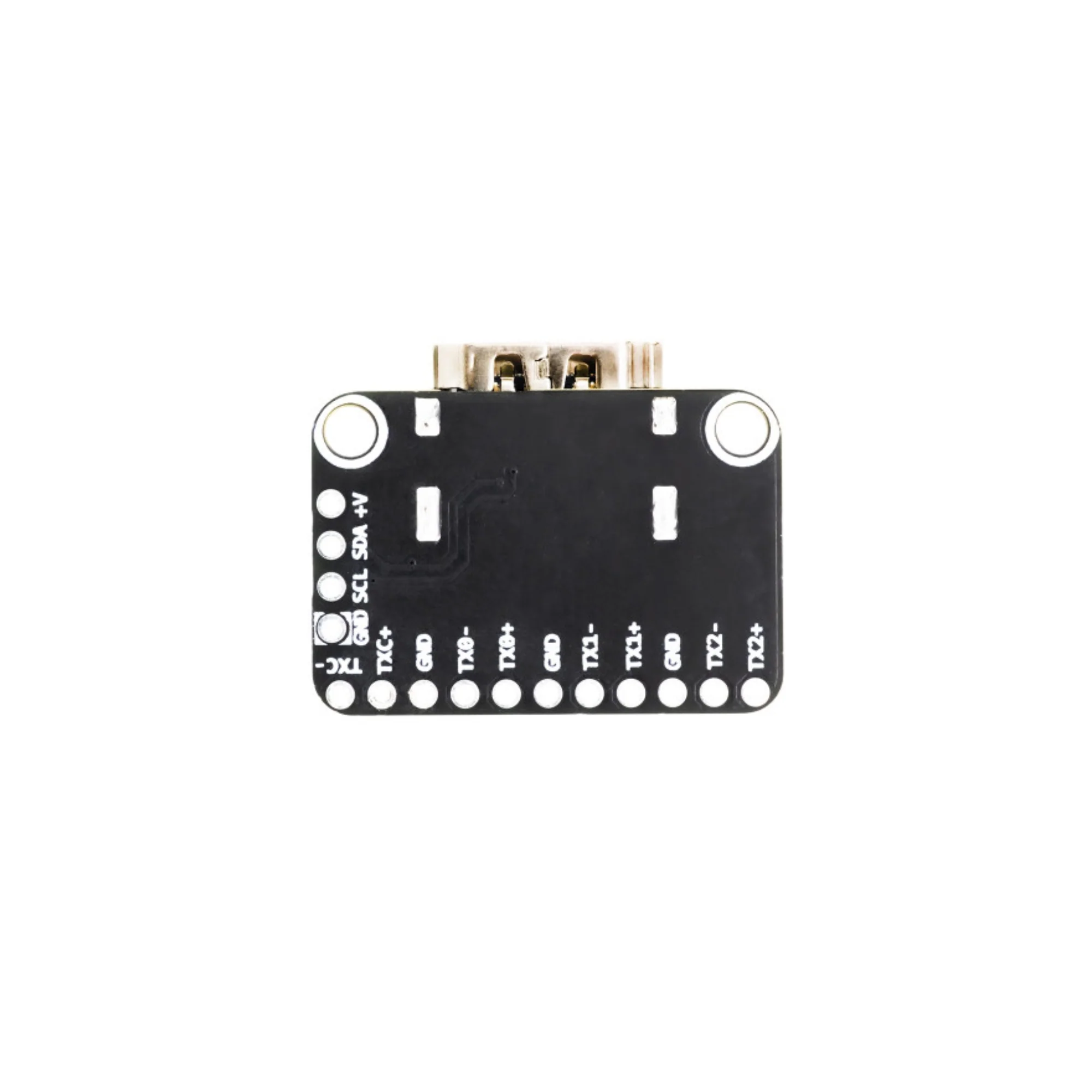

- Breakout Signals: TX0±, TX1±, TX2±, TXC± (for digital video differential pairs)
- I²C Lines: SDA, SCL (for EDID/EEPROM access)
- Power & Ground Lines: +V, GND
- Board Dimensions: Approximately 28.9 mm × 22.99 mm
- Mounting: Includes two M3 mounting holes
Features:
- Exposes HDMI/DVI high-speed differential pairs for prototyping (TX0±, TX1±, TX2±, TXC±)
- Onboard I²C EEPROM (24LC02B) for EDID/DDC storage and customisation
- SDA/SCL breakout pins allow programming or reading of EDID data
- Operates from low voltage supply (~1.7 V to ~5.5 V) making it flexible for embedded systems
- Compact and breadboard-friendly breakout layout for quick prototyping
- Mounting holes for secure integration into enclosures or test rigs
- Simplifies display interface testing, EDID emulation, monitoring handshake behaviour
Applications:
- EDID emulation and customisation for HDMI/DVI displays
- FPGA or microcontroller-based video output and display prototype setups
- Embedded display system development and debugging (EDID/DDC over I²C)
- Display interface lab testing and signal-analysis setups
- Modular display boards where custom EDID or display configurations are required
