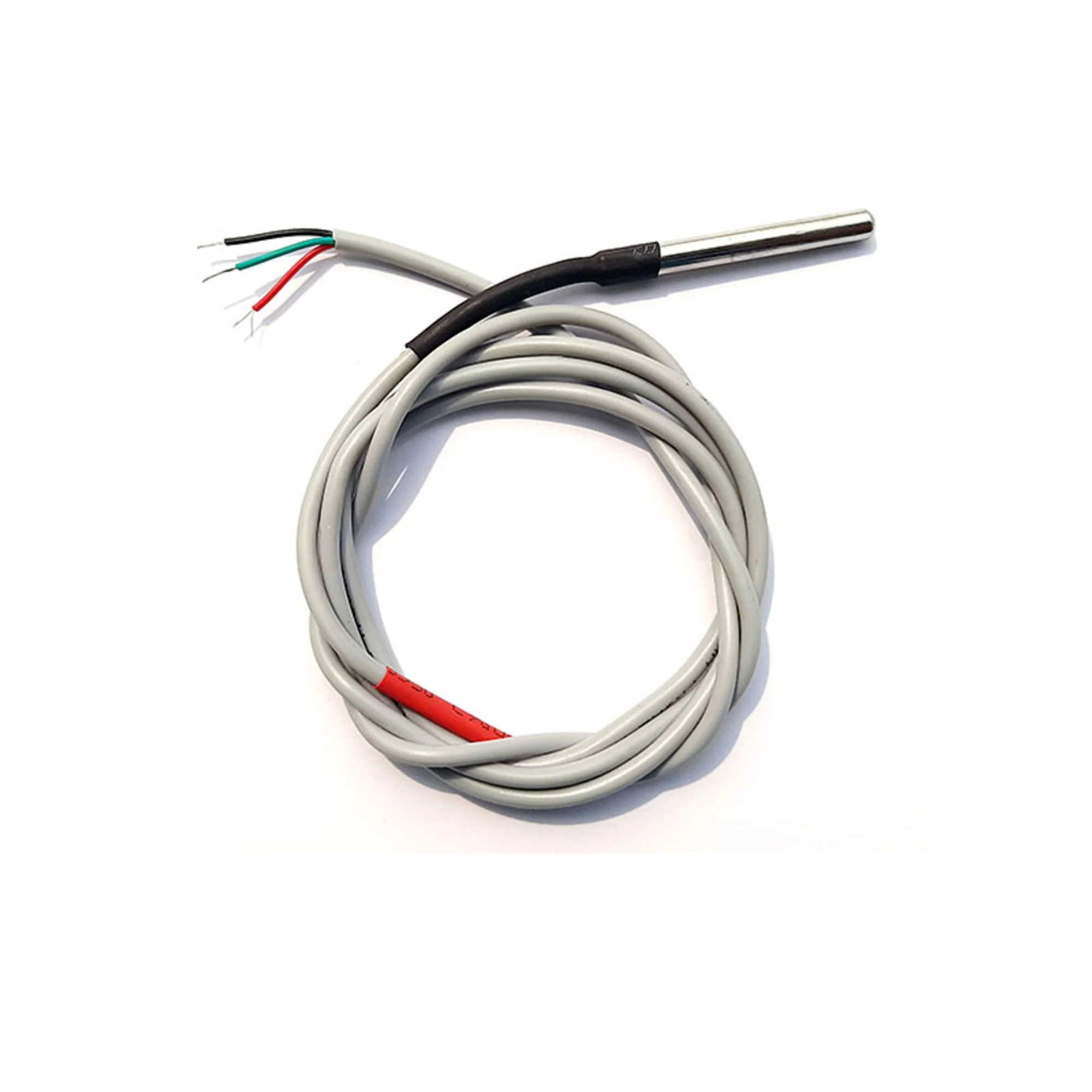

7Semi LM35 Waterproof Temperature Sensor Probe 1M Cable (Analog)

The 7Semi LM35 Waterproof Temperature Sensor Probe (Analog, 1M Cable) is a precision analog temperature sensor that provides a linear voltage output proportional to the temperature in Celsius. Built using the LM35 IC, this sensor offers high accuracy, low self-heating, and ease of use. It is housed in a stainless-steel waterproof casing, making it ideal for measuring temperatures in liquids, outdoor environments, and industrial applications. The 1-meter pre-wired cable ensures convenient installation in a wide variety of setups.

Technical Specifications:

• Sensor Model: LM35 (Analog Temperature Sensor)

• Output Type: Analog voltage (linear)

• Output Scale: 10 mV/°C

• Measurement Range: -55°C to +150°C

• Accuracy: ±0.5°C (typical at 25°C)

• Operating Voltage: 4 V to 30 V DC

• Output Impedance: 0.1 Ω typical

• Cable Length: 1 meter

• Cable Type: PVC insulated, 3-core cable (Red: VCC, Black: GND, Yellow: Output)

• Probe Material: Stainless steel, waterproof and corrosion-resistant

• Probe Dimensions: Diameter ~6 mm, Length ~50 mm

• Response Time: <1.5 seconds (in liquid)

• Power Consumption: <60 µA (typical)

• Load Regulation: 0.1 mV/mA (typical)

• Operating Temperature: -55°C to +150°C

• Storage Temperature: -60°C to +155°C

• Compatibility: Works with Arduino, ESP32, STM32, Raspberry Pi, and analog-based microcontrollers

Features:

• High-accuracy analog temperature sensor with linear voltage output (10 mV/°C)

• Fully waterproof stainless-steel probe suitable for liquid and outdoor use

• Operates over a wide temperature and voltage range

• Simple 3-wire interface for easy connection to ADC or analog input pins

• Low power consumption ideal for battery-operated systems

• No calibration required — factory-calibrated in Celsius scale

• Fast thermal response and stable performance over time

• Compatible with most analog-to-digital converter-equipped microcontrollers

• Compact and durable design with long cable for flexible installation

• Ideal for real-world environmental and industrial sensing applications

Applications:

• Liquid temperature measurement in tanks, pipelines, and containers

• Industrial and process temperature monitoring

• IoT-based environmental and smart home systems

• Agricultural and greenhouse temperature sensing

• HVAC systems and refrigeration monitoring

• Battery, motor, and electronics thermal management

• Laboratory experiments and educational electronics projects

• Weather stations and outdoor temperature data logging
