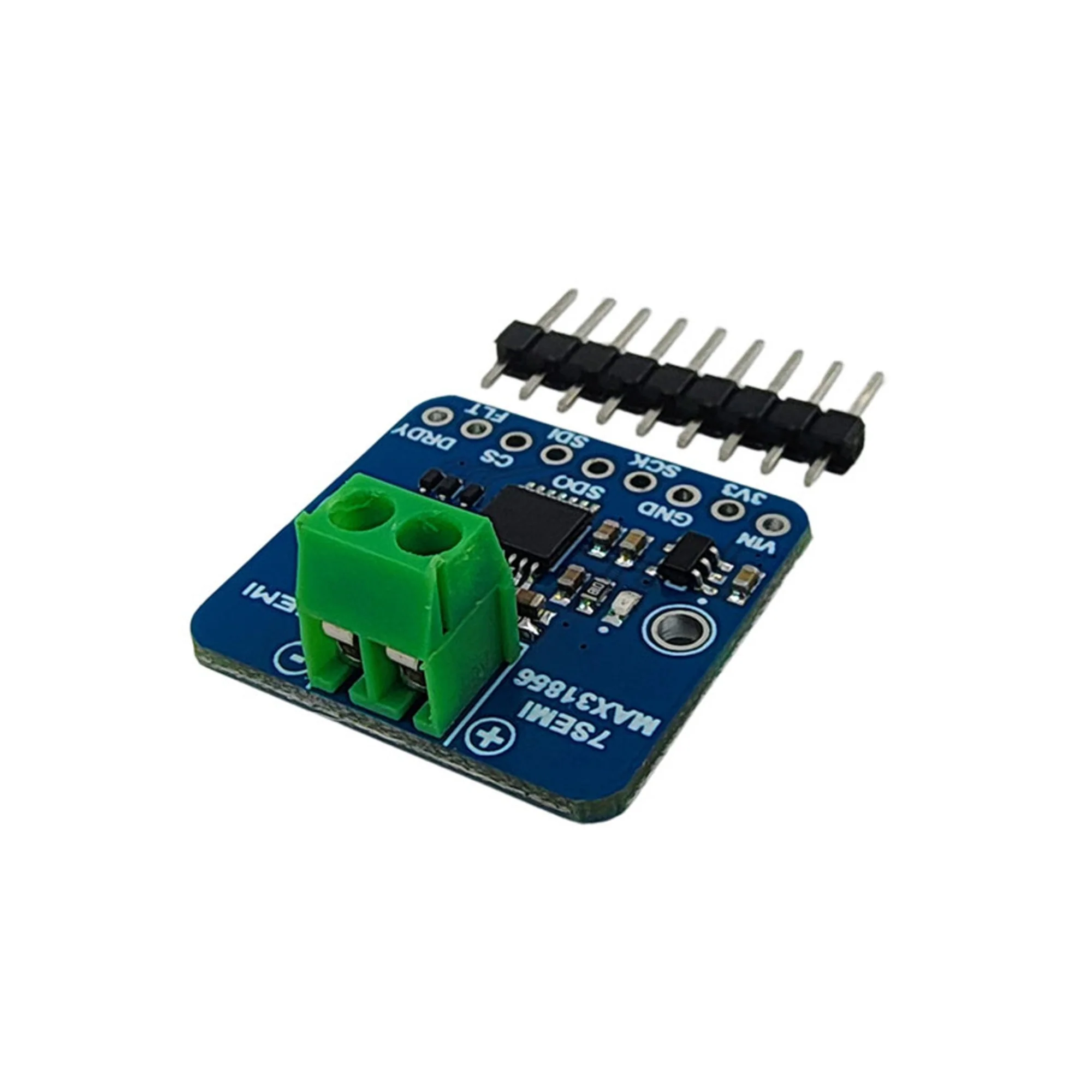

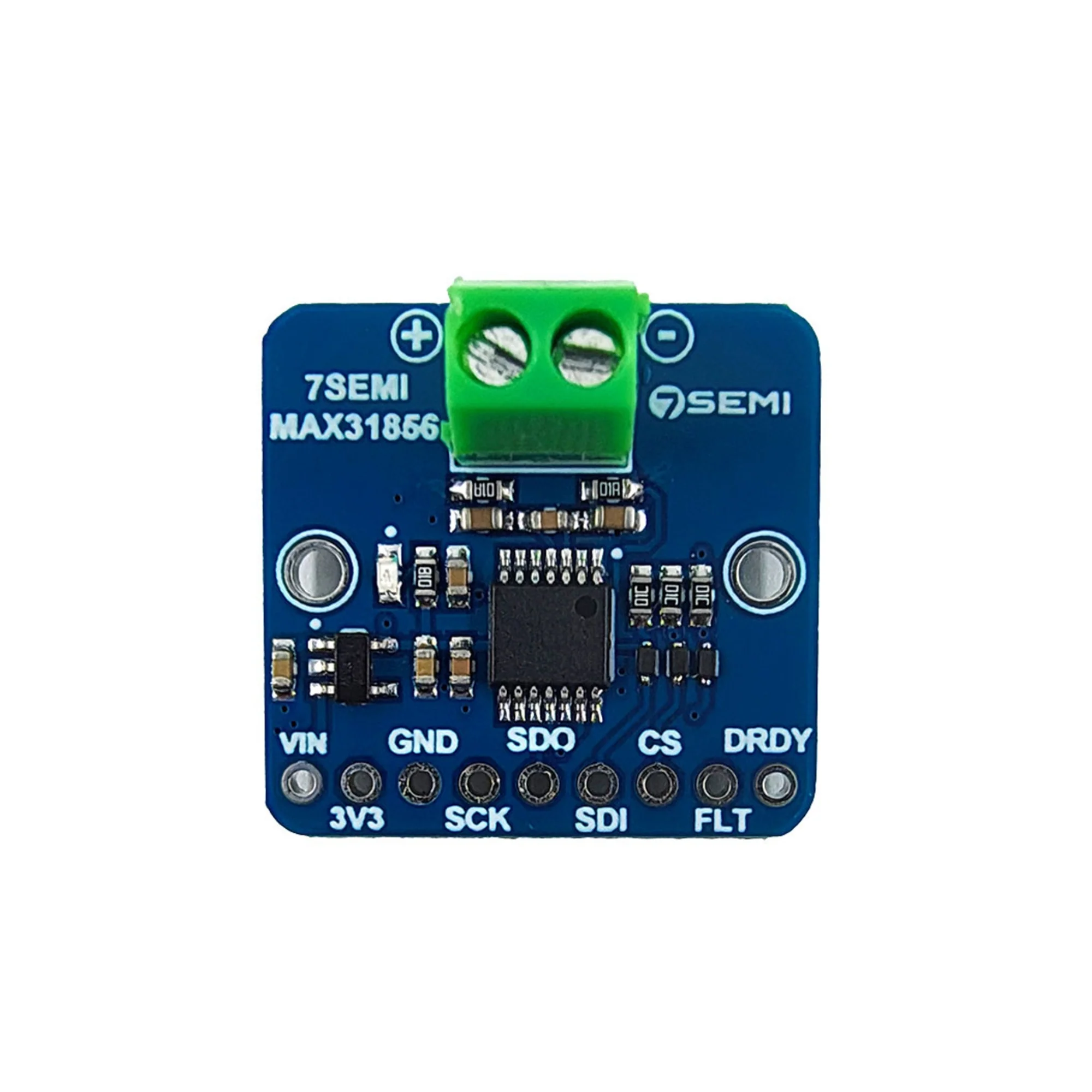

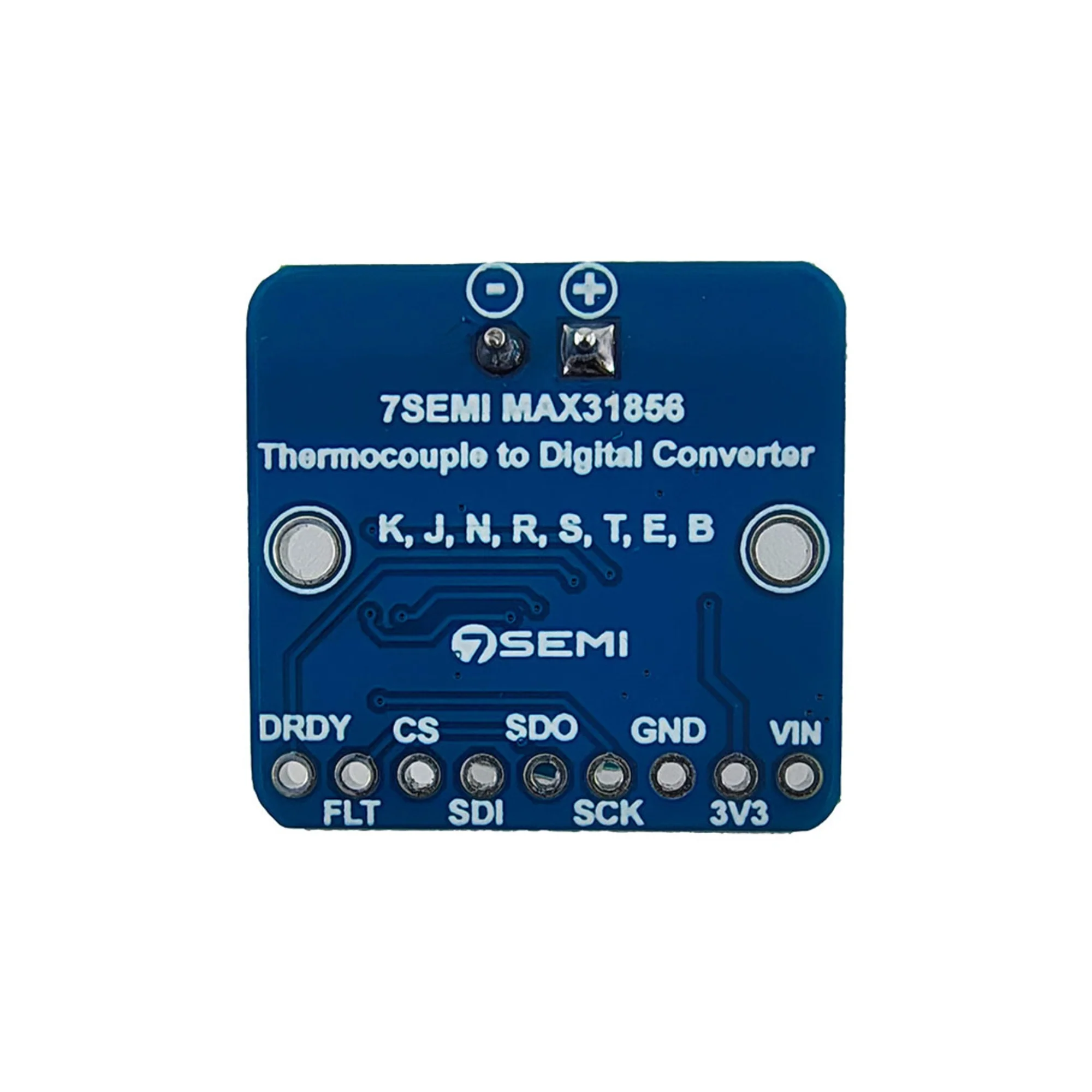

7Semi MAX31856 Universal Thermocouple Amplifier Breakout

The 7Semi MAX31856 Universal Thermocouple Amplifier Breakout is a high-precision temperature measurement module designed for interfacing a wide range of thermocouples with microcontrollers. Powered by the MAX31856 IC from Analog Devices, it supports multiple thermocouple types including K, J, N, R, S, T, E, and B. The module performs cold-junction compensation, digital conversion, and linearization internally, outputting accurate temperature readings over an SPI interface. This makes it ideal for industrial, laboratory, and embedded applications requiring reliable and versatile temperature sensing.

Technical Specifications:

• IC Model: MAX31856 (Analog Devices)

• Supported Thermocouple Types: K, J, N, R, S, T, E, and B

• Measurement Range: Depends on thermocouple type (typically -210°C to +1800°C)

• Accuracy: ±0.15°C (cold-junction compensation)

• Resolution: 19-bit ADC for high precision

• Interface: SPI (Serial Peripheral Interface)

• Supply Voltage: 3.3 V to 5.0 V

• Input Type: Differential input for thermocouple signal

• Cold Junction Compensation: Integrated, automatic

• Conversion Time: Programmable from 50 ms to 200 ms

• Fault Detection: Open thermocouple, over/under voltage, and short detection

• Logic Level Compatibility: 3.3 V and 5 V

• Operating Temperature: -40°C to +125°C

• PCB Material: High-quality FR-4 with 2.54 mm header spacing

• Dimensions: Compact breakout form factor, breadboard-compatible

Features:

• Supports all major thermocouple types for universal compatibility

• High-accuracy 19-bit ADC with low noise and fast response

• Built-in cold junction compensation and linearization

• SPI digital output simplifies integration with microcontrollers

• Configurable temperature range, resolution, and conversion rate

• Onboard fault detection for thermocouple errors and wiring faults

• Operates from both 3.3 V and 5 V logic systems

• Compact breakout design suitable for prototyping and integration

• Stable and reliable temperature measurement with minimal calibration

• Fully compatible with Arduino, Raspberry Pi, ESP32, and STM32 platforms

Applications:

• Industrial and laboratory temperature measurement systems

• Process control and automation monitoring

• High-temperature equipment and furnaces

• Environmental testing and thermal analysis setups

• IoT temperature sensing and logging systems

• 3D printers and heating element monitoring

• Scientific research and calibration instruments

• Embedded and educational electronics projects
