7Semi Micro-B USB Breakout Board Female USB Micro B PCB Board

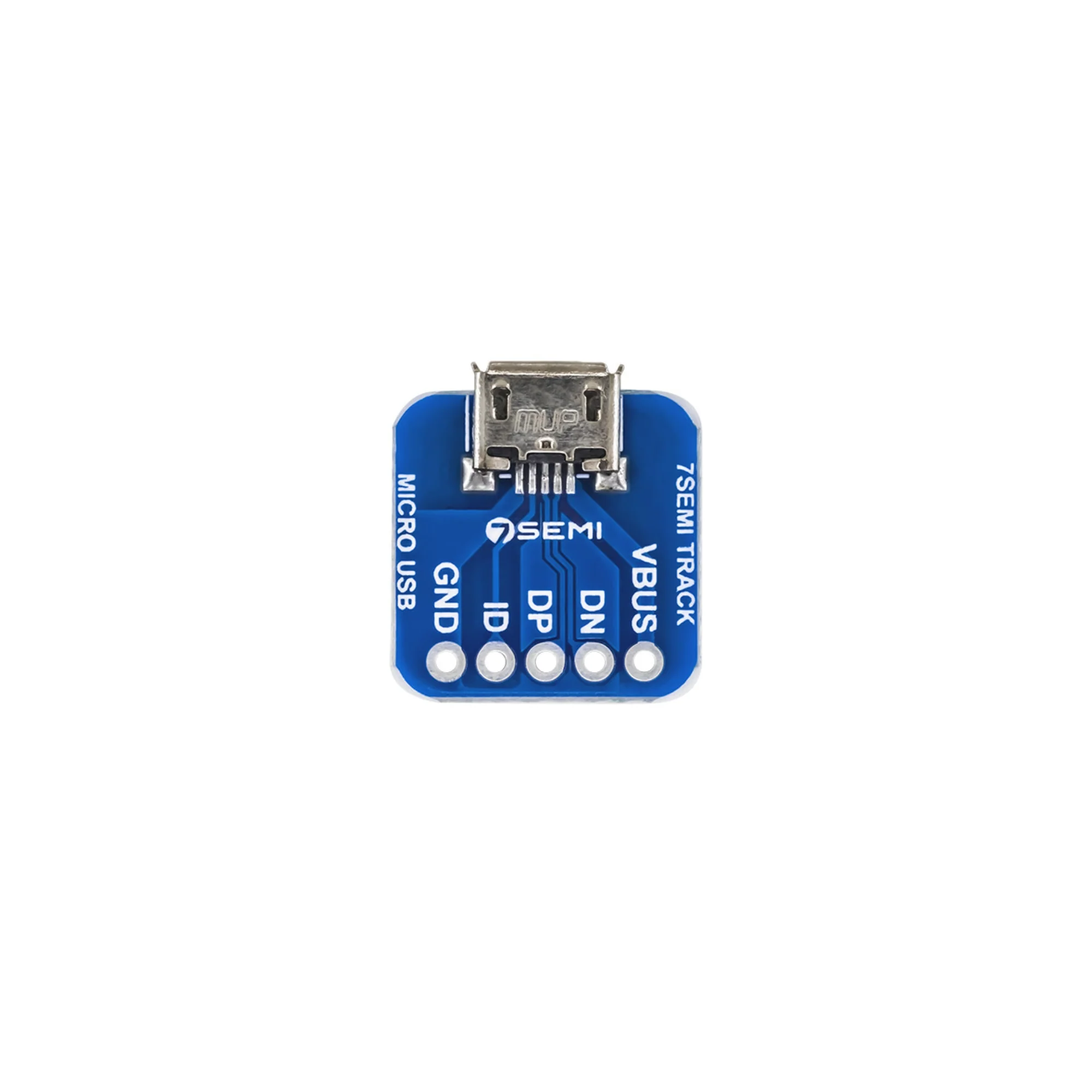

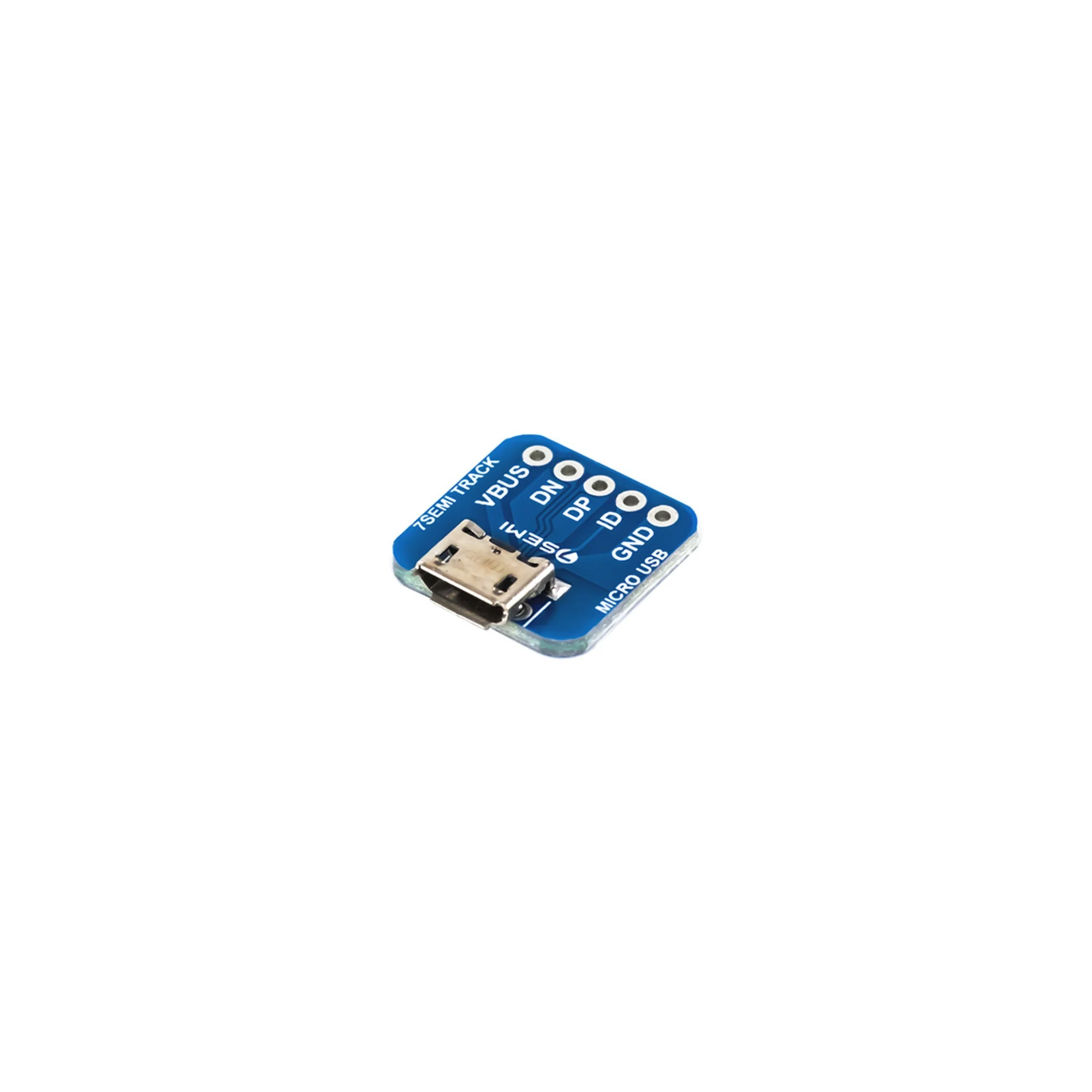

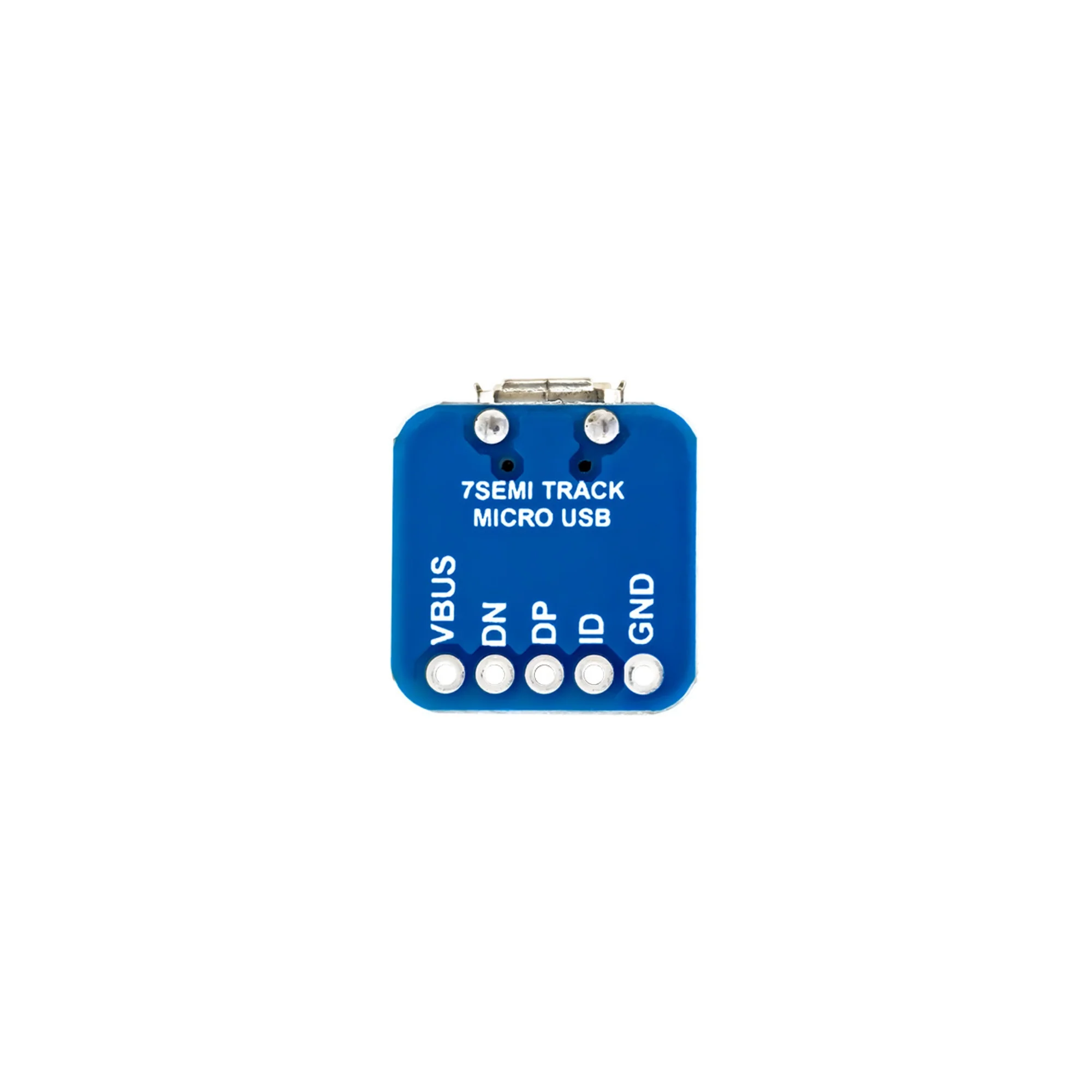

The 7Semi Micro-B USB Breakout Board Female USB Micro B PCB Board is a compact interface board that provides easy access to the pins of a standard Micro-B USB connector. It allows simple connection of USB power and data lines for prototyping and circuit development without the need for fine-pitch soldering. The breakout exposes all five USB pins (VBUS, D+, D-, ID, and GND) through standard 2.54mm headers, making it convenient for breadboards and embedded hardware applications.

Technical Specifications:

• Connector Type: Female USB Micro-B

• Pin Configuration: VBUS (5V), D-, D+, ID, GND

• Header Pitch: 2.54mm (0.1 inch) standard spacing

• PCB Material: High-quality FR-4

• Operating Voltage: 5V via VBUS

• Mounting Type: Through-hole header pins

• Connector Durability: 10,000+ mating cycles (typical for Micro-B standard)

• Dimensions: Approximately 20mm x 10mm

• Output Interface: Pin header for breadboard or PCB mounting

• Data Lines: D+ and D- for USB communication

• Compatibility: Works with USB 2.0 and Micro-B power/data connections

Features:

• Breaks out all five pins of a Micro-B USB connector

• Provides reliable USB power and data interfacing for circuits

• Breadboard and perfboard compatible 2.54mm header pins

• Simple and robust design ideal for quick prototyping

• High-quality female Micro-B connector for stable connections

• Can be used for both data transfer and power supply

• Compact form factor suitable for embedded projects

• Easy integration with microcontrollers, sensors, or power modules

• Reusable and long-lasting design for multiple projects

• Plug-and-play connection without soldering micro USB directly

Applications:

• USB power input for custom electronic projects

• Microcontroller-based USB connectivity prototypes

• Powering small modules or IoT boards via USB

• Data transfer interface for USB-enabled devices

• Development and testing of USB-based circuits

• DIY electronics, breadboard experiments, and educational kits

• Portable electronics requiring USB charging interface

• Embedded device debugging and firmware programming

• Simple replacement for damaged USB ports in prototypes

• Power and communication interface in compact hardware designs
