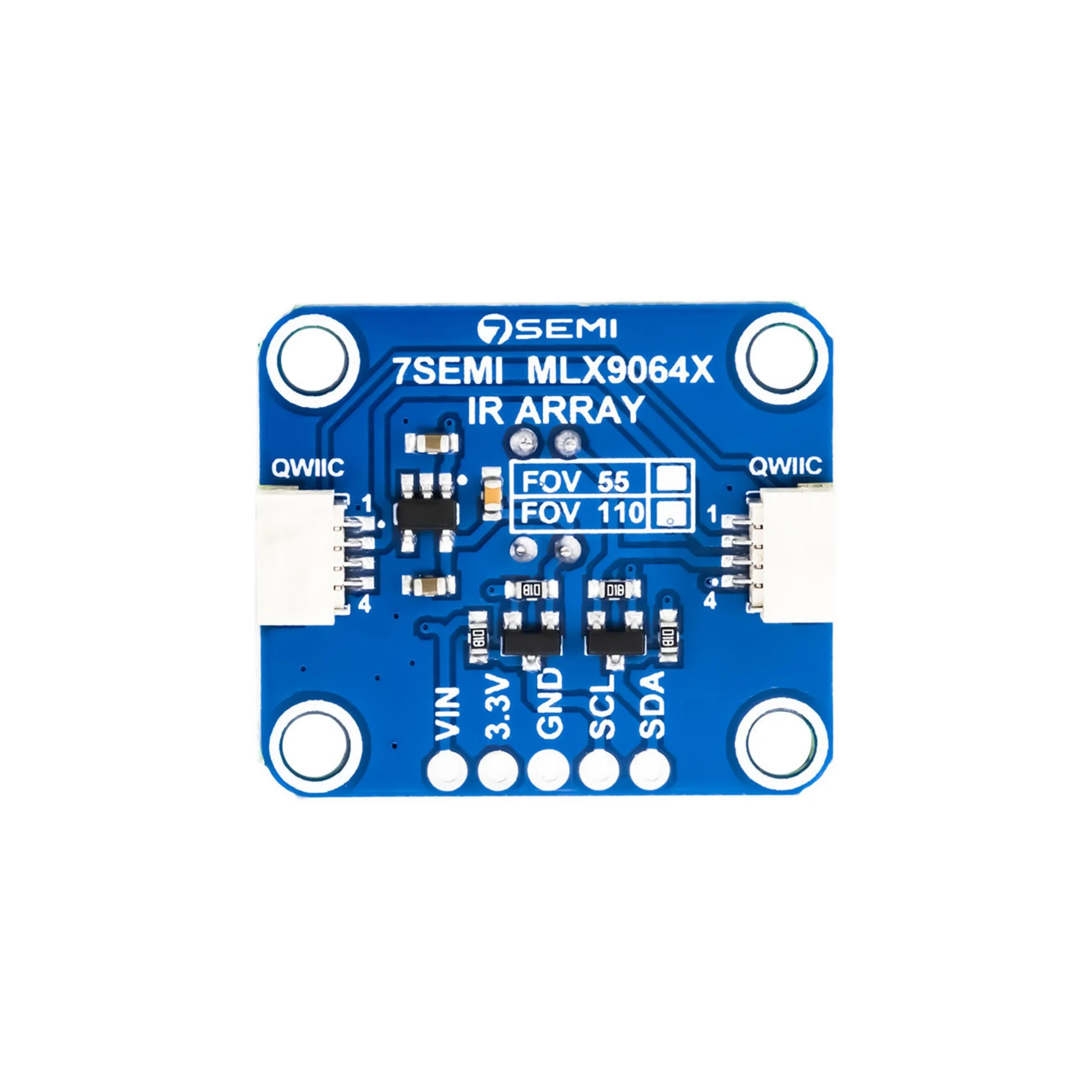

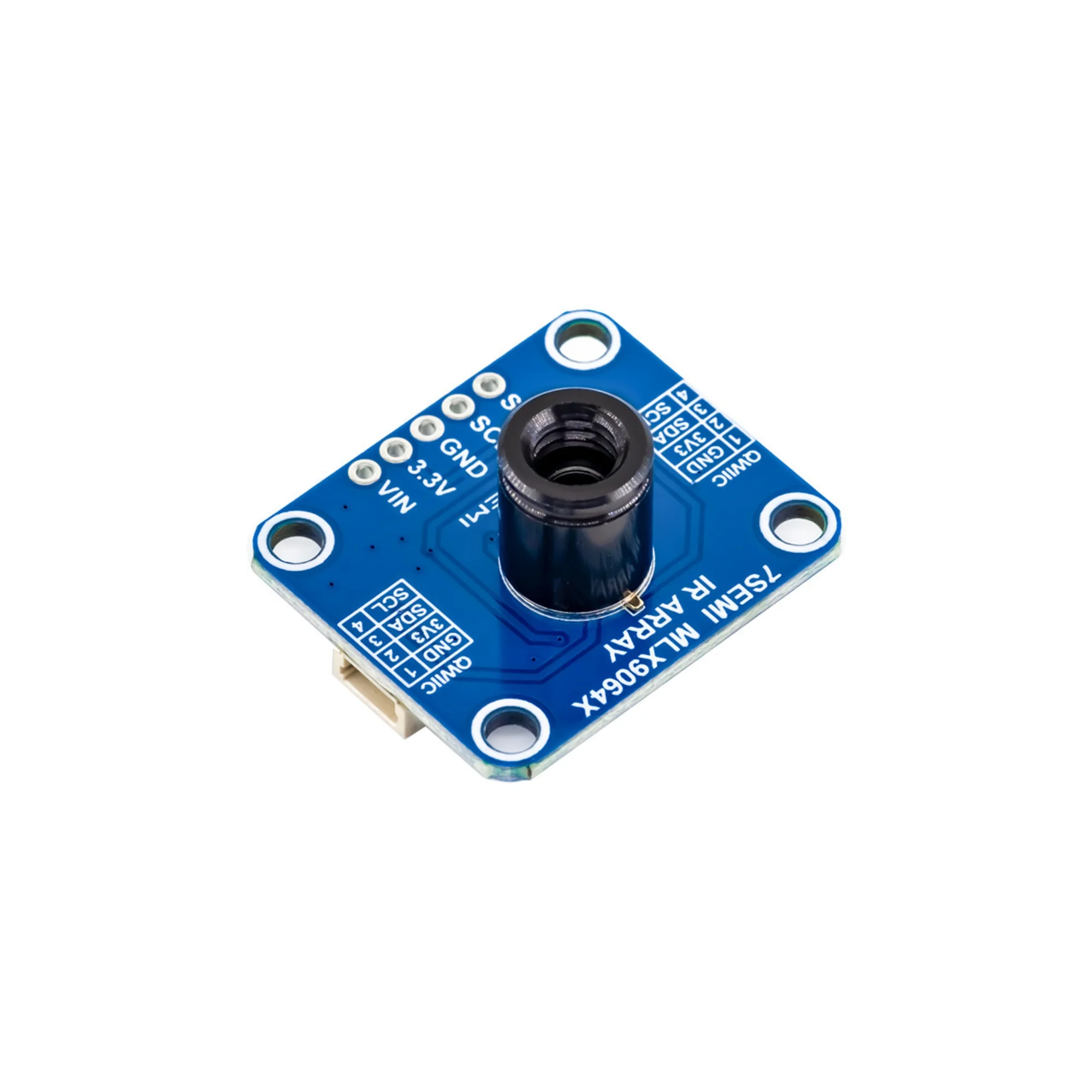

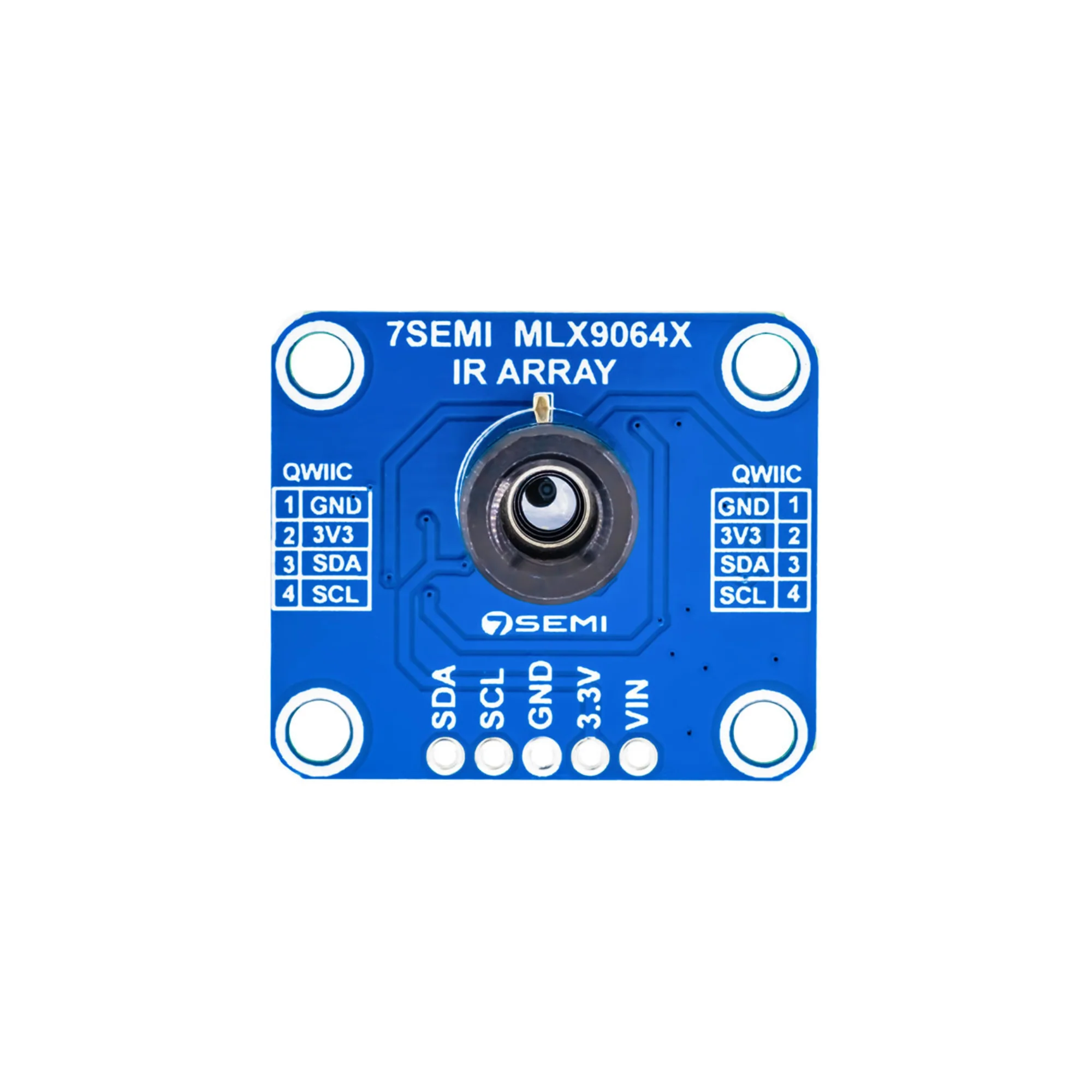

7Semi MLX90640 55 FOV Thermal Camera IR Array Breakout Qwiic Compatible

The 7Semi MLX90640 55° FOV Thermal Camera IR Array Breakout (Qwiic Compatible) is a high-resolution infrared thermal imaging sensor designed for contactless temperature measurement and visualization. Based on the Melexis MLX90640 sensor, it features a 32×24 pixel IR array that captures detailed thermal images across a 55° field of view (FOV). The sensor communicates via the I²C interface and provides calibrated temperature data in real time, making it ideal for thermal imaging, human presence detection, and temperature mapping applications. Its compact, Qwiic-compatible design allows for seamless integration into embedded, IoT, and robotics systems.

Technical Specifications:

• Sensor IC: Melexis MLX90640

• Resolution: 32 × 24 (768 pixels) thermal infrared array

• Field of View (FOV): 55° × 35° (standard version)

• Measurement Range: -40°C to +300°C

• Accuracy: ±1.5°C (typical)

• Temperature Resolution (NETD): <0.1°C (typical)

• Interface: I²C digital communication

• I²C Address: 0x33 (default)

• Frame Rate: 0.5 Hz to 64 Hz (configurable)

• Supply Voltage: 3.3 V (typical)

• Operating Current: 23 mA (typical)

• Logic Level Compatibility: 3.3 V (Qwiic system compatible)

• Communication Speed: Up to 1 MHz (fast mode)

• Calibration: Factory-calibrated for accurate temperature output

• Operating Temperature: -40°C to +85°C (ambient)

• PCB Material: High-quality FR-4 with gold-plated contacts

Features:

• 32×24 IR array provides real-time thermal imaging capability

• Wide 55° field of view for broader temperature coverage

• Fully calibrated sensor delivers accurate, absolute temperature readings

• I²C interface for simple integration with microcontrollers and single-board computers

• Compatible with Qwiic and 3.3 V logic systems

• High temperature resolution (NETD <0.1°C) for fine thermal detail detection

• Configurable frame rate (0.5–64 Hz) for speed or precision optimization

• Compact and lightweight design for embedded or portable applications

• Ideal for human, object, and environment temperature detection

• Plug-and-play operation with Arduino, ESP32, Raspberry Pi, and STM32 platforms

Applications:

• Thermal imaging and temperature mapping systems

• Human presence and motion detection in automation and security

• Smart home and HVAC thermal monitoring

• Robotics and AI-based visual sensing systems

• Fire detection and heat source localization

• Industrial process control and thermal diagnostics

• Preventive maintenance and equipment inspection

• Health monitoring and contactless temperature measurement

• IoT and environmental sensing projects

• Research, education, and prototype thermal visualization tools
