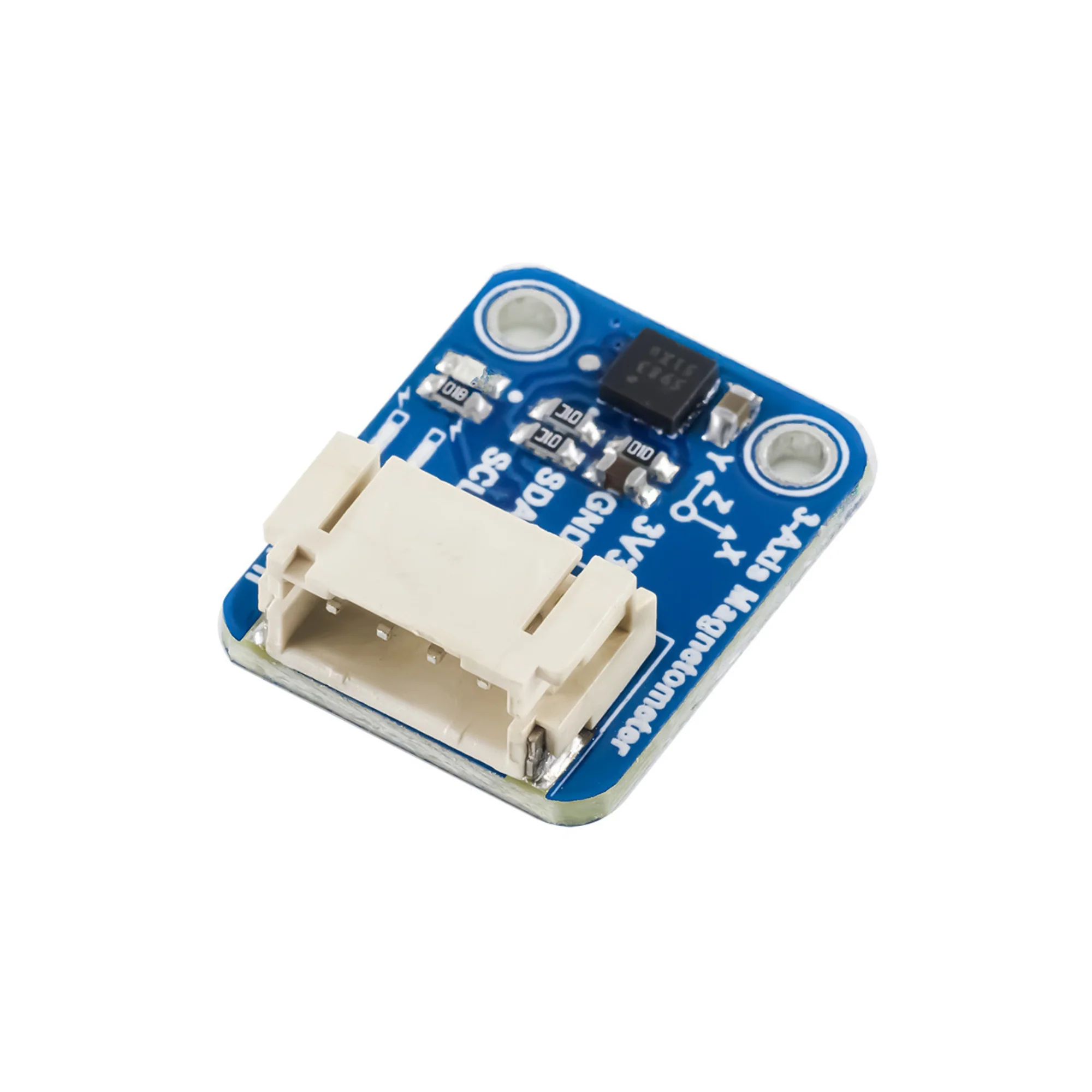

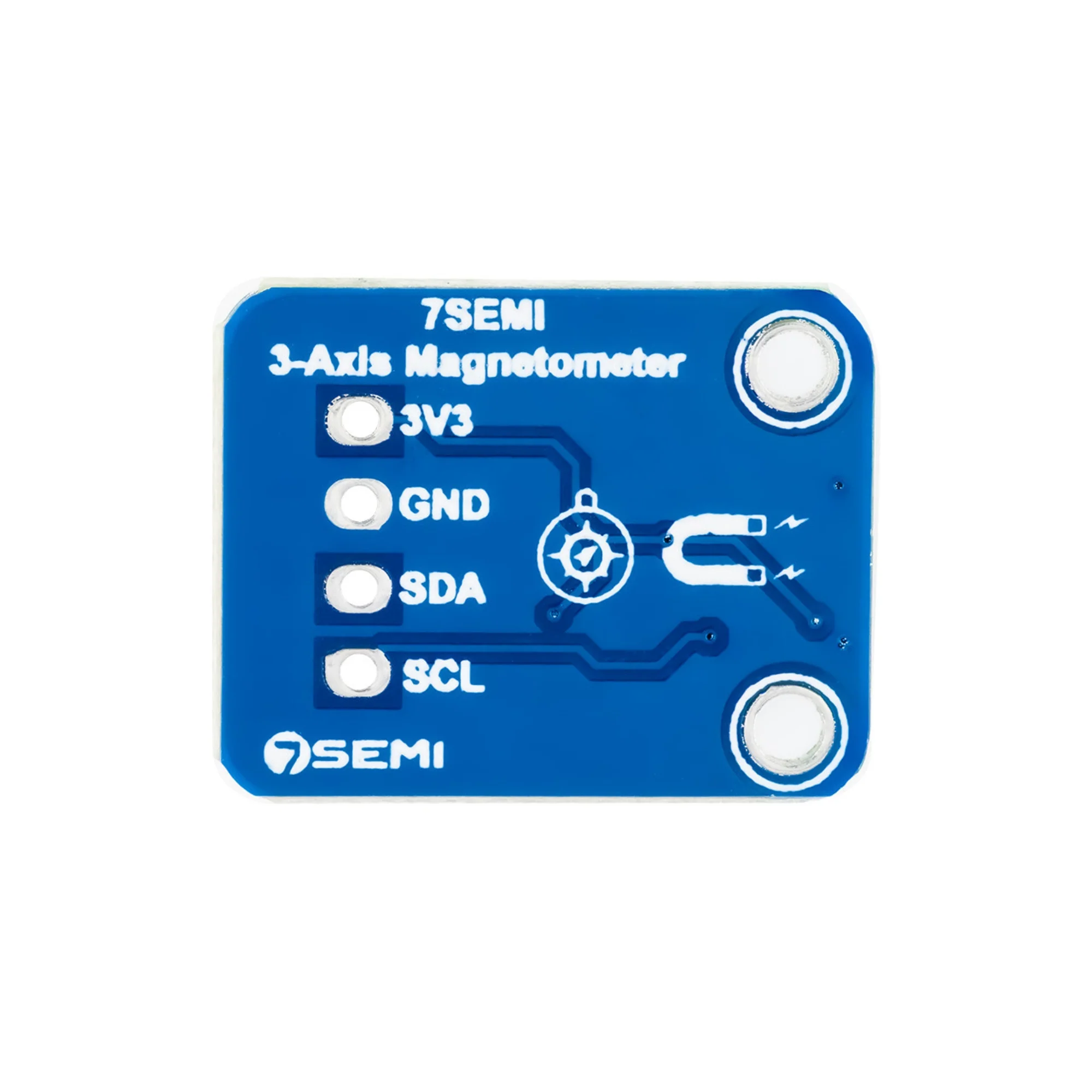

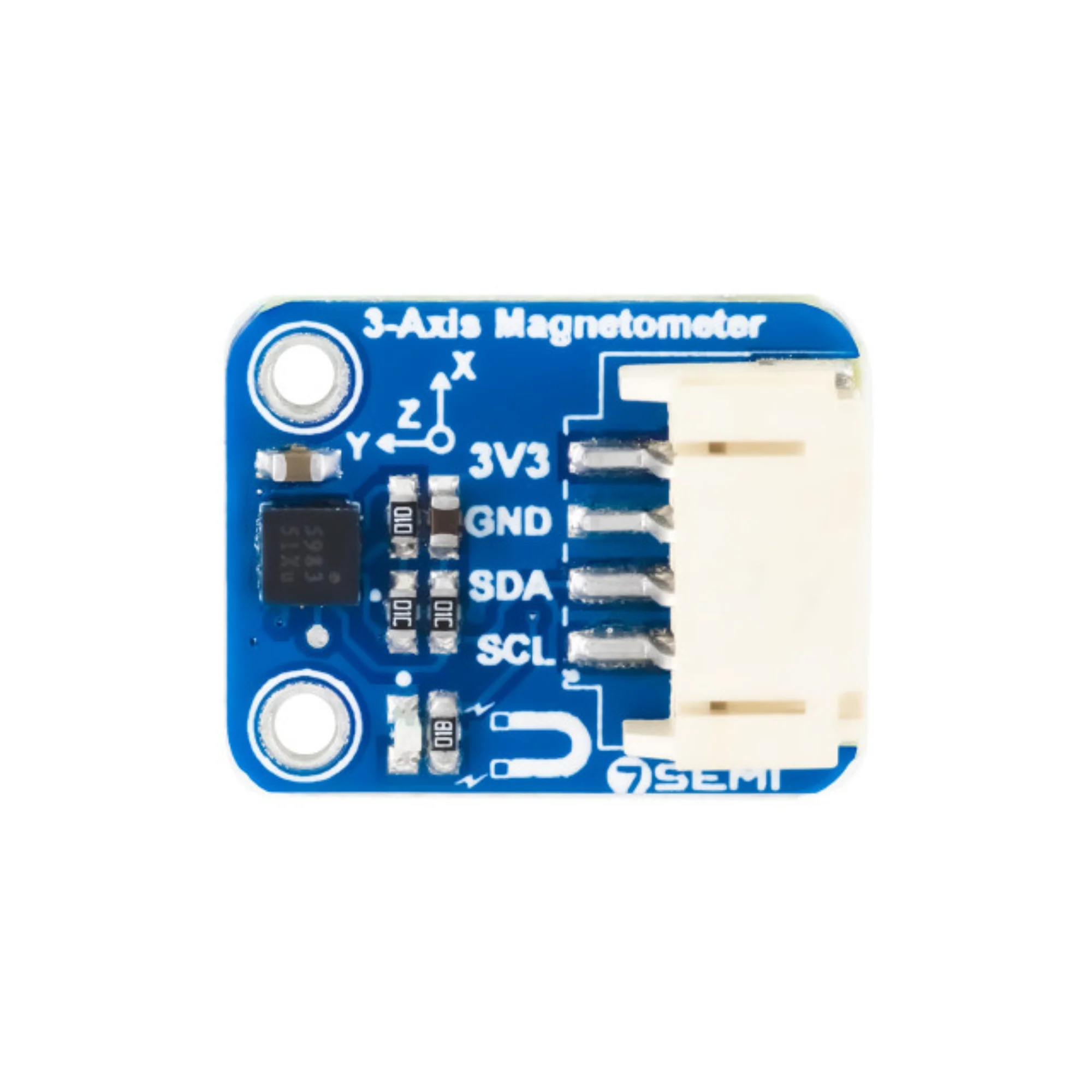

7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
7Semi MMC5983MA mini Magnetometer Breakout, 3-axis Magnetic Sensor
The 7Semi MMC5983MA Mini Magnetometer Breakout is a compact 3-axis magnetic-field sensing module based on the MMC5983MA sensor. It provides high-resolution, low-noise magnetic field measurements for X, Y, and Z axes with fast sampling rates and low power consumption. Its small size and stable performance make it ideal for digital compasses, navigation, robotics, drones, IoT devices, and magnetic-field detection applications.
Technical Specifications:
- Sensor IC: MMC5983MA (3-axis magnetometer)
- Measurement Axes: X, Y, Z
- Full-Scale Range: ±8 Gauss
- Resolution / Sensitivity: ~0.4 mG (18-bit output)
- Noise Level: ~0.4 mG RMS
- Output Data Rate: Up to 1000 Hz
- Interface: I²C (up to 400 kHz)
- Supply Voltage: 3.0V
- Power Modes: Low-power and power-down modes
- On-Chip Features: Degaussing (SET/RESET), temperature compensation, internal temperature sensor, data-ready interrupt
Features:
- High-resolution 3-axis magnetic field sensing
- Fast data rates suitable for motion tracking and navigation
- Wide ±8 Gauss dynamic range for accurate geomagnetic and magnetic-source detection
- Low-noise, stable digital output
- Built-in degaussing and compensation functions for consistent performance
- Low-power operation ideal for battery-powered systems
- Simple I²C interface for microcontroller integration
- Compact mini breakout suitable for robotics, wearables, and embedded designs
- Works well with sensor-fusion systems (IMU + magnetometer)
- Reliable long-term performance in varying environments
Applications:
- Digital compass and geomagnetic navigation
- Robotics orientation and heading sensing
- Drones/UAVs magnetometer-aided navigation
- Wearable devices and IoT motion sensors
- Magnetic anomaly detection and mapping
- Research instruments measuring magnetic fields
- Embedded systems requiring precise magnetic detection
- Metal detection and magnetic-field logging projects
- Sensor-fusion systems (AHRS, IMU-based navigation)
- Portable and low-power magnetic sensing devices
