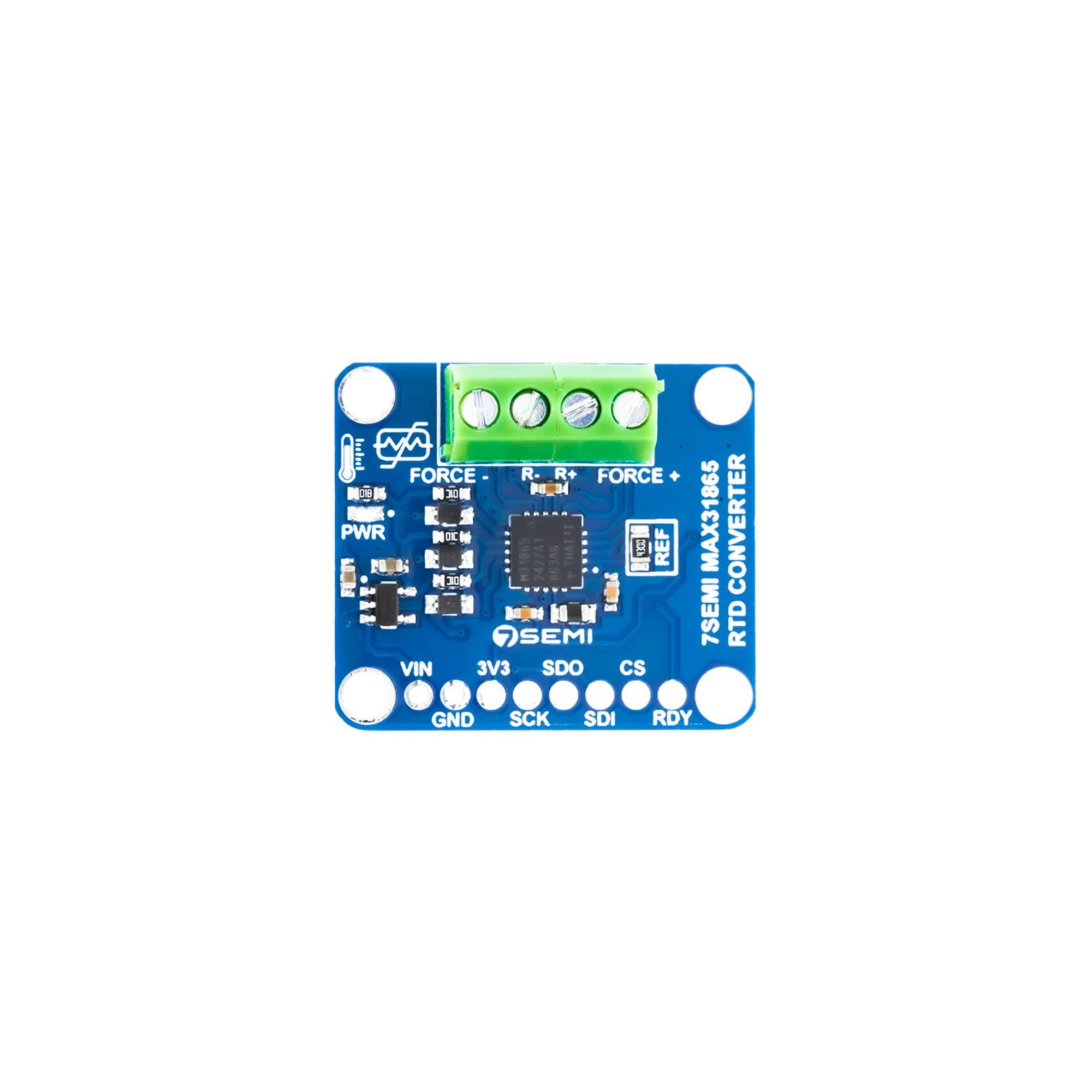

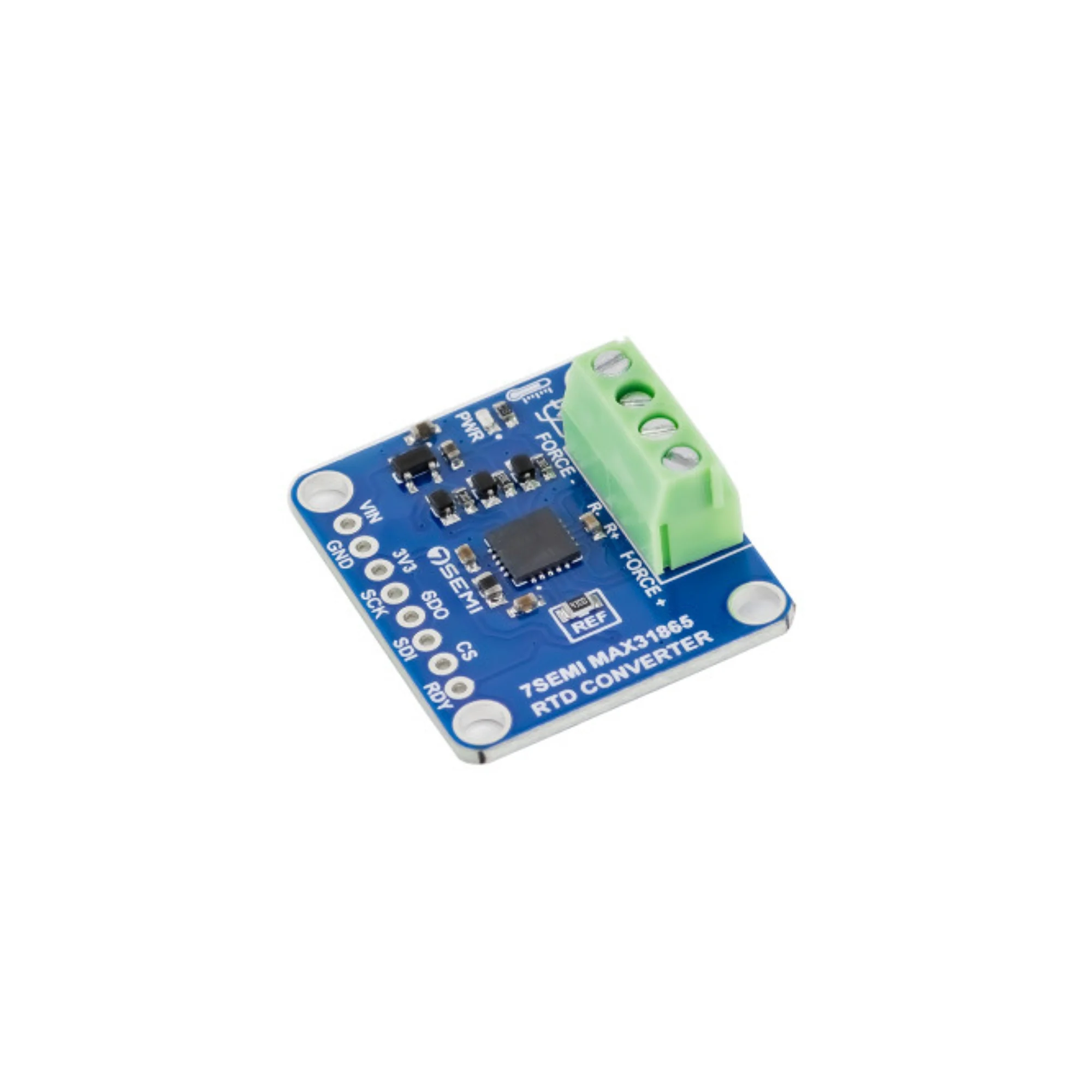

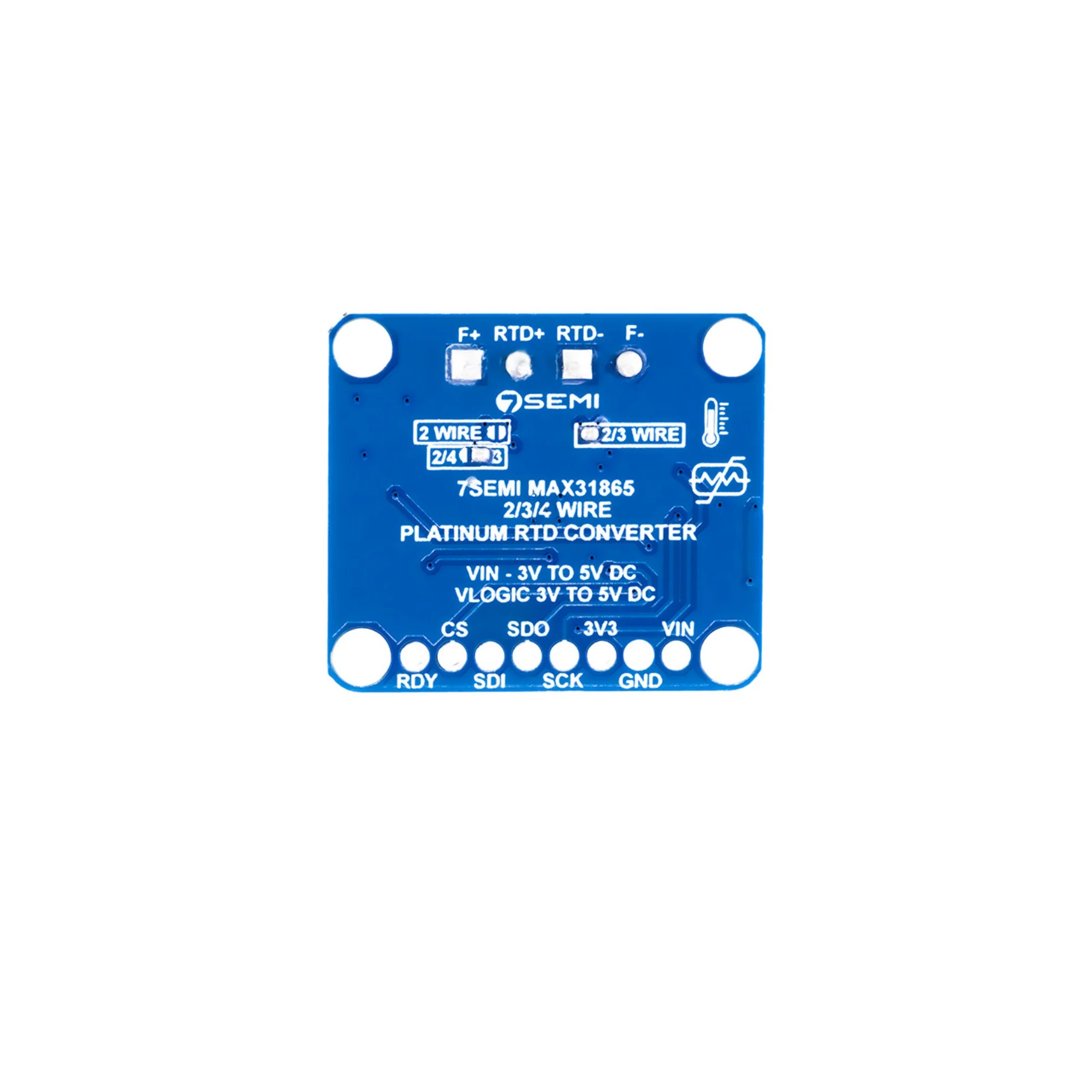

7Semi PT100 RTD 2-Wire Temperature Sensor Amplifier Breakout Board - MAX31865

he 7Semi PT100 RTD 2-Wire Temperature Sensor Amplifier Breakout Board based on the MAX31865 IC is a precision signal conditioning module designed for interfacing PT100 RTD temperature sensors with microcontrollers. It accurately amplifies and converts the analog resistance of the RTD into a digital signal over the SPI interface. The board supports 2-wire configuration and provides high accuracy, linearity, and stability for industrial and laboratory-grade temperature measurement. It is ideal for applications that require precise temperature monitoring and control.

Technical Specifications:

• IC: MAX31865 RTD-to-Digital Converter

• Sensor Compatibility: PT100 2-wire platinum RTD

• Interface: SPI digital communication

• Supported RTD Type: 100Ω at 0°C (PT100)

• Measurement Range: -200°C to +850°C (sensor dependent)

• Measurement Accuracy: ±0.5°C typical with high-quality RTD

• ADC Resolution: 15-bit delta-sigma ADC

• Supply Voltage: 3.0V to 5.5V

• Logic Level Compatibility: 3.3V and 5V

• Conversion Time: 52ms typical

• Sensor Excitation Current: 500µA nominal

• Noise Rejection: 50Hz and 60Hz rejection filters

• Protection: Open RTD detection and short-circuit protection

• Operating Temperature: -40°C to +125°C

• Board Type: Compact breakout with 2.54mm pitch header pins


Features:

• High-accuracy PT100 RTD amplifier with digital SPI interface

• Fully compatible with 2-wire RTD configuration

• Low-noise, high-resolution temperature conversion

• Built-in fault detection for sensor open and short conditions

• Factory-calibrated for linear response and stable output

• Supports both 3.3V and 5V logic systems

• Compact, breadboard-friendly breakout design

• Integrated cold-junction compensation for accurate readings

• Ideal for precise temperature measurement and control applications

• Compatible with Arduino, ESP32, STM32, and Raspberry Pi

Applications:

• Industrial temperature measurement and process control

• Laboratory and scientific instrumentation

• HVAC and environmental monitoring systems

• Thermal management in electronics and power systems

• IoT-based smart temperature monitoring

• Food and beverage temperature regulation

• Industrial automation and machine diagnostics

• Calibration and testing equipment

• Research and educational temperature sensing projects

• Precision thermal control in embedded systems
