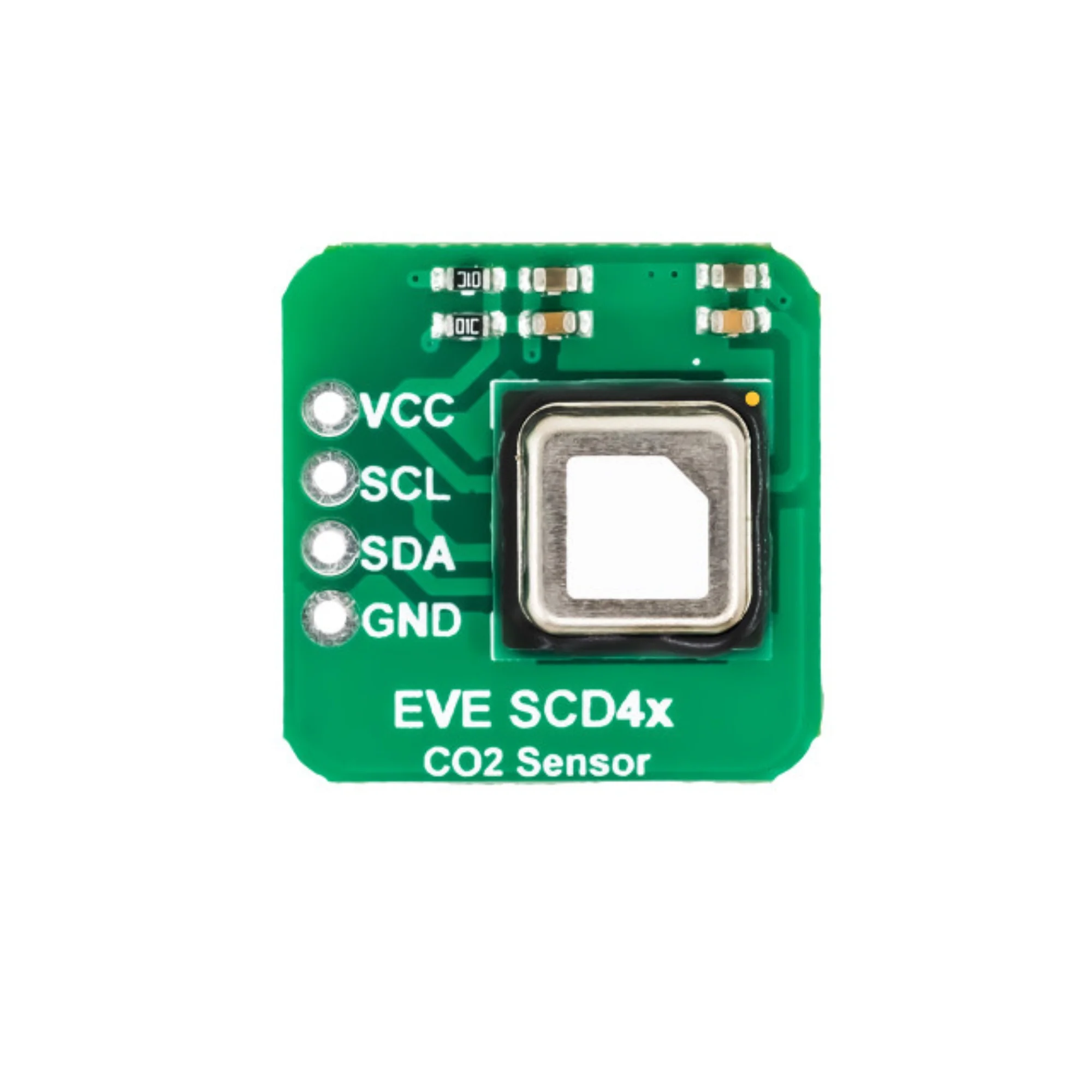

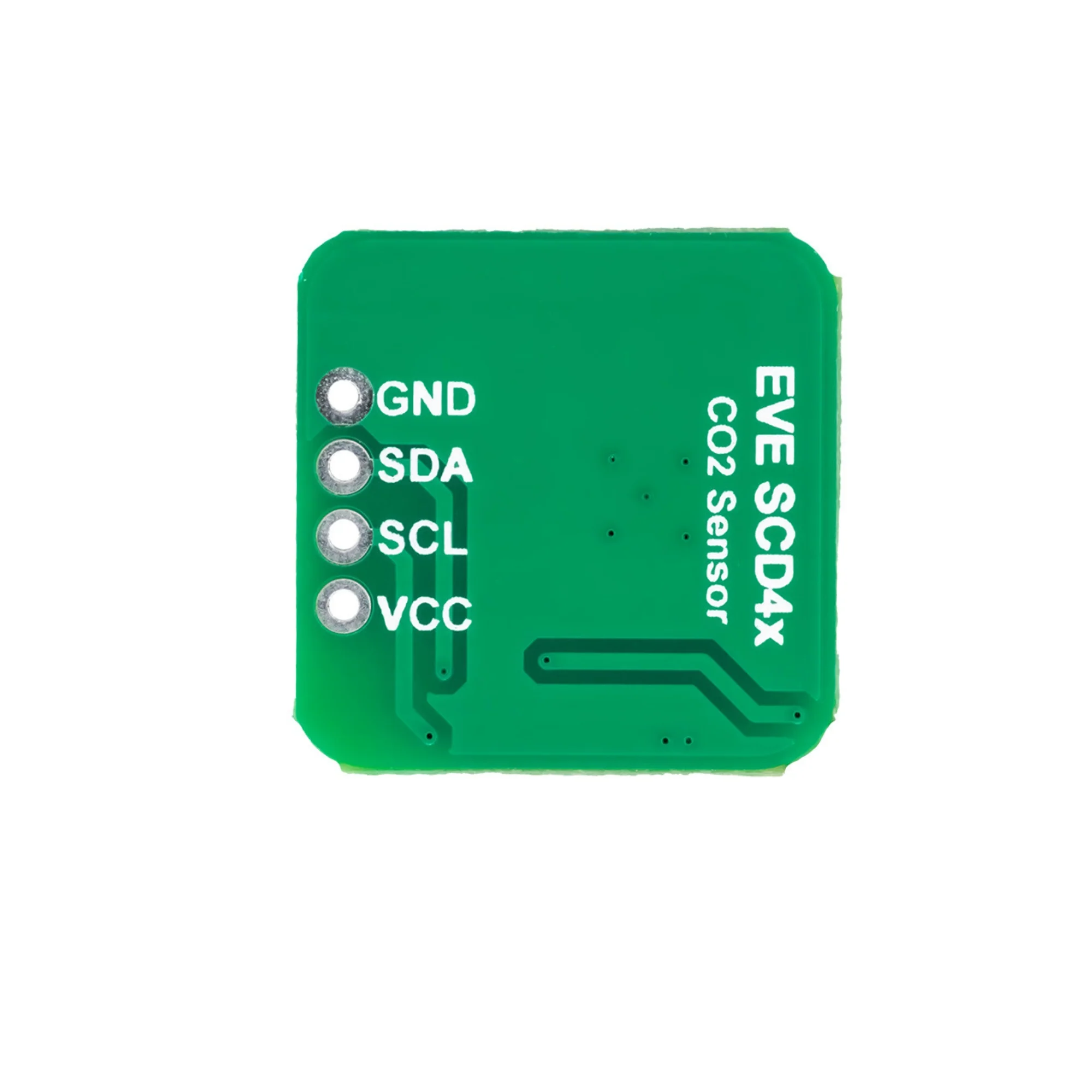

7Semi SCD41 CO2, Temperature and Humidity Sensor Breakout Mini

The 7Semi SCD41 CO₂, Temperature, and Humidity Sensor Breakout Mini is a high-precision environmental sensing module based on the Sensirion SCD41 sensor. It provides accurate measurements of carbon dioxide (CO₂) concentration, ambient temperature, and relative humidity in a compact form factor. Using Sensirion’s advanced photoacoustic NDIR sensing technology, the SCD41 offers reliable long-term stability and low power consumption. Designed for easy integration via the I²C interface, this breakout is ideal for indoor air quality monitoring, HVAC systems, and smart IoT applications where accurate CO₂ and climate data are critical.

Technical Specifications:

• Sensor Model: SCD41

• Measurement Parameters: CO₂ concentration, temperature, and relative humidity

• CO₂ Measurement Range: 400 ppm to 5000 ppm

• CO₂ Accuracy: ±(40 ppm + 5% of reading)

• Temperature Range: -10°C to +60°C

• Temperature Accuracy: ±0.8°C

• Humidity Range: 0% RH to 95% RH (non-condensing)

• Humidity Accuracy: ±3% RH (typical)

• Interface: I²C (up to 1000 kHz fast mode)

• Supply Voltage: 2.4 V to 5.5 V

• Average Current Consumption: 3.5 mA (typical)

• CO₂ Measurement Interval: Configurable, 5 seconds (typical)

• Warm-up Time: <60 seconds for full accuracy

• Output: Digital (I²C data output)

• Logic Level Compatibility: 3.3 V and 5 V systems

• Operating Temperature: -10°C to +60°C

• PCB Material: High-quality FR-4 with 2.54 mm header pins

Features:

• Integrated CO₂, temperature, and humidity sensing in one compact module

• Advanced photoacoustic NDIR sensing for high accuracy and reliability

• I²C digital interface for easy communication with microcontrollers

• Low power consumption suitable for portable and battery-powered devices

• Fully calibrated and linearized sensor output for quick deployment

• Excellent long-term stability and repeatable performance

• Wide operating voltage range for compatibility with 3.3 V and 5 V systems

• Compact breakout design ideal for space-constrained applications

• Factory-calibrated CO₂, temperature, and humidity measurements

• High measurement accuracy and short response time

Applications:

• Indoor air quality monitoring and control systems

• HVAC and ventilation optimization

• Smart home and building automation systems

• IoT environmental and climate monitoring devices

• Greenhouse and agricultural climate control

•  Workplace, school, and public space CO₂ monitoring

• Smart appliances and air purifiers

• Data logging and environmental research instruments

• Health and comfort analysis systems in smart environments
