7Semi SGP41 VOC and NOx Sensor Breakout for Indoor Air Quality 2.54mm Pitch

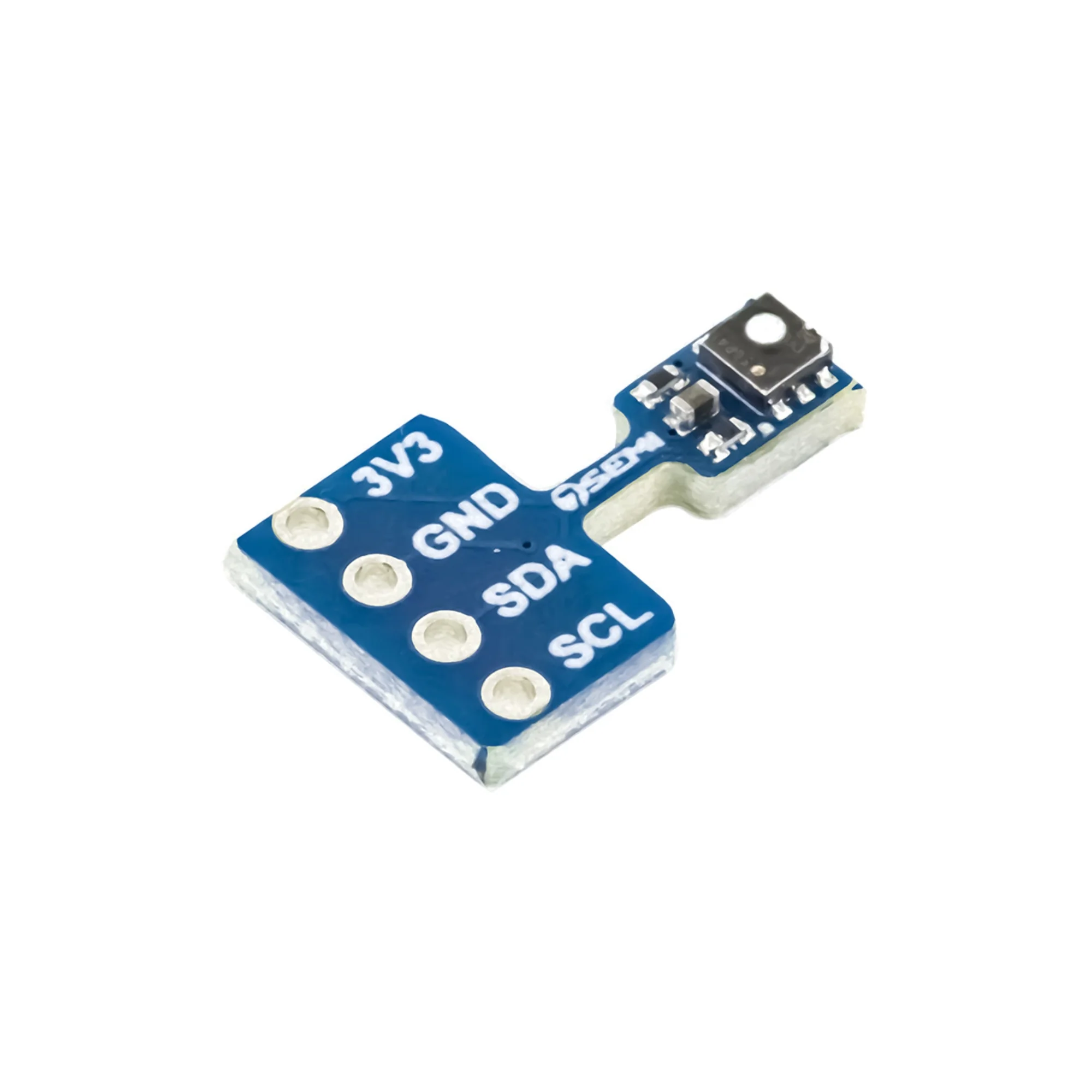

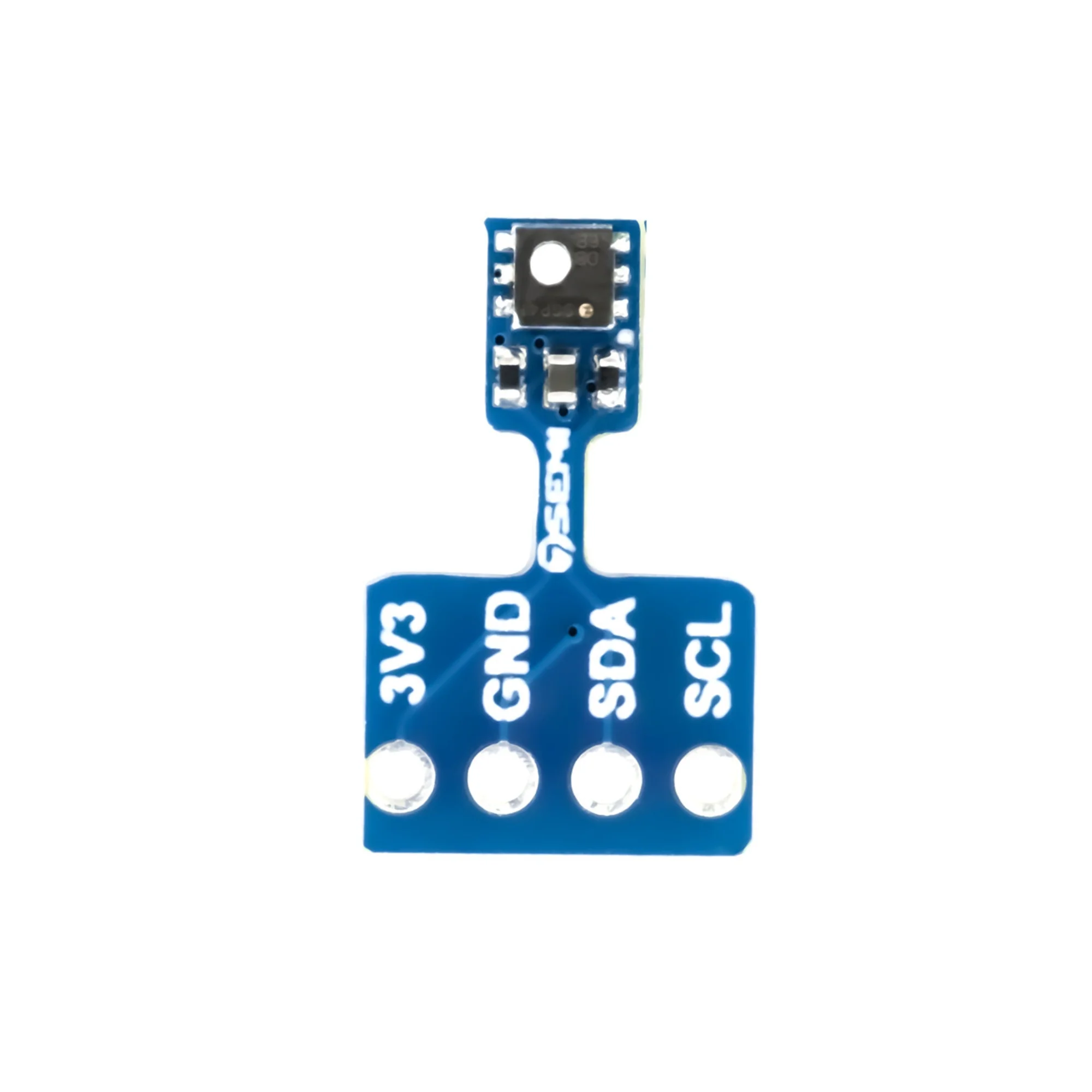

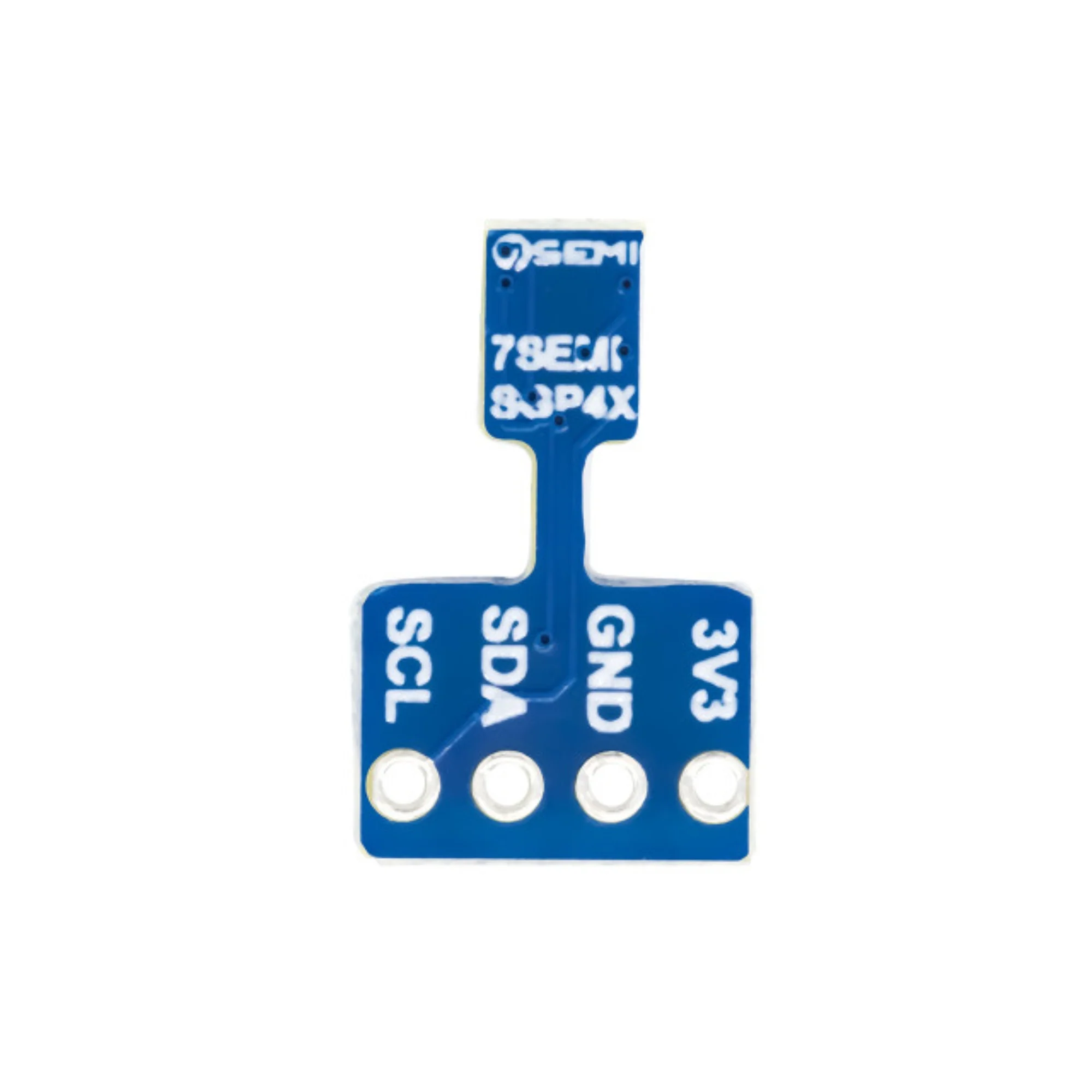

The 7Semi SGP41 VOC and NOx Sensor Breakout is a compact indoor air-quality sensing module based on the Sensirion SGP41 gas sensor. It measures volatile organic compounds (VOCs) and oxidizing gases (NOx), providing digital air-quality indices suitable for ventilation control, purifiers, smart home devices, and IoT environmental monitoring. With a 2.54mm pitch header, it is breadboard-friendly and easy to integrate with microcontrollers using the I²C interface.

Technical Specifications:

• Sensor IC: SGP41 (metal-oxide gas sensor)

• Measured Parameters: VOC Index and NOx Index

• Interface: I²C digital communication

• Operating Voltage: 3.3V

• Power Consumption: ~3 mA (active)

• Sensor Package: Compact DFN package internally

• Header Pitch: 2.54mm (standard breadboard-compatible)

• Output Type: Digital gas indices (VOC-Index, NOx-Index)

• Logic Compatibility: 3.3V systems

• Sensing Technology: MOX (metal-oxide) gas detection

• Designed for indoor air-quality applications

Features:

• Detects a wide range of VOCs and NOx/oxidizing gases

• Provides ready-to-use VOC and NOx index values

• Digital I²C communication for simple integration

• Compact breakout module with standard 2.54mm header

• Low-power operation suitable for continuous air-quality monitoring

• High stability and long-term reliability of the SGP41 sensor

• Suitable for battery-powered and IoT devices

• Easy to interface with Arduino, ESP32, STM32, Raspberry Pi

• Fast response to changing air-quality conditions

• Ideal for modern indoor air-quality systems

Applications:

• Indoor air-quality monitoring

• Smart home and IoT environmental sensors

• Air purifiers and filtration systems

• HVAC and ventilation control

• Air-quality data logging and environmental research

• Smart-building automation

• Portable or wearable air-quality devices

• Industrial and office indoor-air safety monitoring

• Environmental sensing nodes for IoT networks
