7Semi SHT20 Humidity and Temperature Sensor Probe MRS Type I2C
7Semi SHT20 Humidity and Temperature Sensor Probe MRS Type I2C

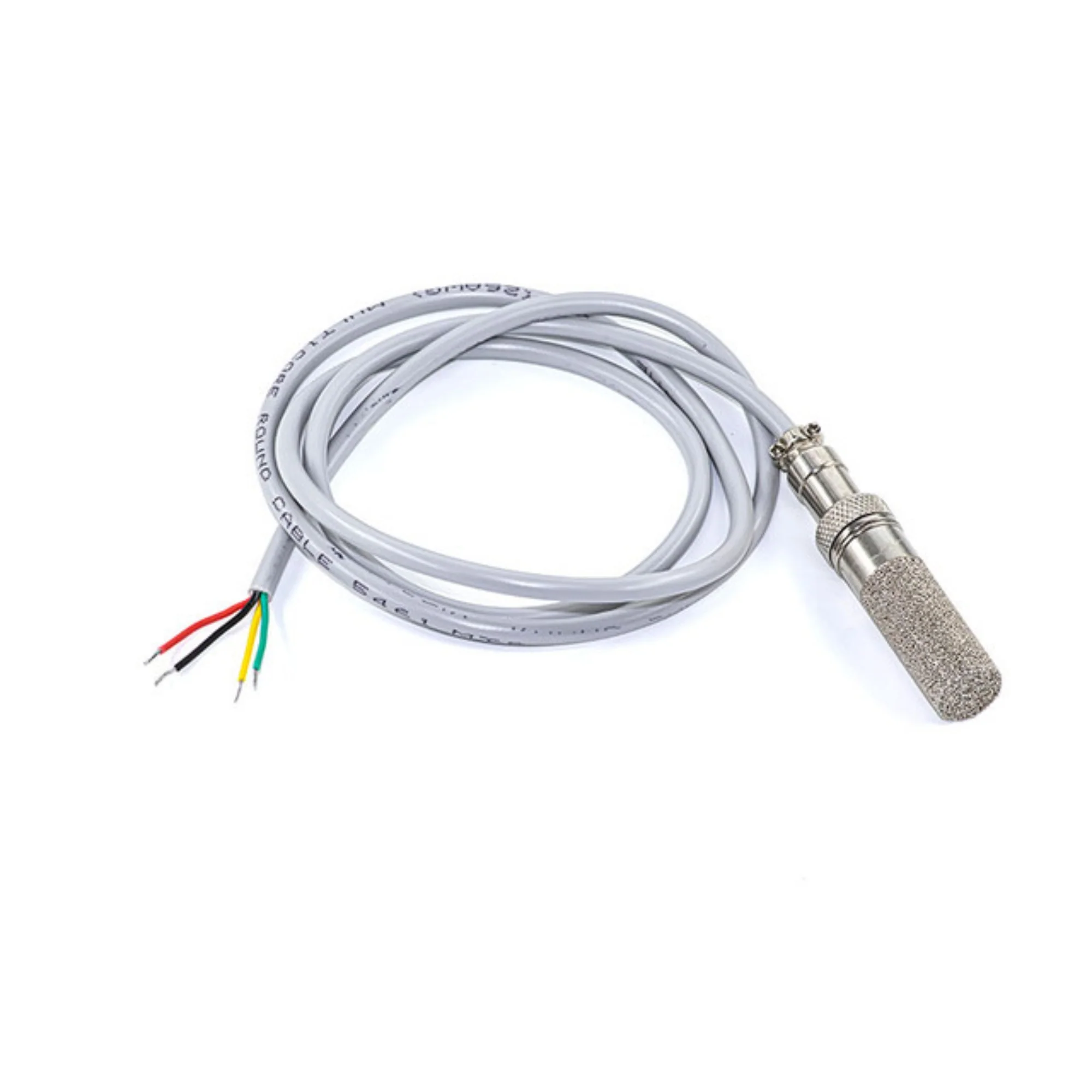

The 7Semi SHT20 Humidity and Temperature Sensor Probe (MRS Type, I2C) is a high-precision digital sensing module that integrates the Sensirion SHT20 sensor inside a waterproof and durable probe casing. It measures both relative humidity and temperature with high accuracy and stability, communicating through an I2C digital interface. Designed for long-term reliability, this sensor is ideal for environmental monitoring, HVAC systems, agriculture, and industrial applications where accurate humidity and temperature readings are required.
Technical Specifications:
- Sensor Model: SHT20 (by Sensirion)
- Measuring Parameters: Relative Humidity and Temperature
- Communication Interface: I2C (digital output)
- Operating Voltage: 3.3 V to 5.0 V
- Humidity Range: 0% to 100% RH
- Humidity Accuracy: ±3% RH (typical at 25°C)
- Temperature Range: -40°C to +125°C
- Temperature Accuracy: ±0.3°C (typical at 25°C)
- Response Time: ≤ 8 seconds (humidity), ≤ 5 seconds (temperature)
- Cable Length: Typically 1 meter (MRS probe type)
- Enclosure Type: Waterproof stainless steel mesh probe housing
- Output Type: Digital (I2C protocol, standard 7-bit address)
- Operating Current: <1 mA (active mode)
- Storage Conditions: -40°C to +125°C, <80% RH
- Lifetime: Designed for long-term stability and low drift
Features:
- Integrated high-accuracy humidity and temperature sensor
- Fully calibrated, linearized, and compensated digital output
- Waterproof MRS-type probe suitable for outdoor and industrial environments
- Fast response time and excellent long-term stability
- I2C digital interface for easy microcontroller integration
- Wide operating voltage range (3.3 V to 5 V)
- Low power consumption and robust construction
- Reliable performance under harsh environmental conditions
Applications:
- Environmental and weather monitoring systems
- HVAC and air quality control
- Smart agriculture and greenhouse automation
- Industrial process control and climate chambers
- Data logging and IoT sensing platforms
- Laboratory humidity and temperature measurement
- Smart home and building automation systems
