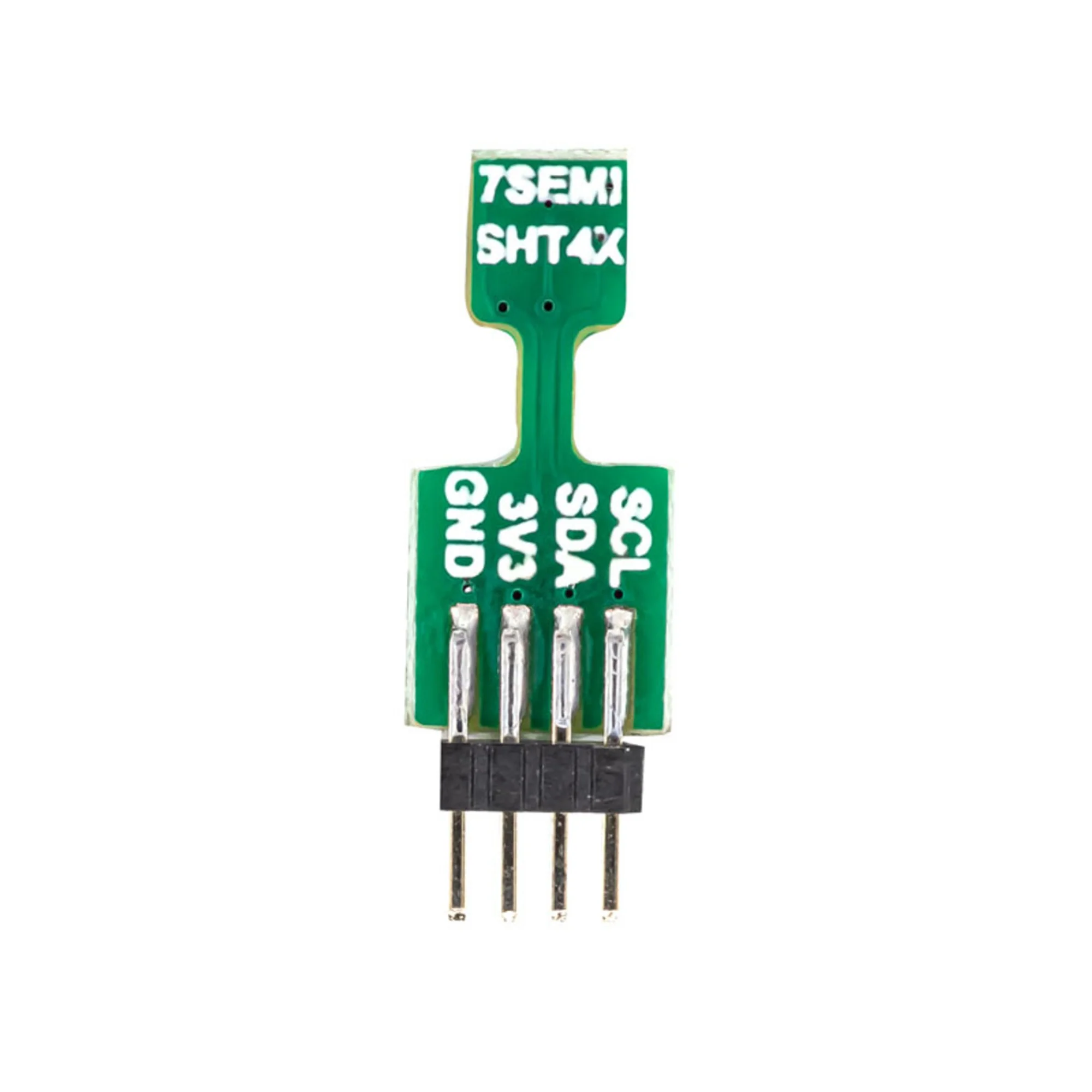

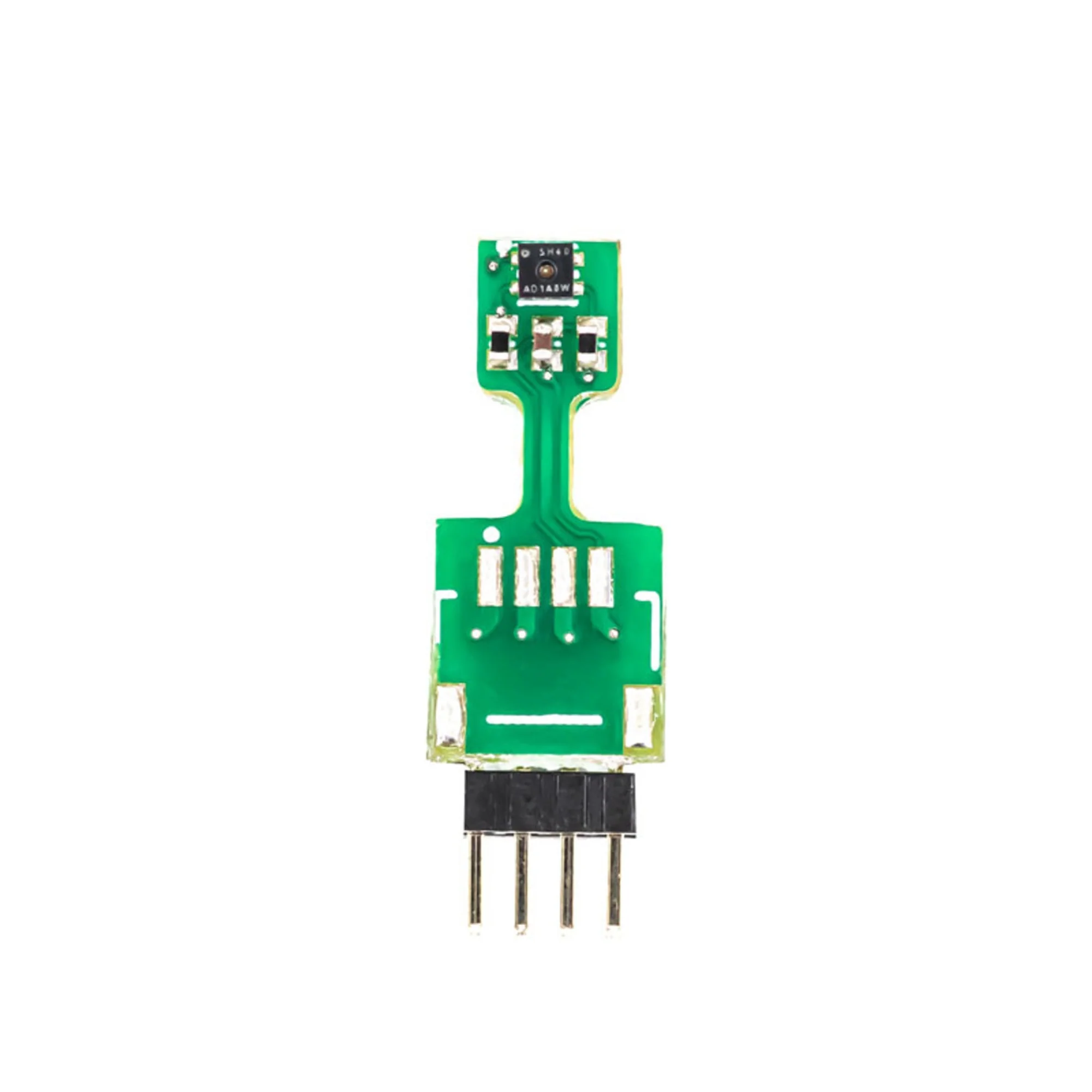

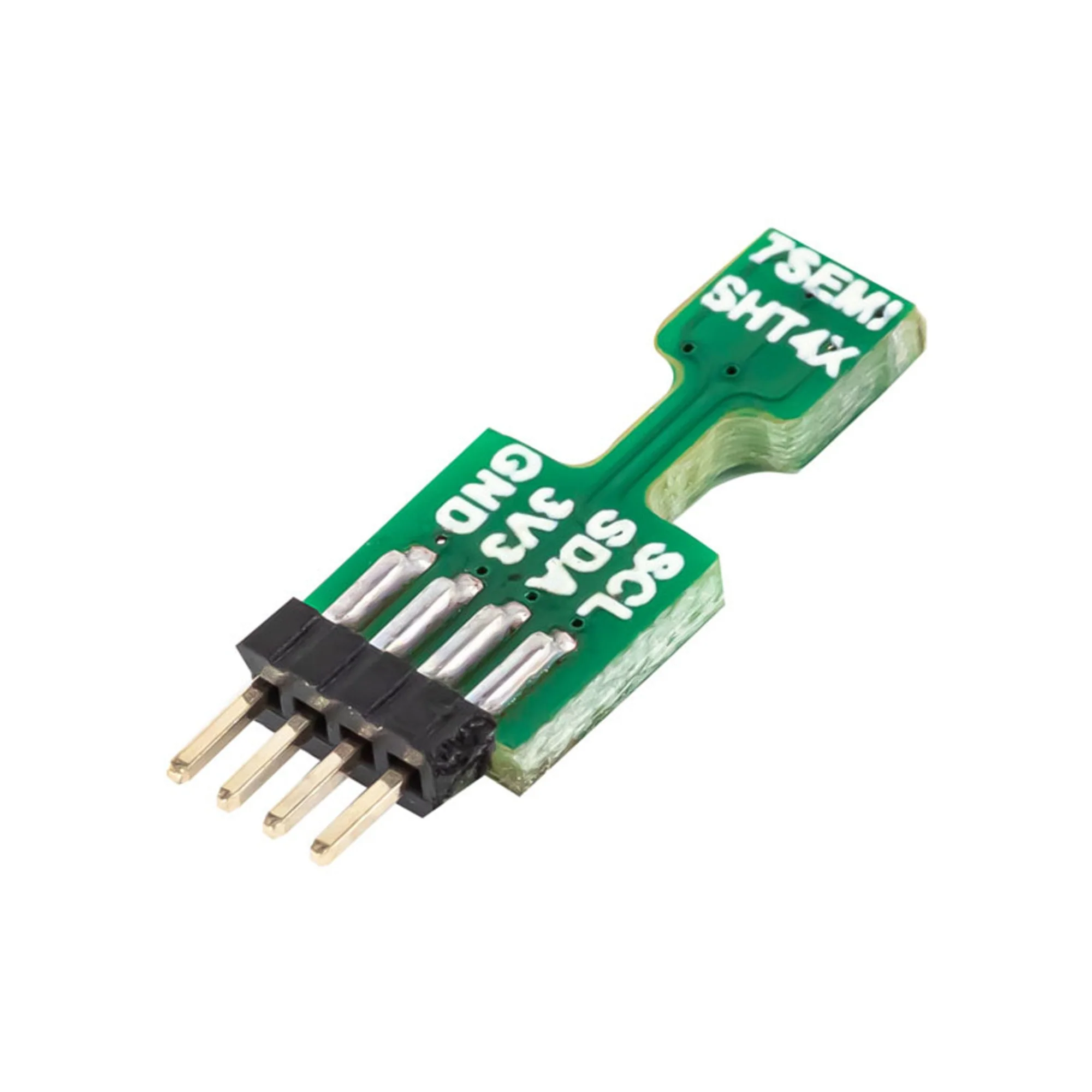

7Semi SHT40 Temperature & Humidity Sensor Breakout 1.27mm Pitch
7Semi SHT40 Temperature & Humidity Sensor Breakout 1.27mm Pitch
The 7Semi SHT40 Temperature & Humidity Sensor Breakout 1.27mm Pitch is a high-precision, digital humidity and temperature sensing module based on the Sensirion SHT40 sensor. It provides fully calibrated, linearized, and digital output over an I²C interface. The breakout features a compact 1.27mm pitch header for easy integration into compact circuit designs. With its excellent long-term stability, low power consumption, and fast response time, the SHT40 is ideal for applications requiring accurate environmental monitoring in both industrial and consumer devices.
Technical Specifications:
- Sensor IC: Sensirion SHT40
- Measurement Parameters: Temperature and Humidity
- Interface: I²C digital communication
- Supply Voltage: 2.4V to 5.5V (typical 3.3V)
- Temperature Range: -40°C to +125°C
- Temperature Accuracy: ±0.1°C (typical at 25°C)
- Humidity Range: 0% to 100% RH (non-condensing)
- Humidity Accuracy: ±1.8% RH (typical 25°C, 10–90% RH)
- Resolution: 16-bit output for both temperature and humidity
- I²C Address: 0x44 (default)
- Response Time: <8 seconds for humidity, <2 seconds for temperature
- Current Consumption: 0.4µA (standby), 1.3µA (typical active)
- Output Type: Calibrated, linearized digital signal
- Pitch: 1.27mm header spacing
- Operating Temperature: -40°C to +125°C
- Logic Level Compatibility: 3.3V and 5V systems
- PCB Size: Compact breakout for small form-factor devices
Features:
- Fully calibrated and digital I²C output for easy communication
- High accuracy of ±0.1°C and ±1.8% RH
- Ultra-low power consumption ideal for battery-powered devices
- Fast response time and excellent long-term stability
- Compact 1.27mm pitch breakout design for easy PCB integration
- Factory-calibrated and linearized temperature and humidity readings
- Compatible with both 3.3V and 5V logic systems
- Minimal drift and long operational lifespan
- Designed for reliable performance in varying environmental conditions
- Seamless integration with Arduino, ESP32, STM32, and Raspberry Pi
Applications:
- Environmental monitoring and weather stations
- HVAC and air quality management systems
- Smart home and IoT applications
- Industrial and laboratory climate control
- Greenhouse and agricultural automation
- Data logging and sensor network systems
- Portable and wearable environmental sensors
- Scientific research and calibration equipment
- Medical and pharmaceutical storage monitoring
- Consumer electronics with temperature and humidity sensing
