7Semi SHT45 and SGP41 Environmental Sensor Breakout
7Semi SHT45 and SGP41 Environmental Sensor Breakout

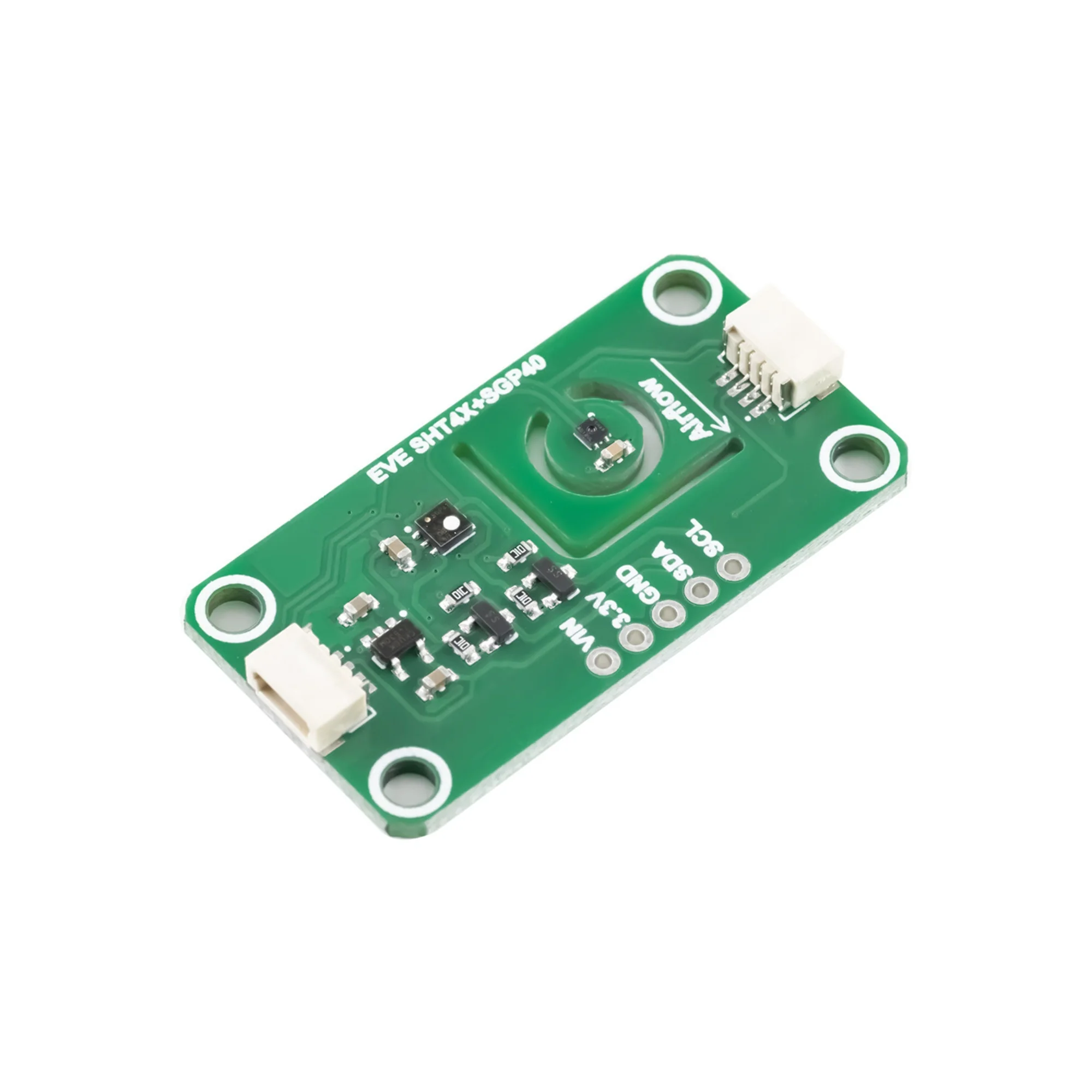

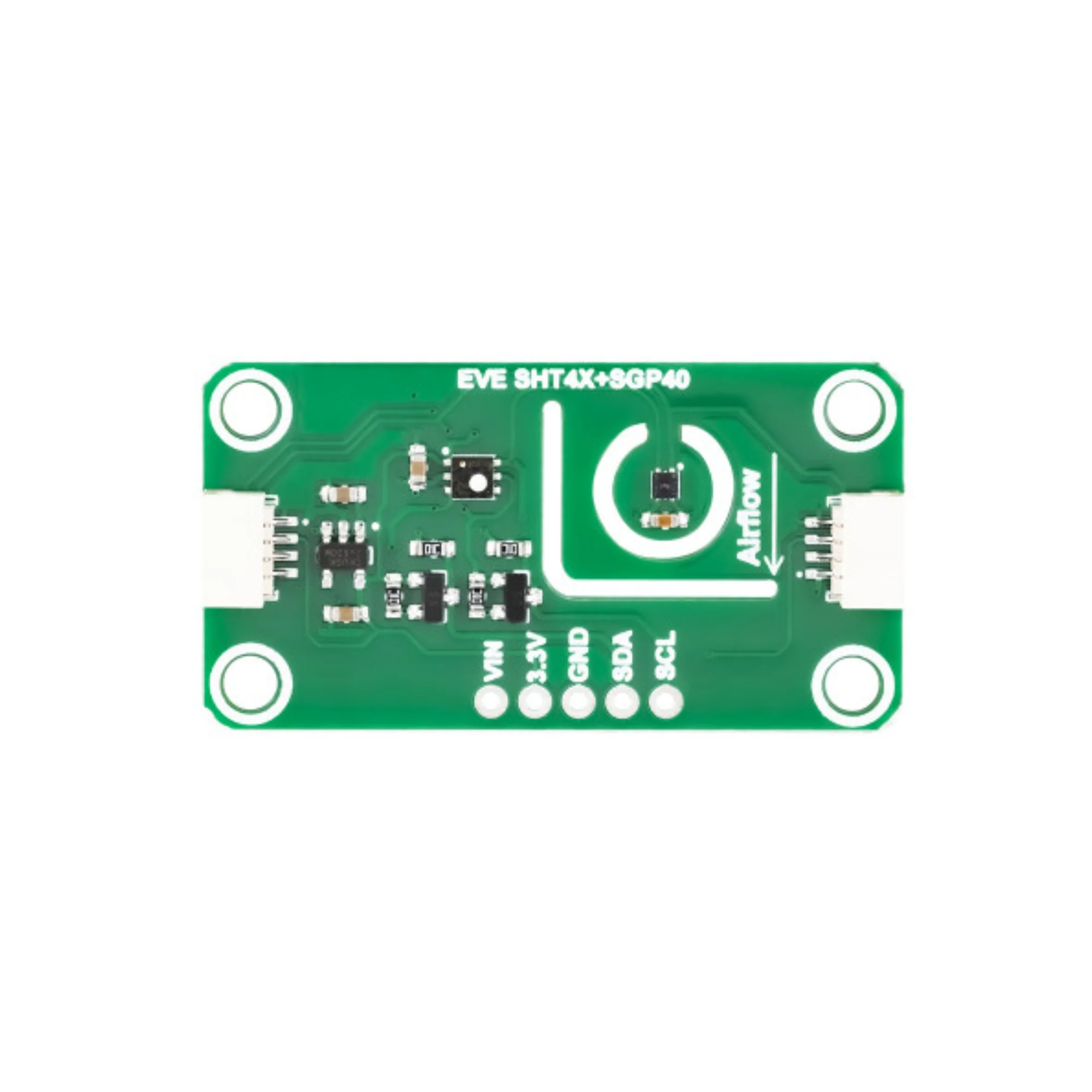

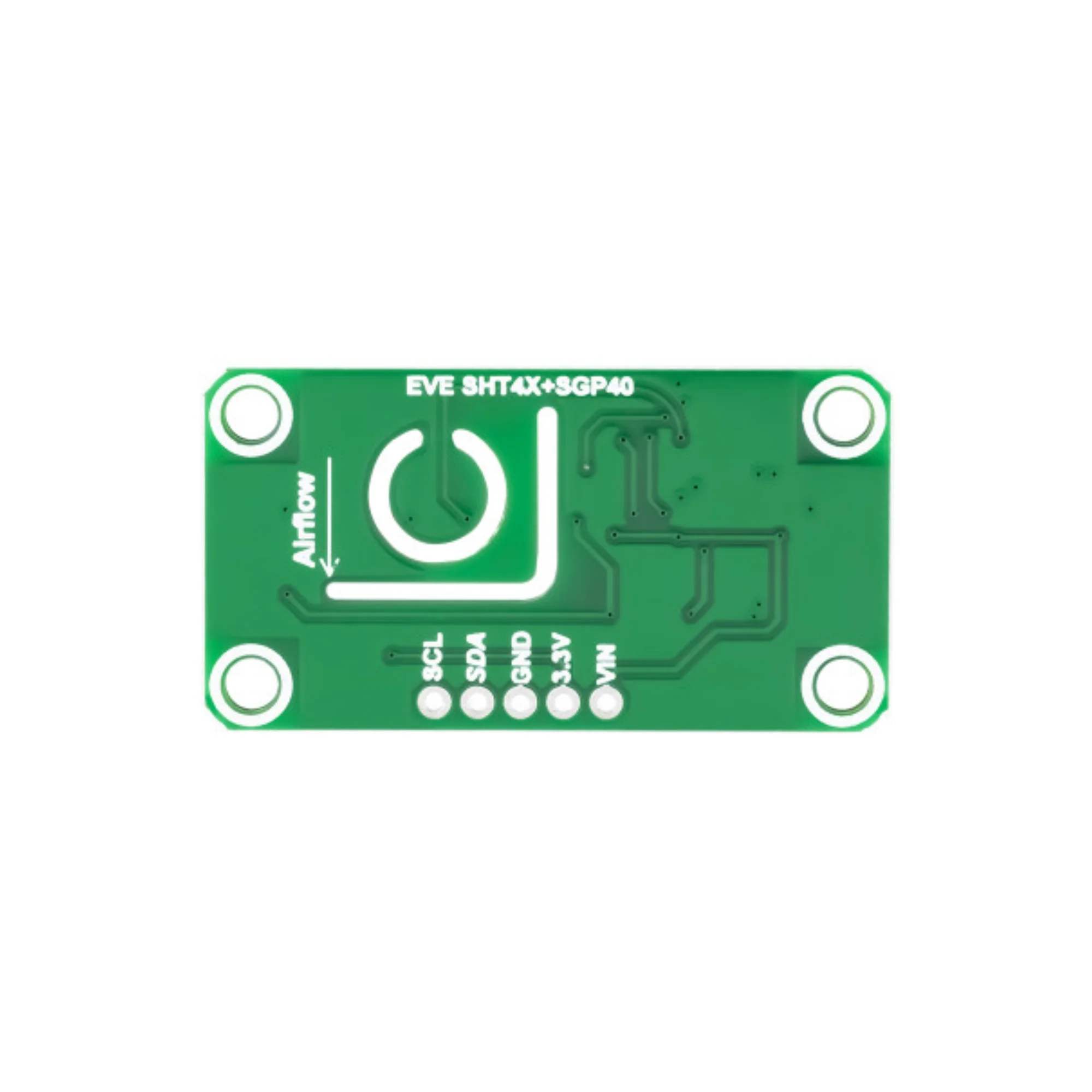

The 7Semi SHT45 and SGP41 Environmental Sensor Breakout is a compact dual-sensor module that integrates high-precision temperature and humidity sensing (SHT45) with advanced air-quality sensing (SGP41). This combined board provides accurate environmental data along with VOC and NOx gas indices, making it suitable for indoor air-quality monitoring, HVAC automation, IoT devices, and smart-environment applications. With an I²C digital interface, it allows easy integration with microcontrollers and embedded systems.
Technical Specifications:
SHT45 - Temperature & Humidity Sensor:
- Measurement Parameters: Temperature and Relative Humidity
- Temperature Accuracy: ±0.1°C
- Humidity Accuracy: ±1.0% RH
- Interface: I²C
- Output: Fully calibrated digital output
SGP41 - VOC & NOx Gas Sensor:
- Measurement Parameters: VOC Index and NOx Index
- Gas Type: Detects volatile organic compounds and oxidizing gases
- Output: Raw VOC and raw NOx signals for air-quality algorithms
- Interface: I²C
- Sensor Type: MOX (Metal-Oxide) gas sensor
Module / General:
- Combined environmental and air-quality monitoring module
- Shared I²C bus for both sensors
- Supply Voltage: 3.3V
- Logic Compatibility: 3.3V systems
- Compact breakout suitable for embedded designs
Features:
- Dual-sensor integration: temperature, humidity, VOC, and NOx sensing in one module
- High accuracy environmental sensing via SHT45 (±0.1°C and ±1.0% RH)
- SGP41 provides real-time VOC and NOx indices for indoor air-quality analysis
- Fully digital I²C interface for simple connection and coding
- Low power consumption suitable for battery-powered IoT systems
- Factory-calibrated sensing outputs ensure high reliability
- Compact design reduces PCB footprint compared to separate sensors
- Ideal for indoor air-quality monitoring and HVAC optimization
- Easy integration with Arduino, ESP32, STM32, Raspberry Pi, and IoT platforms
- Suitable for long-term environmental logging and automation systems
Applications:
- Indoor air-quality monitoring
- Smart home and IoT environmental sensors
- HVAC and ventilation control systems
- Environmental data logging platforms
- Smart-building automation
- Air purifiers and filtration systems
- Industrial and laboratory environmental monitoring
- Consumer indoor climate devices
- Greenhouse and confined-space monitoring
- Workplace air-quality detection
