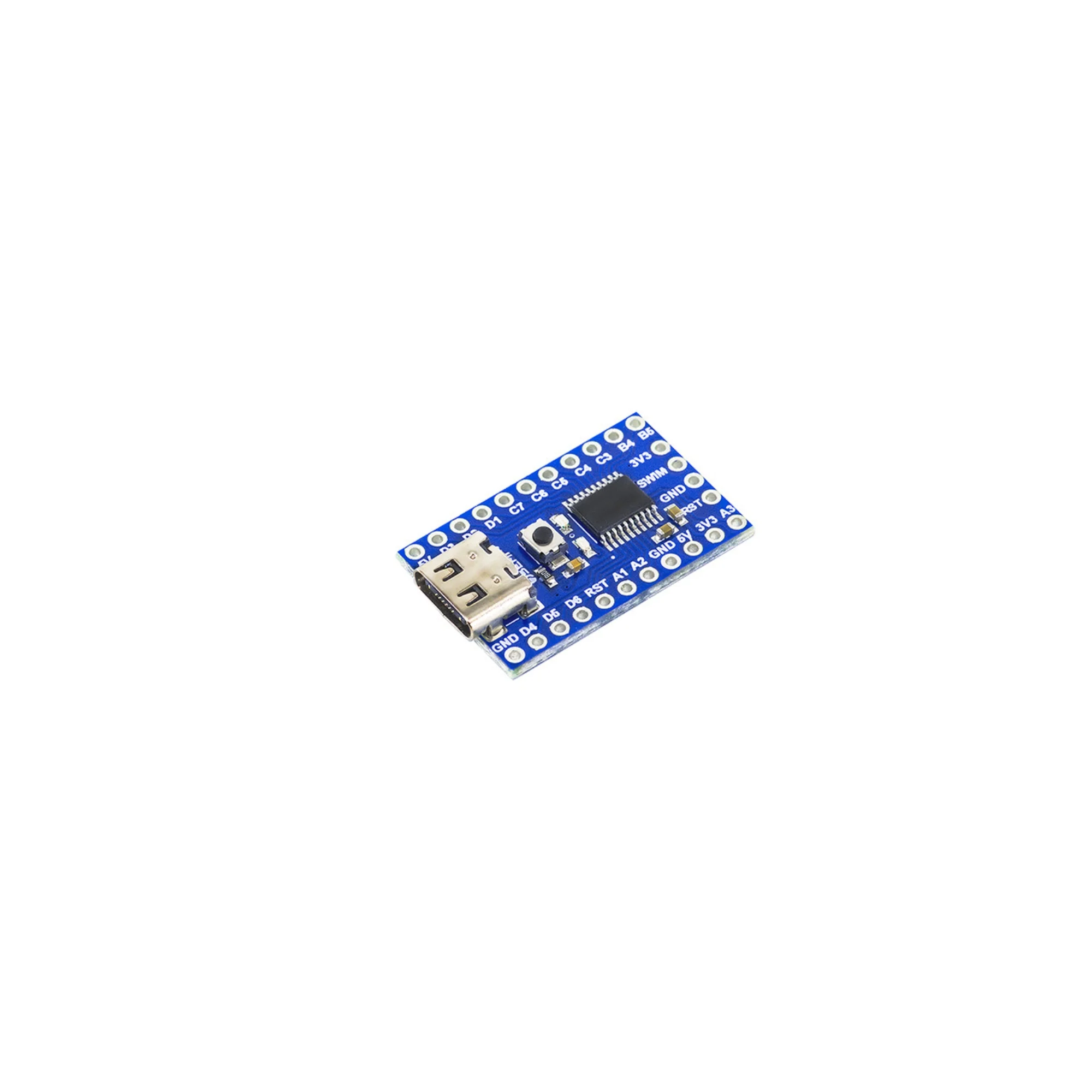

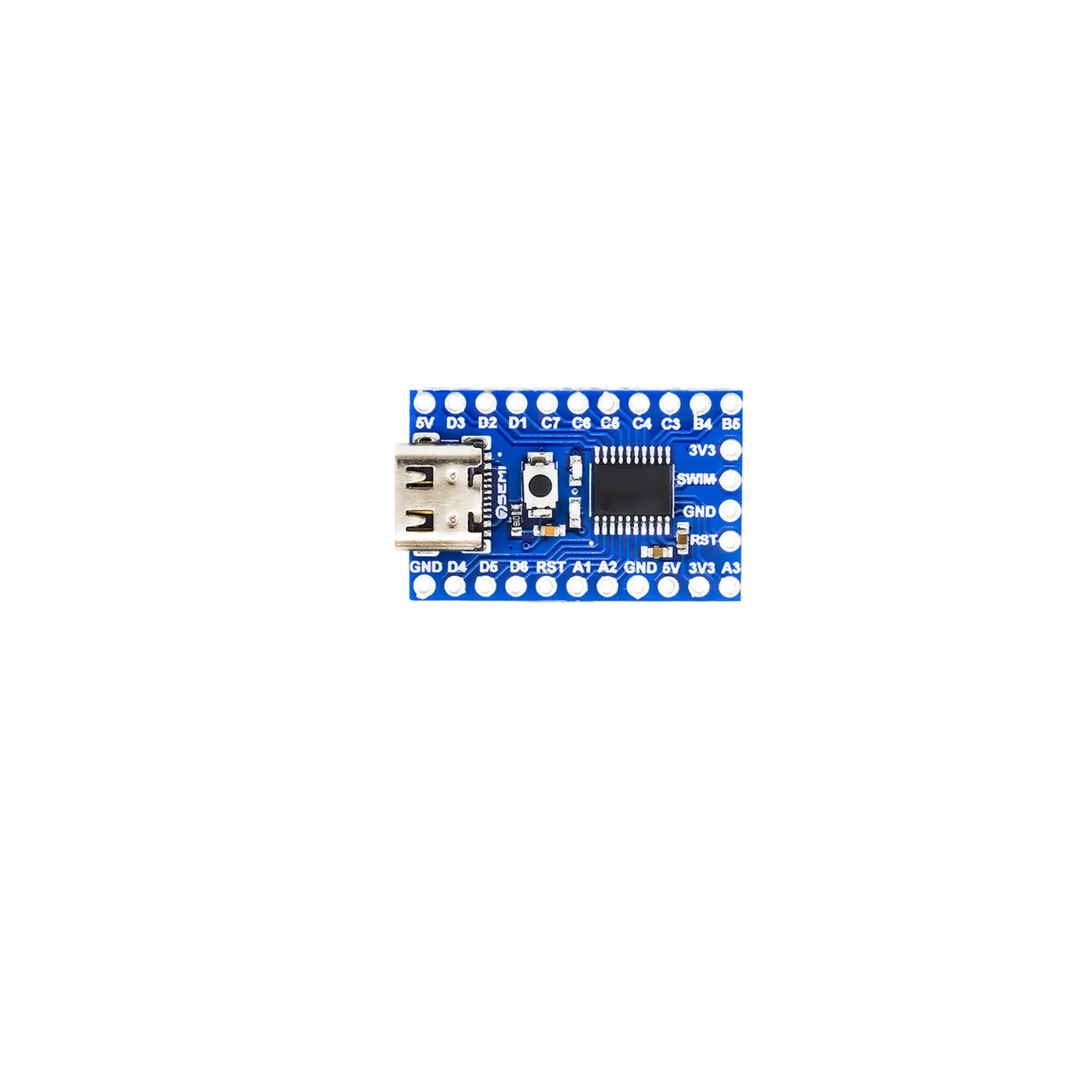

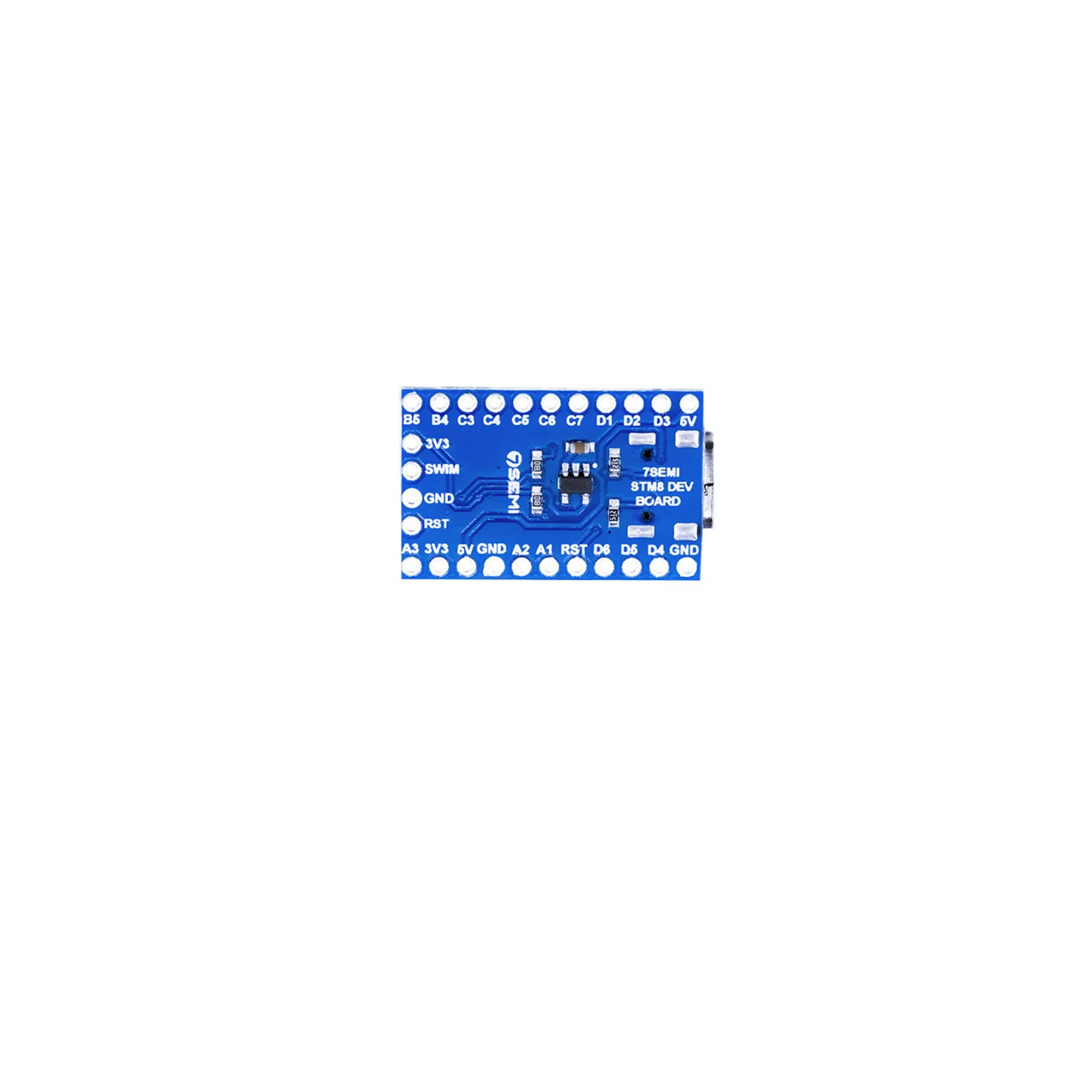

7Semi STM8S003F3 Anchor STM8 Mini Development Board

The 7Semi STM8S003F3 Anchor STM8 Mini Development Board is a compact and cost-effective platform designed for developing and prototyping applications using the STM8 8-bit microcontroller series from STMicroelectronics. It is based on the STM8S003F3P6 MCU, featuring a powerful 8-bit core, integrated peripherals, and flash memory for standalone operation. The board includes essential components such as a power regulator, reset circuit, and breakout pins for all I/O, making it ideal for learning, embedded system design, and small-scale industrial applications.

Technical Specifications:

• Microcontroller: STM8S003F3P6

• Core: 8-bit STM8 CPU

• Operating Frequency: Up to 16 MHz

• Flash Memory: 8 KB

• SRAM: 1 KB

• EEPROM: 128 bytes

• Operating Voltage: 3.3 V to 5.0 V

• Input Power: 5 V via USB or external pin header

• GPIO Pins: Multiple general-purpose I/O accessible via pin headers

• Communication Interfaces: UART, SPI, I²C, and GPIO

• Programming Interface: SWIM (Single Wire Interface Module)

• Onboard Components: Power LED, reset button, decoupling capacitors

• Clock Source: Internal oscillator (16 MHz)

• Logic Level: 5 V tolerant inputs/outputs

• Operating Temperature: -40°C to +85°C

• PCB: High-quality FR-4 with standard 2.54 mm pin spacing


Features:

• Compact STM8 mini development board with STM8S003F3 microcontroller

• Provides all essential MCU features for embedded applications

• Fully compatible with ST’s STM8 development tools (STVP, STVD, Cosmic C, etc.)

• Onboard power LED and reset circuit for convenience

• SWIM interface for programming and debugging

• Breadboard-friendly layout for easy prototyping

• Compatible with 3.3 V and 5 V systems

• Ideal for both beginners and professionals working with STM8 architecture

• Low power consumption and high stability for continuous operation

• Durable and high-quality PCB for long-term reliability

Applications:

• Embedded system development and education

• Industrial control and automation projects

• IoT and smart home devices

• Communication interface and sensor control applications

• Motor control and low-power electronic devices

• Data logging and real-time signal processing

• Prototyping and hardware validation for 8-bit MCU systems

• Research and development in microcontroller-based designs
