7Semi USB-C Female Breakout - Vertical

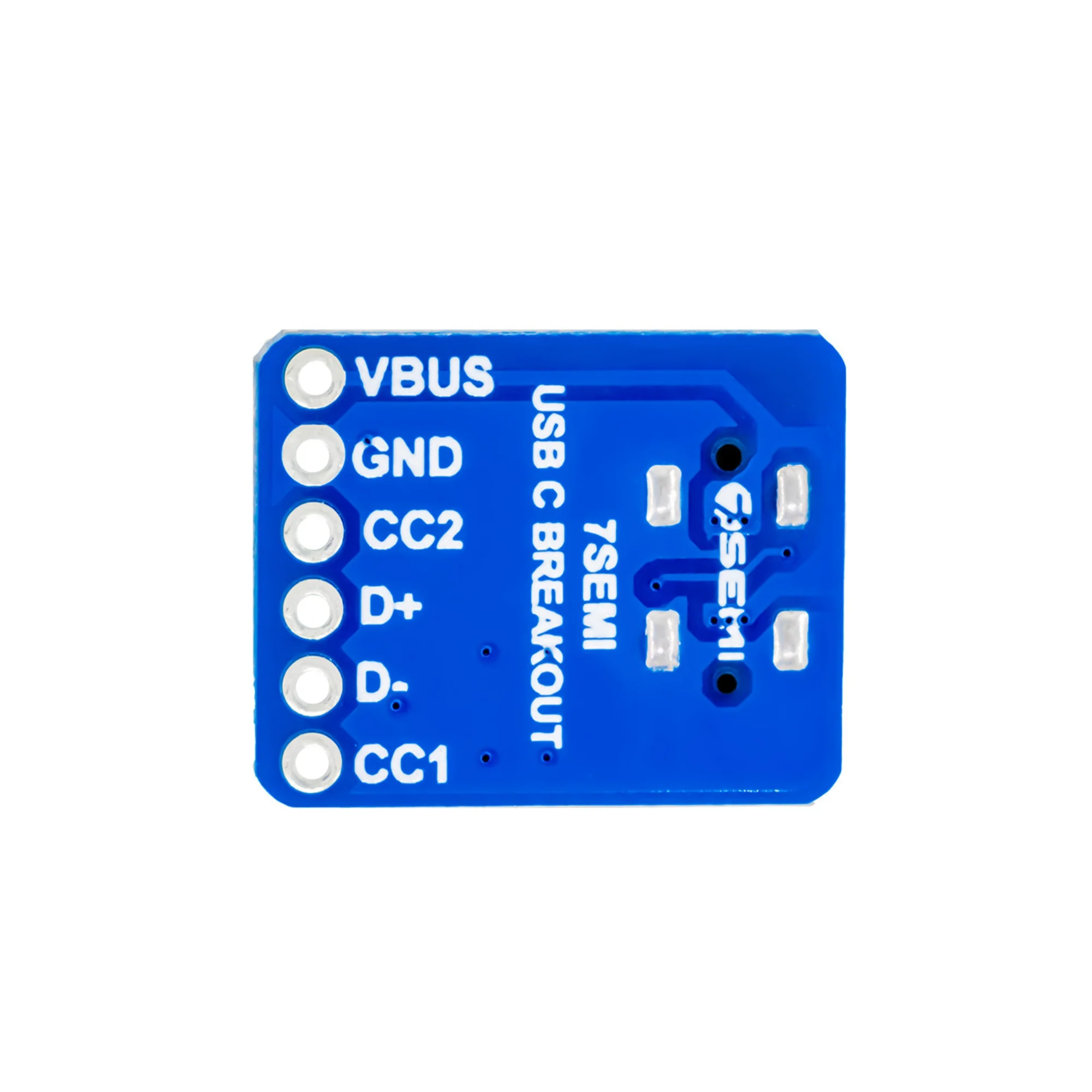

The 7Semi USB-C Female Breakout – Vertical is a compact and durable adapter board that provides easy access to the essential USB Type-C pins in a vertical mounting format. Designed for quick prototyping and testing, it breaks out the USB-C connector pins into 0.1-inch spaced solder pads, allowing easy integration with breadboards, perfboards, or custom PCBs. The vertical orientation makes it ideal for projects requiring an upright USB-C interface for power or data connectivity.

Technical Specifications:

• Brand: 7Semi

• Connector Type: USB Type-C Female

• Orientation: Vertical mount

• Pin Count: Key USB-C pins (VBUS, GND, D+, D–, CC1, CC2)

• Supported Standard: USB 2.0 / Type-C

• Operating Voltage: 5 V (standard USB power)

• Current Capacity: Up to 3 A (depending on source)

• Interface Type: 2.54 mm pitch solder pads for easy prototyping

• Mounting Type: PCB vertical breakout module

• Material: High-quality FR-4 PCB

• Color: Green solder mask with white silkscreen labeling

• Dimensions: Compact, breadboard-friendly size


Features:

• Vertical USB-C female connector for compact designs

• Breaks out essential USB-C power and data pins

• Supports both power and USB 2.0 data communication

• 2.54 mm pitch header pads for breadboard compatibility

• High-quality PCB and connector for durability and stability

• Clearly labeled pinout for easy wiring and use

• Suitable for both 3.3 V and 5 V circuits

• Ideal for rapid prototyping and custom interface development

Applications:

• Power and data interface for embedded systems

• USB-C connectivity in DIY and prototype projects

• Charging and communication interface for IoT devices

• Testing and debugging USB-C connections

• Integration of USB-C ports into custom PCBs or enclosures

• Educational and development board experiments
