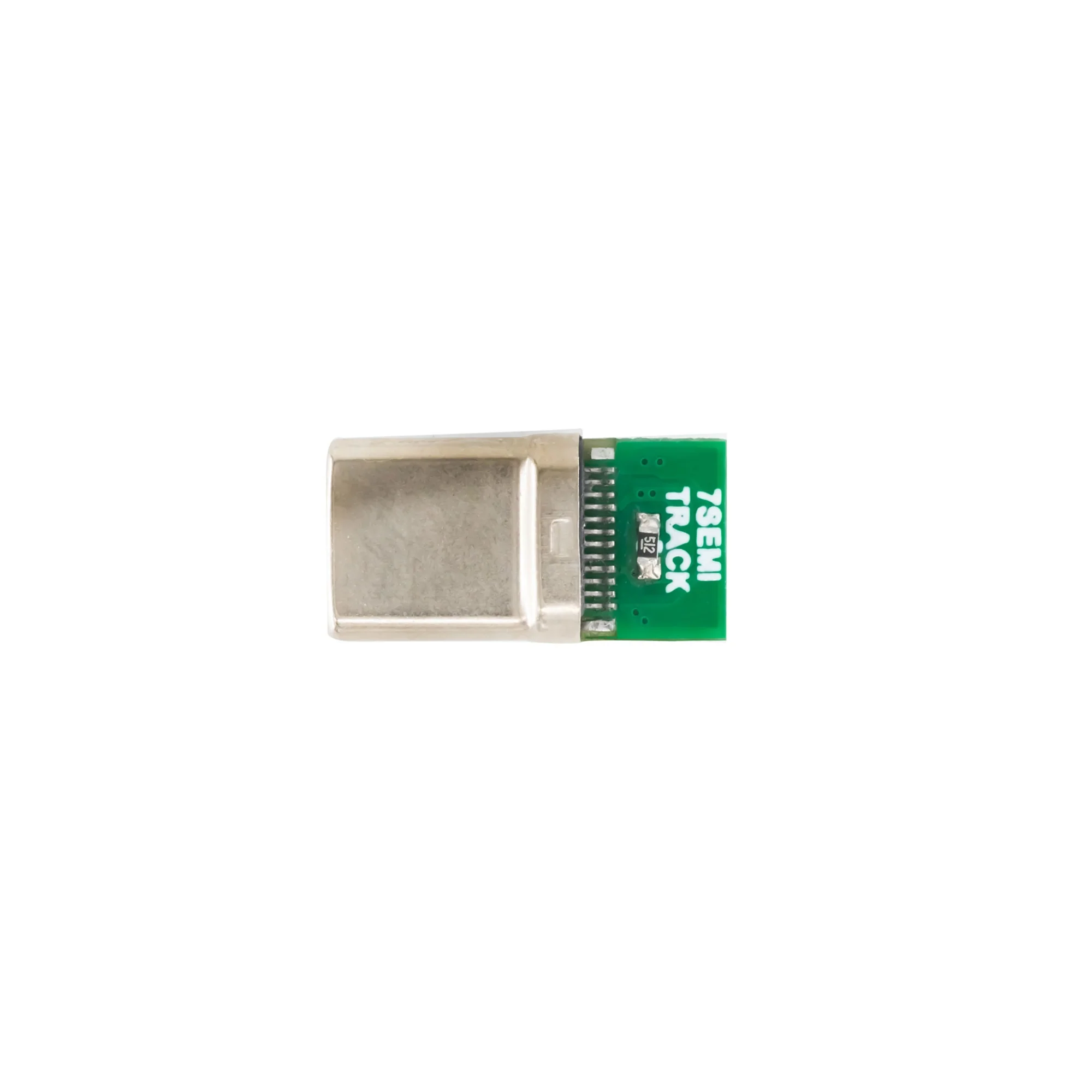

7Semi USB-C Male Breakout - 4 Pin PCB USB Type C

The 7Semi USB-C Male Breakout – 4 Pin PCB module is a compact and easy-to-use board that breaks out the essential USB Type-C pins (VBUS, GND, D+, and D–) for power and data connections. It allows developers and hobbyists to integrate a USB-C male interface into custom projects or prototypes without needing to solder fine-pitch connectors. Designed for reliability and convenience, it simplifies testing, development, and interfacing of USB-powered or data-based circuits.

Technical Specifications:

• Brand: 7Semi
• Connector Type: USB Type-C Male

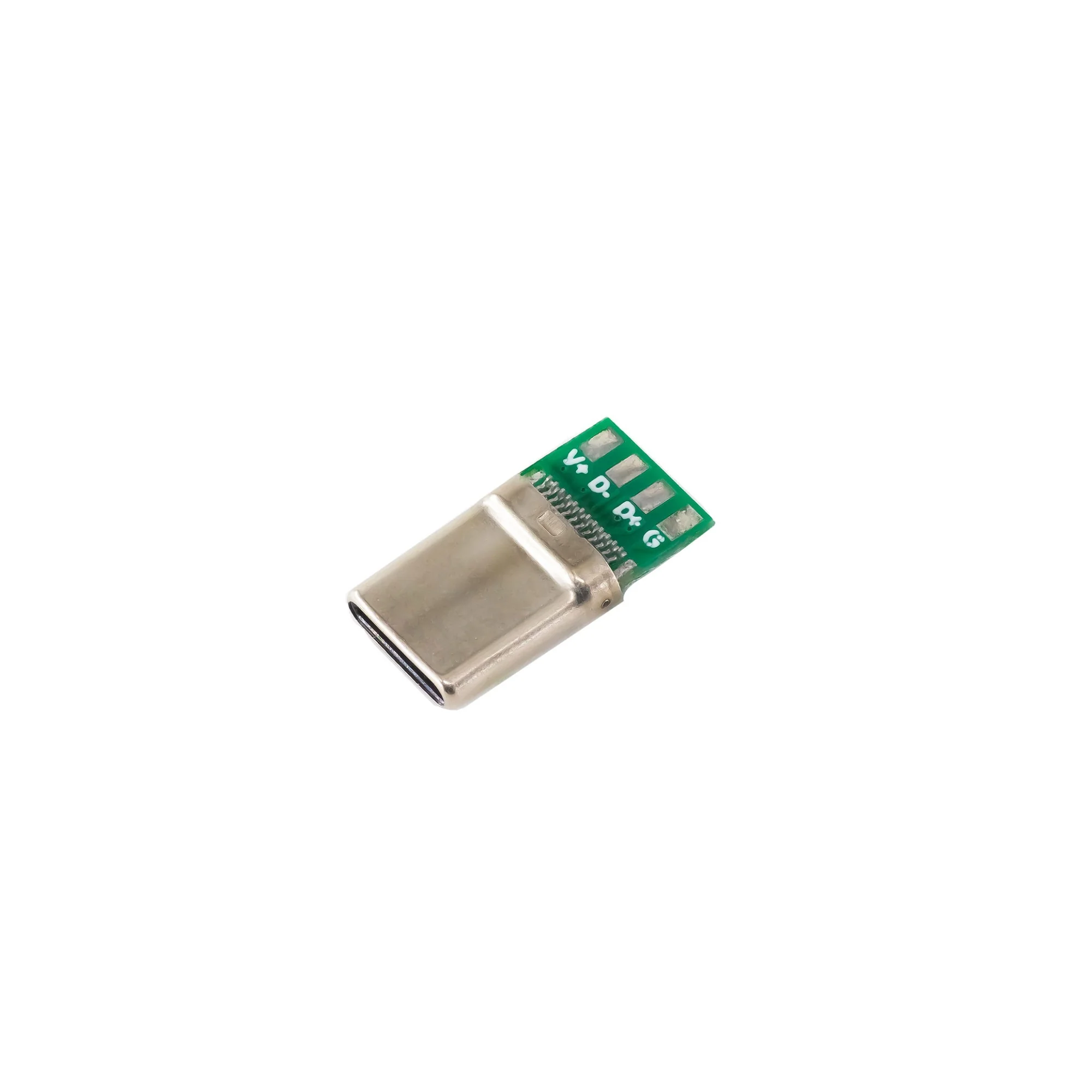

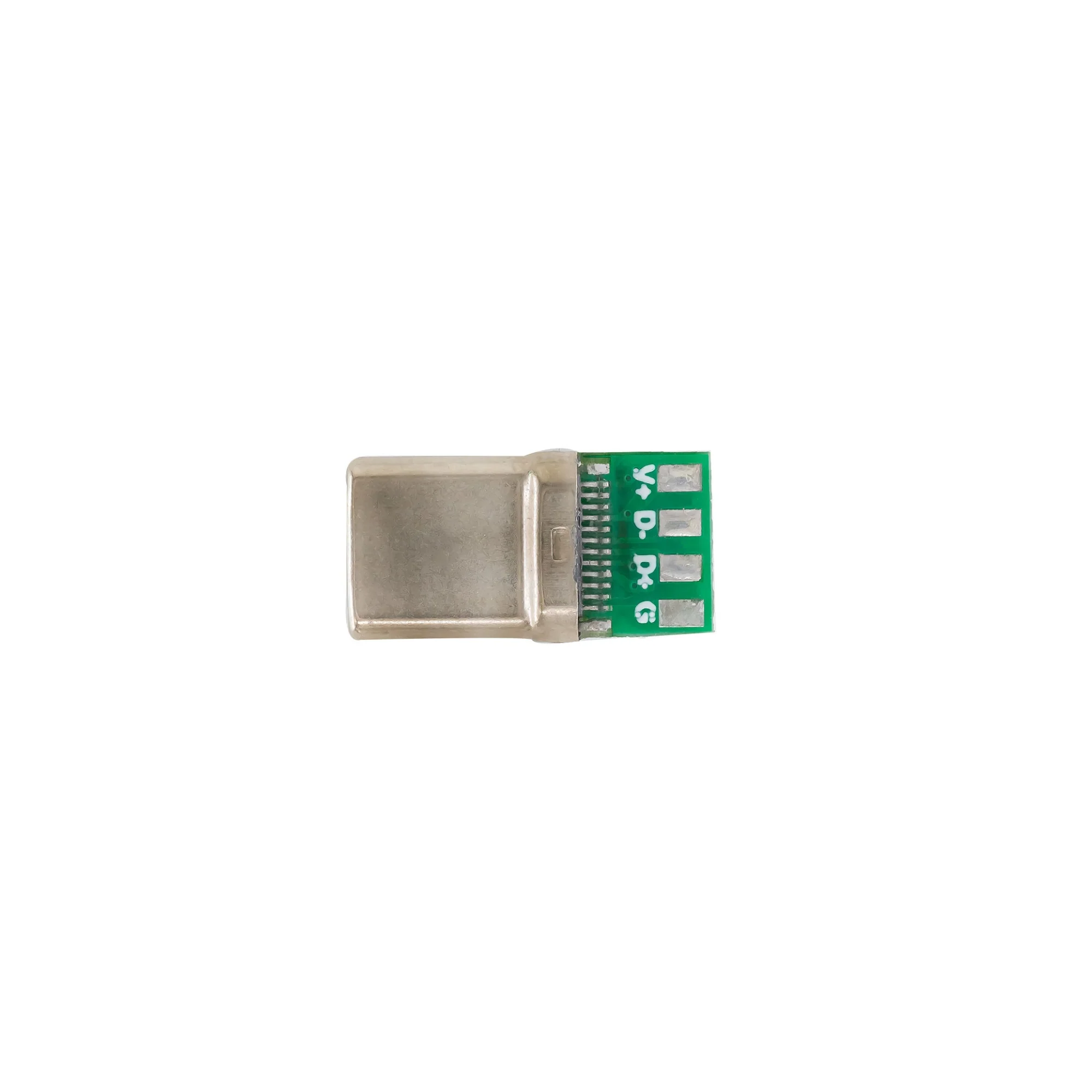

• Pin Count: 4 pins (VBUS, GND, D+, D–)
• Compatibility: USB 2.0 standard
•  Operating Voltage: 5 V (typical USB power)
• Current Capacity: Up to 3 A (depending on source)
• Interface Type: Solderable PCB pads for easy integration
• Mounting Type: PCB-type breakout module
• Material: High-quality FR-4 PCB
• Pitch: 2.54 mm standard for breadboard compatibility

Features:

• Breaks out the core 4 USB-C pins (power and data)
• Simple interface for breadboards and prototyping
• Supports standard USB 2.0 communication
• Durable USB-C male connector with strong mechanical support
• Gold-plated pads for enhanced conductivity and solderability
• Compact design suitable for embedded and DIY use
•  Eliminates need for complex SMD soldering

Applications:

• USB-powered embedded projects
• Prototyping and testing of USB-based circuits
• Power input for DIY electronic devices
• Data communication interface for microcontrollers
• USB-C connectivity in custom PCB designs
• Educational and hobbyist development projects
