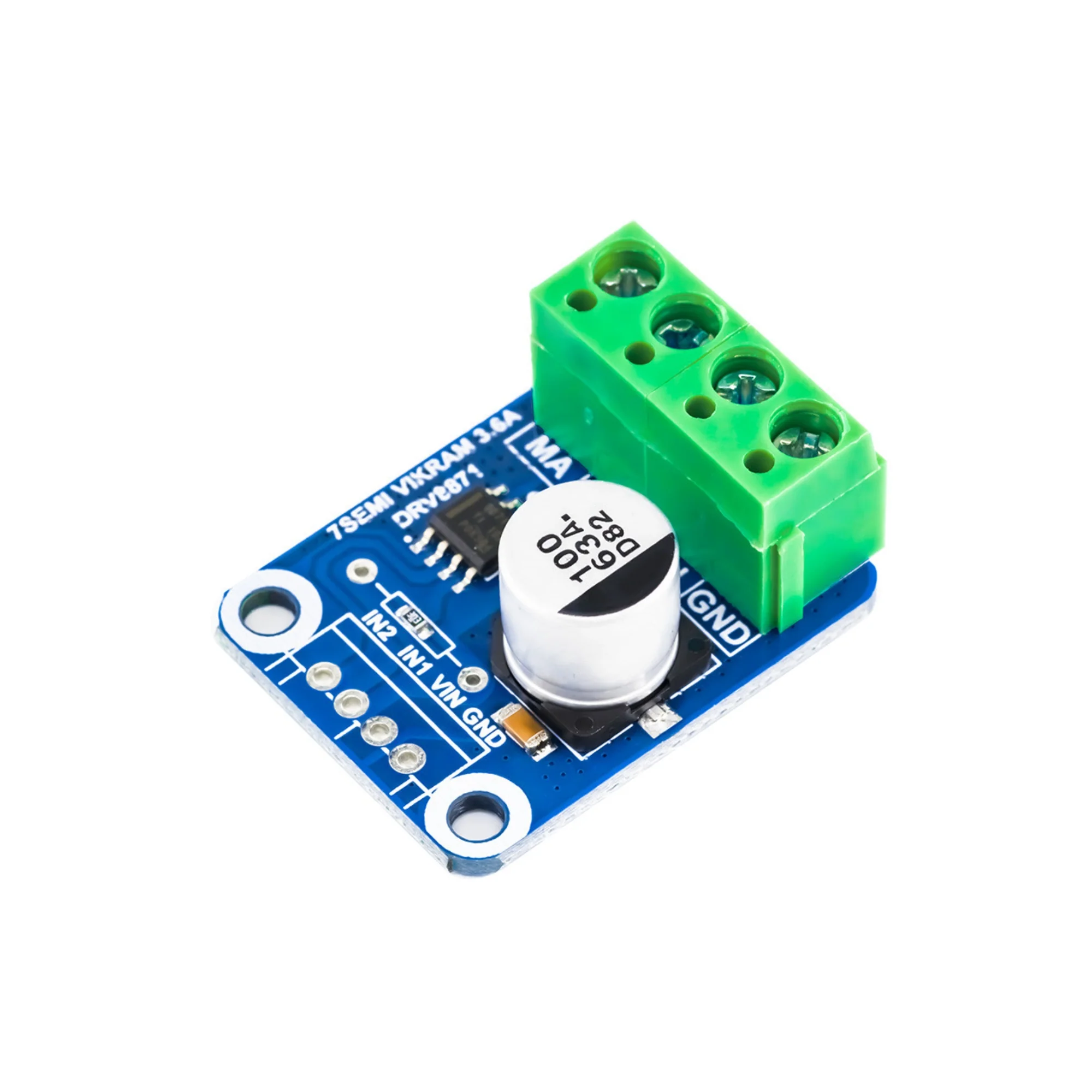

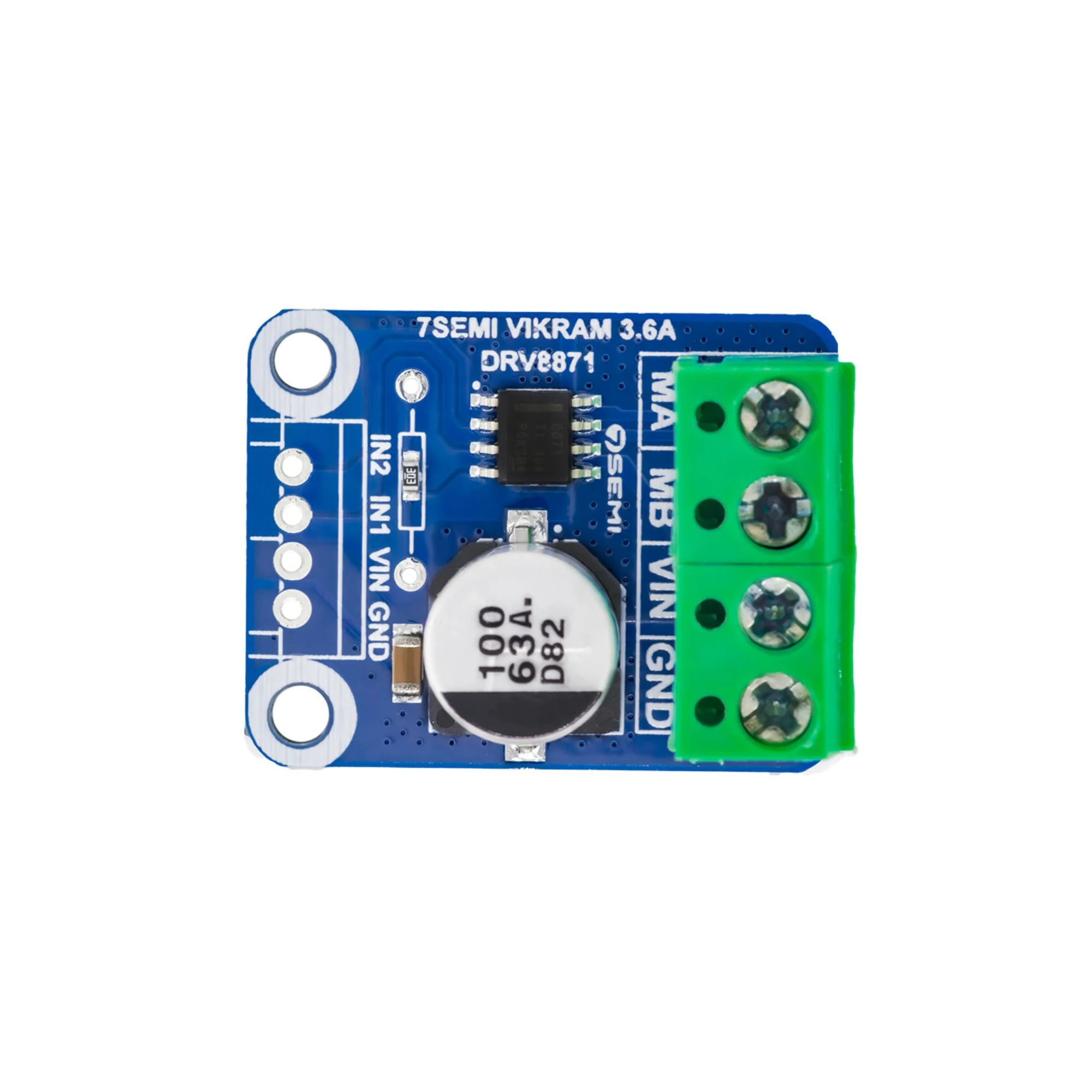

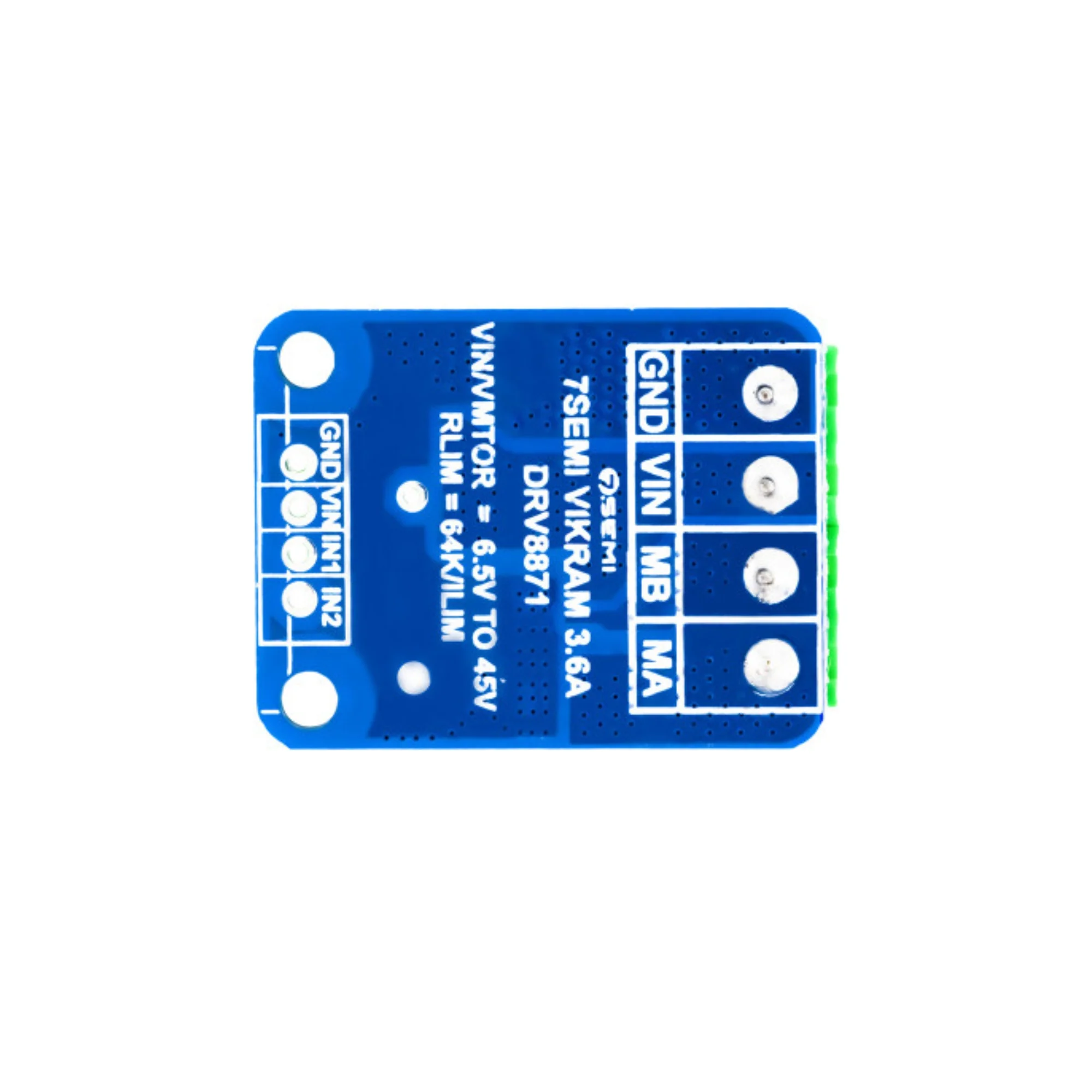

7Semi Vikram-453R6 45V 3.6A DRV8871 Motor Driver Breakout Board
The MD-10114 Vikram-453R6 is a robust brushed DC motor driver module built around the DRV8871 H-bridge driver IC. It’s designed to drive medium-power DC motors with up to 45 V supply and 3.6 A continuous current, making it ideal for robotics, automation, and electromechanical projects requiring high torque and precise control.
Technical Specifications:
- Driver IC: Texas Instruments DRV8871
- Supply Voltage Range: Up to 45 V DC
- Continuous Motor Current: Up to 3.6 A
- Peak Current Capability: Higher short bursts (transient dependent)
- Control Interface: PWM and direction logic inputs
- Protection: Overcurrent, undervoltage, overtemperature (DRV8871 integrated protection)
- Package / Mounting: PCB module with pin headers or solder pads
- Logic Voltage: Typically 3.3 V–5 V logic compatible
Features:
- High-voltage DC motor driving up to 45 V
- Smooth PWM speed control and bidirectional rotation
- Integrated current regulation and fault protection
- Efficient H-bridge design with minimal external components
- Wide voltage compatibility for various motor types
- Compact and easy-to-integrate module format
Applications:
- Brushed DC motor speed and direction control
- Robotics actuators and drive mechanisms
- Conveyor and belt systems
- Automated gates and sliding systems
- Educational and prototype motor platforms
- Industrial control and mechatronics
