8 Bit WS2812 5050 RGB LED (Round)
8 Bit WS2812 5050 RGB LED (Round)

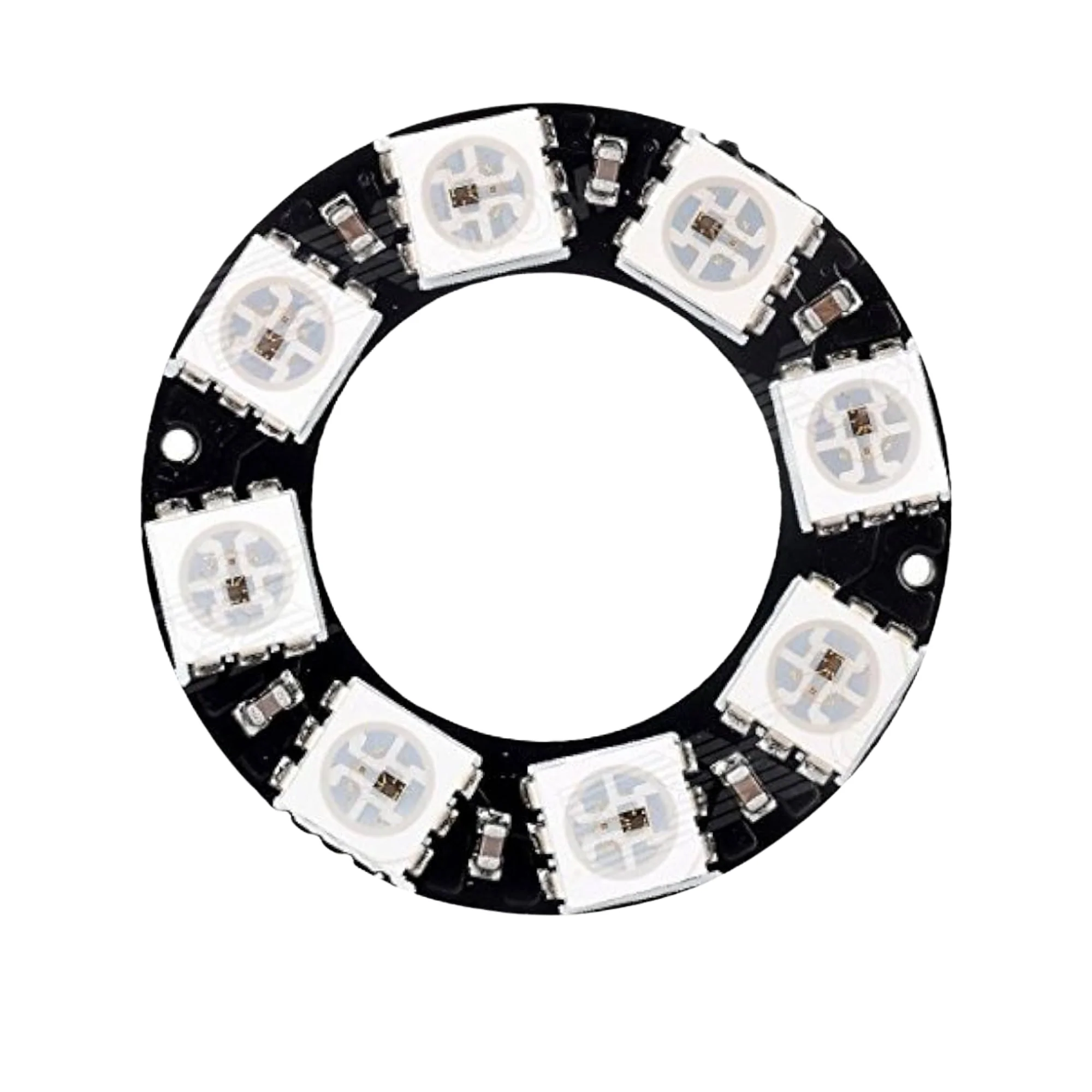

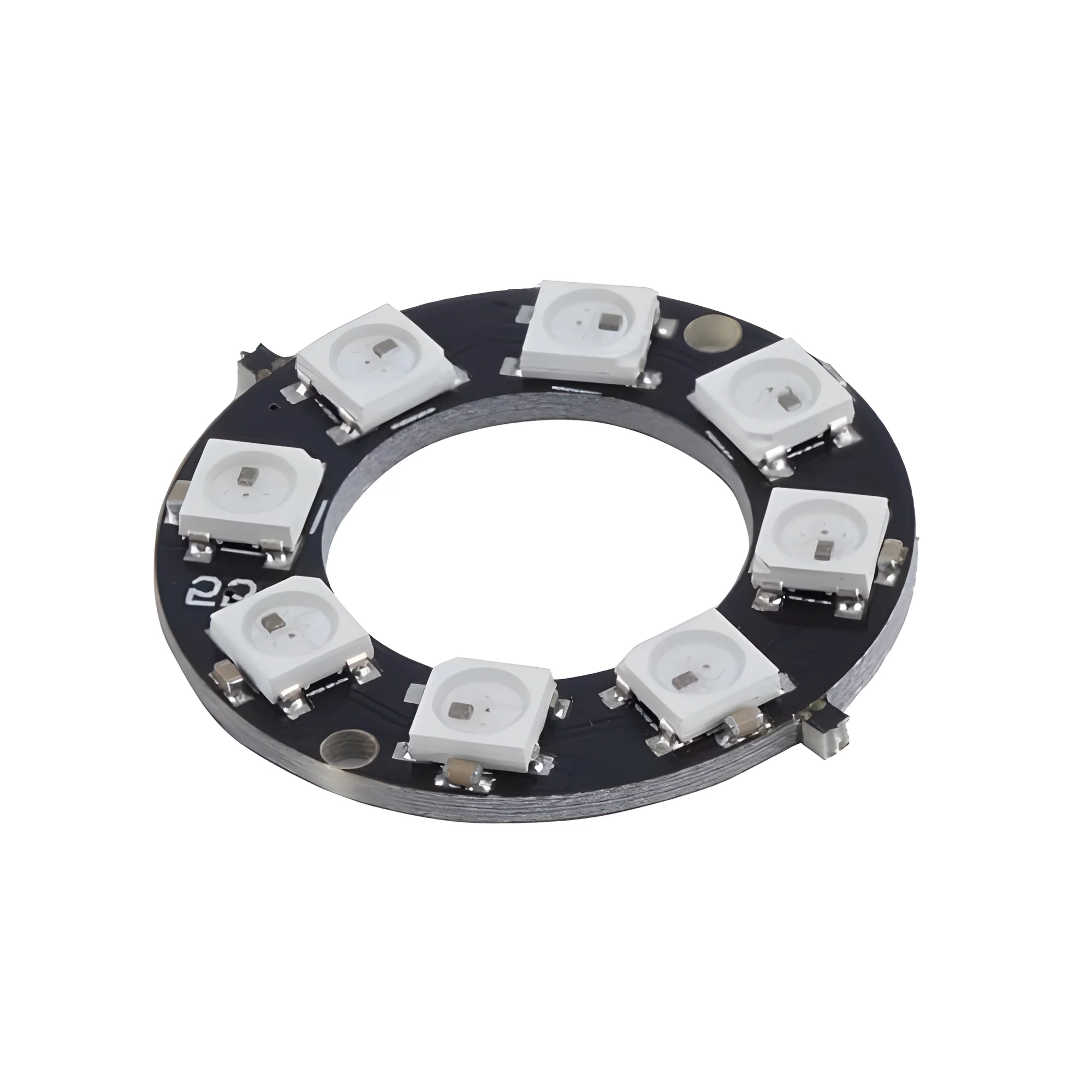

The 8× WS2812 Round RGB LED module is a compact circular LED ring featuring eight individually addressable WS2812 (NeoPixel-compatible) RGB LEDs. Each LED contains an integrated driver IC, allowing full control of color and brightness using a single data line. Its round form factor makes it ideal for decorative lighting, indicators, wearables, and visual effects projects.
Technical Specifications:
- LED Type: WS2812 / WS2812B
- Number of LEDs: 8
- LED Colors: RGB (Red, Green, Blue – 24-bit color)
- Operating Voltage: 5 V DC

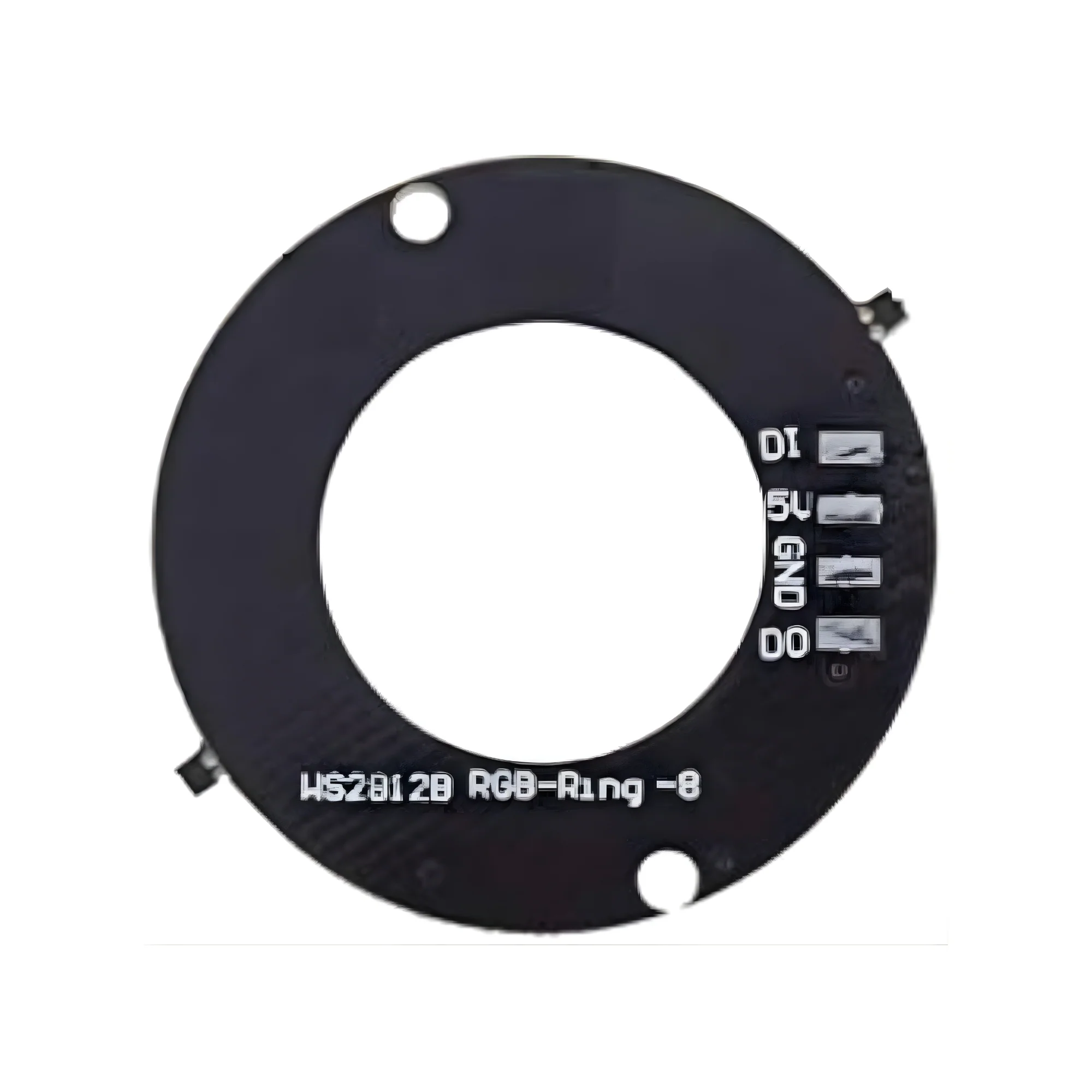

- Control Interface: Single-wire digital (DIN / DOUT)
- Logic Level: 5 V (3.3 V compatible with most controllers)
- PCB Shape: Circular (Ring)
- PCB Color: Black
- Daisy-Chain Support: Yes
Features:
- Individually addressable RGB LEDs
- Single data pin control for all LEDs
- 256 brightness levels per color (16.7 million colors)
- Daisy-chainable for larger LED arrays
- Compact round design with mounting holes
- Wide library support (Adafruit NeoPixel, FastLED)
Applications:
- Decorative and ambient lighting
- Status indicators and dashboards
- Wearable electronics and IoT devices
- Arduino, ESP32, Raspberry Pi projects
- Robotics and visual feedback systems
