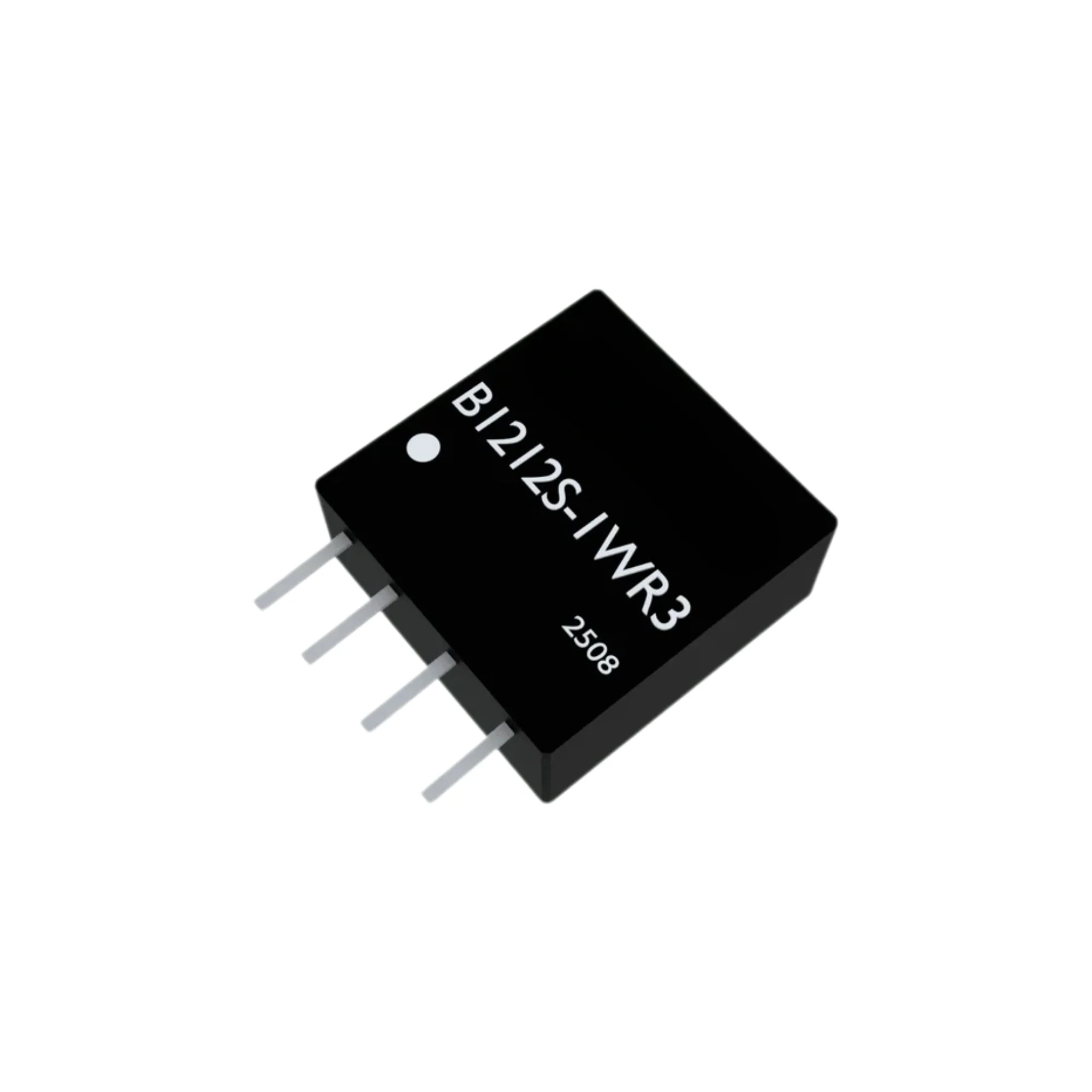

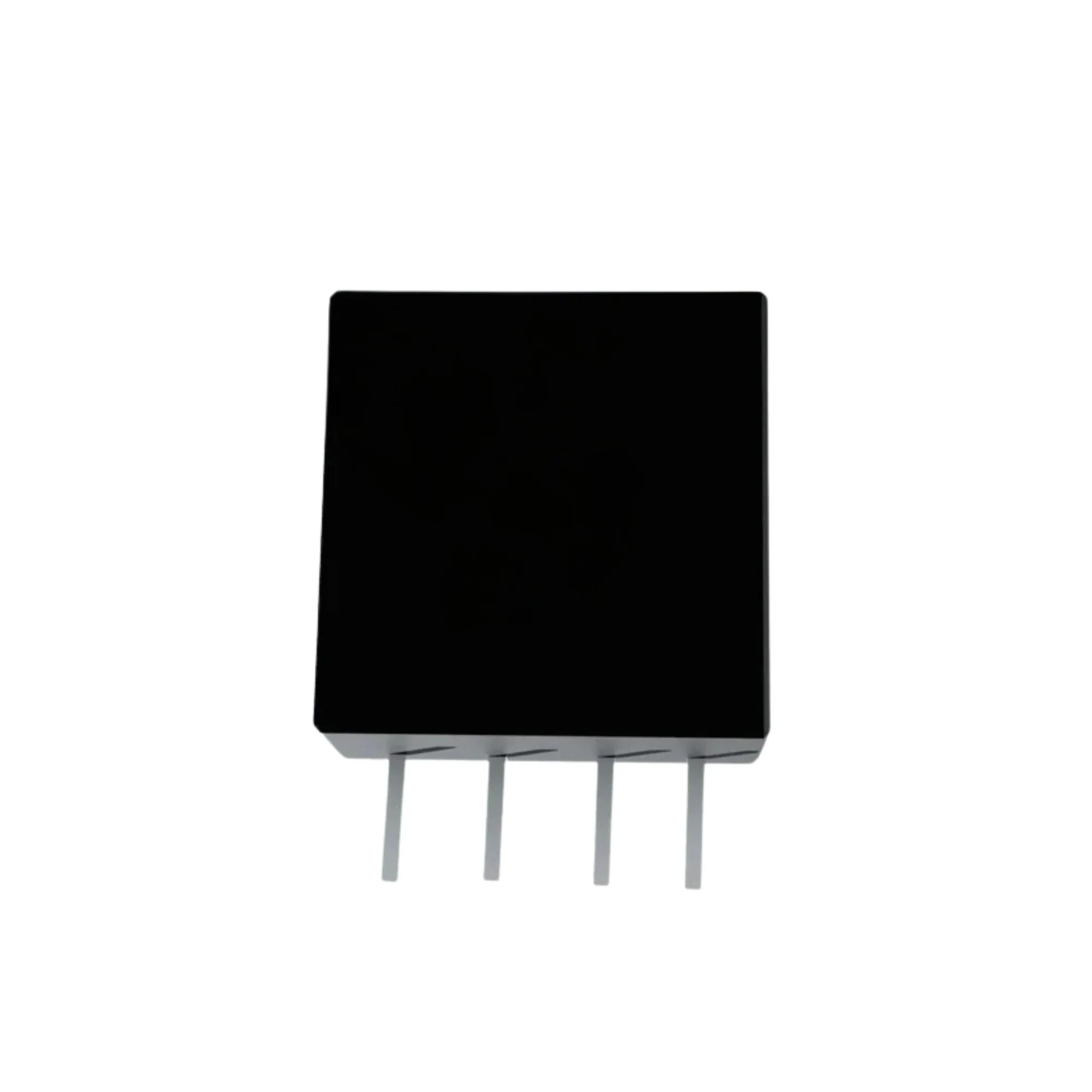

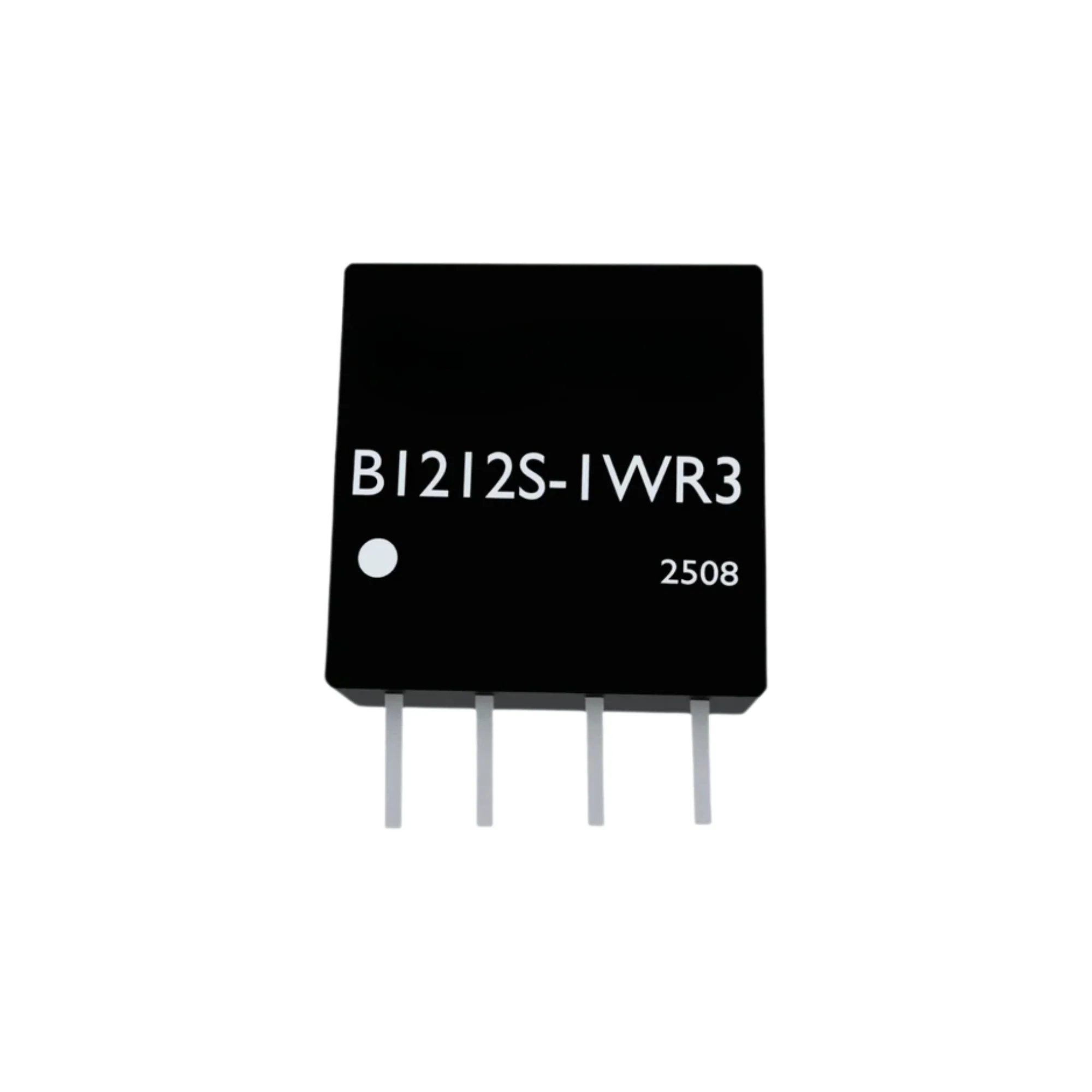

Hi-Link HLK-B1212S-1WR3 DC-DC Isolated Power Supply Module

The B1212S-1WR3 DC-DC Isolated Converter is a compact, high-reliability power module designed to provide stable and electrically isolated DC power. It converts a 12 V DC input into an isolated 12 V DC output, helping protect sensitive circuits from noise, ground loops, and voltage spikes. Its SIP package makes it easy to integrate into industrial, embedded, and instrumentation designs.

Technical Specifications:

• Input Voltage: 12 V DC (typical

• Output Voltage: 12 V DC (isolated)

• Output Power: 1 W

• Output Current: ~83 mA

• Isolation Voltage: Up to 1 kV DC

• Efficiency: Up to ~80%

• Regulation: Unregulated / semi-regulated

• Package Type: SIP-4 / SIP-7 (PCB mount)

• Switching Frequency: High-frequency internal switching

• Operating Temperature: –40 °C to +85 °C (typical)

Features:

• Complete input-output electrical isolation

• Compact SIP package for space-constrained designs

• High reliability and long operational life

• Low ripple and noise performance

• Built-in short-circuit protection

• Suitable for industrial-grade applications

• Simple plug-and-play PCB integration
• Stable performance across wide temperature range

Applications:

• Industrial control and automation systems

• Sensor signal isolation and conditioning

• Embedded and IoT power supplies

• Communication and data acquisition equipment

• Medical and instrumentation circuits

• Power isolation for MCU and logic circuits

• Protection against ground loop interference
