BME680 Digital Humidity Temperature Pressure Module
BME680 Digital Humidity Temperature Pressure Module
The BME680 Digital Humidity Temperature Pressure Sensor is a compact environmental sensing module based on Bosch’s BME680 sensor. It integrates four sensing capabilities in a single package: temperature, humidity, barometric pressure, and gas (VOC) measurement. Designed for low power consumption and high accuracy, it communicates via I2C or SPI, making it suitable for a wide range of embedded and IoT applications.
Technical Specifications:
- Sensor IC: Bosch BME680
- Measured Parameters: Temperature, Relative Humidity, Barometric Pressure, Gas/VOC
- Temperature Range: −40 °C to +85 °C
- Humidity Range: 0 to 100 %RH
- Pressure Range: 300 to 1100 hPa
- Gas Sensor: Metal-oxide (MOX) for air quality/VOC detection
- Interface: I2C and SPI
- Operating Voltage: 1.7 V to 3.6 V (typical 3.3 V)
- I2C Addresses: 0x76 or 0x77

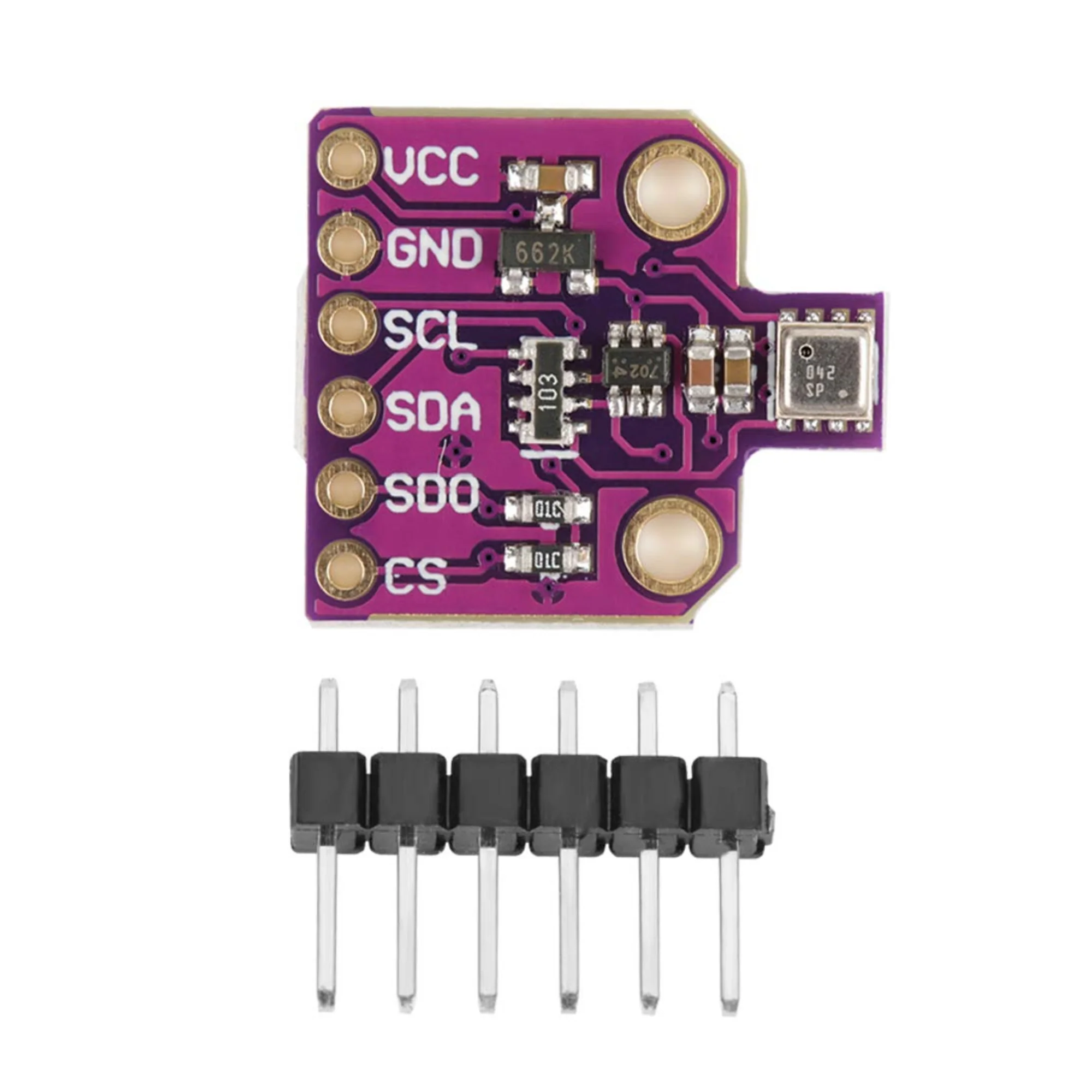

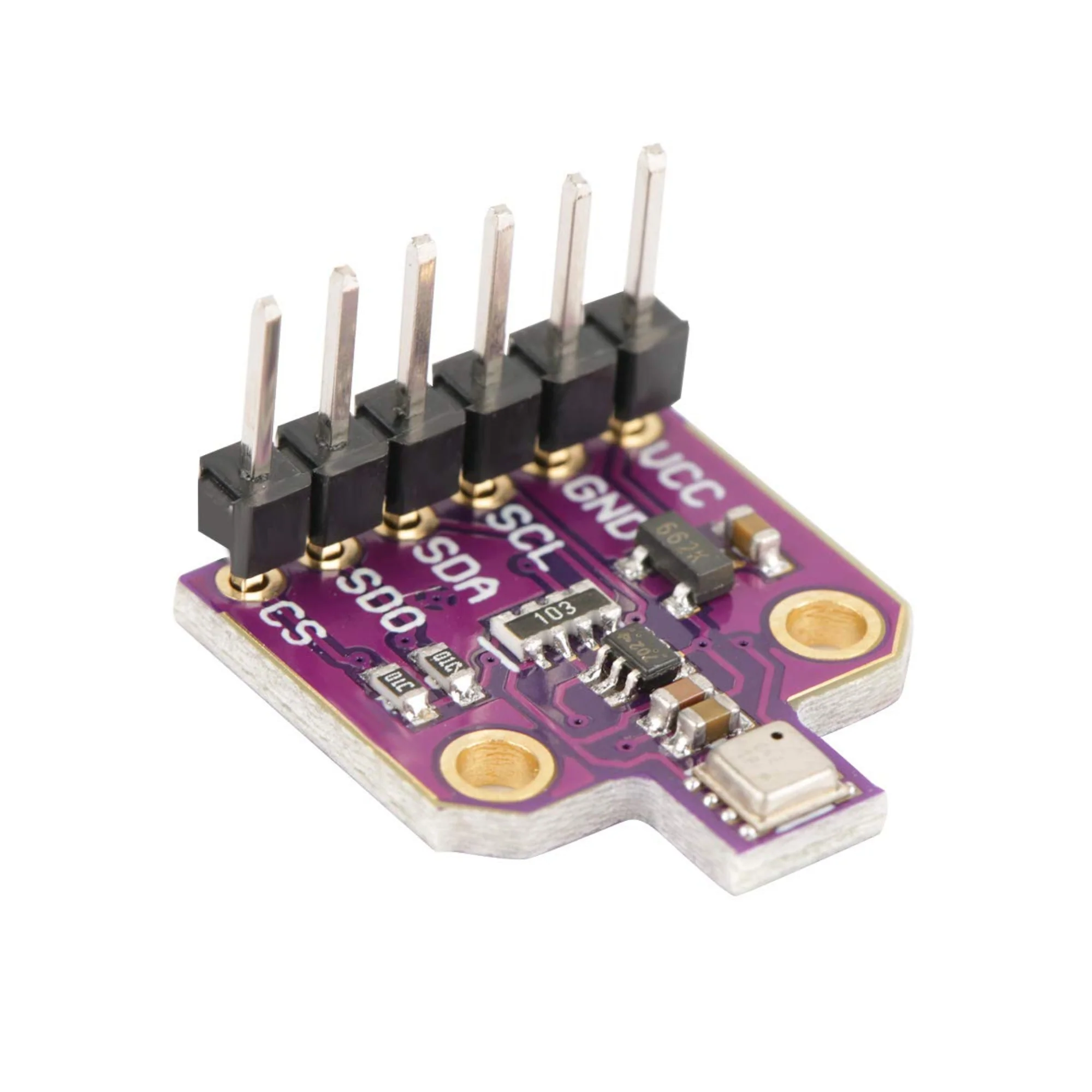

- Form Factor: Breakout board with standard 2.54 mm header pins
Features:
- All-in-one environmental sensing solution
- High accuracy and long-term stability
- Supports both I2C and SPI communication
- Low power consumption suitable for battery-powered devices
- Onboard components for easy interfacing with microcontrollers
- Small footprint ideal for compact designs
Applications:
- Weather stations and environmental monitoring
- Indoor air quality monitoring systems
- Smart home and building automation
- IoT sensor nodes
- Wearable and portable devices
- Industrial and laboratory sensing applications
