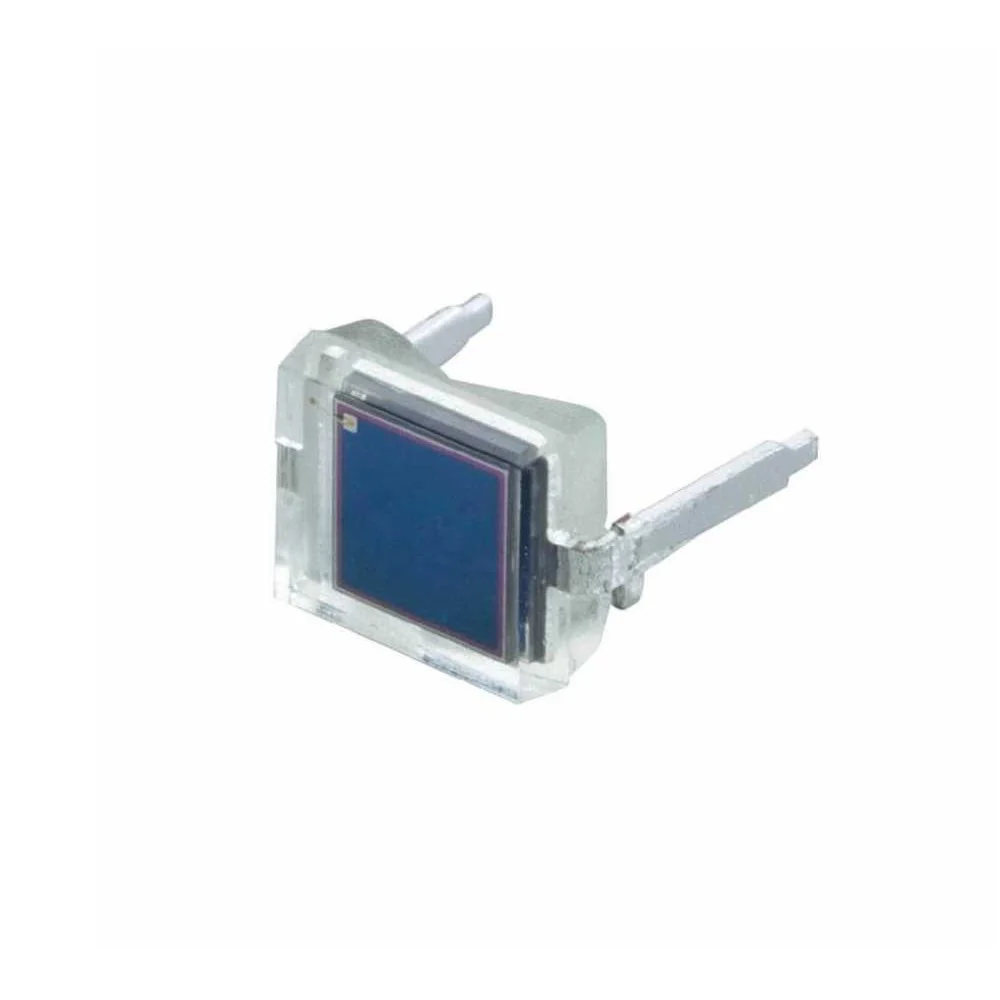

The BPW34 is a high speed photodiode with good photo sensitivity. It responds to visible and near infrared radiation. Like all photo diode, the BPW34 is normally operated in series with a resistor and the current flowing though it depends on the amount of light falling on it. The intensity of light is measured in luminance.

Technical Specification:

• Reverse Breakdown Voltage: 60V
• Switching Speed: 20nS
• Diode Capacitance: 70pF (1MHz, Vr=0V)
• Open Circuit Voltage: 350mV
• Rise and Fall time: 100ns (each)

Features:

• High photo sensitivity
• High radiant sensitivity
• Suitable for visible and near infrared radiation
• Fast response times

Applications:

• Switching circuits
• Isolation circuits
• Coupling circuits
