Brushless Driver Board Controller

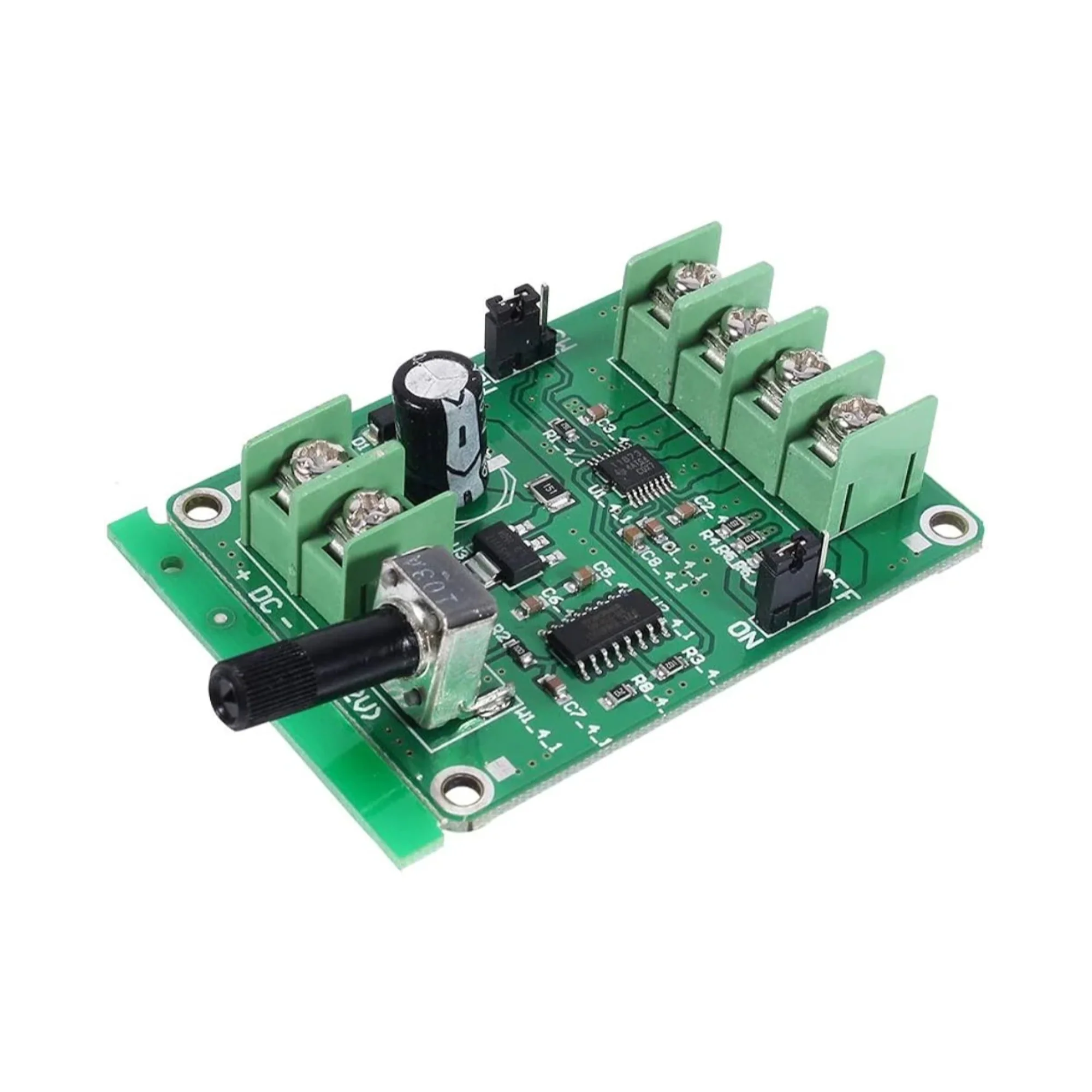

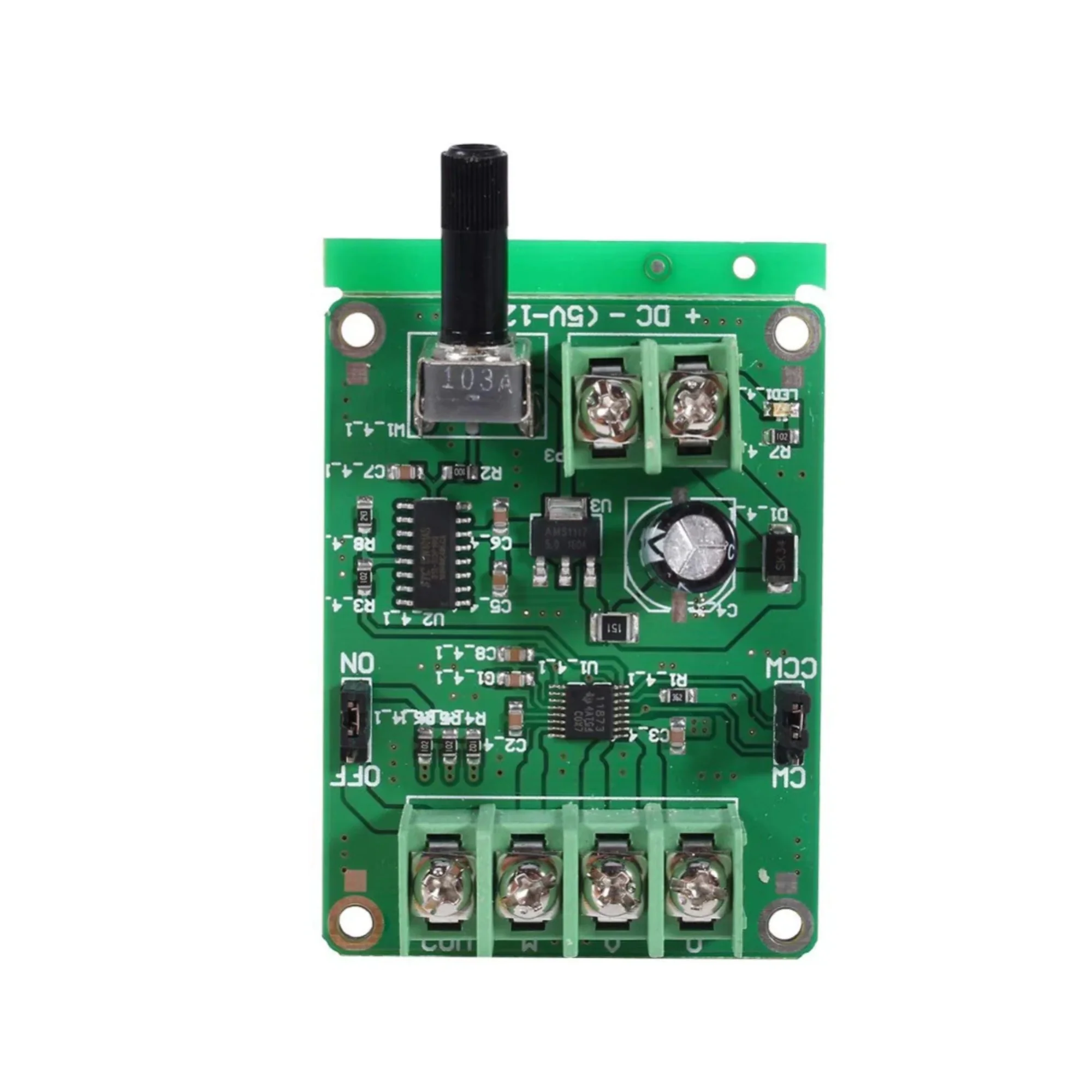

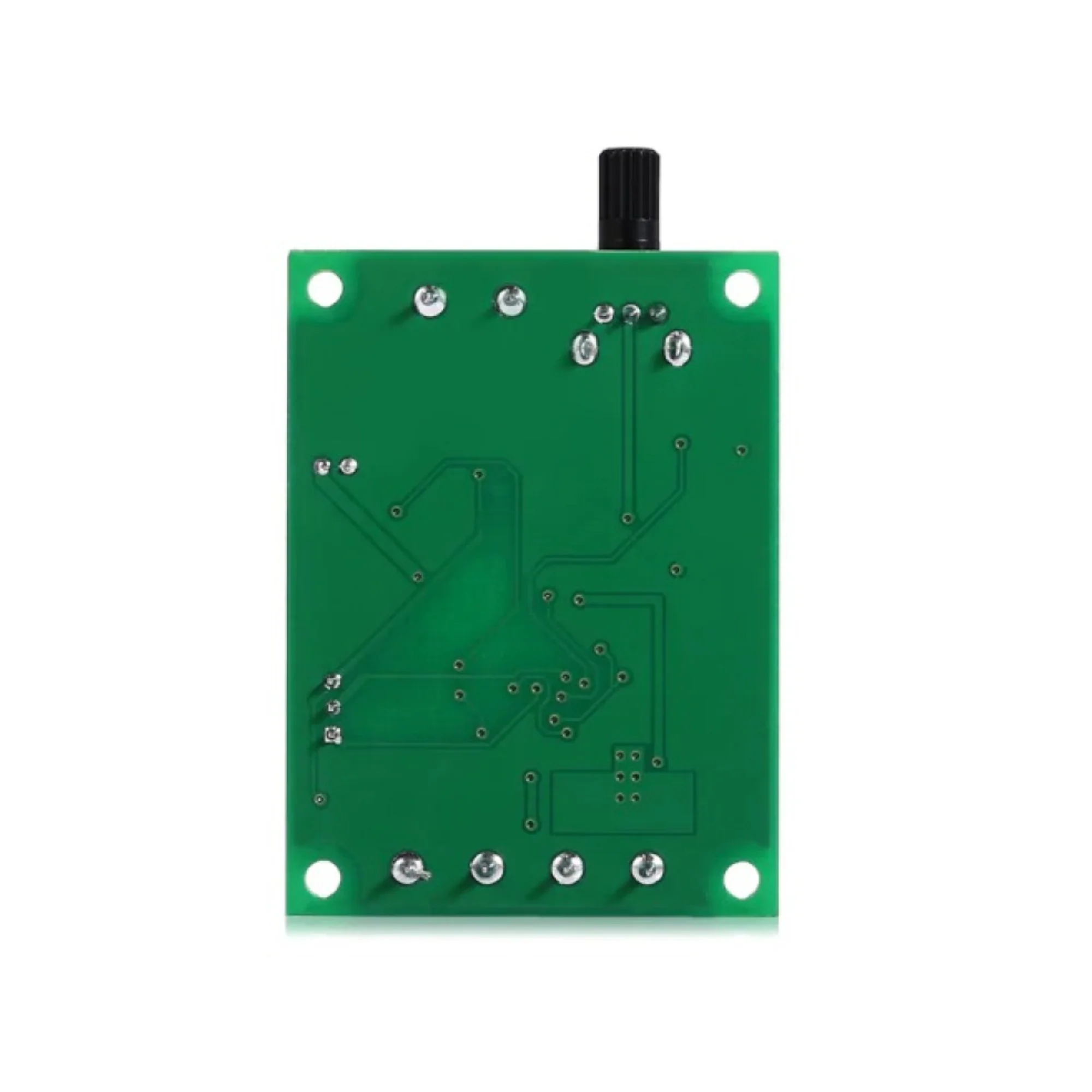

This Brushless Driver Board Controller is a compact control module designed to drive and regulate brushless DC (BLDC) motors. It integrates motor commutation control, speed regulation, and signal conditioning on a single PCB. The onboard potentiometer and screw terminals make it easy to adjust speed and connect power, motor phases, and control signals, making it suitable for both prototyping and practical motor-control applications.

Technical Specifications:

• Motor type supported: Brushless DC (BLDC) motor
• Control method: PWM-based speed control
• Input supply voltage: Typically DC 6 V to 12 V (model dependent)
• Output phases: 3-phase motor output (U, V, W)
• Speed control: Onboard potentiometer and external control input
• Control signals: CW/CCW direction control, enable/disable
• Connections: Screw terminals for power, motor phases, and control
• Mounting: PCB mounting holes for secure installation

Features:

• Integrated BLDC motor driver and control circuitry
• Onboard potentiometer for easy speed adjustment
• Support for direction control (CW/CCW)
• Compact and robust PCB design
• Screw terminal connections for reliable wiring
• Suitable for sensor-based or simplified sensorless operation (design dependent)

Applications:

• BLDC motor speed and direction control
• Robotics and automation systems
• Cooling fans and small motor-driven equipment
• DIY electronics and motor control projects
• Educational and experimental motor control setups
