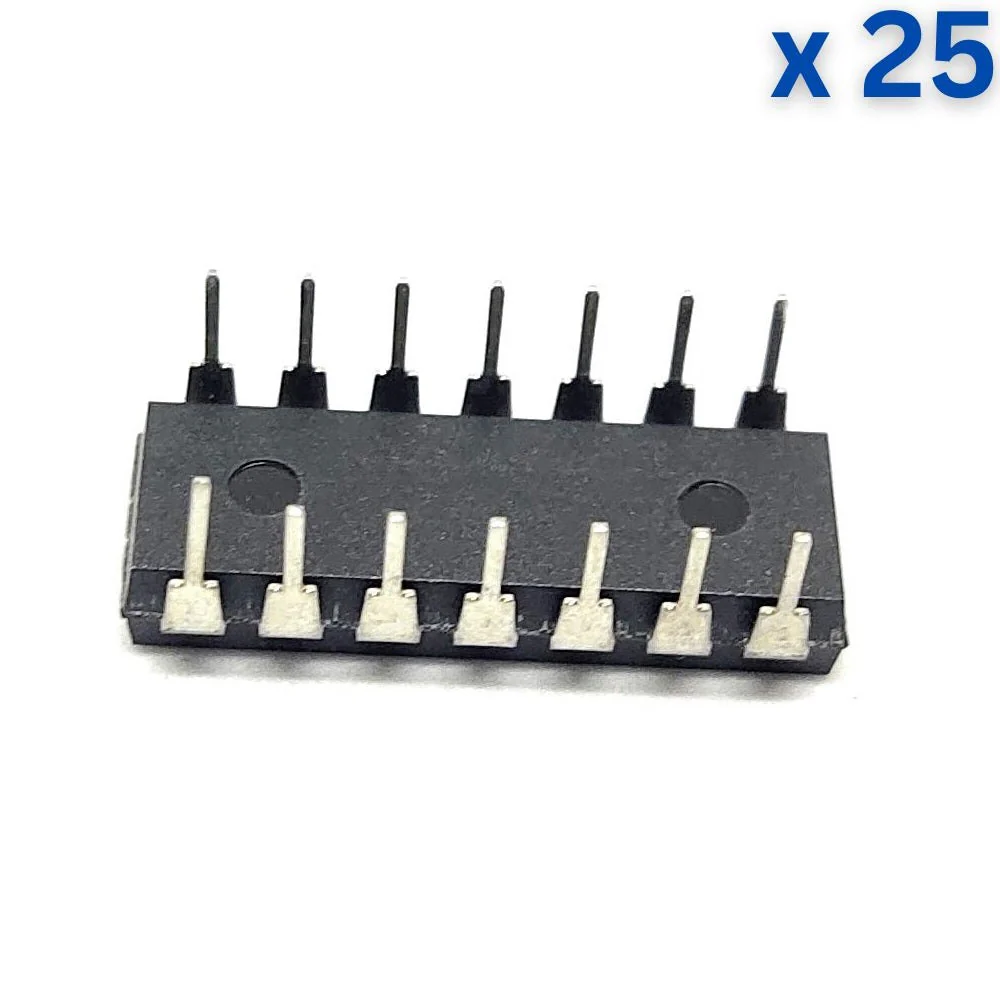

CD4023 Triple 3-Input NAND Gate IC DIP-14 Package
CD4023 belongs to the CD4000 IC series. It consists of three NAND gates with 3 inputs and 1 unified output. CD4023 is constructed by using the complementary MOS (CMOS) technology, integrated with p-type and n-type enhancement mode transistors.
Technical Specification:
- Part number: CD4023
- Technology Family: CD4000
- VCC: 3V to 18V
- Bits (#): 12
- Voltage (Nom): 5, 10, 15V
- F @ nom voltage (Max): 8MHz
- ICC @ nom voltage (Max): 0.03mA
- Tpd @ nom Voltage (Max):160ns
- IOL (Max): 1.5mA
- IOH (Max): -1.5mA
- Operating temperature range (C): -55°C to 125°C
Features:
- Three Independent 3-input NAND Gates
- Standard Pin Configuration
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Burglar alarm
- Freezer warning buzzer
- A light-activated burglar alarm
- A push-button lock
