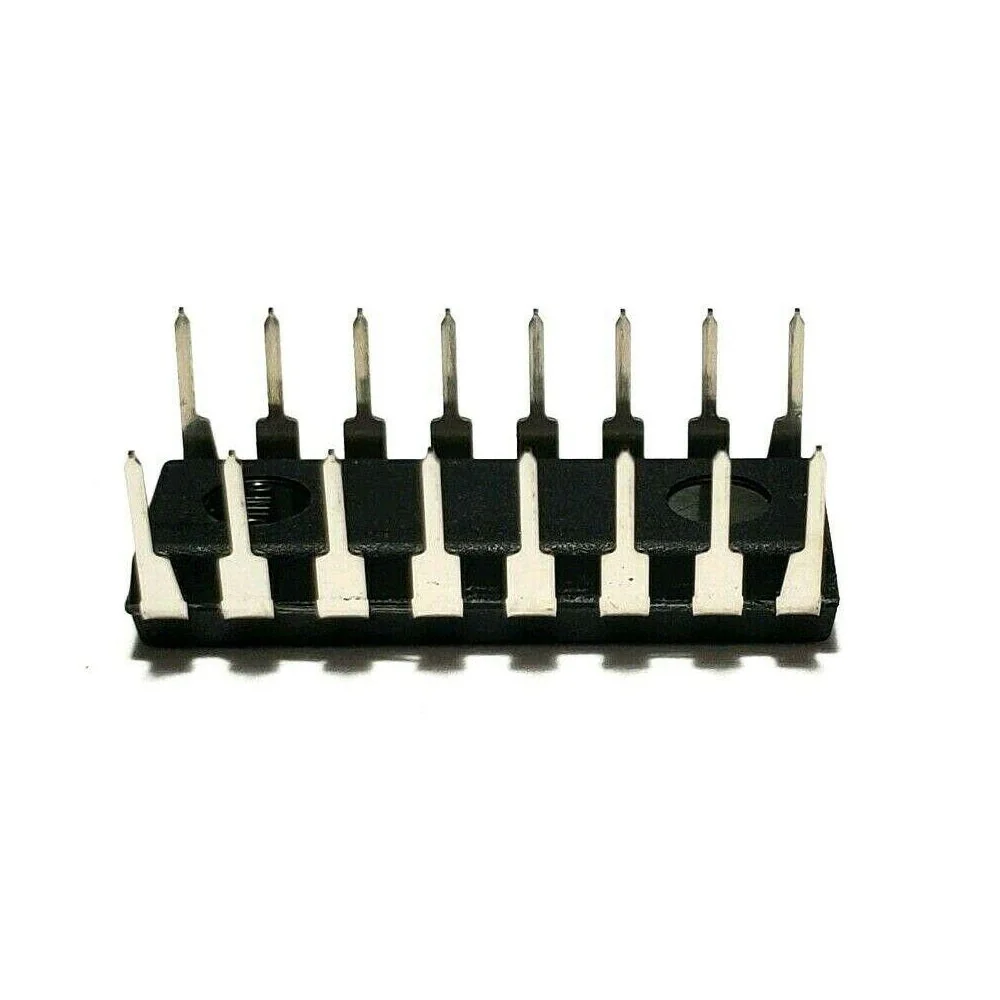

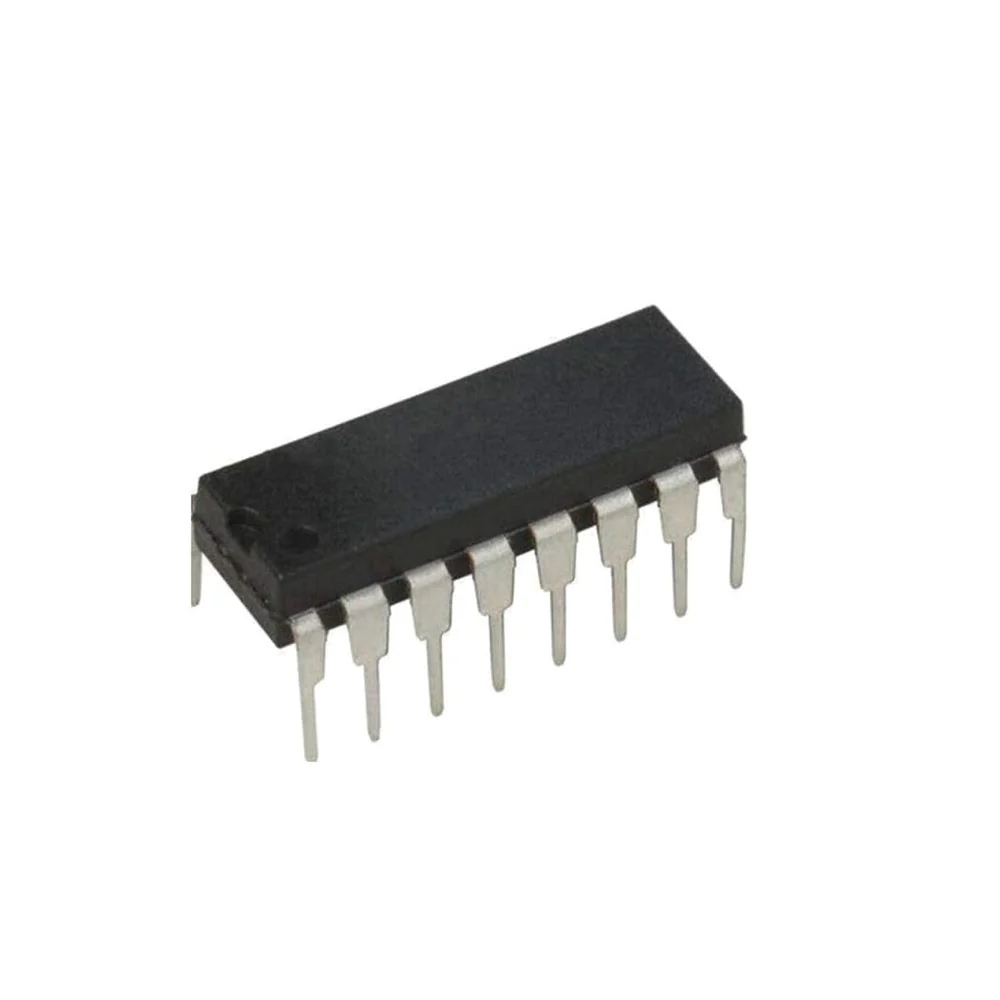

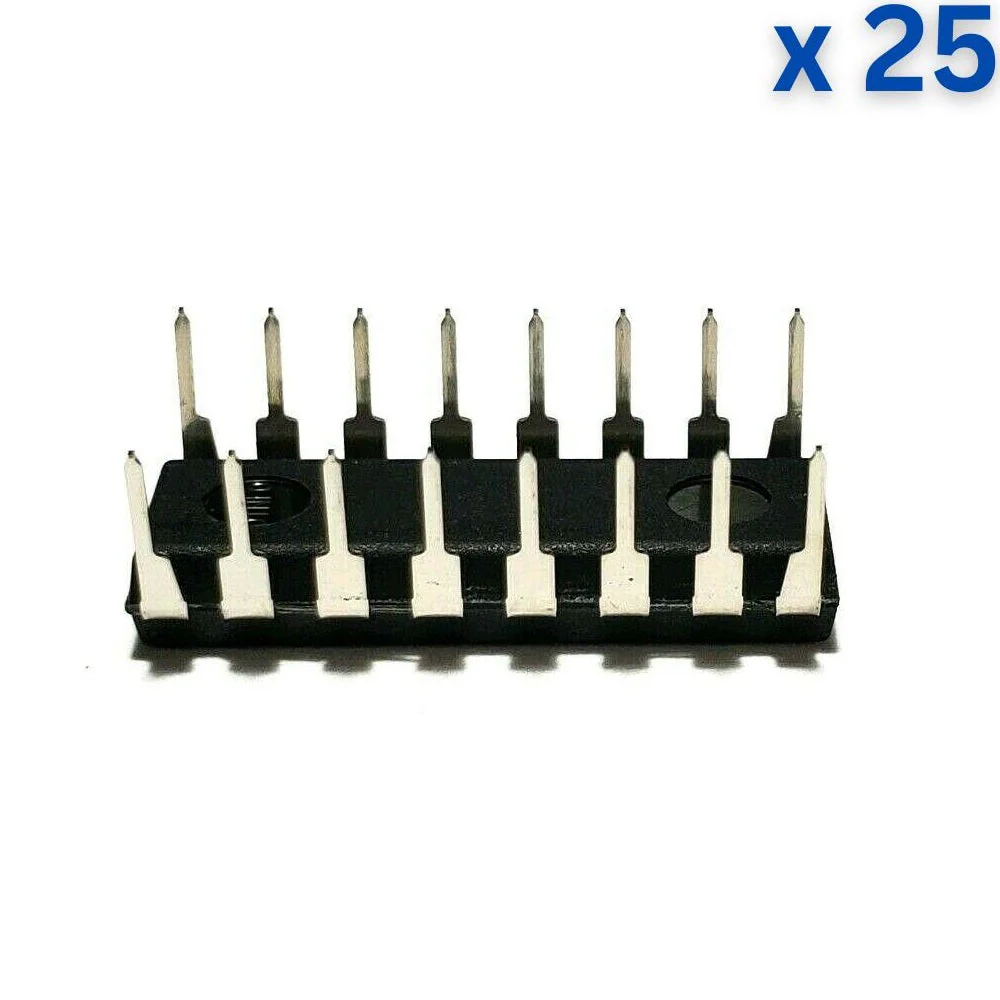

CD4026 Decade Counter/Divider IC DIP-16 Package
CD4026 is constructed using the complementary MOS (CMOS) technology, integrated with p-type and n-type enhancement mode transistors. CD4026 consists of a 5 stage Johnson decade counter and an output decoder which converts the Johnson code to a 7 segment decoded output for driving one stage in a numerical display.
Technical Specification:
- Function: Counter
- Product Category: Counter ICs
- Product Type: Counter ICs
- Counter Type: Decade
- Number of Bits: 7 bit
- Counting Sequence: Up
- Operating Supply Voltage: 3 ~ 18 V
- Output Current: +/- 1.5 mA
- Minimum Operating Temperature: -55 ~ +125°C
Features:
- 5-stage Johnson Decade Counter with 7-segment Decoded Output
- Display Enable Output
- Wide Operating Voltage Range
- Low Power CMOS
Applications:
- Used in 7-segment counter projects
- Can be used to count people or objects crossing a point
- Has capability to display a wide range of numbers from 0 – 999
- Used in project where Microcontrollers should be avoided
